Smallest Elfin-EG10 Serial Port Device Connect to Network Modbus TPC IP Function RJ45 RS232 to GSM GPRS Serial Server

  The Elfin-EG10 unit is a complete solution for serial port device connecting to network. This powerful device supports a reliable and proven operating system stored in flash memory, an embedded web server, a full TCP/IP protocol stack,and standards-based (AES) encryption.
Elfin-EG10 serial server for data transfer via GSM/GPRS, which makes the data transformation very simple.

Characters for Smallest Elfin-EG10 Serial Port Device Connect to Network Modbus TPC IP Function RJ45 RS232 to GSM GPRS Serial Server

1. Quad-band global (850/900/1800/1900MHz) 2. Support GSM/GPRS network, support 2G/3G/4G mobile Unicom SIM card 3. Support RS232 to GPRS data transmission, serial port speed up to 460800bps 4. Supports up to 5 TCP/UDP connections, each connection supports 1400 bytes of data cache, and the network channel can be bound to the serial port. 5. Support multiple working modes: network transparent transmission mode, HTTP mode 6. Support IOTService software configuration, which can dynamically modify module parameters remotely through the network 7. Support SMS AT command configuration function 8. Supports the registration package (registered packet content, sending method), heartbeat packet (heartbeat packet content, sending mode, sending interval) function, and the registration package supports ICCID, IMEI, IMSI, software version number, GPRS connection status and other combinations. 9.  Support NTP to get real time. 10. Support Modbus TCP to Modbus RTU 11.  Support industrial control cloud IOTBridge, can be set to connect and send heartbeat maintenance from 10:00 to 10:30 every day, so that IOTService can be remotely configured, disconnected at other times, and does not send heartbeat; 12. Support serial port, network OTA upgrade device firmware. 13. Size: 61 x 26 x 17.8mm 14. 5 ~ 18V wide power supply

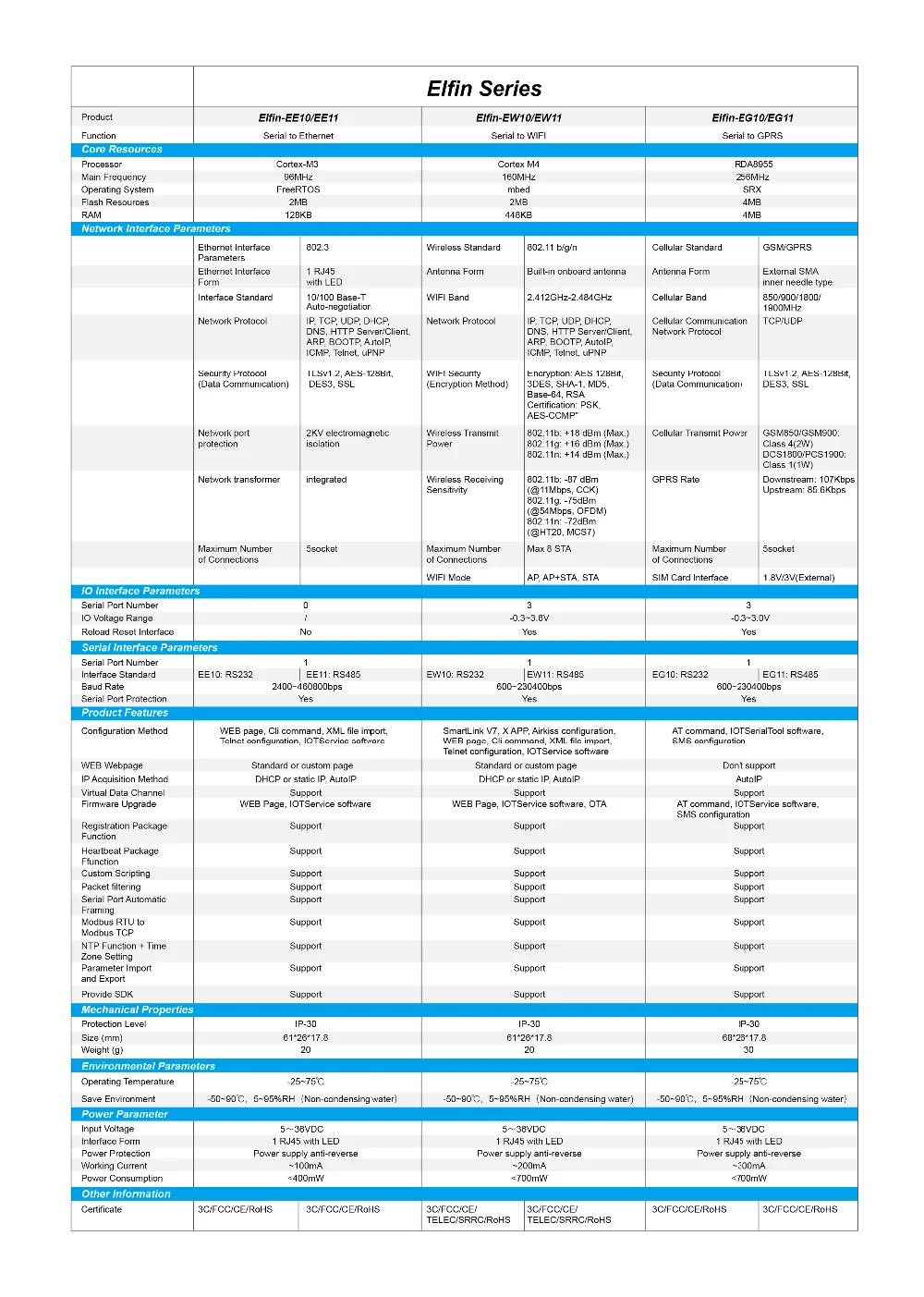

Specifications

Smallest Elfin-EG11 Serial Port Device Connect to Network Modbus TPC IP Function RJ45 RS485 to GSM GPRS Serial Server

Internet Type	GSM/GPRS
Data Rate	85.6Kbps (DL,UL)
Frequency	850/ 900/1800/1900MHz
Multi-Slot Class	GPRS Class 12
Terminal Device Class	Class B
Coding Schemes	CS1，CS2，CS3，CS4
Max Transmit Power	GSM850/GSM900: Class 4(2W) DCS1800/PCS1900: Class 1(1W)
Application	AT Command
Network Protocol	TCP/UDP
Max Link	5
SIM Card	1.8V/3V
Antenna Interface	SMA
Port Interface	1
Data Bits	7，8
Stop Bit	1，2
Charity Bit	None，Even，Odd
Flow Control	No Flow control Hardware RTS/CTS、DSR/DTR Software Xon/ Xoffflow control
Buffer	1400KB
Size	61 x 26 x 17.8mm
Input Voltage	5V～18VDC
Work Current	～300mA
Power	GSM 850：82～189mA EGSM 900：83～203mA DCS 1800：78～150mA PCS 1900：78～136mA
