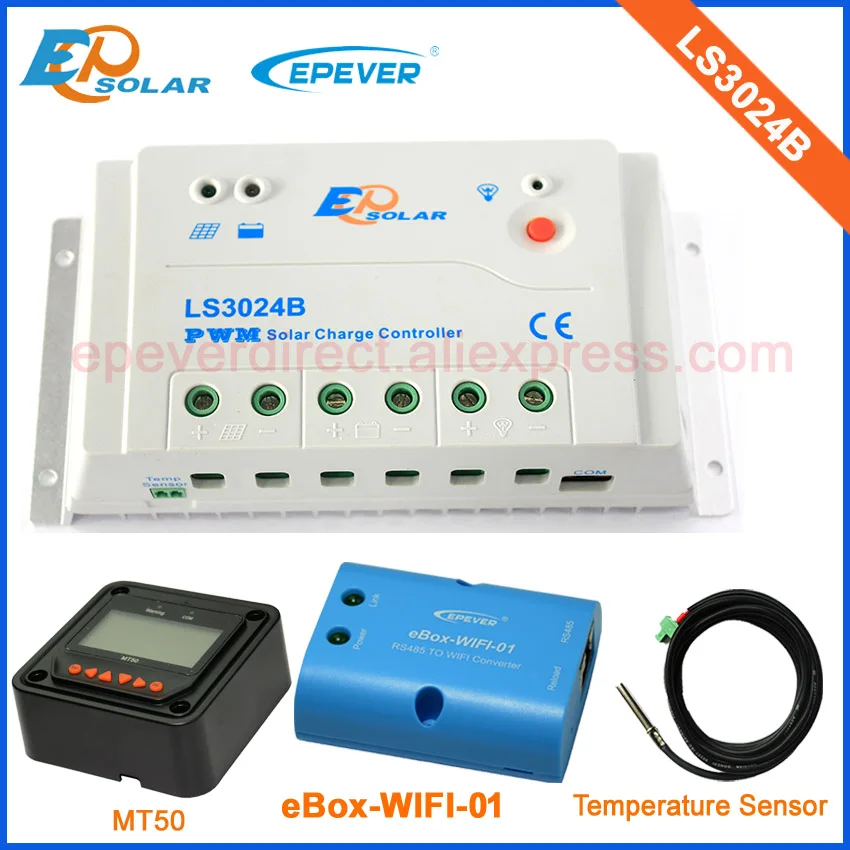

PWM EPEVER Controller для солнечной системы освещения EPsolar LS3024B 30 А 12 В/24 В работает от
5 870,99 - 13 030,24 руб.

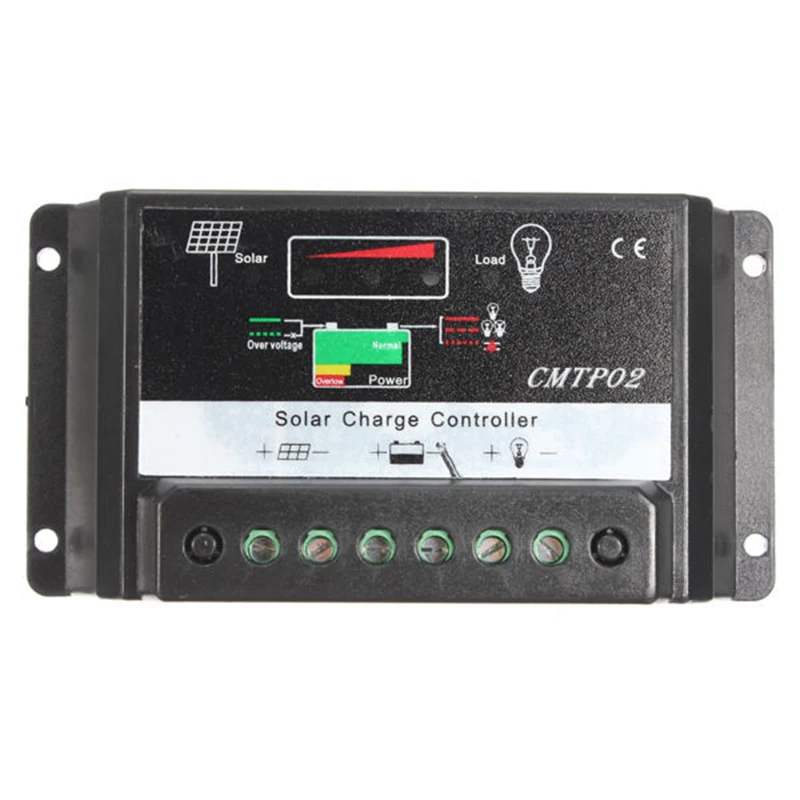

Лучшая цена 30A ШИМ Солнечная панель регулятор заряда батареи 12 В/24 В Авто |
EPsolar tracer 1210rn max pv input voltage 100v mppt control 10a 12v ce solar controller | Обустройство дома
LS2024B с датчиком температуры PWM LandStar серия Новый EPEVER солнечный регулятор зарядного
4 687,07 руб.

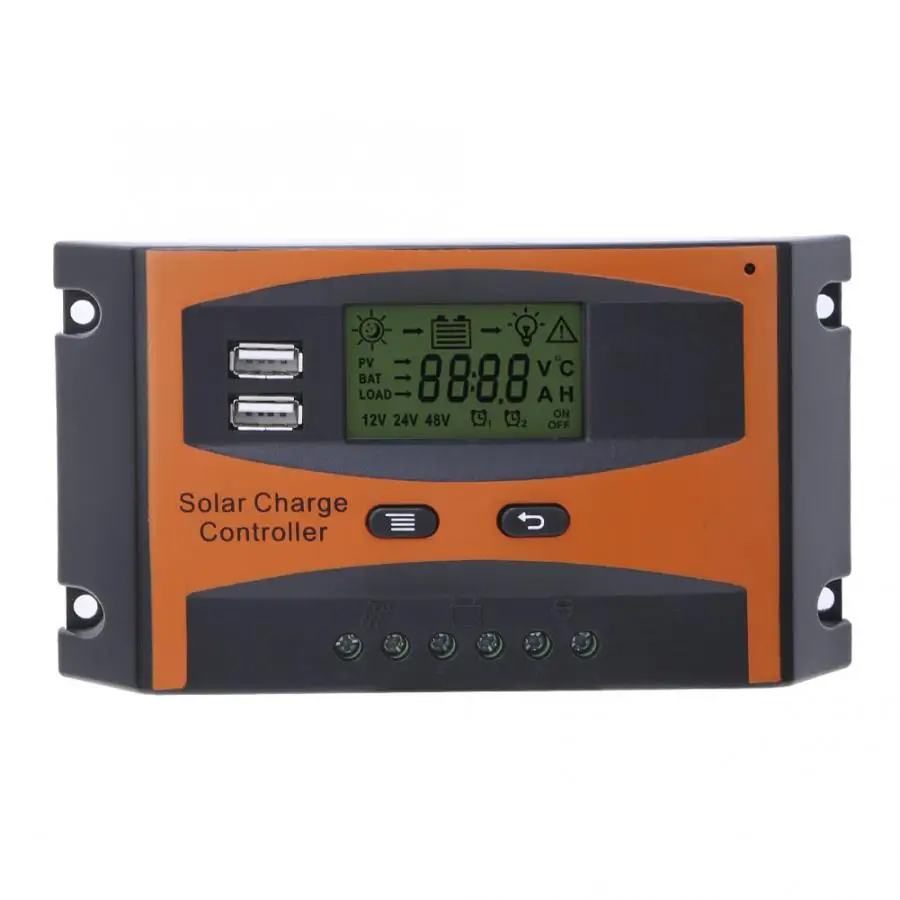

Контроллер заряда солнечной батареи MPPT автоматическая идентификация 12/24 в
HA01 эквалайзер напряжения солнечной батареи для 24 В свинцово-кислотный гель

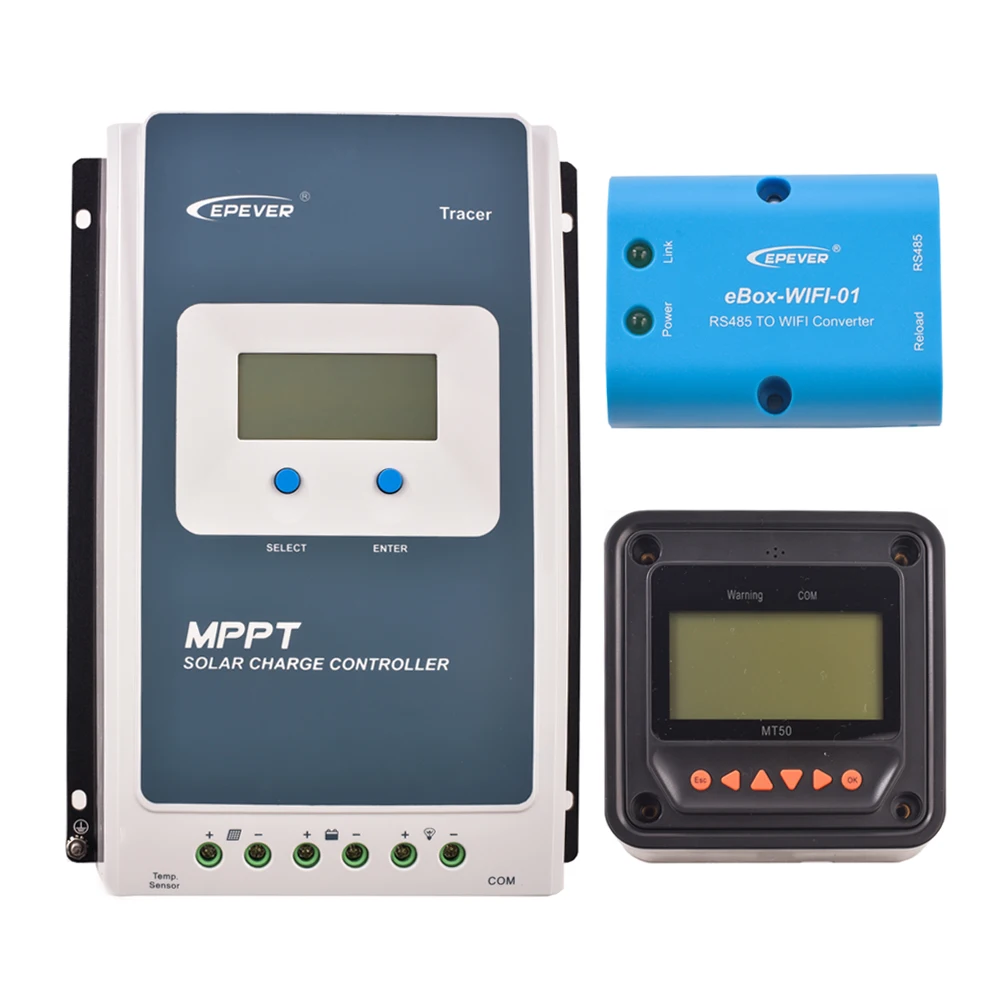

Контроллер заряда солнечной батареи MPPT трассировщик 3210AN 30A 12 В 24 автоматический
15 048,45 - 19 228,29 руб.
YXD WISH YXD WISH Store
Магазина YXD WISH YXD WISH Store работает с 02.06.2020. его рейтинг составлет 94.98 баллов из 100. В избранное добавили 1994 покупателя. Средний рейтинг торваров продавца 4.8 в продаже представленно 854 наименований товаров, успешно доставлено 15593 заказов. 6935 покупателей оставили отзывы о продавце.
Характеристики
4.2V Balance Protection Board Batteries 18650 Li-ion Lipo Battery Lithium 3S 4S 5S 6S 7S 8S Charging Diy | Обустройство дома
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-18-2026 | 0.78 руб. | 0.31 руб. | 0 руб. |
| Feb-18-2026 | 0.84 руб. | 0.56 руб. | 0 руб. |
| Jan-18-2026 | 0.49 руб. | 0.67 руб. | 0 руб. |
| Dec-18-2025 | 0.66 руб. | 0.29 руб. | 0 руб. |
| Nov-18-2025 | 0.74 руб. | 0.58 руб. | 0 руб. |
| Oct-18-2025 | 0.94 руб. | 0.2 руб. | 0 руб. |
| Sep-18-2025 | 0.76 руб. | 0.46 руб. | 0 руб. |
| Aug-18-2025 | 0.18 руб. | 0.32 руб. | 0 руб. |
| Jul-18-2025 | 0.86 руб. | 0.78 руб. | 0 руб. |
Описание товара

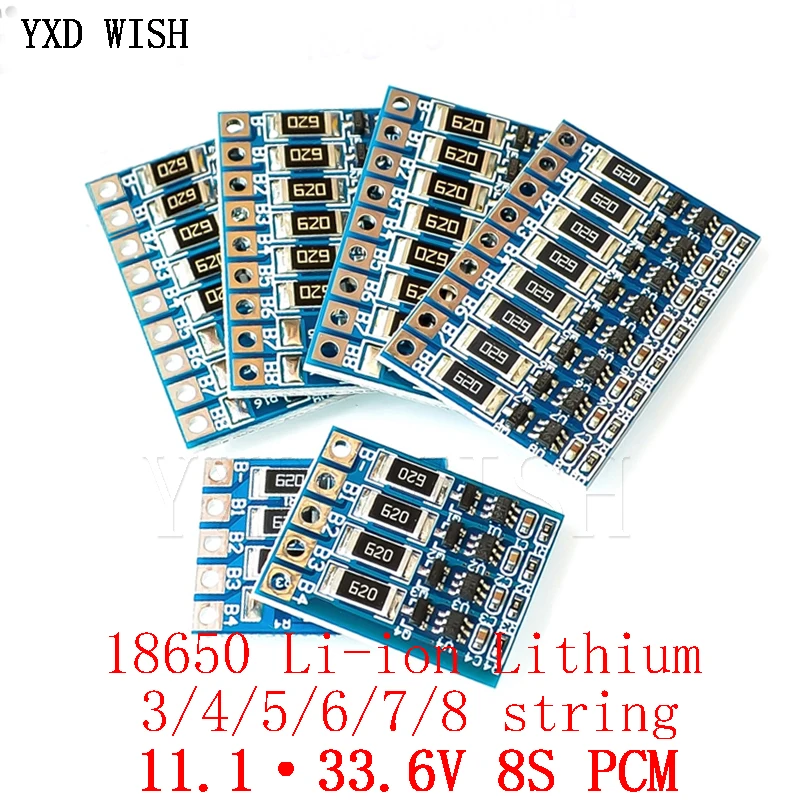

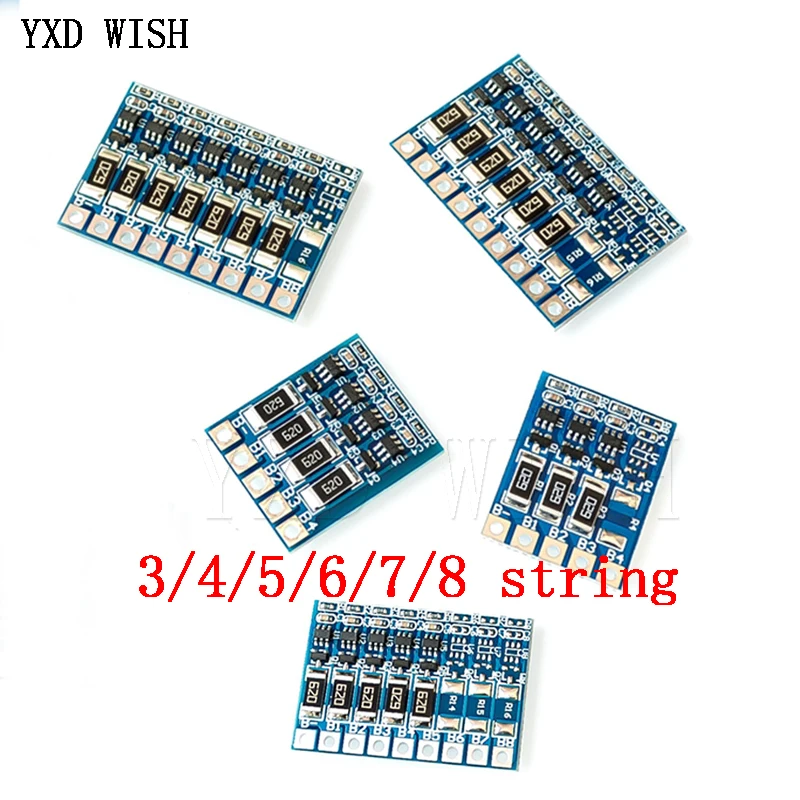

4.2V Balance Protection Board Batteries Balance 18650 Li-ion Lipo Battery Lithium 3S 4S 5S 6S 7S 8S Battery Charging Board Diy
Specification:

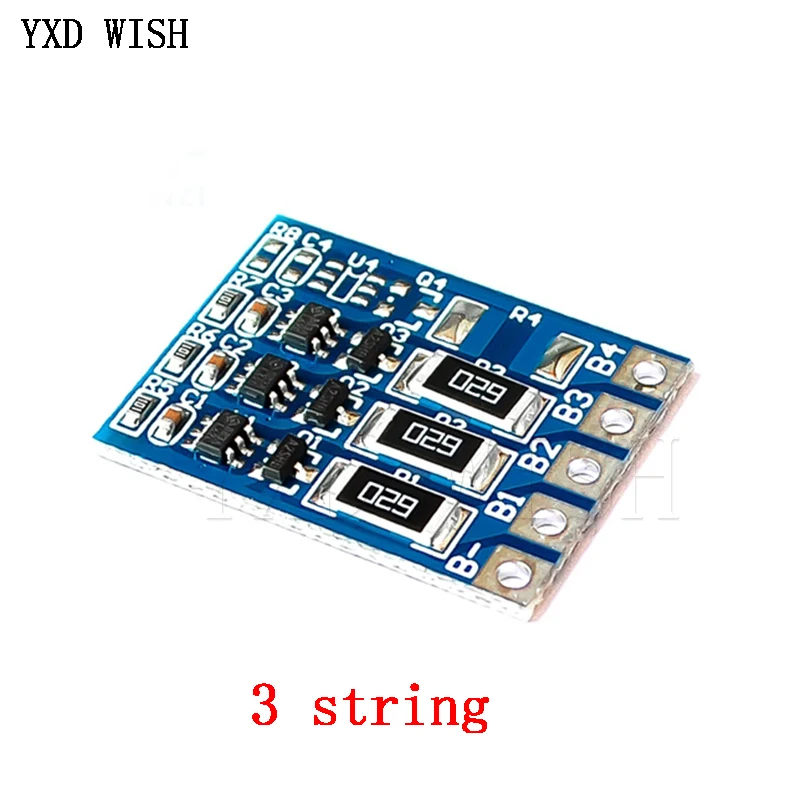

3 series 4 series battery equalization board parameters
Features: 4.2V equalization voltage, equalization current is 66mA;
Purpose: charge balance
Technical parameters: balanced voltage and balanced current
Precautions:
This equalization board is suitable for lithium battery packs without equalizing charge. The charge equalization makes each battery pack in the battery pack fully charged at the same time.
This equalization board has no charge and discharge protection function and cannot replace the protection board. When the battery is charged, the first fully charged battery is discharged through a resistor to balance the shunt.
Solder point description:
B4 no need to connect
B3 Connect the positive terminal of the battery pack
B2 Connect to the contacts in battery 2 and battery 3
B1 Connect to the contacts in battery 1 and battery 2
B－ Connect the negative pole of the battery pack;
Product size: 26*20.5*2.4mm
4 strings of battery equalization board parameters:
Features: 4.2V equalization voltage, equalization current is 66mA;
Solder point description:
B4 connect to the positive pole of the battery pack
B3 Connect the contacts in battery 1 and battery 2
B2 Connect to the contacts in battery 2 and battery 3
B1 Connect to the contacts in battery 3 and battery 4
B－ Connect the negative pole of the battery pack;
Product size: 26*20.5*2.4mm
5 Strings of battery equalization board parameters
Features: 4.2V equalizing effect, acting current is 68mA;
Welding point description:
· B5 is connected to the positive pole of the battery pack;
· B4 connects to the contacts of battery 4 and battery 5;
· B3 is connected to the contacts of battery 3 and battery 4;
· B2 connects to the contacts of battery 2 and battery 3;
· B1 is connected to the contacts of battery 1 and battery 2;
· B- Connect the negative pole of the battery pack;
Product size: 37.3*25.8*2.4mm
6 series battery balance board parameters
Features: 4.2V equalization voltage, equalization current is 66mA;
Solder point description:
B－ Connect the negative pole of the battery pack
B1 Connect to the contacts in battery 1 and battery 2
B2 Connect to the contacts in battery 2 and battery 3
B3 Connect to the contacts in battery 3 and battery 4
B4 Connect to the contacts in battery 4 and battery 5
B5 Connect to the contacts in battery 5 and battery 6
B6 connect to the positive pole of the battery pack
Product size: 37.3*25.8*2.4mm
7 series battery balance board parameters
Features: 4.2V equalization voltage, equalization current is 66mA;
Solder point description:
B－ Connect the negative pole of the battery pack
B1 Connect to the contacts in battery 1 and battery 2
B2 Connect to the contacts in battery 2 and battery 3
B3 Connect to the contacts in battery 3 and battery 4
B4 Connect to the contacts in battery 4 and battery 5
B5 Connect to the contacts in battery 5 and battery 6
B6 Connect to the contacts in battery 6 and battery 7
B7 connect to the positive pole of the battery pack
Product size: 37.3*25.8*2.4mm

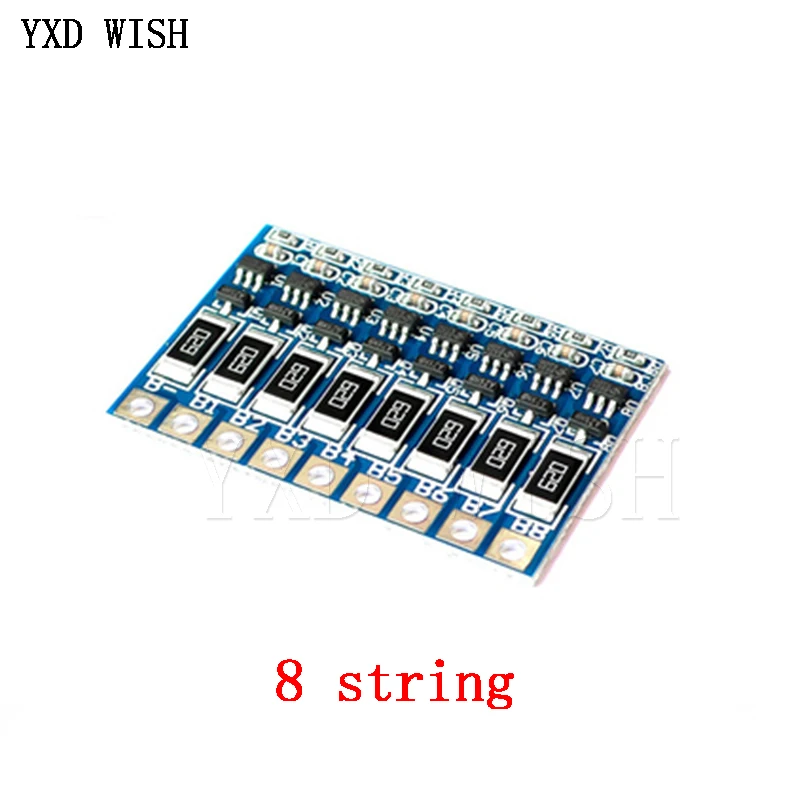

8 string battery balance board parameters
Features: 4.2V equalization voltage, equalization current is 66mA;
Solder point description:
B－ Connect the negative pole of the battery pack
B1 Connect to the contacts in battery 1 and battery 2
B2 Connect to the contacts in battery 2 and battery 3
B3 Connect to the contacts in battery 3 and battery 4
B4 Connect to the contacts in battery 4 and battery 5
B5 Connect to the contacts in battery 5 and battery 6
B6 Connect to the contacts in battery 6 and battery 7
B7 Connect to the contacts in battery 7 and battery 8
B8 connect to the positive pole of the battery pack
Product size: 37.3*25.8*2.4mm
