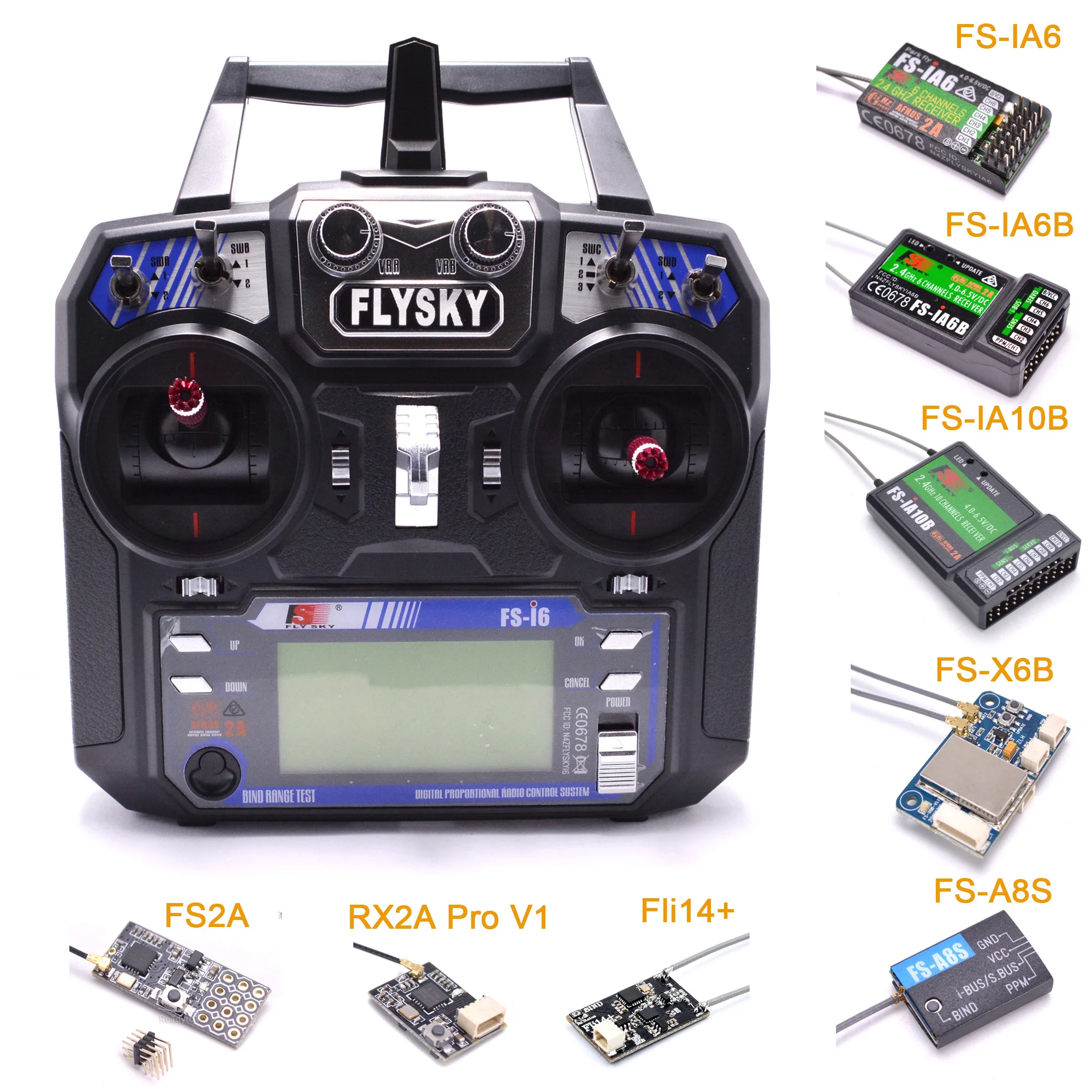

FLYSKY FS-i6 i6 2.4G 6CH AFHDS Transmitter With iA6B X6B A8S R6B iA10B RX2A Receiver Radio Controller for RC FPV Drone Airplane | Игрушки и

FLYSKY FS-i6 i6 2.4G 6CH AFHDS Transmitter With iA6B X6B A8S R6B iA10B RX2A Receiver Radio Controller for RC FPV Drone Airplane | Игрушки и

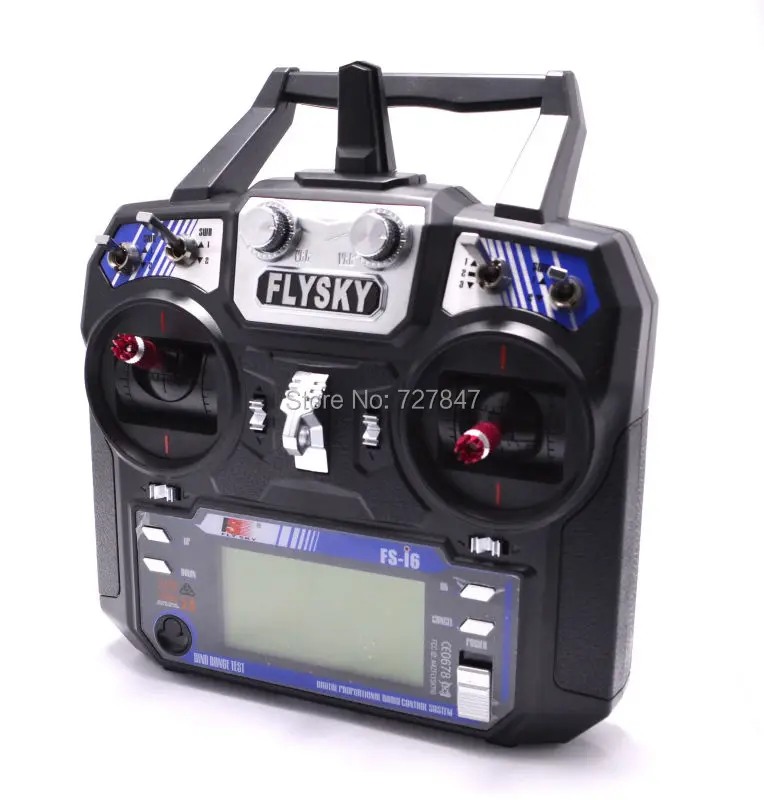

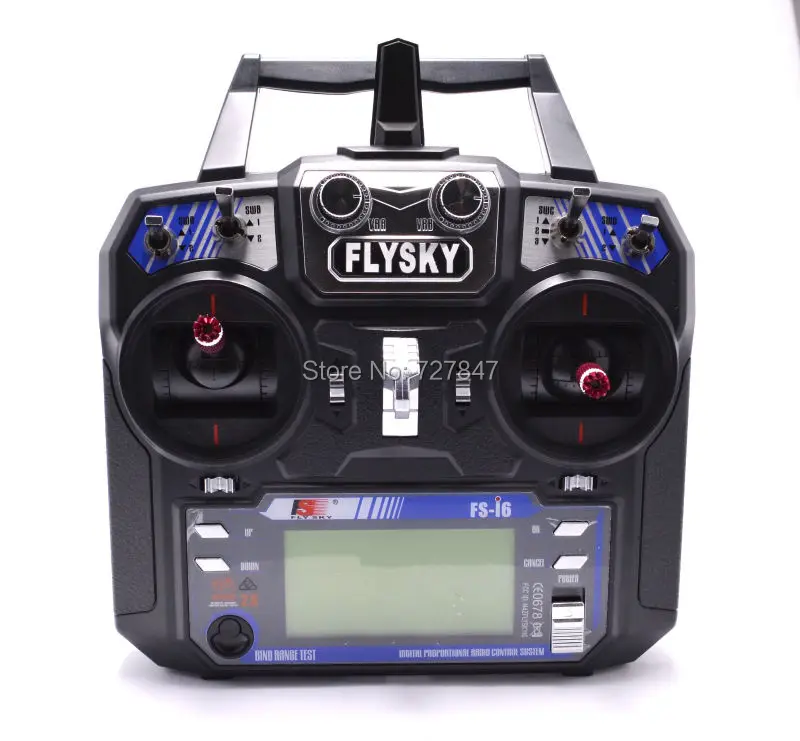

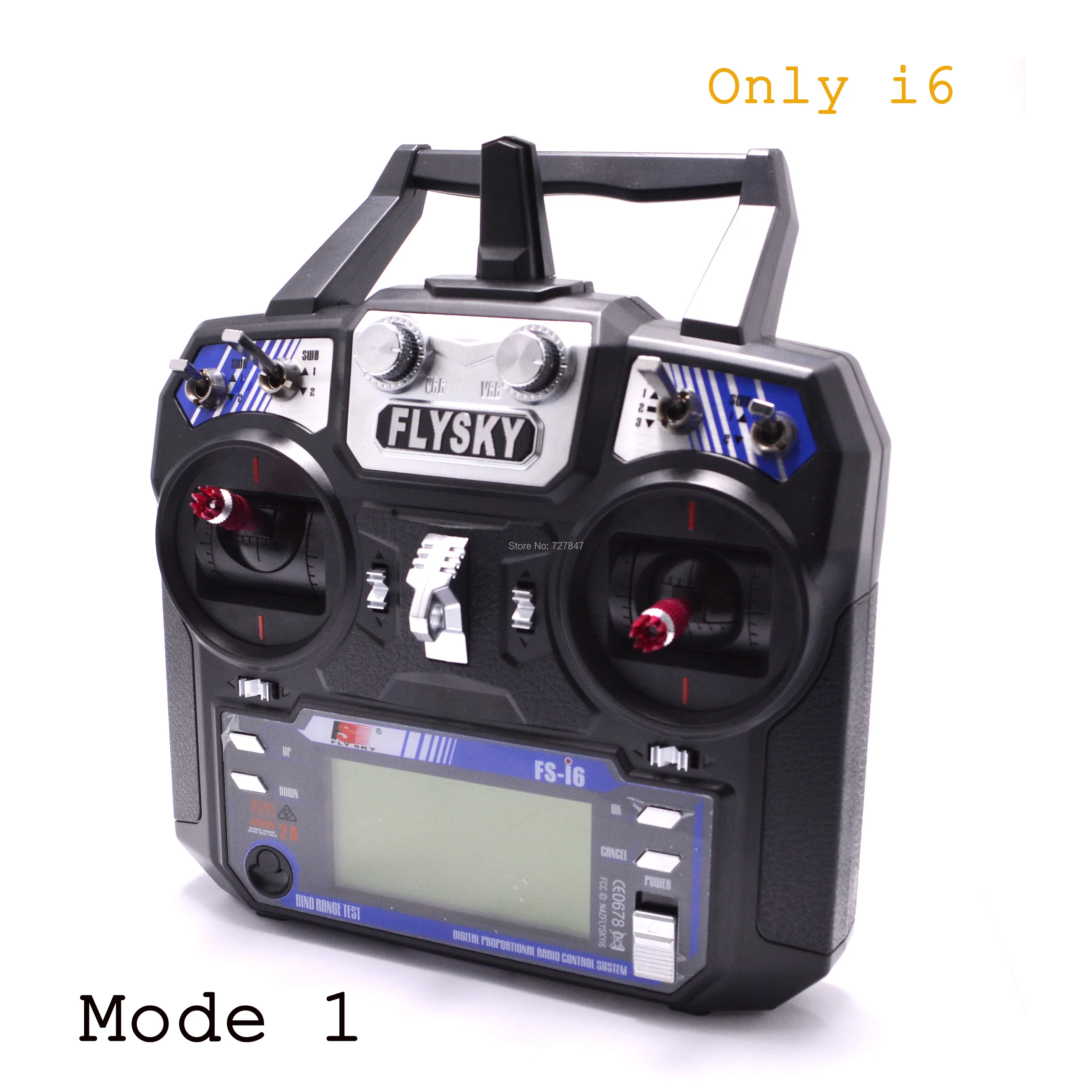

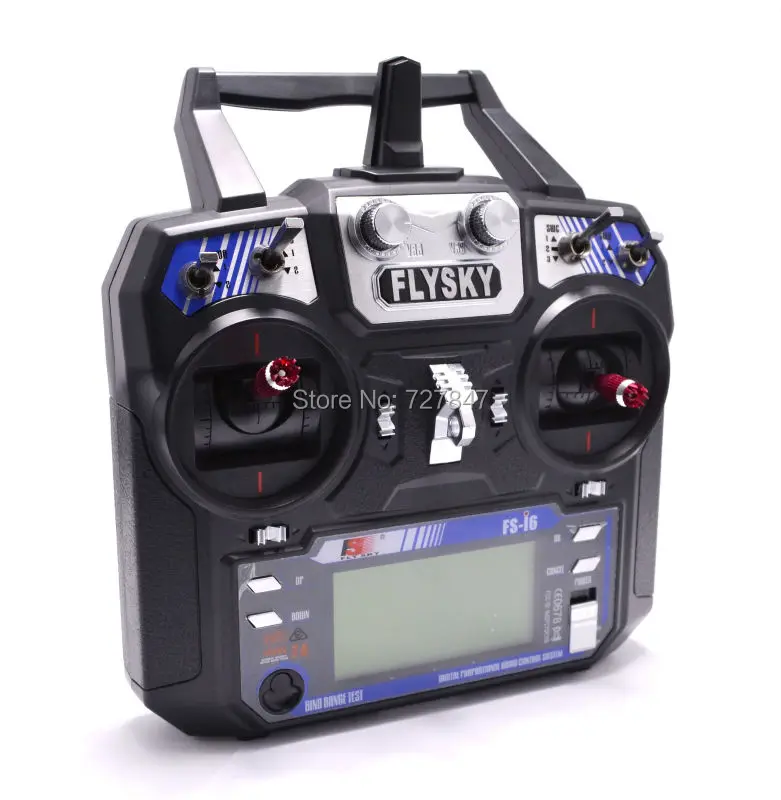

 Mode 1 is Right Hand Throttle, mode 2 is Left Hand Throttle Brand Name: FlySkyItem Name: FS-i6 transmitterChannel: 6Model Type: fixed wing/helicopter/gliderChannel resolution: 1024 stepsLow voltage warning: less than 4.2vANT length: 26 x 2mm( dual antenna)Weight: 392gBattery: 6v 1.5AA x 4(not included)eSize: 174 x 89 x 190 mmColor: blackCertificate: CE ,FCC RF specification:RF Range: 2.405 - 2.475GHzBandwidth: 500khzRF Power: less than 20dBmRF mode: AFHDS 2AModulation type: GFSKRX Sensibility: -105dBm Receiver specification:Channel: 6Model type: fixed wing/helicopter/gliderRF receiver sensitivity: -105dBmModulation: GFSKSystem type: AFHDS2A/AFHDSChannel resolution: 1024 stepsBind port: yesPower port: yes( VCC)Power: 4V -6.5V DCWeight: 6.4gAntenna lenght: 26mmSize: 40.4 x 21.1 x 7.35 mmCertificate: CE ,FCC Features:Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.Silm design on transmitter for easy handling! This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety. This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption. AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs. AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.  FS-iA6B Specifications:

Item Name: FS-iA6B
Channel: 6
Frequency Range: 2.4055--2.475GHZ
Band Width Number: 140
Transmitting Power:  20dBm
RF Receiver Sensitivity: -105dbm
2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
Encoding: GFSK
Antenna Length: 26mm * 2 (dual antenna)
Input Power: 4.0-6.5V DC
Dimension: 47 x 26.2 x 15mm
Weight: 14.9g
Package Weight
Color: Black
i-Bus Interface: Yes
Data Acquisition Interface: Yes
Model Type: Airplane / Glider / Helicopter
Compatible Transmitter: Compatible with FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2G

Features:
Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.

This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission

Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.

This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.

AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.

AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.

FS-X6B Specifications:

Item: X6B i-BUS 2.4GHz 6CH Receiver

Item name: FS-RX2A Pro V1 receiver

Channel: 10(IBUS), 8(PPM)
RF Range: 2.408-2.475GHZ
Number of bands: 135
RX Sensitivity: -92dBm
2.4GHz protocol: AFHDS 2A
Signal output: IBUS, PPM
Antenne length: 33mm
Power input: 5.0-20V
Control distance: 500m+
Current: 30MA
Size: 12*15mm
Weight: 0.9g

Item Name: 2.4G 14CH Compatible Flysky AFHDS-2A Receiver

Features:
Works in the frequency range of 2.405 to 2.475GHz.This brand has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.

This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency brand. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission

Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.

This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.

AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.

AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.
