The CL8038 precision function generator is a monolithic integrated circuit chip made with advanced technology such as Schottky potential diodes. It has the advantages of wide power supply voltage range, high stability and high precision, and easy to use.
It can work with only a few external components. It can generate square waves, triple-cornered waves and sine waves at the same time. The frequency of the function waveform is controlled by internal or external voltage. It can be applied to voltage-controlled oscillation and FSK modulators.
It has low frequency drift when temperature changes, the maximum is not 50ppm/ Celsius; it has a variety of function signal output such as sine wave, triple-cornered wave and square wave; sine wave output has a distortion degree of less than 1%; triple-cornered wave output With 0.1% high linearity; with a frequency output range of 0.001Hz~1MHz.
The working cycle can be adjusted arbitrarily between 2% and 98%; the high level output range is from TTL level to 28V; it is easy to use, and only requires few external conditions.
ICL8038 is an integrated circuit with a variety of waveform output, only need to adjust individual external components can generate low distortion sine wave, triple-cornered wave, rectangular wave and other pulse signals from 0.001Hz to 300kHz. The rate and duty cycle of the output waveform can also be controlled by current or resistance. In addition, because the chip has an FM signal input terminal, it can be used for frequency modulation of low-frequency signals.

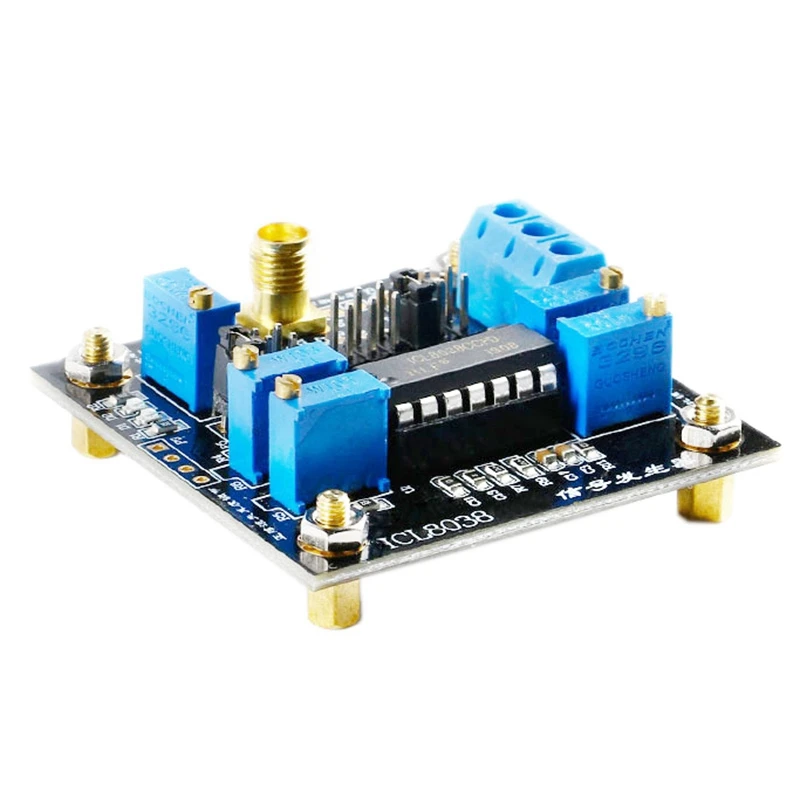

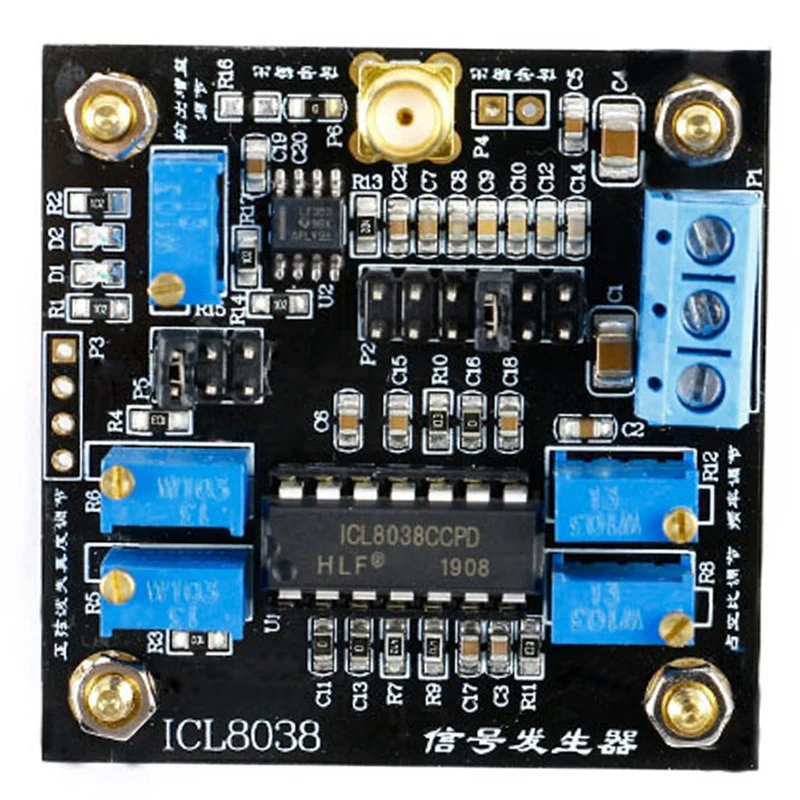

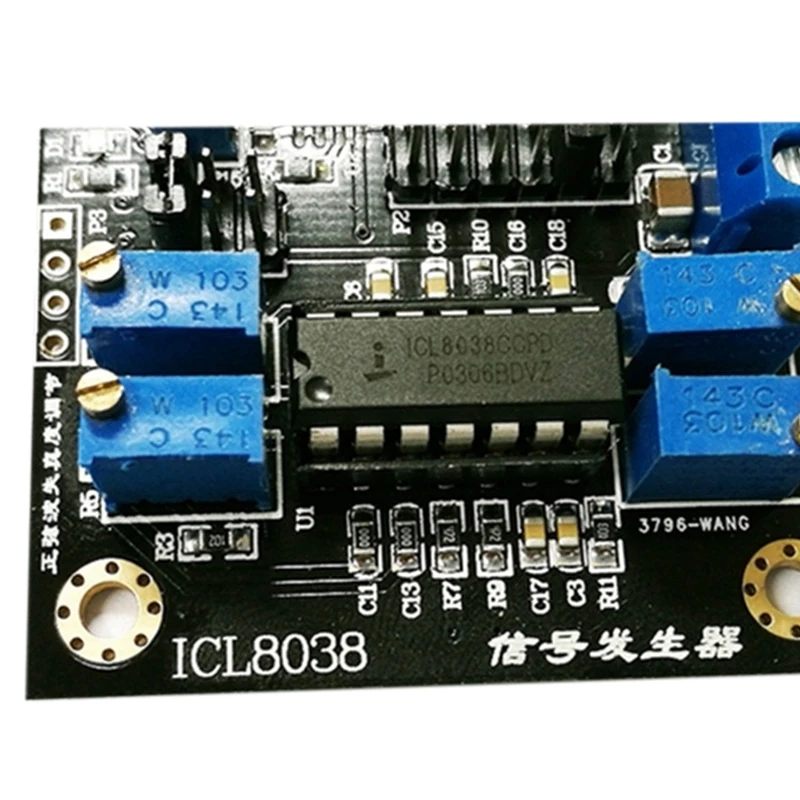

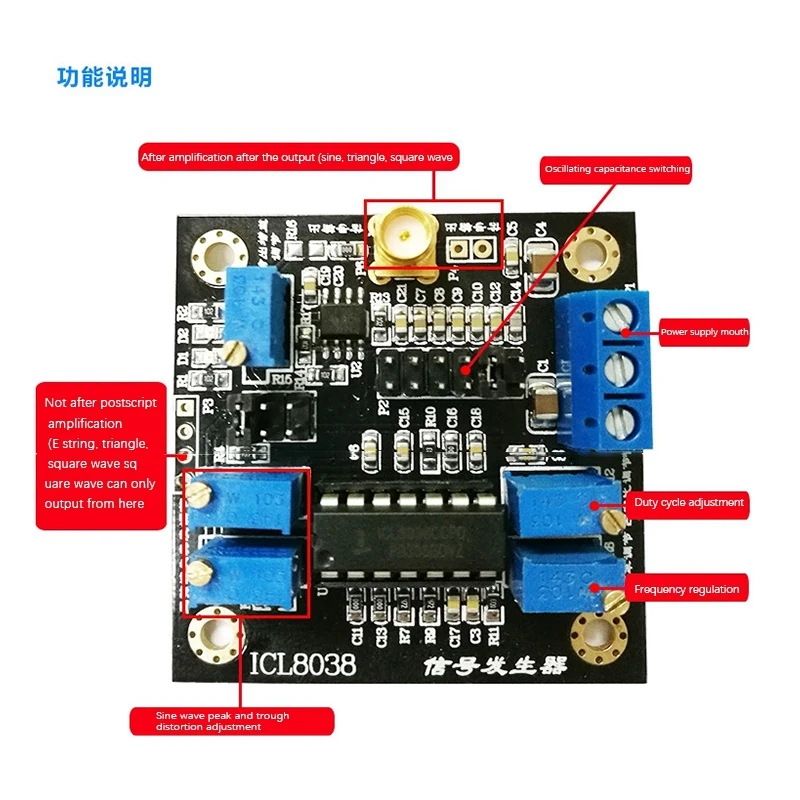

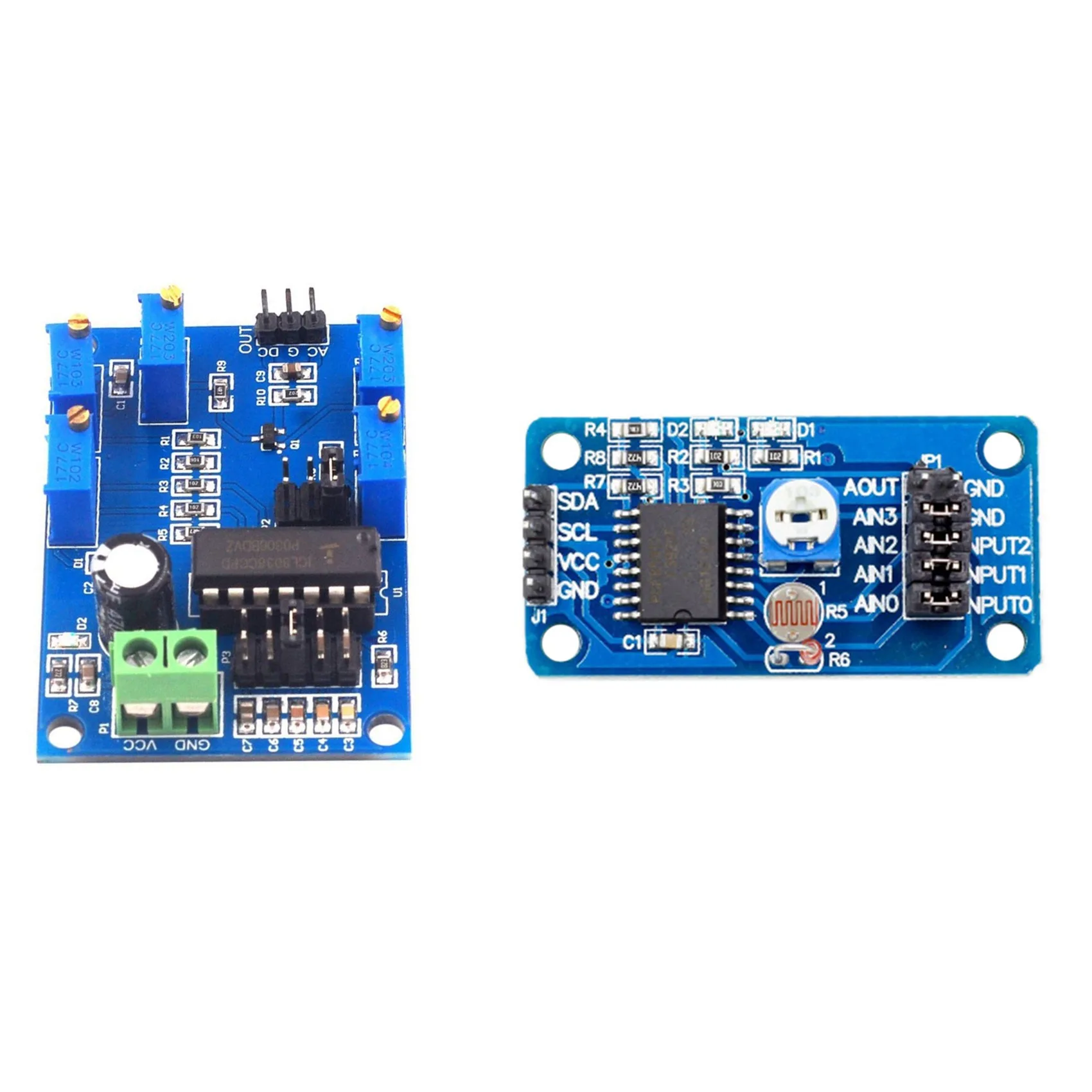

Module name: lCL8038 low frequency signal source module
Module power supply: +/- 5~ +/- 15V (MAX) (the greater the power supply, the greater the output amplitude)

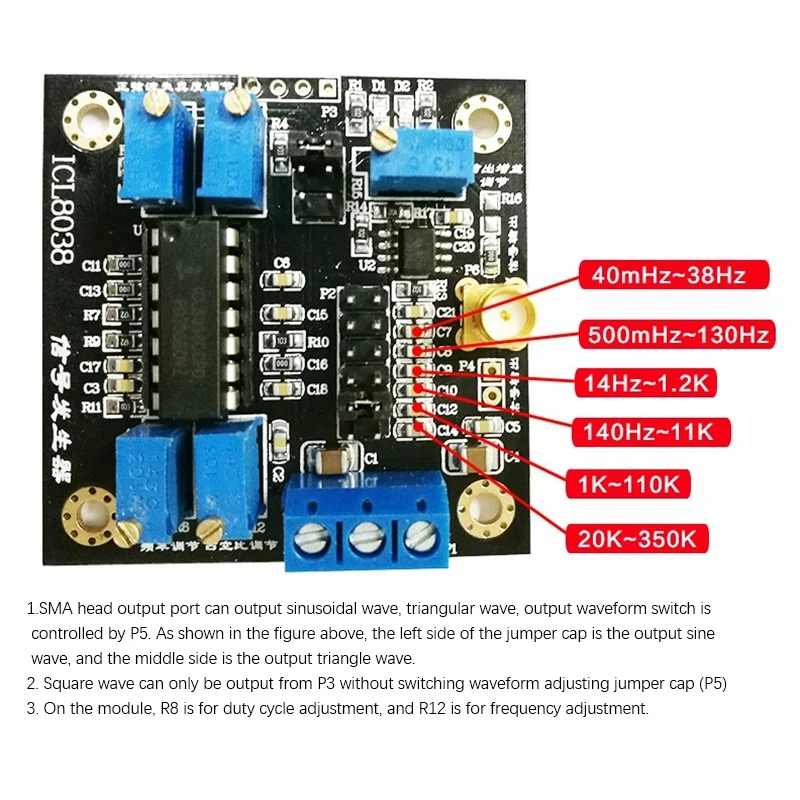

Module bandwidth: 0.001Hz~300KHz (the measured range of the module is 004Hz~350K)
Module output waveform: sine wave, square wave, triple-cornered wave
Maximum output voltage: within power supply (when not passing through the later stage op amp, the output sine wave is about 0.2*vs, the triple-cornered wave is about 0.3*Vs, the square wave is about 1*Vs, and Vs is the power supply voltage)
Adjustable range of duty cycle: 2%~98%
High linearity: 0.1% (triangular wave output)
Low distortion: 1% (sine wave output)
Low frequency drift and temperature: 250ppm/ Celsius
Output impedance: close to 0 ohm (output by P6 port); 10KQ (output by P3 port)
Operating temperature: 0~70 Celsius
Chip composition: ICL8038, LF353
Colour: black
Material: PCB+metal

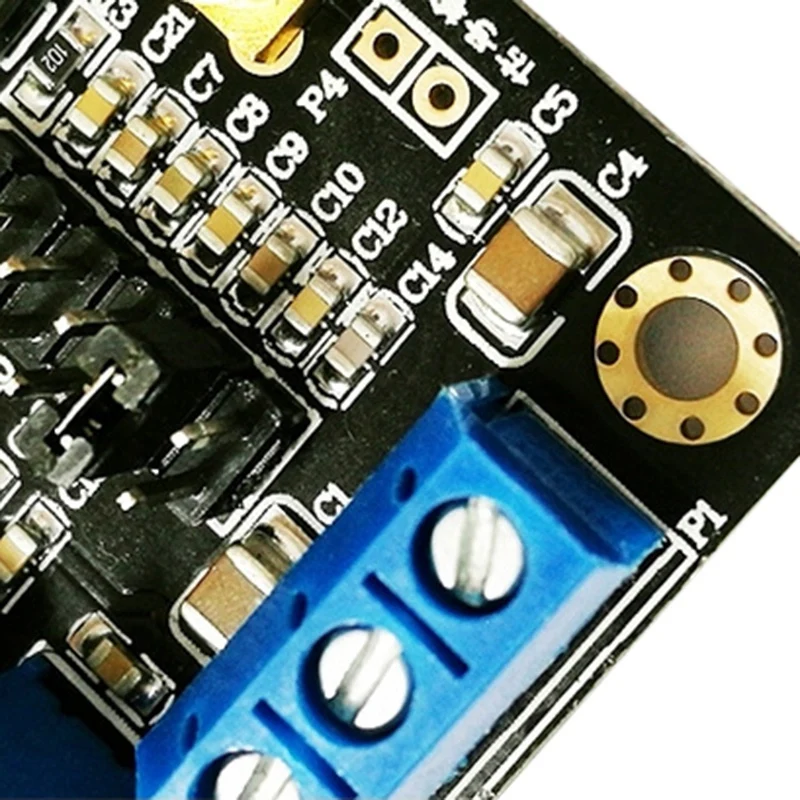

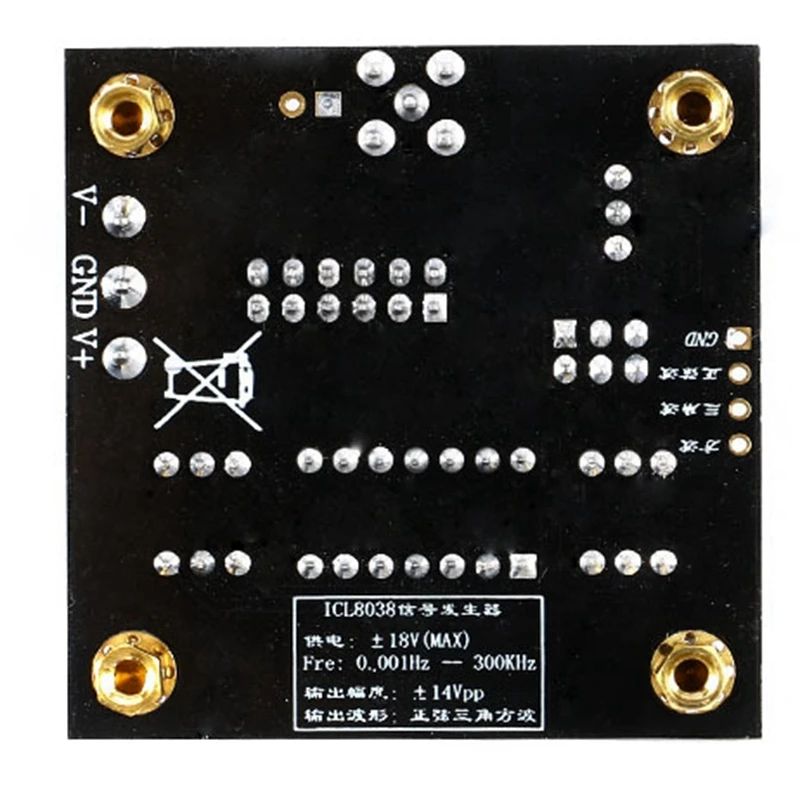

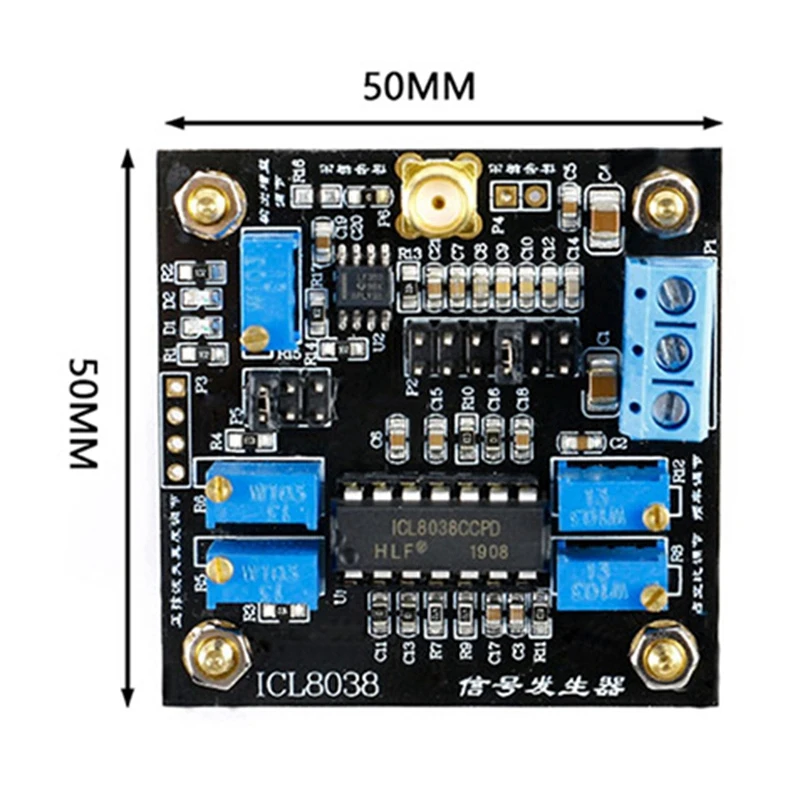

Size: 50x50mm
