Характеристики
2шт T1000S SD карта WS2801 APA102 WS2811 WS2812B LPD6803 LED 2048 пикселей контроллер DC5~24V T-1000S RGB on.
История изменения цены
*Текущая стоимость 3525.16 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-18-2026 | 4477.55 руб. | 4567.78 руб. | 4522 руб. |
| Jan-18-2026 | 3631.85 руб. | 3704.37 руб. | 3667.5 руб. |
| Dec-18-2025 | 4406.58 руб. | 4494.30 руб. | 4450 руб. |
| Nov-18-2025 | 4371.59 руб. | 4458.59 руб. | 4414.5 руб. |
| Oct-18-2025 | 3490.13 руб. | 3560.76 руб. | 3525 руб. |
| Sep-18-2025 | 4301.93 руб. | 4387.3 руб. | 4344 руб. |
| Aug-18-2025 | 4265.87 руб. | 4350.57 руб. | 4307.5 руб. |
| Jul-18-2025 | 4230.93 руб. | 4315.72 руб. | 4272.5 руб. |
Описание товара
Brand NameCHTPONModel NumberT-1000SItem TypeRGB ControlerPower SourceDCVoltage5-24VFeaturesRGB controllerCertificationceCertificationCCCCertificationROHSWarranty1yearRemote Distance0Applicable LightsRGB strip lightMeasurement unitpiece/piecesEach pack23 750,05 ₽-6%3 750,05 ₽-6%3 525,16 ₽3 525,16 ₽loader
Description
T1000S SD Card WS2801 WS2811 WS2812B LPD6803 LED 2048 Pixels Controller DC5~24V T-1000S RGB Controller
Description:
Memory card:
type:SD card
Capacity:128MB-2GB
Store file:*.led
Physical parameters:
Working temperature :-30-85degree celsius
Working voltage:DC5V / DC7.5-24V
Working power:2W
Weight:0.3kg
Size:L165mm×W80mm×H30mm
Signal port:3pin connect port
Package List:
T1000S Controller* 1piece
SD Card* 1piece
T-1000S System features
1.32-65536 Gray,Support software Gamma correction.
2.Support point, line, surface, rules and special-shaped handle.
3.Single-port output,can support 2048 pixels.
4.Multiple controllers can be cascaded together and work synchronous,
play back content stored in the SD card.
5.Compatible with single line or double line chips.
NOTE:
When T1000S controller load less than 512 pixels the frame rate can reach 30fps.
When T-1000s control more than 512 pixels the frame rate will slow down automatically.
| Support IC type | Module in LedEdit software | Pixel numbers | Remark |
| LPD6803,D705,1101,6909, 6912 | T-1000-6803 | 2048 pixel
|
|
| LPD8806,LPD8809 | T-1000-8806 | 2048 pixel |
|
| TM1803,TM1804,TM1809,TM1812 | T-1000-TM | 2048 pixel | TM1804 and TM1809 low speed and high speed |
| TM1903TM1904TM1909TM1912 | T-1000-TM19 | 2048 pixel |
|
| UCS6909UCS6912UCS7009UCS5903 | T-1000-UCS-32 | 2048 pixel |
|
| UCS1903UCS1909UCS1912 | T-1000-UCS-256 | 2048 pixel | low speed and high speed |
| UCS3903 | T-1000-UCS-1024 | 2048 pixel |
|
| DMX512 | T-1000-DMX | 170/512 pixel | Compatible DMX512 |
| WS2801,WS2803 | T-1000-WS | 2048 pixel |
|
| WS2811 | T-1000-WS2811 | 2048 pixel | low speed and high speed |
| DS189 | T-1000-DS189 | 2048 pixel |
|
| TLS3001,TLS3002TLS3008 | T-1000-TLS | * pixel |
|
| P9813 | T-1000-P9813 | 2048 pixel |
|
| SM16715 | T-1000-SM16715 | 2048 pixel | low speed and high speed |
| SM16716 | T-1000-SM16716 | 2048 pixel |
|
| BS0901,BS0902 | T-1000-0901 | 2048 pixel |
|
| BS0815 | T-1000-0815 | 2048 pixel |
|
Features:
1. 256 Gray,Gamma correction processing software.
2. Support the rules and special-shaped handle.
3. Controller, a port output, may bring 1024/2048 light.
4. Off-line control, play back content stored in the SD card
5. T-1000C store a maximum of 16 documents
Note: The model T-1000S with one port output, When it control 512 pixels the speed can reach 30fps, more than 512 pixels, the frame speed will be slow down automatically

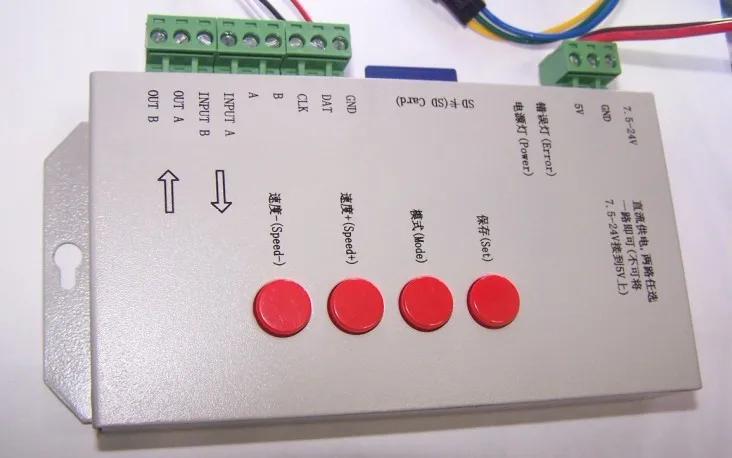

Connection diagram:
| 7.5V-24V | DC power input, to provide two sets of power input, select a group can be. |
| 5V | Power Ground. |
| GND | Error indicator |
| ERROR | Power LED |
| POWER | SD card slot |
| SD CARD | Output CLK |
| CLK | Output DATA |
| DAT | Signal Ground |
| GND |
|
| B | Compatible with DMX signal, differential A, and differential B |
| GND | Signal Ground |
Regulatory function button:
| SET | Save Settings to save current settings file and the playback speed |
| MODE | Switch File |
| SPEED+ | Speed up the playback speed |
| SPEED- | Slow down the playback speed |

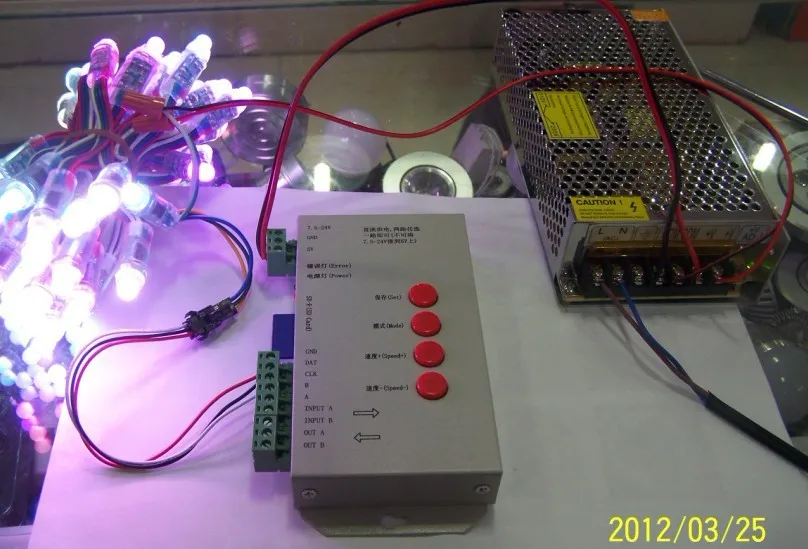

System architecture diagram:
Specific parameters:
Memory Card:
. Type: SD Card
. Capacity: 128MB-2GB
. File Format: FAT file format
. Store files: *.led
Physical parameters:
. Weight:0.2kg
. Size:122mm*67mm*25mm
. Temperature :-40-85 Degree
. Volgate: DC5V / DC7.5-24V
. Power:3W
Note:
To copy files to SD card, you must first format to the SD card, pay attention to is that each copy must be formatted before.
SD card must be formatted as "FAT" format.
