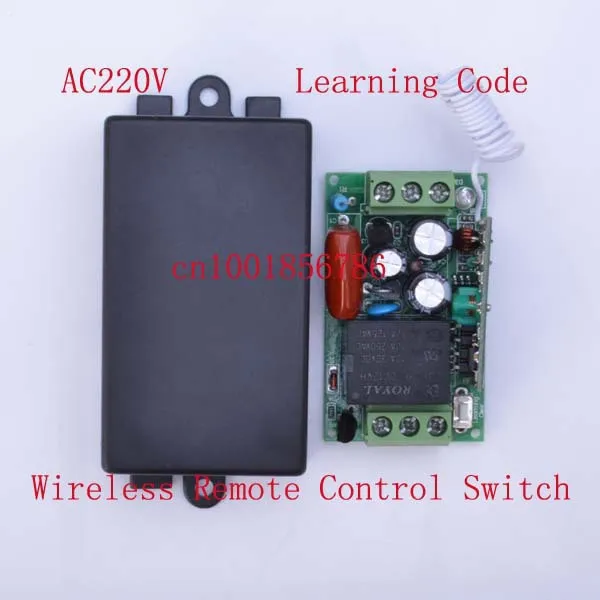

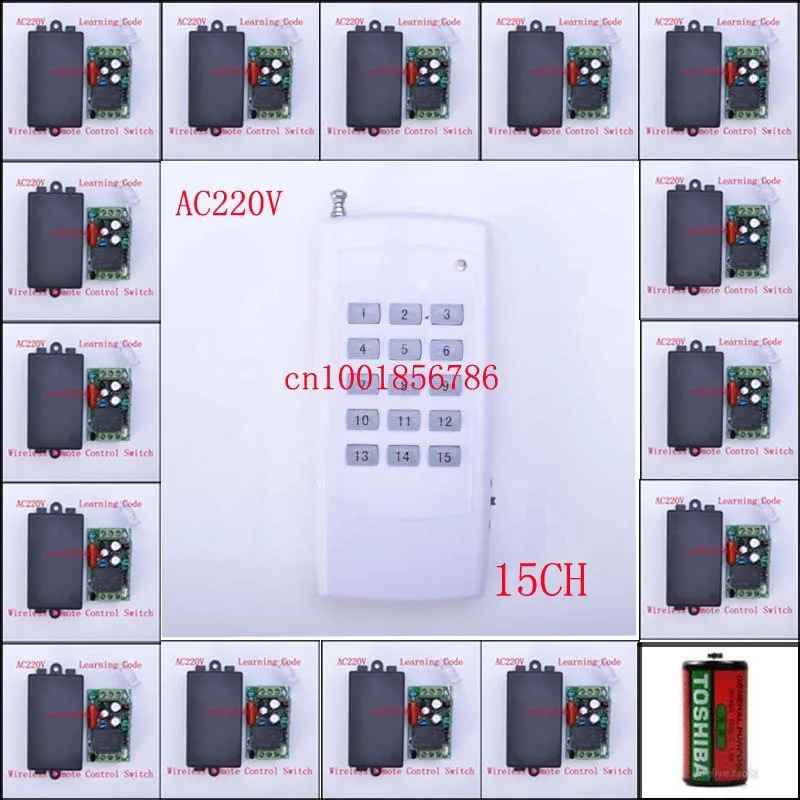

220V 10A 1CH wireless remote control system .(1transmitter & 15 receiver )

Working Voltage: AC220V

Channel: 1CH

Working Frequency : 315MHZ/433MZH

please notice that here is in set , we have made it work together before we ship to you , so you don\'t need to care about what frequency are they .only someone who buy the receiver or transmitter alone ,he must care about the frequency to match .

Receiver sensitivity: : -105Db

Working temperature : -40\'C - +80\'C

Output way : Momentary Toggle Latched Adjustable

Code type : Learning code

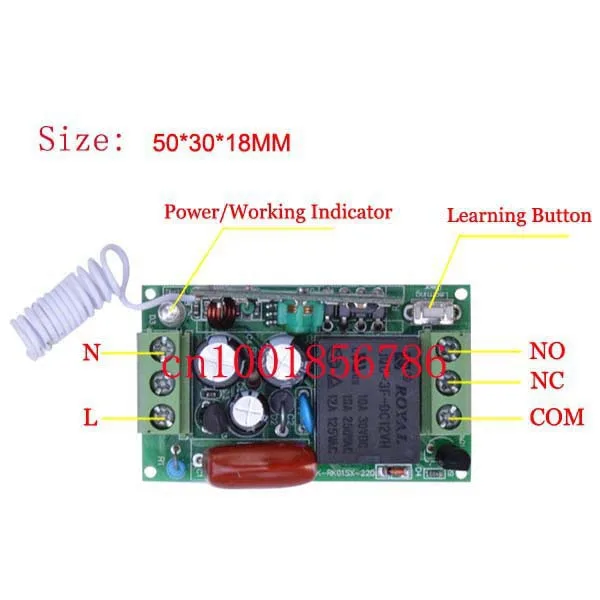

Size :50*30*18mm

working/output way:

Jog/Non-Latched: press one button is working /ON. loosen your finger on the same button is stop/OFF .one channel switch need one buttons remote control

Self -lock/Self-Latched: press one button for one time is working/ON .press the same button again is stop/OFF .(one channel switch need one buttons remote control

Inter-lock /Latched : press one button is working/ON ,press another button is stop/OFF . ( one channel switchneed 2 buttons remote control

Please notice that :

here is the 15*1CH and 15 buttons remote control .you can choose the all the working way that you can choose ,you have better choose the Jog or self-lock ,so all the buttons has been used .

Please tell us the working way that you want after you buy it , if you are not the professional person, we would set the working way as your requirement before we ship .

Please tell us what output state do you want after placing the order.or we will ship to you as default"Momentary(jog)".

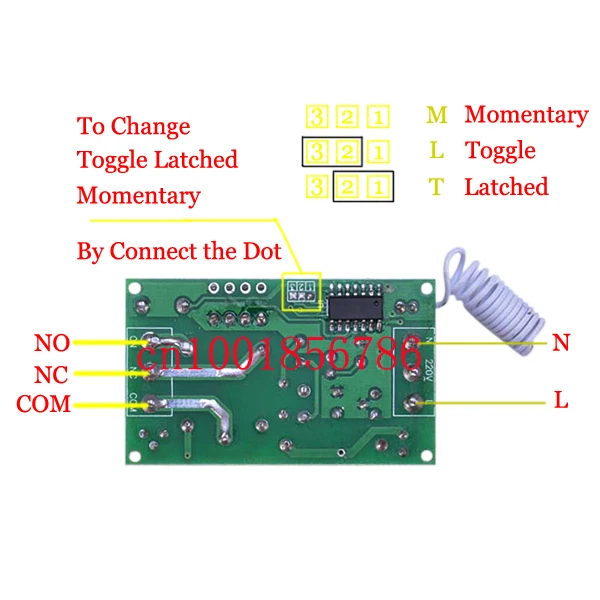

it can be changed by Welding Spot by Soldering

Learning and removing method

1 .There is a learning button on the control panel of touch switch, the button is used to learn and remove the code.
2 .Press and hold the learning button for three seconds.When the indicator light flashes ,we enter the learning state. Press any key on the remote controller to emit signal, the light flashes two times and off .It means you learn it successfully.
3 .It can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote controller.
4. Delete remote control method: hold down the learning button for about 8 seconds, the indicator light turns on to off, then the code you learned before will be deleted.

.

Remote control (transmitter)

Remote Control:

Operating Voltage: DC12V

Operating Current: 30MA

Operating Frequency: 266-433MHz

Frequency Distance: 200M

(please notice that is the ideal distance without any block and signal interfere , it would rise and fall about 10%-50% with the block and signal interference ).

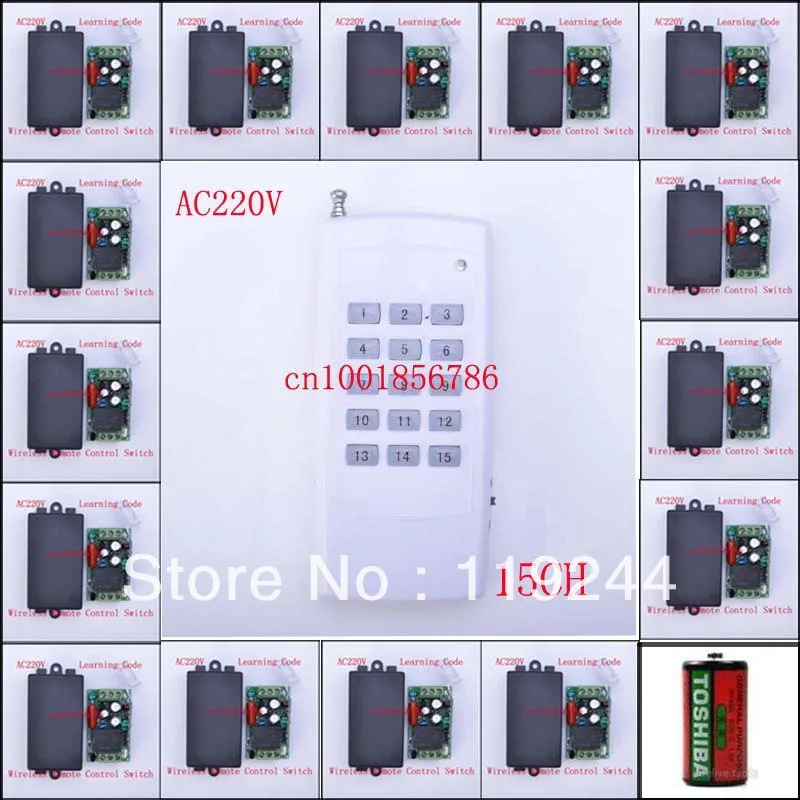

package included:
15*receiver
1* transmitter
