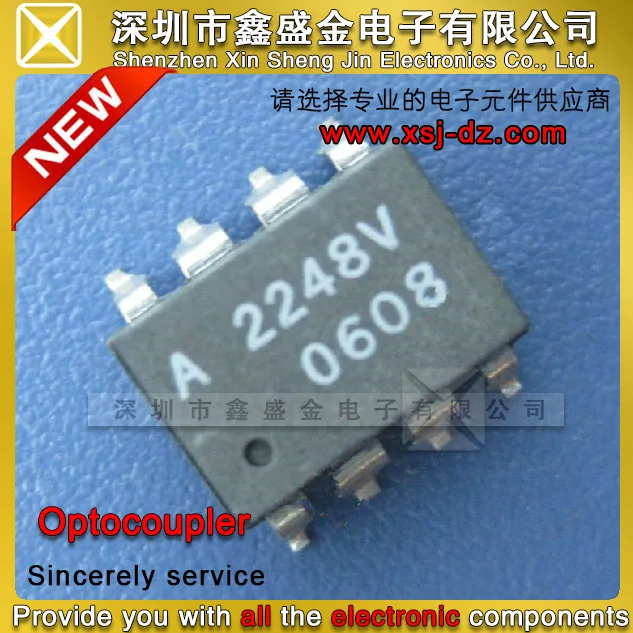

HCPL-2248V HCPL-2248 HCPL2248V ACPL-2248V A2248V A2248 HP2248 High CMR wide Vcc Logic Gate Optocouplers DIP-SMD 100% New | Электронные

HCPL-2248V HCPL-2248 HCPL2248V ACPL-2248V A2248V A2248 HP2248 High CMR wide Vcc Logic Gate Optocouplers DIP-SMD 100% New | Электронные

  The Chip Has Two Colors, Black And White.   And There Are Two Kinds Of Appearance, DIP-8 And SMD-8   The Same Price, Please Describe What You Need.   If You Do Not Say, Will Be Randomly Sent. ------------------------------------------------------------------------------------------------------------------------------------------------- HCPL-2232 dual-channel optocoupler optocoupler logic gate is a device that contains GaAsP LED, the detector has a totem pole output and built-in Schmitt trigger an optical receiver input, provide logic-compatible waveforms, eliminating extra full waveform type circuits.   HCPL-2232's built excellent shielding can VCM = 1,000 V while ensuring 10kV/?s common mode rejection (CMR) capability.   HCPL-2232 electrical and switching characteristics at -40 ° C to 85 ° C temperature range is guaranteed, Vcc power supply of 4.5V to 20V, low forward current IF and a wide range of Vcc supply compatible TTL, LSTTL and CMOS logic, bring and other high-speed optocouplers lower power consumption compared to the logic signal propagation delay of 150ns.   Features [-]   VCM = 1,000 V when 10kV/?s common-mode rejection (CMR) capability Vcc 4.5V to 20V Wide Range Operating temperature range guaranteed 300ns propagation delay 5Mbd typical signal rate Low Input Current 1.6mA to 1.8mA Hysteresis Totem pole output, no pull-up resistor Provides 8-pin DIP, SOIC-8 and wide body package options -40 ° C to 85 ° C operating temperature range performance guarantee Hysteresis Safety standard certification: - UL1577 3,750 Vrms/1min - CSA Options include: - 300 = Gull Wing Surface Mount - 500 = Tape and Reel - XxxE = Lead Applications [-]   High Speed Logic system isolation Computer Peripheral Interface Micro-processing system interface Eliminate ground loops Replace the pulse transformer High Speed Line Receiver Power control system
