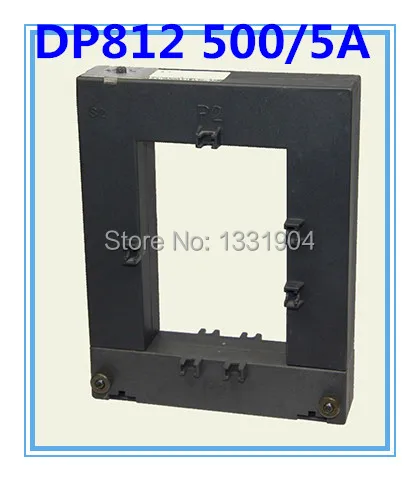

CT DP812 500/5A class 0.5 high accuracy split core current transformer open-type transformers FACTORY QUALITY GUARANTEE | Обустройство

CT DP812 500/5A class 0.5 high accuracy split core current transformer open-type transformers FACTORY QUALITY GUARANTEE | Обустройство

Feature:

Split core current transformers DP series:

The DP series of current transformers have been especially designed to facilitate their installation in new or already existing networks. Thanks to its split core they may be installed without opening any cable or bus bar circuit.

The connection of conventional CTs usually requires the interruption of the primary side circuit to pass cables or bus bars through the transformer core or to connect such cables to the primary terminals. The DP series transformers core may be easily opened and they may be installed and connected without any supply interruption, thus saving time and installation costs.

The main features of DP transformers are:

Small size and easy mounting

Wide inner window, allowing clamping of big cables or bus bars

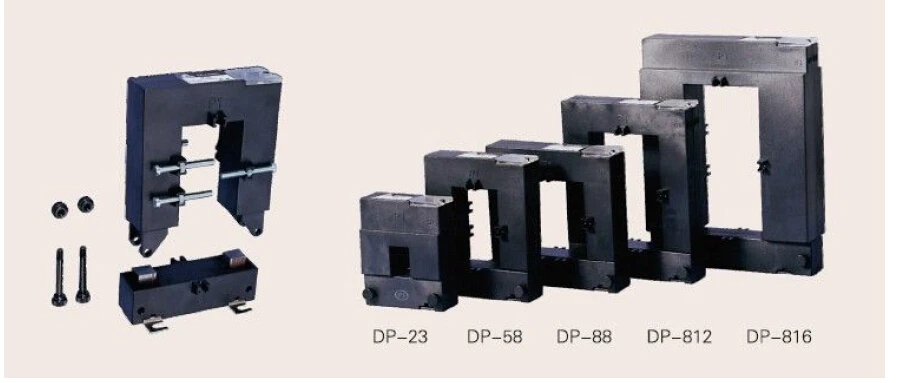

Wide range of sizes to accommodate all the existing installation

High accuracy and reliability

Specification:

DP series:

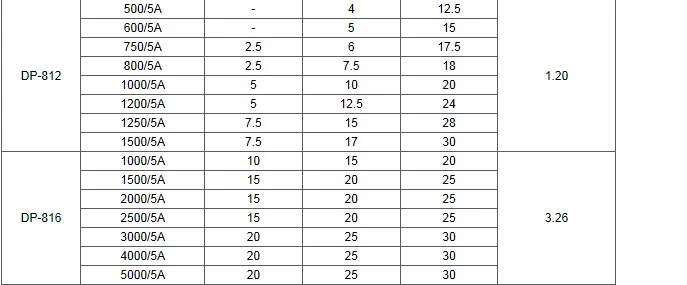

Primary current:            (see Table)
Secondary current:        5A, 1A
Standard approval:        IEC44-1, BS7626
Maximum voltage:        0.72/3kV
Frequency:                      50/60Hz
Rated load:                     1VA-30VA
Class:                               0.5, 1.0, 3.0
Short-time thermal current:    Ith=100 X In
Rated security coefficient:        FS<5
