We only ring !Believe us, quality assurance !

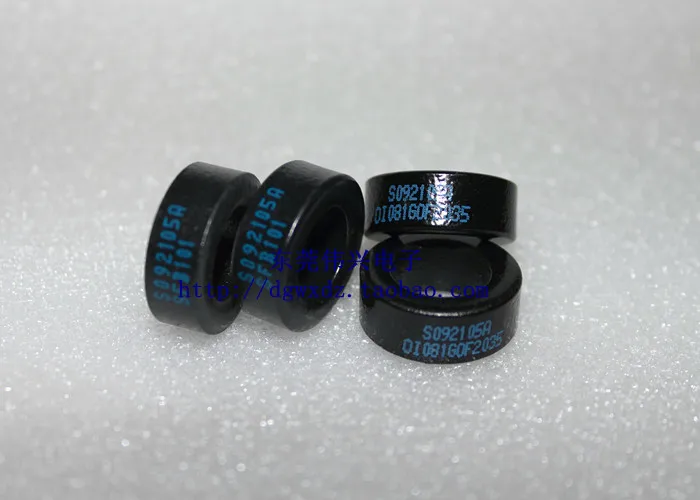

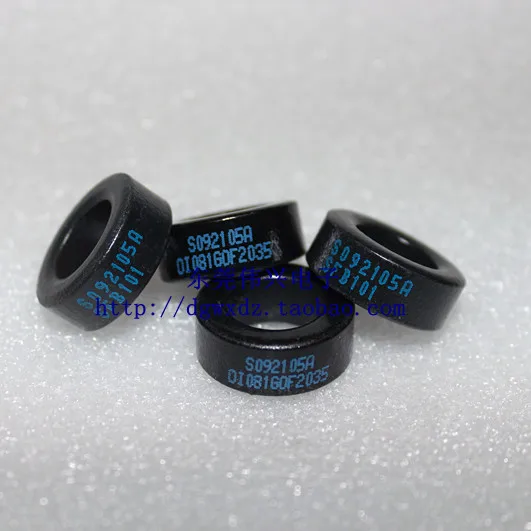

Name:Kool ring DONGBU

Model:S092-105A

OD:23.6mmID:14.4mmHeight:8.89mm

Permeability :125Perm

Inductance :105uH

Kool core , material composition is: 85% iron , 6% aluminum , 9% of silicon ; permeability from 26~125;

Mainly used in power inductors, AC inductors, output inductor , line filters, power factor correction circuit and other switching power supply, sometimes substitute gapped ferrite transformer cores for use ;

Key Features and Benefits :When reduction of the effective permeability of the core , during application of the DC pulse , evenly distributed in a small gap in the core can withstand large DC component of the coil without making the core saturation ; over a wide frequency range than existing iron core material has a lower core losses . In any Gaussian values have a similar effect , in the same test conditions Kool core temperature is always less than half of the iron core , the core loss is only half the ingredients into an iron / 4 , at high frequencies , they are better than the iron core and be able to meet the demand for high-frequency power conversion equipment inductor has a high efficiency of;8KHz can be used at frequencies above ; saturation magnetic induction at 1.05T; magnetostrictive coefficient close to zero , no noise at work at different frequencies ; MPP higher than the DC bias capability ; has the best price .

Kool core Curie temperature 500 C, the core coating to ensure continuous use at 200 C under ;

Black polyester lacquer coating cores , to ensure inter- coat to the core can withstand voltage of 500V voltage 1KV or windings.

Tips

One ,Ring size by sales , unit mm (millimeters ) , tolerance +, - 0.1mm

Second,Depending on the size of the product description page , do not imagine buying mere empty , if not understand can contact customer service .

Third,Ring is fragile , be careful when using , any questions please contact handling .

Shop all the pictures are 100% in-kind shooting, Pirates of the reserved !

Buyers must-read

One ,Please read the instructions carefully before buying baby page , this new model products for bulk goods .Because the product is not the same batch ,May appear blemishes, scratches , etc. belong to normal and will not affect the normal use of the product performance , please rest assured purchase.

Second,And the store at the same time due to product sales , so goods mobility fast. If there is temporarily out of stock , we will call you the first time . If necessary, please contact customer service before photographed , inconvenience please parents who understand !

Third,Buyers can not accept the above two cases , to avoid unnecessary trouble, look carefully shot ! Advantage of inventory , quality assurance ! Large , please contact with the treasurer , the price can be further concessions. I wish you a happy shopping pro !

Four ,Honesty is the seller of the traditional understanding of the virtues of buyers . Any questions can be negotiated , any problems can be solved. For the purchase of goods have any problem , the first time to contact us, we will help you solve the first time .
