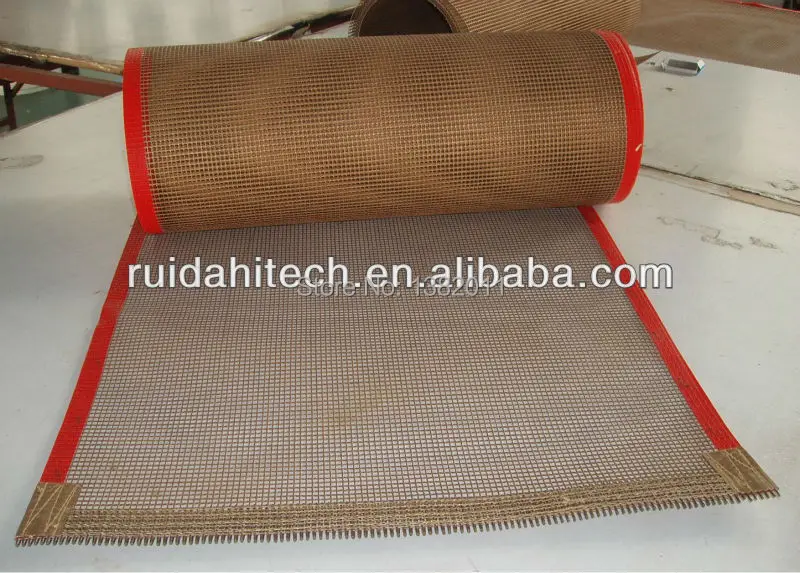

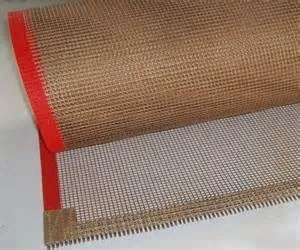

Heat resistance ptfe teflon coated fiberglass mesh conveyor belt |

---

WE CAN CUT TO ANY SIZE YOU NEED.



Specifications



-Drying machine for non-woven textile, textile printing, silk-prnting and dyeing machine.
-Shrinking machine for garment fabri


  Decsription:
RuiDa has developed a full range of open mesh belting products specifically for textile dryers. Our open mesh Belts are widely used for drying of screen Printed and dyed textiles at higher speed and higher temperature. Mesh sizes of 4X4 mm and 2X2 mm provide a high percentage of open surface area, creating maximum airflow and sufficient operation with minimum heat loss. Width and length stability of the belts are retain over full range of operating temperature.

Properties:
-Outstanding temperature resistance (-170oC + 260oC)
-Low thermal mass
-Controlled porosity
-Superior non-stick surface,easy to clean
-Exceptional strength and dimensional stability
-Superior tracking

Applications:
-Drying machine for non-woven textile, textile printing, silk-prnting and dyeing machine.
-Shrinking machine for garment fabric, high-frequency and UV dryer.
-Conveyer belt for hot-air dryer, various of food baking, quick-frozen machines.
-Oiling machine for paper glazing and waxing, plant engineering.
-Seperating sheet for hardboard production etc.

Main Specifications:

Item No	color	Mesh size	Material	Weight	Temp. resistance	Standard width	Tensile strenght
6001	Brown	1x1mm	Ptfe+fiberglass	390g/m²	-70-260°C	3000mm	1600/1500N/5cm
6003	Black	4x4mm	Ptfe+fiberglass	480g/m²	-70-260°C	4000mm	2100/1500N/5cm
6004	Brown	4x4mm	Ptfe+fiberglass	500g/m²	-70-260°C	4000mm	2100/1500N/5cm
6007	Brown	4x4mm	Ptfe+Fiberglass+kevlar	560g/m²	-70-260°C	4000mm	3300/2800N/5cm
6008	Brown	4x4mm	Ptfe+fiberglass	570g/m²	-70-260°C	4000mm	2800/1580N/5cm
6010	Brown	4x4mm	Ptfe+kevlar	460g/m²	-70-260°C	4000mm	3500/3300N/5cm
6012	Black	4x4mm	Ptfe+fiberglass	580g/m²	-70-260°C	4000mm	2800/1500N/5cm
6013	Brown	10x10mm	Ptfe+fiberglass	450g/m²	-70-260°C	3000mm	1100/1000N/5cm
6014	Brown	0.5x1mm	Ptfe+fiberglass	420g/m²	-70-260°C	3000mm	2200/1500N/5cm
6015	Brown	2x2.5mm	Ptfe+fiberglass	470g/m²	-70-260°C	3000mm	2200/1500N/5cm





  Metallic Splices   1.Alligator Splice Ruida offers #1A galvanized or #1A stainless steel alligator splices. These splices are the most durable and are the easiest to use. Belts utilizing alligator or clipper splices can be installed without taking machinery apart. A coverflap can be added to reduce heat transfer to your material.   2.Clipper Splice stainless steel clipper splices. These splices are the most durable and are the easiest to use. Belts utilizing clipper and alligator splices can be installed without taking machinery apart. A coverflap can be added to reduce heat transfer to your material.   Non-Metallic Splices   3.Peek Splice Peek splices are an ideal choice when metallic splices cannot be used. Either a peek splice or a smartloop splice should be chosen when maximum airflow is desired.   4.Smartloop Splice Smartloop splices are an ideal choice when metallic splices cannot be used. Either a peek splice or a smartloop splice should be chosen when maximum airflow is desired.   5.Fabric Notch Splice A fabric notch splice is similar to the alligator splice but completely eliminates the metal clip. It uses a PTFE Kevlar(R) material with a special pin for joining.     Endless Splices 6.Butt Splice The ends of the belt are butted together and joined by sealing a strip of reinforcing fabric under the butted ends. Butt splices provide the smoothest belt surface at the joint and eliminate the step-down surface which is characteristic of the overlap splice.     7.Overlap Splice This is the standard splice for most applications. Overlap splices, normally cut and overlapped on a 90, 60 or 45 degree angle, are also commonly used since they are more flexible when running on smaller diameter rollers. Standard overlap splices are 1".     8.Scarfed Splice To prepare a scarfed splice, the ends of the belt are "scarfed", or sanded down and joined eliminating the double thickness at the splice which is characteristic of the overlap splice, and eliminates the need for a heat-sealed reinforcement at the splice characteristic of the butt splice.   Edge Reinforcements RUIDA belts can be supplied with strips of heat-sealed film or fabric on one or both edges of your belt. This reinforcement serves a dual purpose; it reduces fraying of belt edges which rub on guiding rollers and it also provides the strongest possible anchor for guiding pins, snaps and grommets.     9.TFE-Film Edge, Heat-Sealed TFE film edges are heat-sealed to the top and bottom of the edges of the belt for a 1/2" or 1" (standard)  surface. The TFE film is available in 3 mil, black or clear, or 10 mil tan (1" surface only).     10.Fabric Edge, Heat-Sealed Six mil fabric is heat-sealed to the top and bottom of the edges of the belt for a 1" (standard) or 2" surface. Fabric edges are available either tan or black.     11.Fabric Edge, Sewn & Sealed For extra reinforcement, our six mil heat-sealed fabric edge can also be sewn if desired. This reinforcement is commonly used on open mesh belting..     Two-Ply Belts Two-ply belts are constructed of two plies of TFE-GLASS™, laminated together with staggered splices. This provides a smooth, continuous thickness along the entire belt length which guarantees a uniform seal in packaging and heat-sealing applications. The belts are typically available in widths of ½" – 3".
