* Compatible with MPLAB ICD 2

* USB+RS232 COM Serial PORT PIC In-circuit Debugger and Programmer

* Comes with a EXTRA Universal Programming Module (FREE!!)

Overview

An all-in-one debugger/programmer solution: MPLAB® ICD 2 is a low cost, real-time debugger and programmer for selected PIC® MCUs and dsPIC® DSCs. Using Microchip Technology\\\'s proprietary In-Circuit Debug functions, programs can be downloaded, executed in real time and examined in detail with the debug functions of MPLAB. Set watch variables and breakpoints from symbolic labels in C or assembly source code, and single step through C source lines or into assembly code. MPLAB ICD 2 can also be used as a development programmer for supported MCUs.

The secret behind In Circuit Debugging is two dedicated hardware lines (microcontroller pins used only during debugging mode) that control In Circuit Serial Programming? (ICSP?) of the device and, afterwards, debugging through proprietary, on-chip firmware. The ICD 2 debug features are built into the microcontroller and activated by programming the debug code into the target processor. There is some shared overhead expense that includes one stack level, some general purpose file registers and a small area of program memory when in the debug mode. IMPORTANT NOTE: MPLAB ICD 2 requires minimal design guidelines be followed to ensure stable communications between the unit and the target.

Photos



Features

New design Enhanced USB ICD2 PIC debugger and programmer for Microchip\\\'s PIC and dsPIC digital signal controllers. Using the powerful user interface of the MPLAB IDE (Intergrated Development Environment).

USB ICD2 In-circuit Debugger and Programmer:

* USB (Full Speed 2 M bits/s) & RS-232 interface to host PC

* Real time background debugging

* MPLAB IDE GUI (free copy included)

* Built in over-voltage/short circuit monitor

* Firmware upgradeable from PC

* Totally enclosed

* Supports low voltage to 2.0 volts. (2.0 to 6.0 range)

* Diagnostic LEDs (Power, Busy, Error)

* Reading/Writing memory space and EEDATA areas of target microcontroller

* Programs configuration bits

* Erase of program memory space with verification

* Peripheral freeze-on-halt stops timers at breakpoints

* Built-in USB Reset self-reconnected function

* High reliably ICs and Components

* Compact design with mounting hole

* Enhanced overcurrent protection

* Enhanced electrostatic protection

* Enhanced User Board first power-on protection

* Enhanced Users Board Overvoltage Protection

The MPLAB ICD 2 connects using USB or RS-232 between the design engineer\\\'s PC operating with MPLAB IDE and their product board (target) being developed. It acts as an intelligent interface/translator between the two, allowing the engineer to look into the active target board\\\'s microcontroller, viewing variables and registers at breakpoints with MPLAB watch windows. A breakpoint can be set to halt the program at a specific location. The program can be single-stepped or run at full speed. At breakpoints, data and program memory can be read and modified. Additionally, the MPLAB ICD 2 can be used to program or reprogram the Flash-based microcontroller while installed on the board.

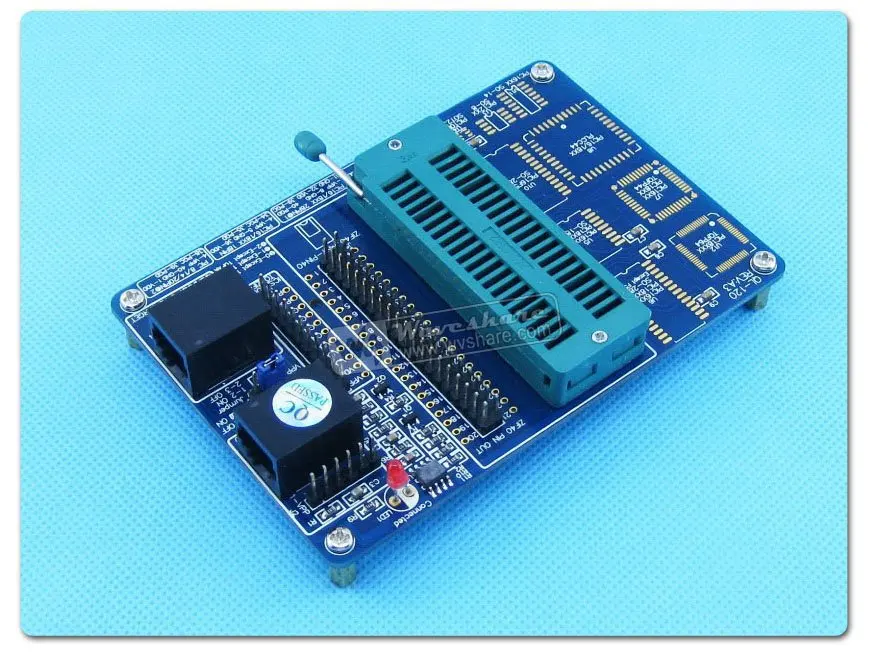

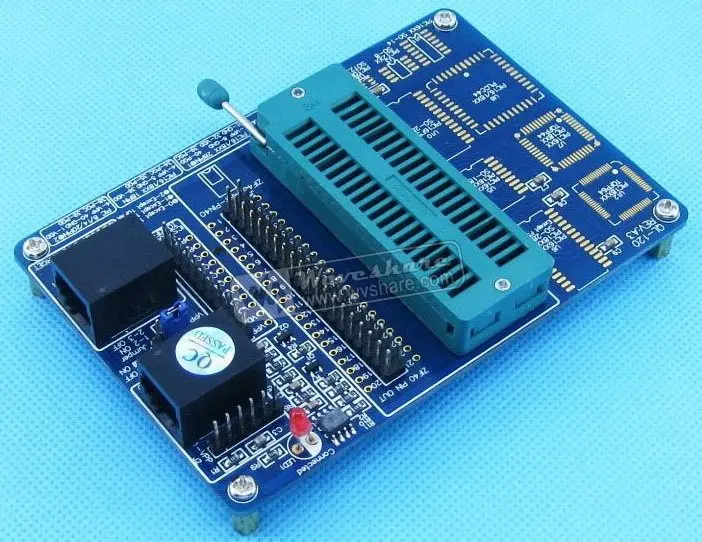

EXTRA Universal Programming Module (FREE)

This programmer comes with a universal programming module which is greatly convenient for batch programming different chips in different package, and cost you no more additional charge.

1. Easy to use with ICD2, MCD2, ICD2.5

2. VPP takes precedence over VDD, ICD2 supports reprogramming chips using internal oscillations and internal reset

3. ICSP output circuit, supports reprogramming chips using internal oscillations and internal reset

4. DuPont lines are provided for programming different chips

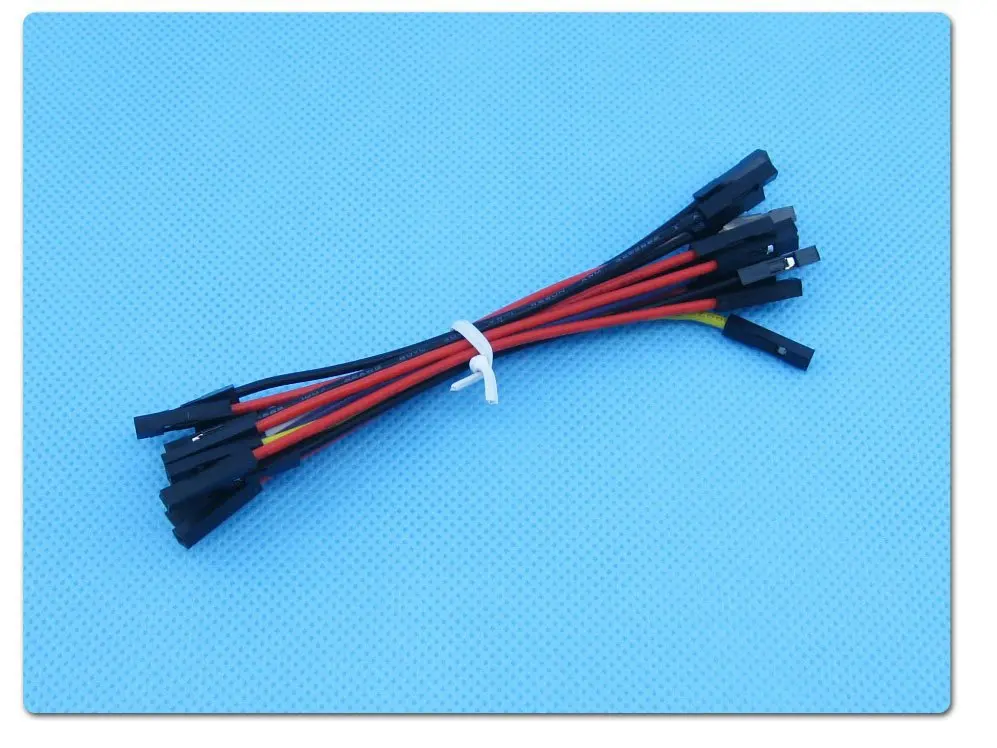

* Red *4

* Black *4

* Purple *1

* Yellow *1

* White *1

5. Surface mounted package supported: SOT23-6(PIC10FXXX) SO-8 SO-14 SO-18 SO-28 TQFP44 PQFP44 PLCC44 TQFP64 DIP40

6. 40-Pin 3M ZIF socket for programming: DIP8, DIP14, DIP18, DIP20, DIP28, DIP40

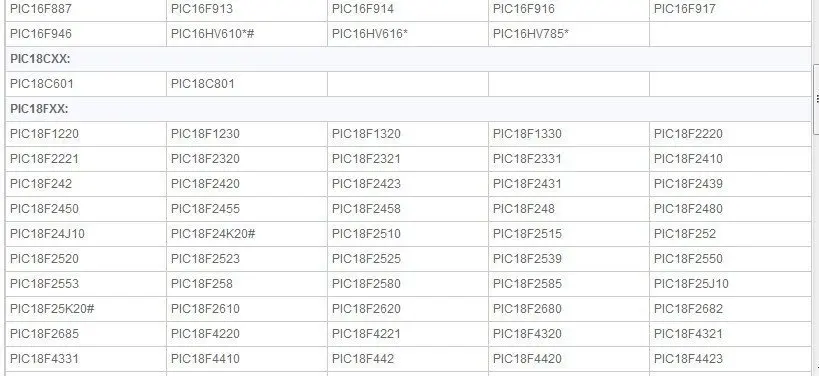

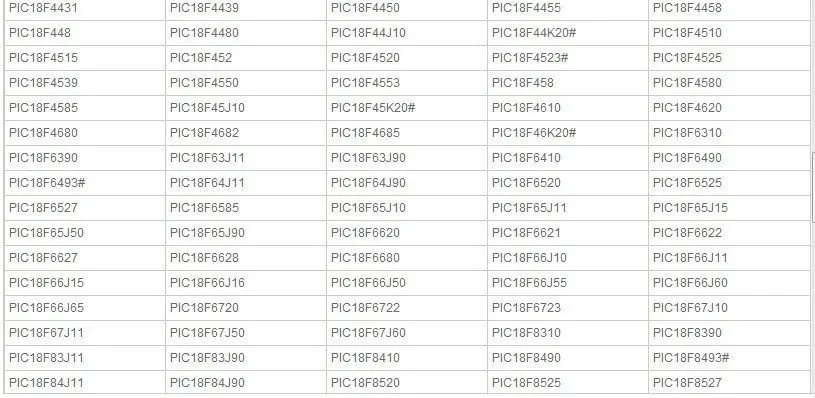

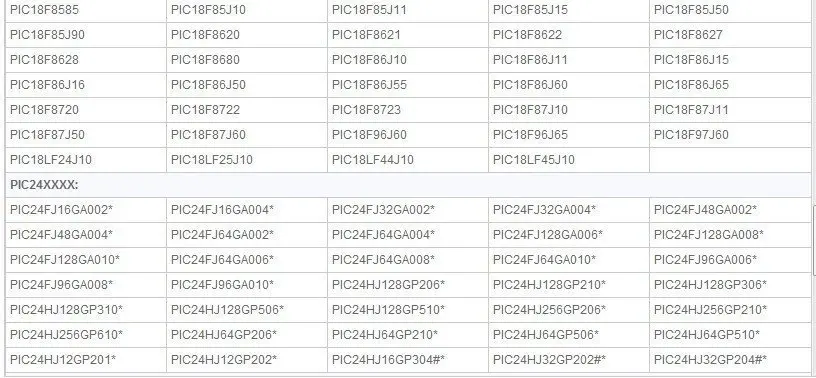

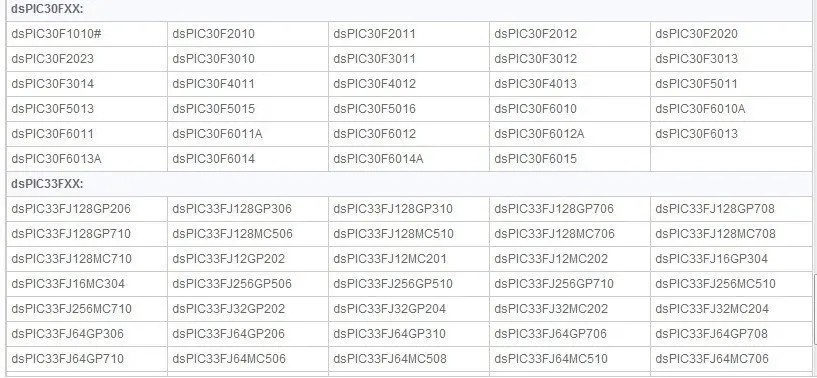

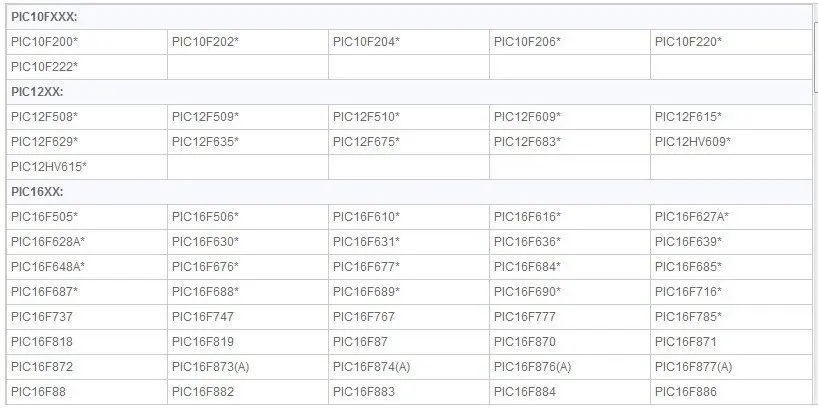

Supported Device

Package Contains

1. USB & RS-232 PIC ICD2 In-circuit Debugger and Programmer (PIC16-MCD2)

2. Universal Programming Module

3. RS232 Serial Cable

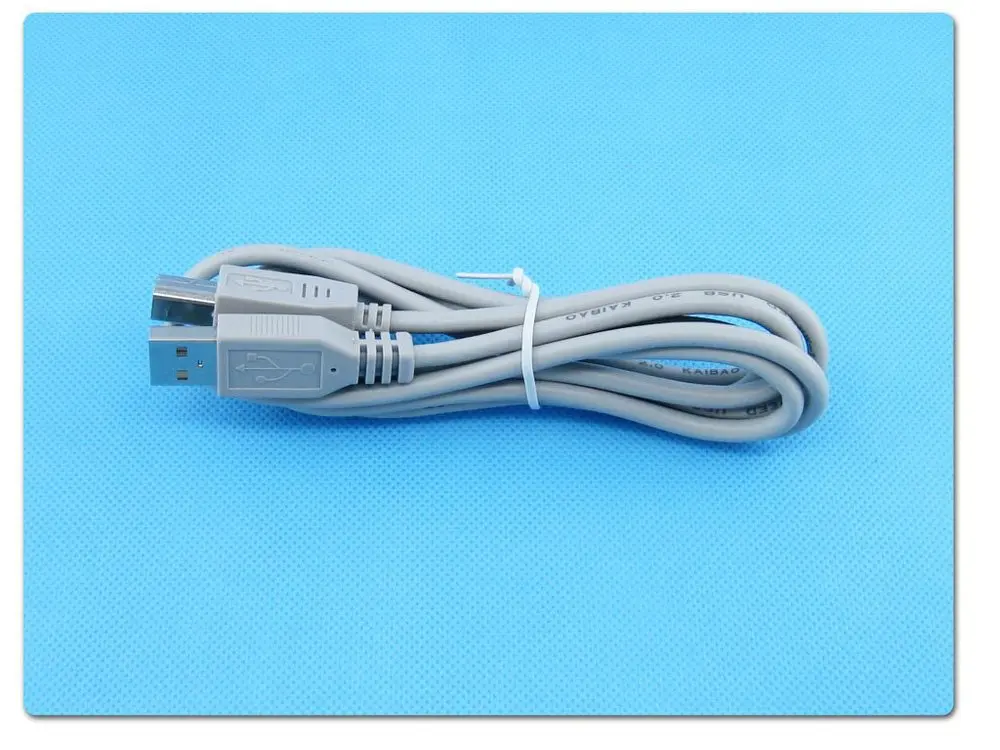

4. USB Cable

5. 6-Pin Individual ICSP Cable

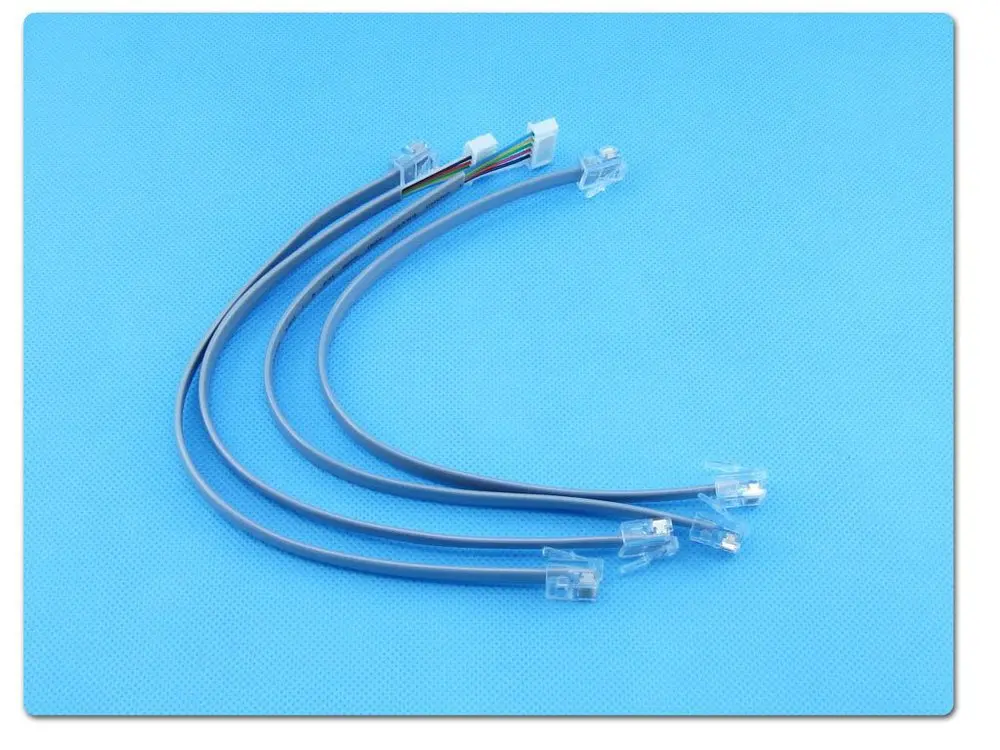

6. RJ12 Cable

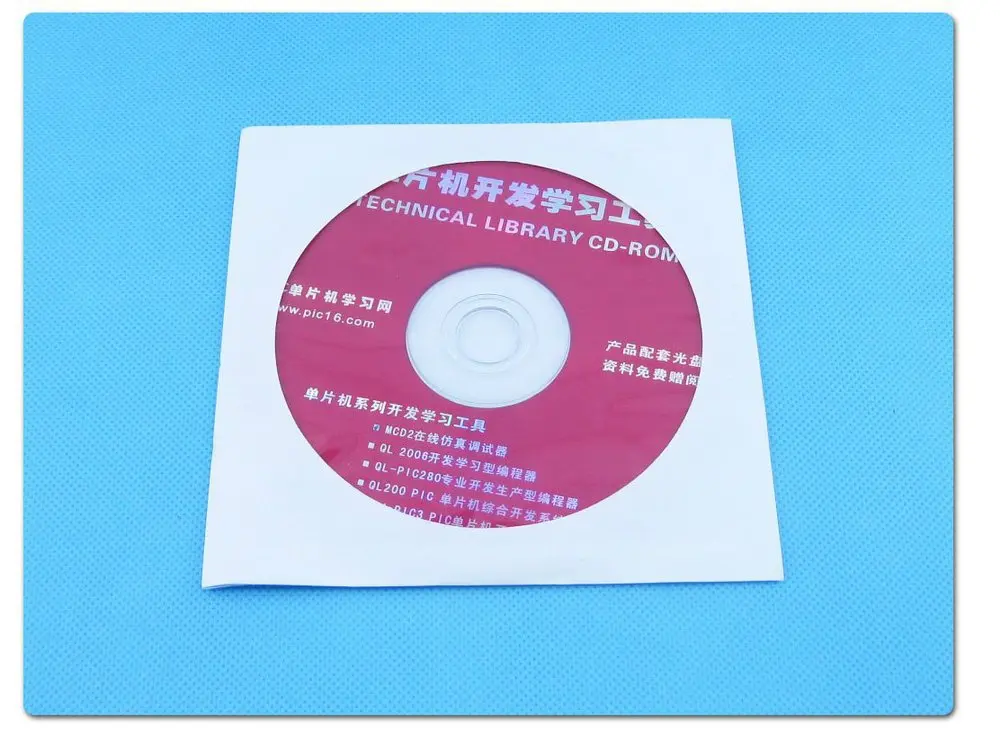

7. User Guide CD

Note: 9V DC Power Adapter is NOT included.
