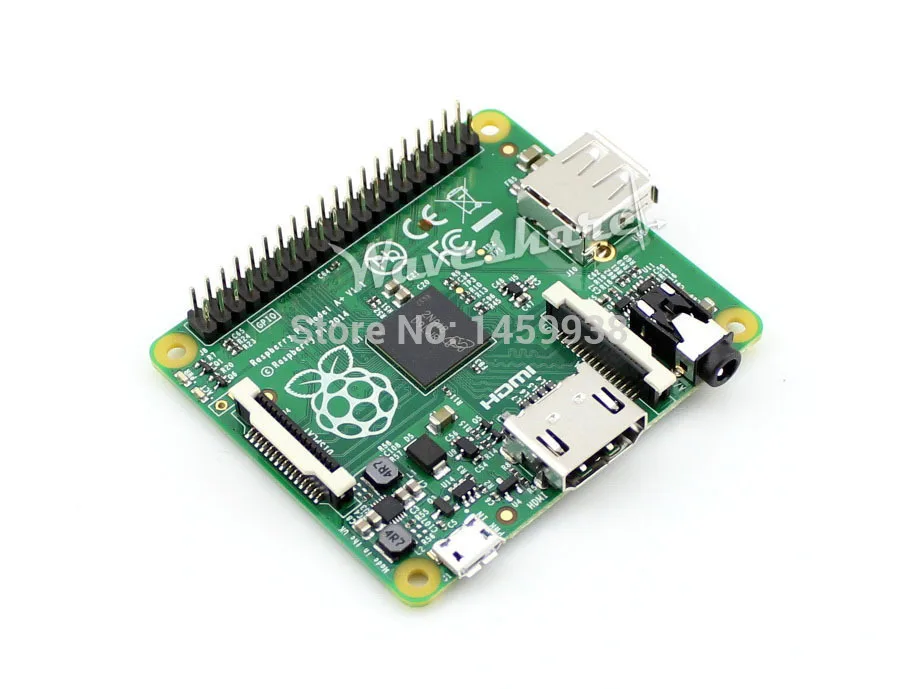

Overview

The Model A+ is the low-cost variant of the Raspberry Pi. It is recommended for embedded projects and projects which require very low power, and which do not require Ethernet or multiple USB ports.

What\\\'s New

Raspberry Pi Model A+ replaced the original Model A in November 2014. Compared to the Model A it has:

• More GPIO. The GPIO header has grown to 40 pins, while retaining the same pinout for the first 26 pins as the Model B.
• Micro SD. The old friction-fit SD card socket has been replaced with a much nicer push-push micro SD version.
• Lower power consumption. By replacing linear regulators with switching ones we\\\'ve further reduced power consumption.
• Better audio. The audio circuit incorporates a dedicated low-noise power supply.
• Smaller, neater form factor. We\\\'ve aligned the USB connector with the board edge, moved composite video onto the 3.5mm jack, and added four squarely-placed mounting holes. Model A+ is approximately 2cm shorter than the Model A.

Features

1. Broadcom BCM2835 700MHz ARM1176JZFS processor with FPU and Videocore 4 GPU
2. GPU provides Open GL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H.264 high-profile decode
3. GPU is capable of 1Gpixel/s, 1.5Gtexel/s or 24 GFLOPs of general purpose compute and features a bunch of texture filtering and DMA infrastructure
4. 256MB RAM
5. Boots from Micro SD card, supports Linux distros such as Fedora, Debian and ArchLinux
6. HDMI output
7. 4-pole 3.5mm stereo audio jack with composite video output
8. USB 2.0 interface
9. Camera connector
10. Display Serial Interface connector
11. MicroSD card slot
12. Powered by 5v micro USB
13. 40-pin 2.54mm expansion pinheader
14. Dimensions: 66 x 56 x 14mm

Photos

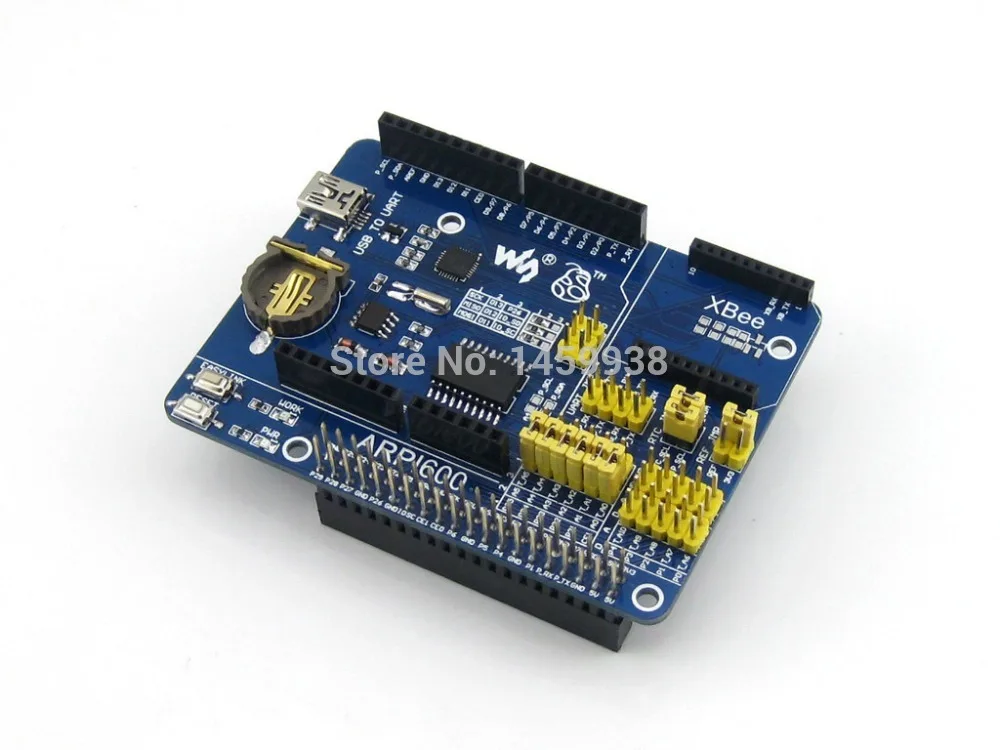

ARPI600 Features

• Compatible with Arduino UNO, Leonardo, easy to connect with various Arduino shields
• XBee connector for connecting various XBee modules
• Sensor interface for connecting various sensors
• Onboard USB TO UART for serial port debugging, also can be configured as XBee USB adapter
• Onboard ADC, 10 bit, 38KSPS, 11 channels (6 channels for Arduino interface, 5 channels for sensors)
• Onboard RTC

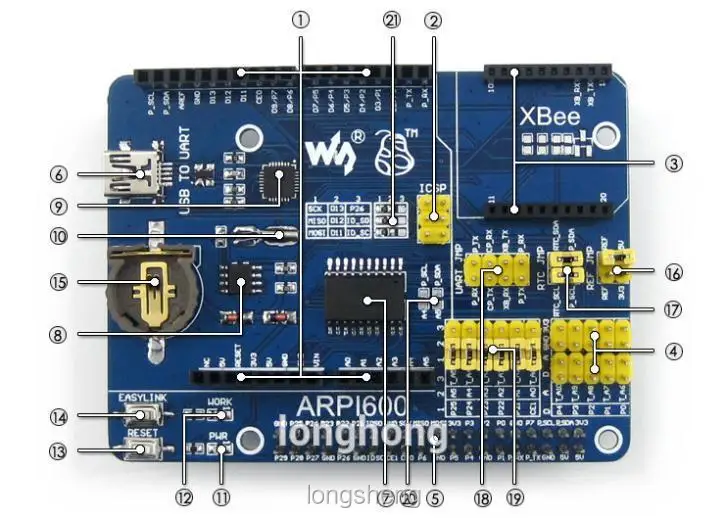

What\\\'s on the ARPI600

1. Arduino connector : for connecting Arduino shields
2. ICSP interface : Arduino ICSP
3. XBee connector : for connecting XBee communication modules
4. Sensor interface : for connecting sensors
5. Raspberry Pi connector : for connecting Raspberry Pi
6. USB TO UART
7. TLC1543 : AD converter
8. PCF8563 : RTC
9. CP2102
10. 32.768KHz crystal : for RTC
11. Power indicator
12. XBee state LED
13. XBee and Arduino interface RESET button
14. XBee EASYLINK button
15. RTC battery holder : for CR1220 button battery
16. TLC1543 reference voltage configuration jumper
17. RTC jumper
18. UART jumper

    • when connecting P_RX and CP_TX, P_TX and CP_RX respectively, USB TO UART is connected to Raspberry Pi serial port
    • when connecting XB_RX and CP_TX, XB_TX and CP_RX respectively, USB TO UART is connected to XBee serial port
    • when connecting XB_RX and P_TX, XB_TX and P_RX respectively, Raspberry Pi serial port is connected to XBee serial port
19. Arduino AD selection jumper

    • short 2 and 3 : Arduino A0-A5 as AD input
    • short 1 and 2 : Arduino A0-A5 as digital control
20. Arduino I2C selection jumper

    • short the jumper : Arduino A4-A5 as I2C control (the A4-A5 of Arduino AD selection jumper should be opened)
21. Arduino SPI selection jumper

    • short 1 and 2 : Arduino D11-D13 as SPI control (default)
    • short 2 and 3 : Arduino D11-D13 as digital control

ARPI600 Photos

ARPI600 Working with Raspberry Pi Model B+ :

ARPI600 Working with Raspberry Pi Model A+ :

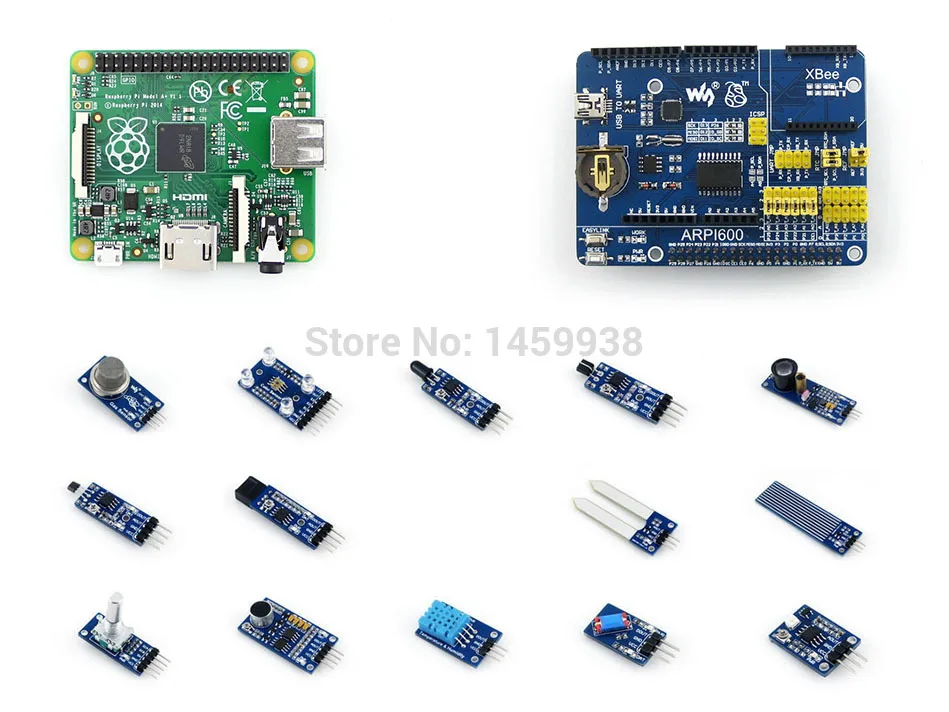

Package Contains

1. Raspberry Pi Model A+ x 1
2. ARPI600 x 1

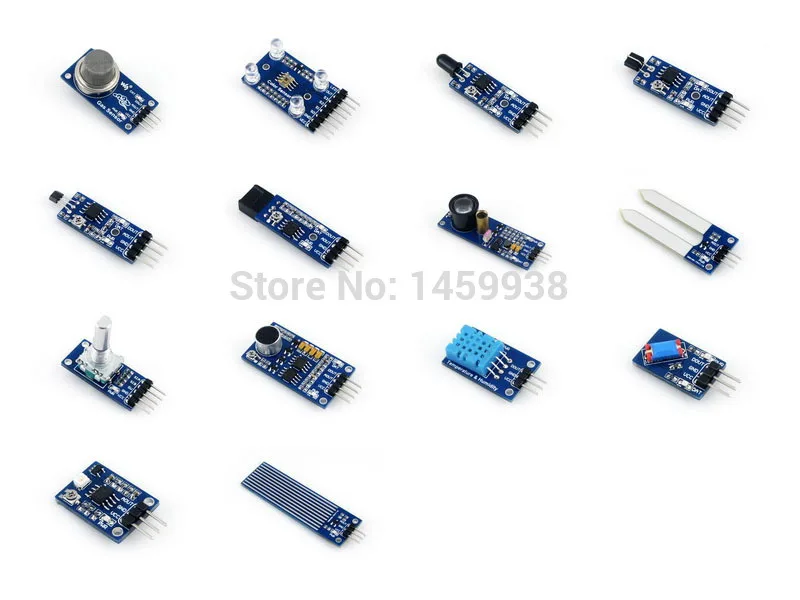

3. Sensors Pack × 1
4. USB Type A Plug to Micro B Plug Cable x 1
5. USB type A plug to mini-B plug cable x 1
6. RPi screws pack (2pcs) x 1

Optional Items

You may also need :

• Micro SD Card : 8G
