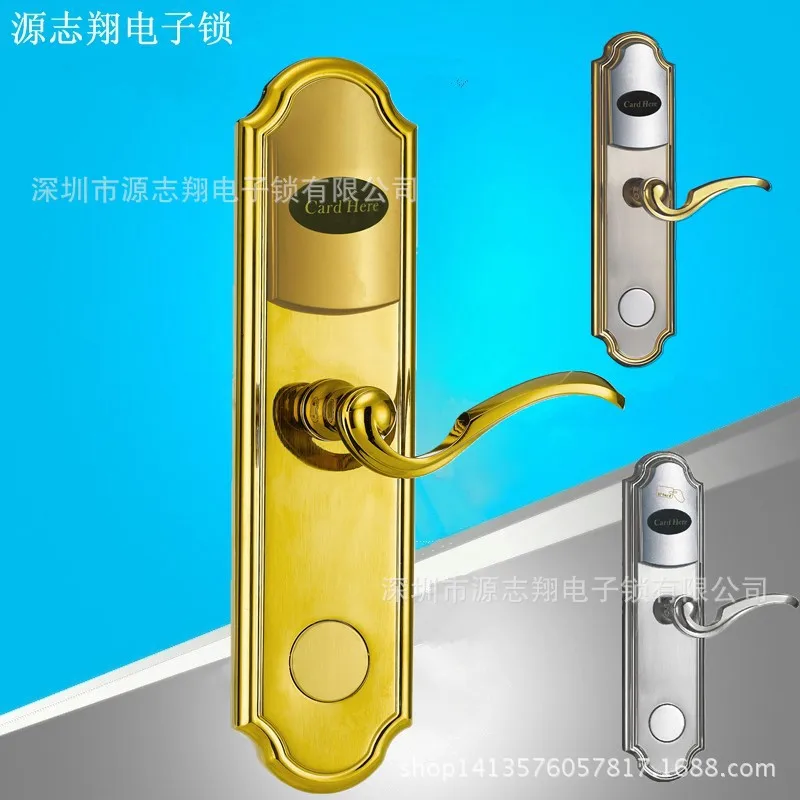

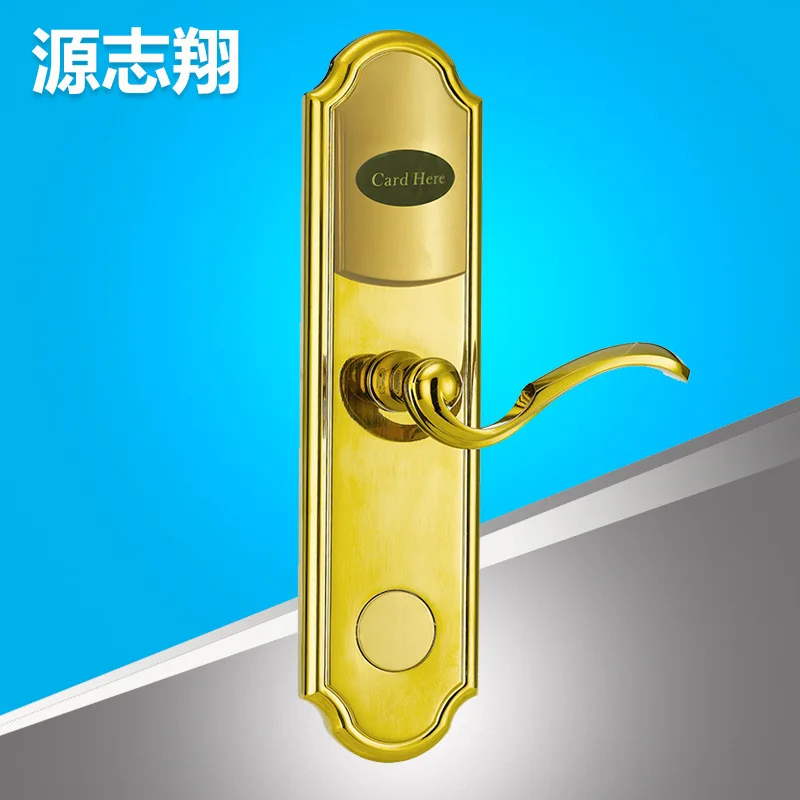

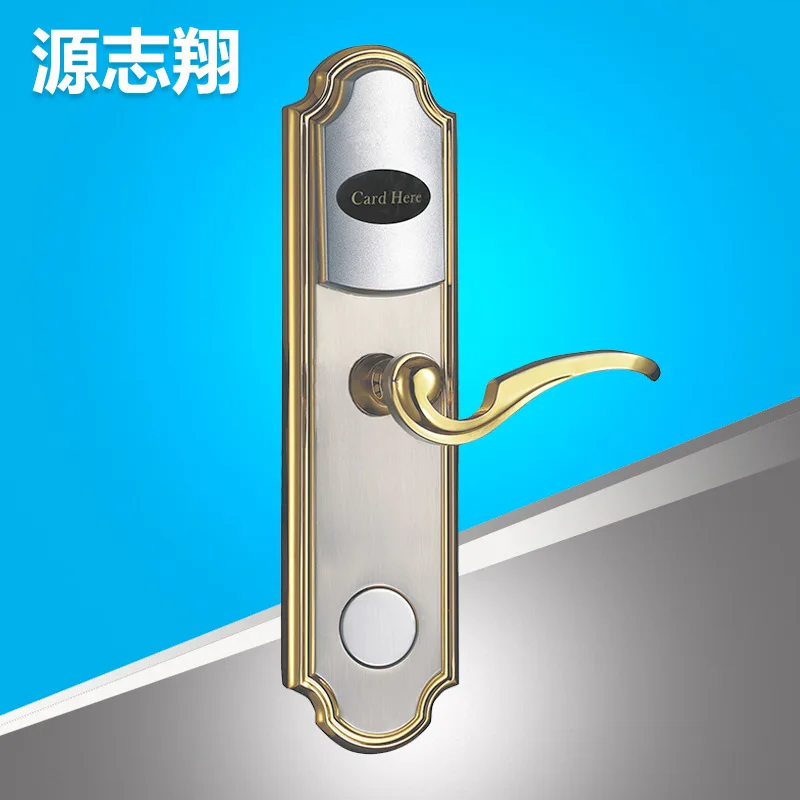

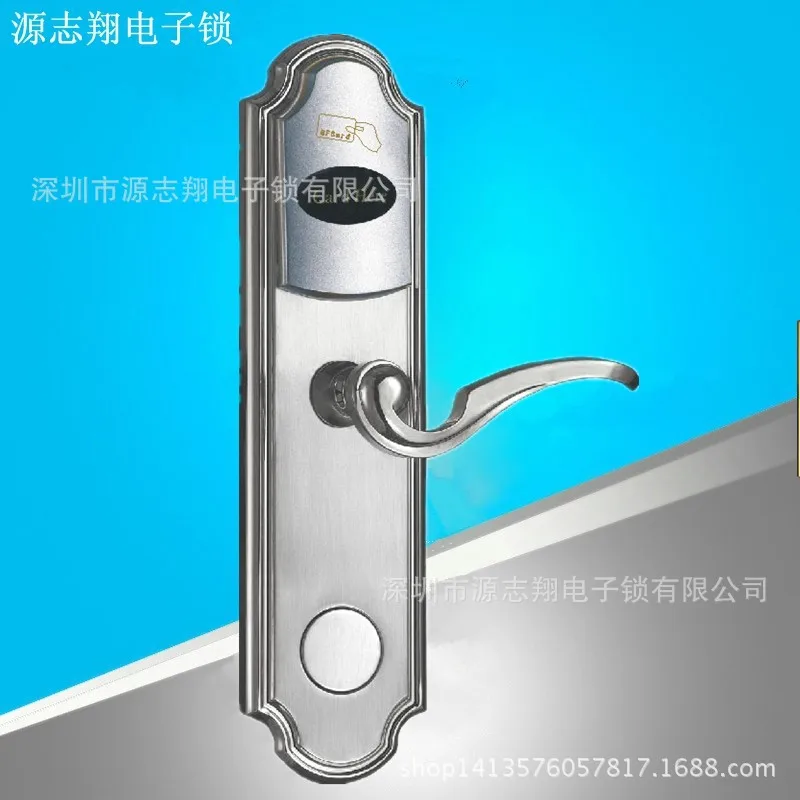

Hotel induction production electronic lock series smart door | Обустройство дома

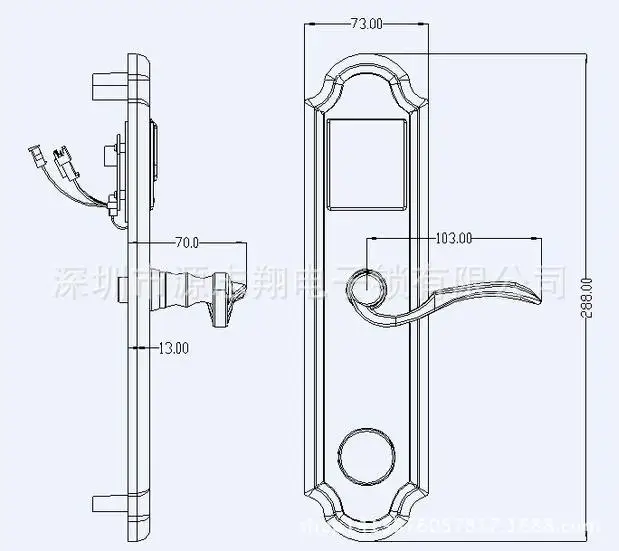

Panel (lock) specifications and dimensions:

Notes:

1) please follow the hole template to open

2) installation with square shaft tongue telescopic knob adjustment makes it smooth

3) after installation with mechanical key to test its performance before closing

4) open play is strictly prohibited during the construction of the tongue to prevent force collision deformation

The following figure:Depending on the physical (hole)

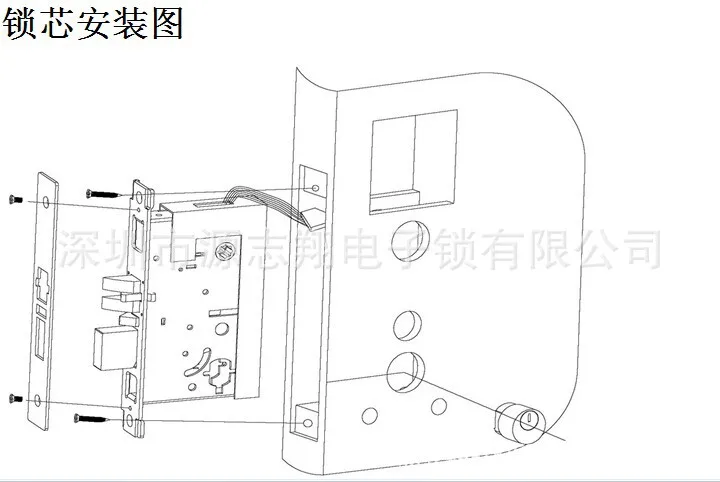

Normal standard lock cylinder, 2nd longest lock cylinder as shown below: (also may 1th, long and short cylinder, according to customer requirements, details of prices vary, and are subject to 20, telephone consultation, Tel: 18822858601)

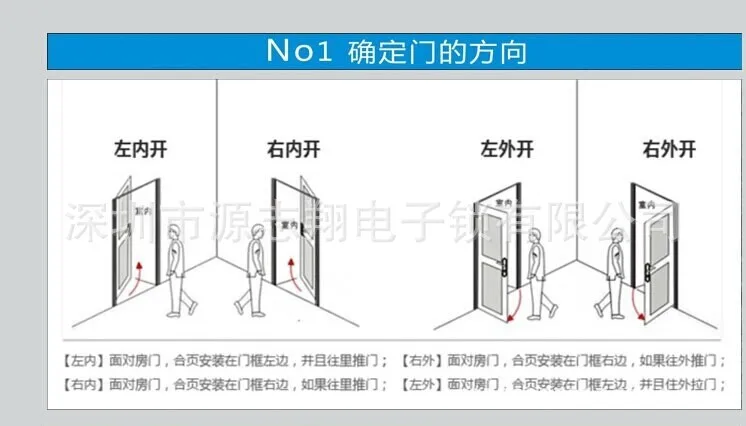

Open method: (man standing just outside the door, the door hinge on the left side for left, hinge on the right for the right opening)

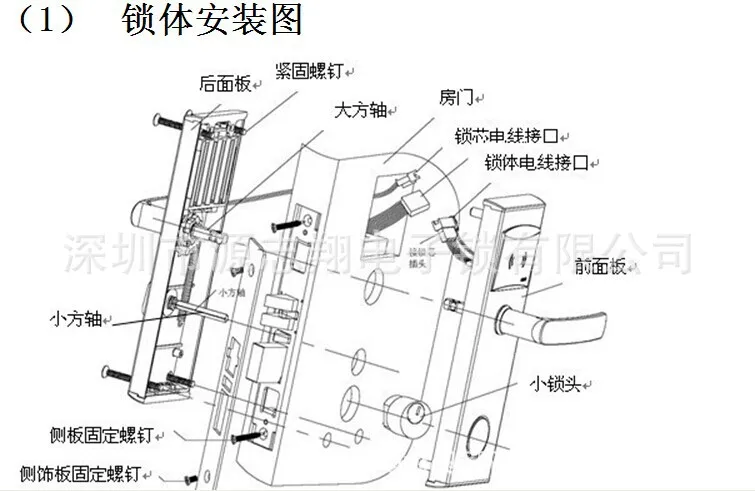

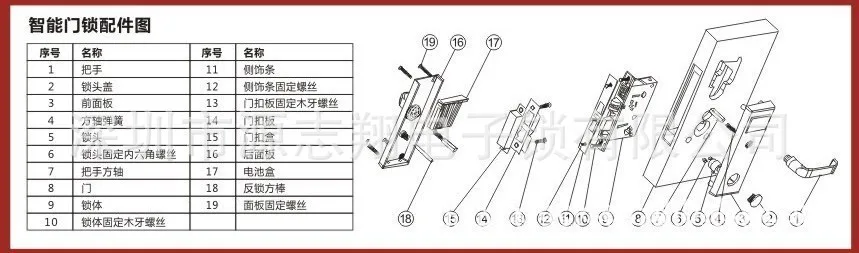

1, after you open the box, first check the door parts are complete, the direction is consistent with the room, and battery test the computer lock cores and Board are working properly, and then begin the installation lock: lock main components and the installation process as shown in the figure; please refer to the numerical order (part names-see table 5) install door locks

Induction lock all styles can be done:

*ID/EM chip

*TEMIC chip (T5557/67/77)

*Mifare one chip (M1)

*M1/ID chip

TEMIC basic parameters:

* Technical specifications: NV United States Germany II instrument chip

* Card size: United States ATMEL Temic RF card

* Fabrication: in PVC surface embedded electronic modules and Induction coil

* System logic: processus security mechanisms

* Memory capacity: 32 MB

* Card reader: non-contact inductive

* Read/write characteristics: readable writeable can be encrypted

~~~~ Technologies performance indicator: ~ ~ ~ ~

* Voltage: 6V,4 high-energy alkaline batteries

* Static power dissipation: <30uA

* Dynamic power consumption: 200mA

* Battery life: normal opening more than 10,000 times

* Pressure index: less than 4.8V, are still able to unlock more than 200 times (under the influence of the inconsistency of the battery)

* Opening hours: after pressing the handle to open the door an effective, or not to open the door for 7 seconds auto lock

* Unlock records: locked cycle store latest unlock 1000 records, including mechanical key in the lock

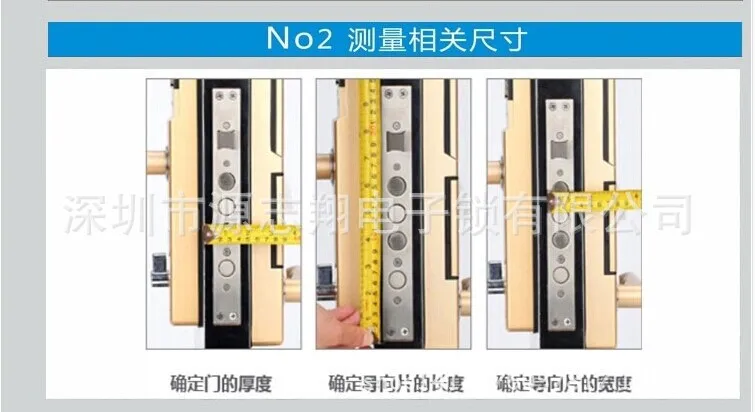

* Requirements for installation: menhou between the 35-55, if the door surface with lace, the lace should be from the door edge above 90mm

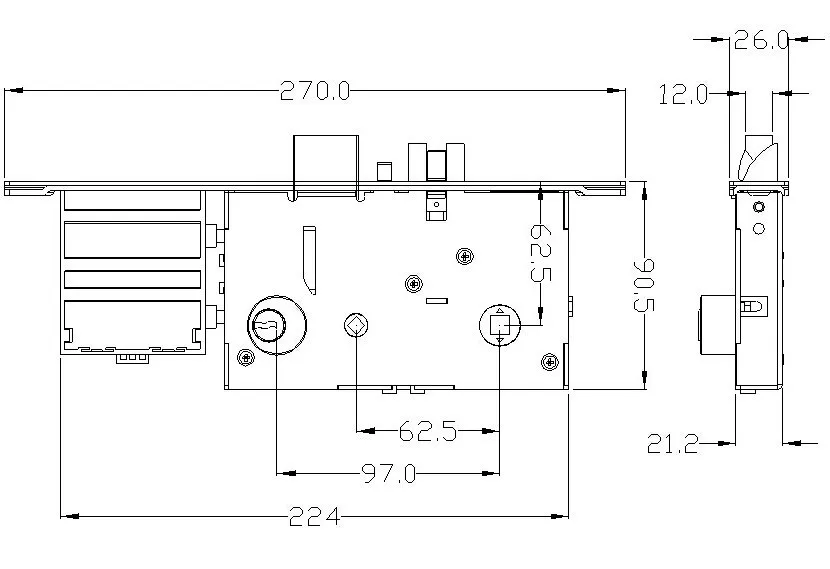

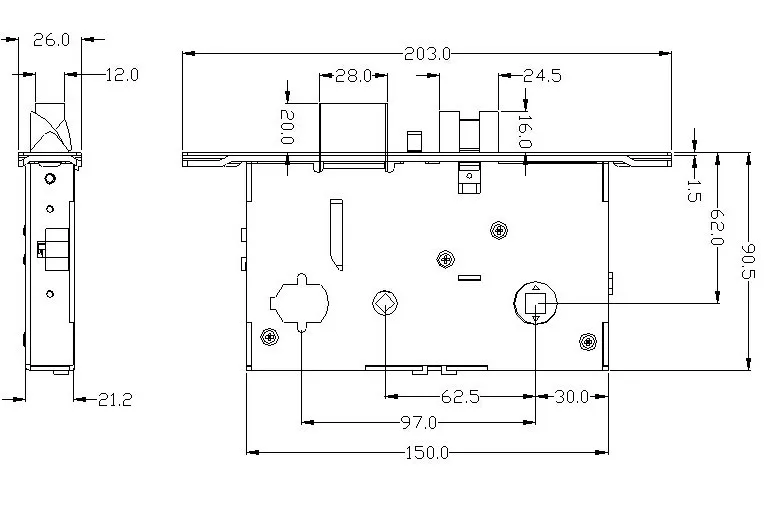

1, the use of core-American standard five-bolt lock structure, hierarchical management and anti-theft, anti-, durable, safe, reliable, and anti-tampering alarm functionality.

2, lock uses the most advanced steel structure, without an artificial plastic parts and rivets, special processes ensure that locks are more durable, not

   Loose

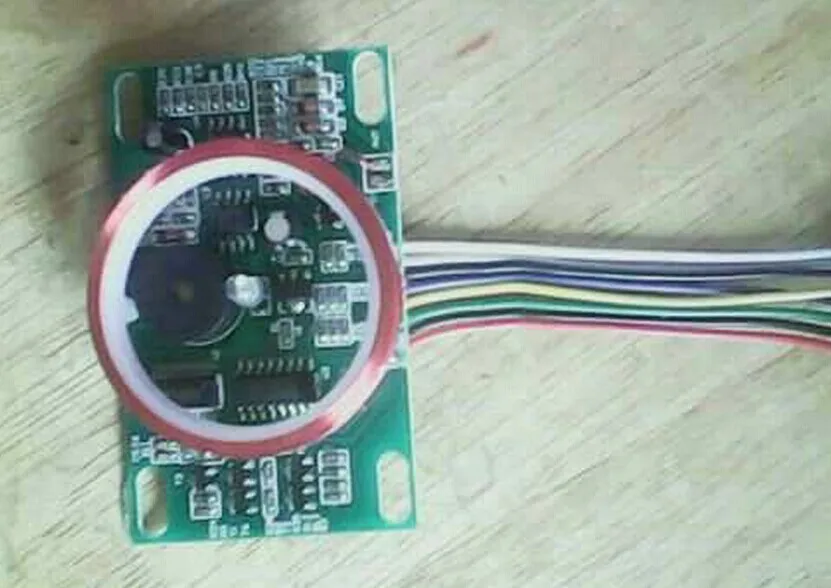

3, control: using the most stable performance electromagnetic wave technology, computer board design of anti-jamming design and powerful error-correction performance, ensure a stable circuit correctly,

   Even/touch the card the card is kept in rapid succession (including illegal cards or business cards) performance is stable and reliable, the power failure does not lose lock information

4, circuit in the factory have been clean room plus a dust-proof, moisture-proof technology, solves the circuit boards inside electronic components due to temperature change and oxidize, rust

   Corrosion problems, this will make the test lock withstand a variety of harsh conditions, whenever and wherever they are showing excellent performance and high texture of the outside

   View.

5, emergency opening: failure and emergency conditions, available key for emergency or emergency card to open the door without any control, even if the locking tongue can also open.

6, running games, easy to use features, effectively extending the real card extension

7, installation requirements: door thickness guarantees between 35 ~ 55mm (55MM), the door is the best size (45MM), if the door surface

   Lace, the lace should be from the door edge above 90mm

8, fully satisfy the public environments, more damage-resistant is strong,

9, lock with a real-time clock, control key card to use your time effectively prevent malicious default guest room; the system management software and hotel management system

   Docking, achieving a cartoon feature, easy to operate

10, the opening direction: left door, right, opened the door and left door, right door;

The induction of the lock factory into hotels or guesthouses with lock (you can also make the induction of apartment, Office or home locks), and has the following features:

    1. time limit: door locks equipped with real time clock, smart card keys can be time limits, such as guest card may only be unlocked during their stay, expires automatically void.
    2. regional limitations: each lock has a house number, building number, building number, only the cards can unlock, like guest card you can only open the specified room locks, floor card only on the specified floor locks.
   3. level: the different levels of scope and State of the tab to open the door, like emergency card can unlock all locks and can be locked open, and guest card can only be opened a room and cannot be locked open.
  4. lock record: every time you open, lock all records in the lock the serial number and time, you can save the new 380 records.
  5. loss function: when the key card is lost, a new card card card will be lost again set aside.
  6. emergency function: when there is a State of emergency, free emergency card will lock under normal open to facilitate the evacuation of persons and property.
  7. close door lock function: on-demand can close off a room, so all the room key card failure (emergency card).
  8. public functions: on-demand, you can set the floor in public (allowing all effective door card of the floor opening) and the public (allow all effective door card of the building opened).
  9. ultra low power consumption: 4 5th alkaline (nanfu) battery short can be used for 18 months.
 10. alarm function: when the door inclined tongue in the compression state for more than 4 seconds will be a beep alarm, alarm for about one minute.
      Early termination of the guest card: used to open the layer, building, area, total card to locked door three times in a row, lock beep three times issued. Meanwhile, the early termination of the lock is currently using Guest cards.
Card introduction
1, open the door (door opening function)
   ① emergency card: all locks in the open system under emergency conditions, even door locks when the lock can be opened. Emergency card when you open the door, door remains open, until the insert any other lawful door cards so far. Emergency card kept by the Security Department or the fire department.
   ② master card: you can open all locks in the system, master card held by the General Manager.
   ③ building: you can open all locks for a building, time limit, when the door cannot be opened when lock, building cards kept by building managers or other appropriate personnel.
   II floor: you can open all the locks a certain floor, when the door cannot be opened when lock, floor General card kept by an attendant or other appropriate personnel.
   ⑤ Channel card: used to set the lock channel function, commonly used for conference rooms or public areas.
   ⑥ Guest card: you can open the specified room door, when the door lock locked not unlocked, guest cards usually use by guests or other appropriate personnel.
   ⑦ area card: you can open the appropriate door of room area. When the door lock locked not unlocked. For example: Specifies the 601, 602, 603-001, 001-chip card can open these doors, and not 002 or other open area door.
   ⑧ door key card: only the key and the key to open the door card the same room to be opened. When the door lock locked not unlocked.
2, the management card (does not have to open the door function)
   ① authorization cards: can be used in software installation and licensing, or to open the door lock is not installed.
   ② installed card: for the room number and other basic information set. Applies to all door lock system.
   ③ clock card: used to set up and calibrate the lock clock. Clock card alone, clock card varies from system administrators in charge.
   II clear card: clear the room number and other basic information.
   ⑤ blockade cards/Jie Suoka: closed door lock or unlock door lock closed features.
   ⑥ number cards: specify the area (which can be either health or maintenance area).
   ⑦ key card: set the specified keys of the room, only the door key card to open the door.

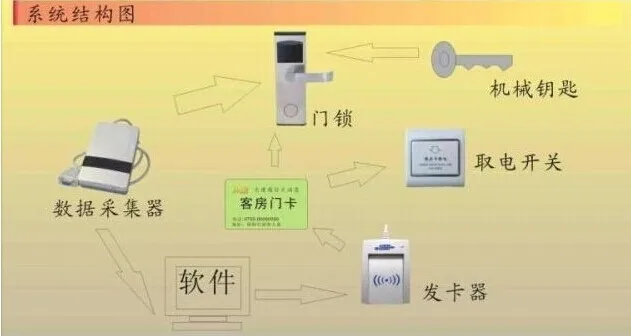

Extraction of open records
Records within a data collection instrument was used to lock out, then connected with the door lock software read the locked record.
