GM100 ULTRASONIC THICKNESS METER Tester Gauge Velocity 1.2~225mm InCarrying Case

Description:

GM100 ULTRASONIC THICKNESS METER Tester Gauge Velocity 1.2~225mm InCarrying Case

This GM100 tool is widely used in various precise measurements for different hardware/parts in industrial realm.One of its important applications is to monitor the level of thickness decreasing during operation of various and pressure container.This equippment is also applied in manufacture fields,metal processing and commercial inspection.This product can be applied for the material that conduct and reflect
constant sonic velocity

Features:
Auto Calibration to assure the accuracy
Auto linear compensation:this advanced software program enhances the precision by correcting the non-linear accuracy of transducer
Use UP and DOWN keys to make a quick adjustment for the sound velocity/thickness and a quick recall to the stored data
10 thickness measurement storage and recall function available, which facilitated the height work or working in wild area
Coupling status indication: Observing the coupling icon to learn if the coupling is accomplished or not
Sound velocity measurement:with a given thickness by a sample hardware to measure the sound velocity,which avoid the further conversion or consultation of the table
12 sound velocity for different material which also adjustable
Low battery indication
Auto power off mode designed to conserve battery life
The unit has a special memory that retains all of its setting even when the power is off
More than 10000 times long life keys

Specifications:
Model:GM100
LCD Digital Display:4 digits
Minimum Display Unit:0.1mm
Working Frequency:5MHz
MeasurementRange:1.2~225.0mm(Steel)
Minimum Limit for Tubes Measurement: 20(diameter)x3mm(Steel)
Accuracy:(1% H+0.1 mm)(H denotes the measured thickness)
When the given thickness over 20mm,the accuracy is 1%;when the given thickness less than 20mm,the accuracy is 5%
SoundVelocity Range:1000~9999m/s
Measuring Sound Velocity with a given thickness
Measuring Range:1000~9999m/s
operating Temperature:0~40C(32~104F)
Operation Current:50Ma(Normal);120mA (With Backlight on);20uA(Stand-by)
Size (L x W x H):Approx.146 x 72 x 29mm
Color:Red and yellow case
Power supply:3 x 1.5 AAA Alkaline Batteries(not Included)
Item weight:543g

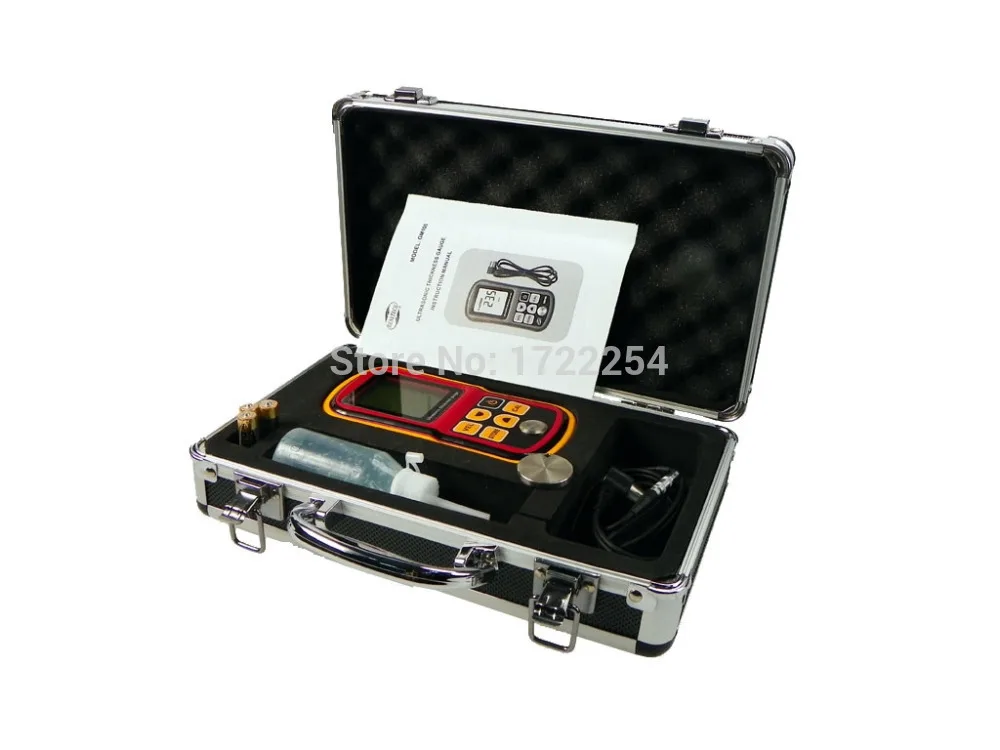

Package Included:
1x Ultrasonic Thickness Gauge
1x Transducer
1x 4mm Sample Block
1x Instruction Manual

Pls noted: in order to make sure u can get the parcel soonly and safely,we will take away theCoupling Agent,or it\'s very possible to be blocked by customs.Thanks for ur kindly noted.

***************************************************************************
