Ветер Датчики скорости 360 градусов несколько выходов Анемометр углерода

 Wind Speed Sensor 360 Degrees Multiple Outputs Anemometer

Carbon Material

Important NOTE before you order,

For the output, we have SIX KINDS,

1: current type 4~20mA

2: voltage type  0.4~2V

3: pulse output

4: voltage type 0~5V

5: voltage type 1~5V

6: RS485 type

We'll send current type 4~20mA in default if you don't remark=) Thank you for your cooperation~

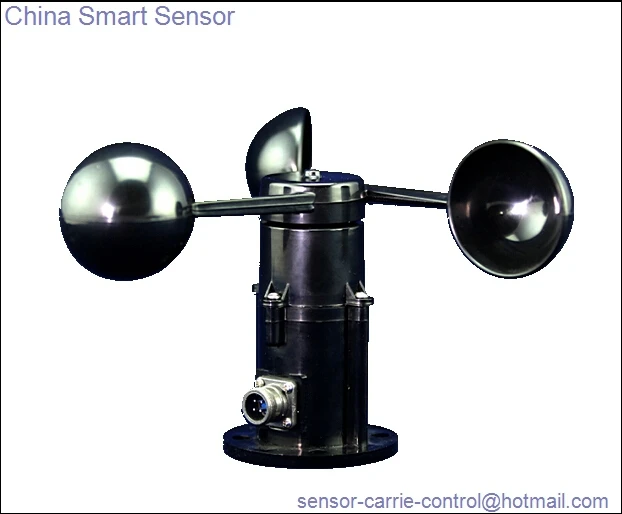

 Wind Speed Sensor, anemometer

General Description

CSS-HS-4 wind speed sensor is a high-reliability, high-performance wind measurement sensors, It is with heated de-icing capability. The relationship between electrical signal and the environmental wind speed output is linear, It is built-in strong anti-radio, anti-electromagnetic interference and anti-lightning surge protection circuitry circuit.

It is applied to test wind speed in aerial work platform, engineering machinery, port machinery and other industry. It adapts to harsh and low temperature environment .The main structure is made of alloy material and is surface treated with good waterproof, anti-corrosion capability. Its internal and rotating components are sealed design that can effectively prevent water, salt spray and dust and other intrusion.

Features

♦Non-contact magnetic sensor measuring principle, high accuracy and reliability;

♦Strong wind resistance, strong corrosion resistance;

♦Wide wind speed measurement range, with low starting wind speed;

♦Compact design, automatic heating , low temperature defrosting;

♦Sensor circuit protection with fault-tolerant capability;

♦Meet CE EMC standard, multi-levels for anti-lightning anti-surge design

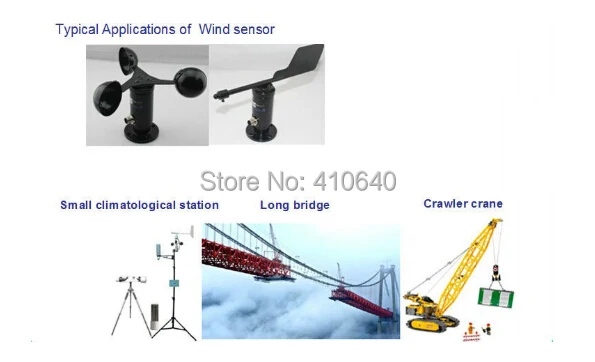

Applicable Scope

♦Working aloft testing and control

♦Engineering machine testing and control

♦Weather station and environment protection testing and control

♦Port and wharf environment testing and control

♦Other industrial automation about wind speed and direction testing and control

Specification

♦ Accuracy: ± 1m / s

♦ Start wind speed: 0.2-0.4m / s

♦ Voltage output type:

 Range: 0 ~ 32.4m / s

 Supply voltage: 7V ~ 24VDC

Output signals: 0.4 ~ 2V  or 0~5 V , 1~5 V

 Wind speed values = ( output voltage -0.4) /1.6*32.4

♦ Current output type:

 Range: 0 ~ 32.4m / s

 Supply voltage: 12V ~ 24VDC

 Output signal: 4 ~ 20mA

 Load capacity: = ≤200 ohms

 Wind speed values = ( output  current -0.4) /1.6*32.4

 ♦ Pulse output type:

 Range: 0 ~ 60M / S

 Output signal: pulse (each pulse corresponds to 0.88m / s)

 Supply voltage: 5V ~ 24VDC

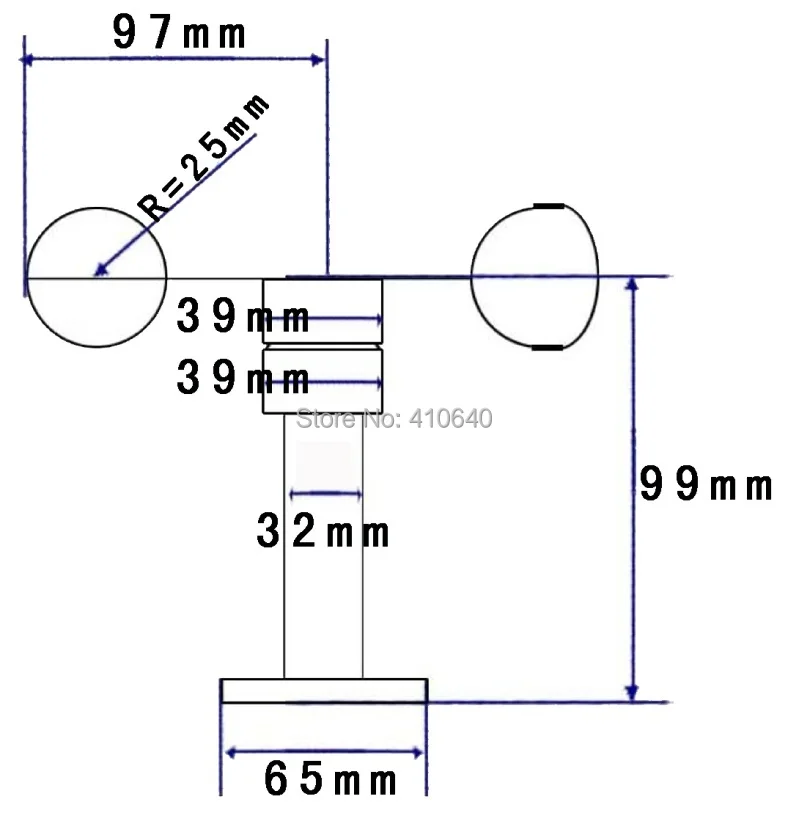

Dimension

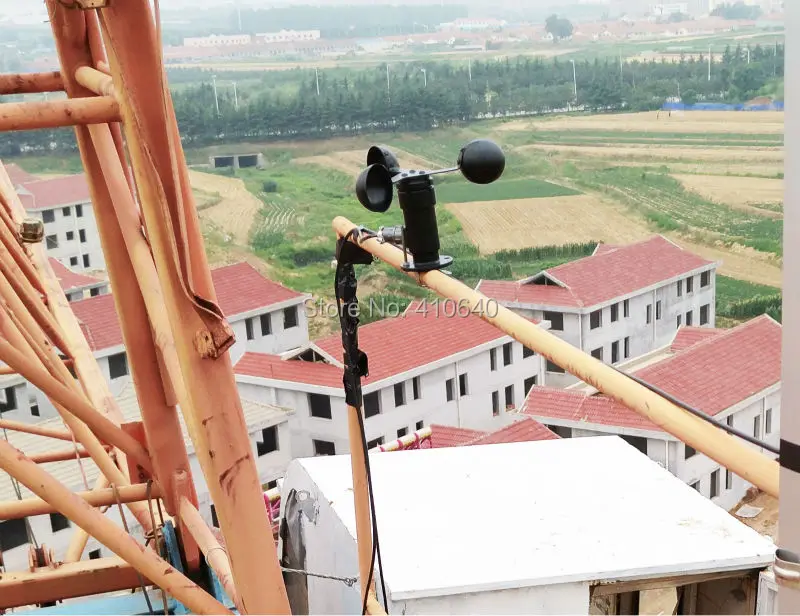

Installation

♦The sensor is installed horizontally as shown in the figure, and the angle between the mounting base and the horizontal plane should not exceed 5° so as to ensure that the wind speed can be measured accurately by the sensor under low wind speed conditions.

♦The positions and shapes of the wind cup and the windmill arm can directly affect the accuracy of the sensor as shown in the above figure. Do not hold the wind cup and the windmill arm during installation, so as to avoid the damage to the sensor structure and the influence on the accuracy of measurement.

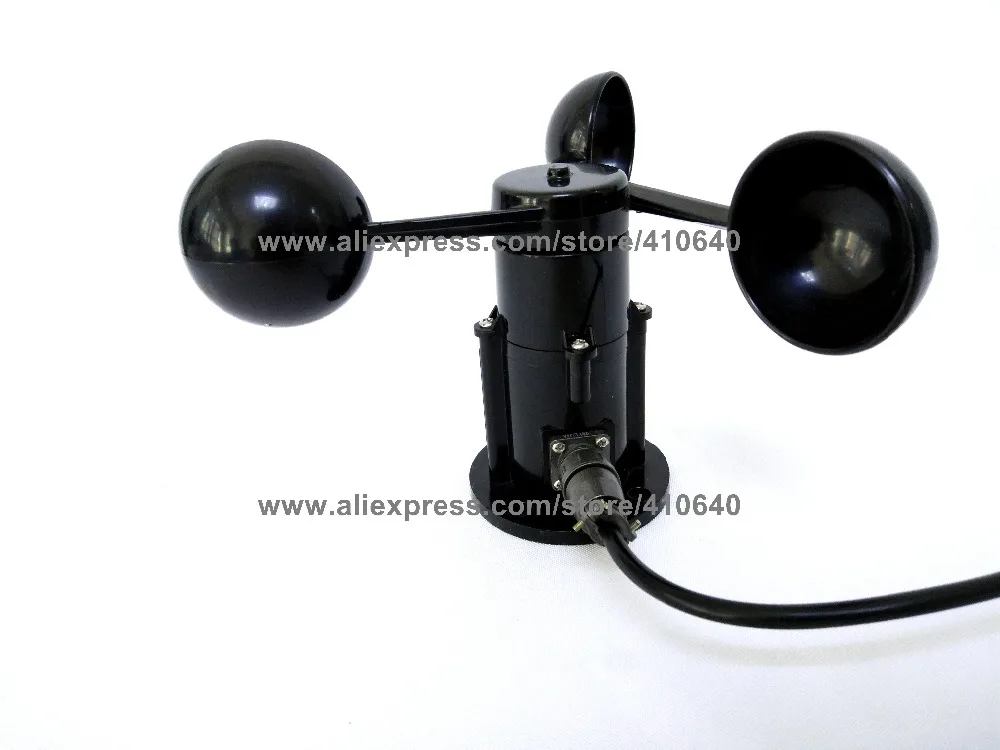

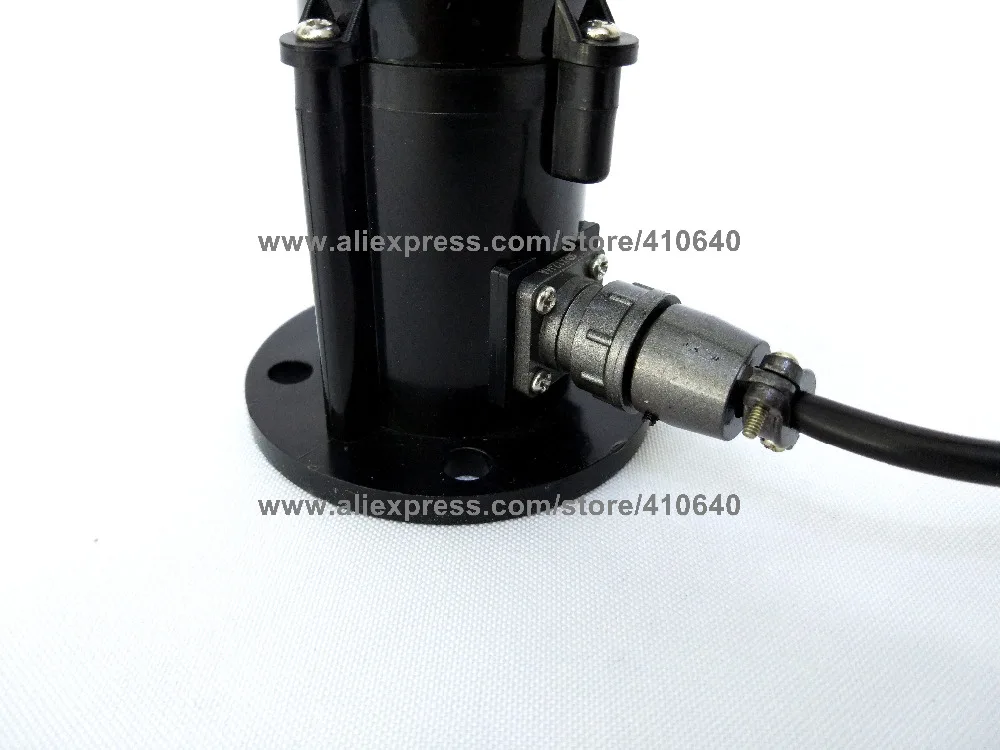

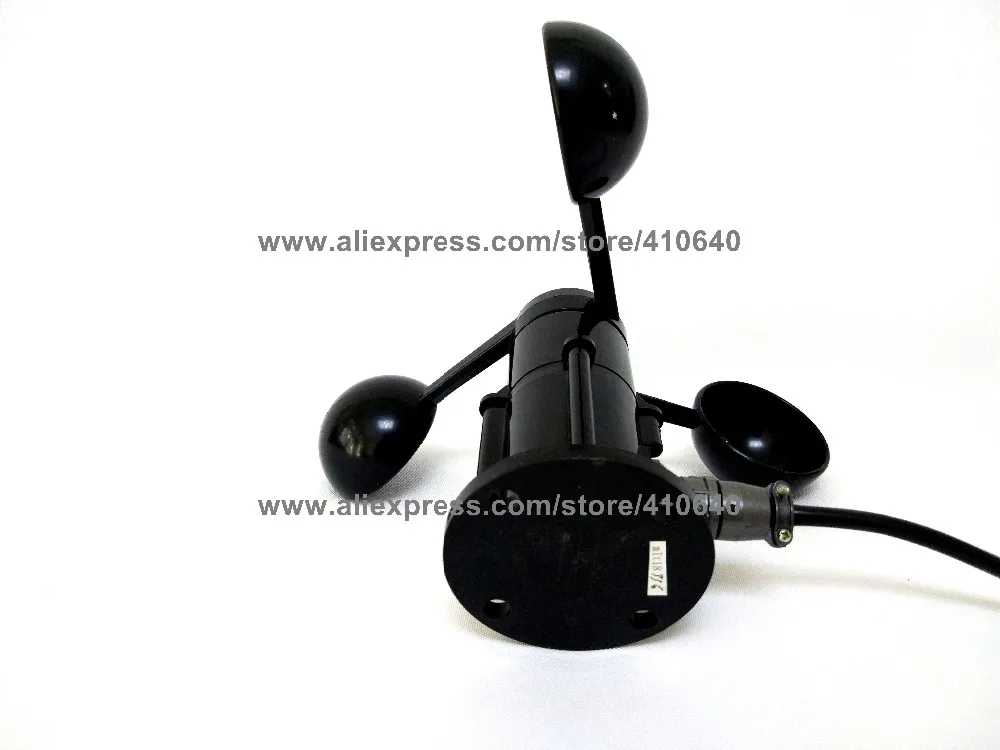

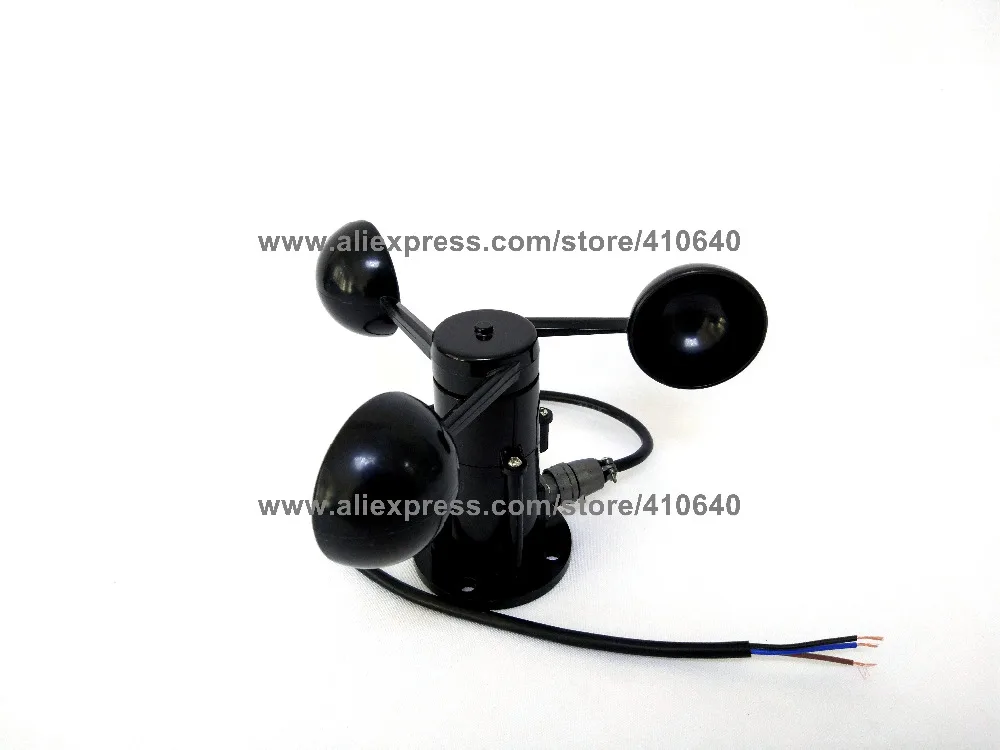

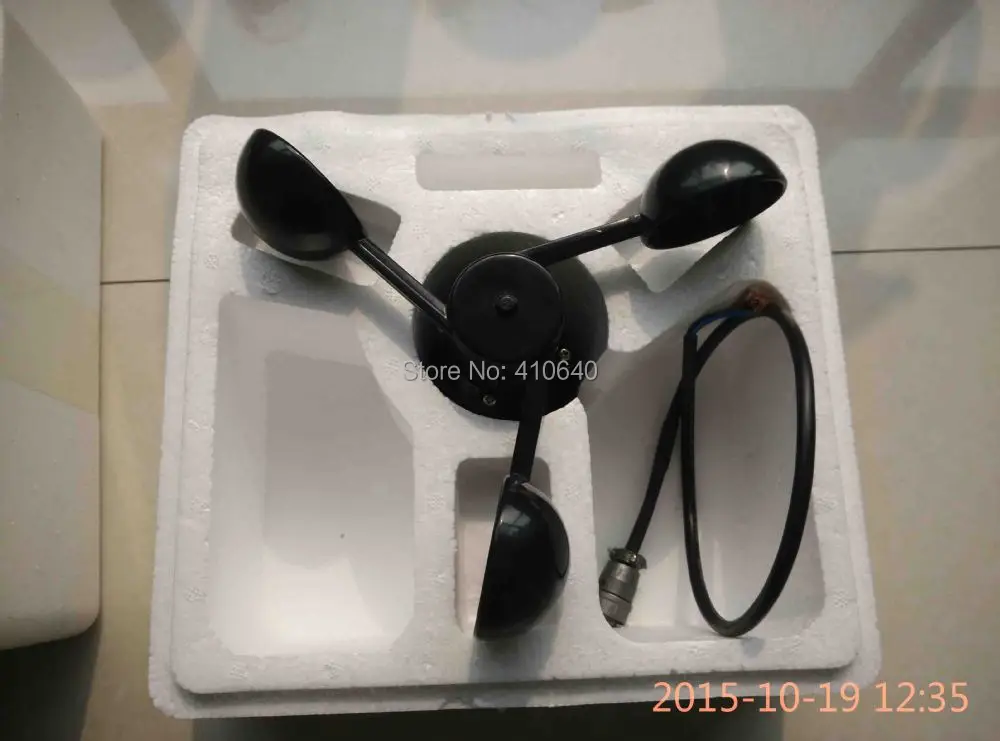

Real Pictures Shows
