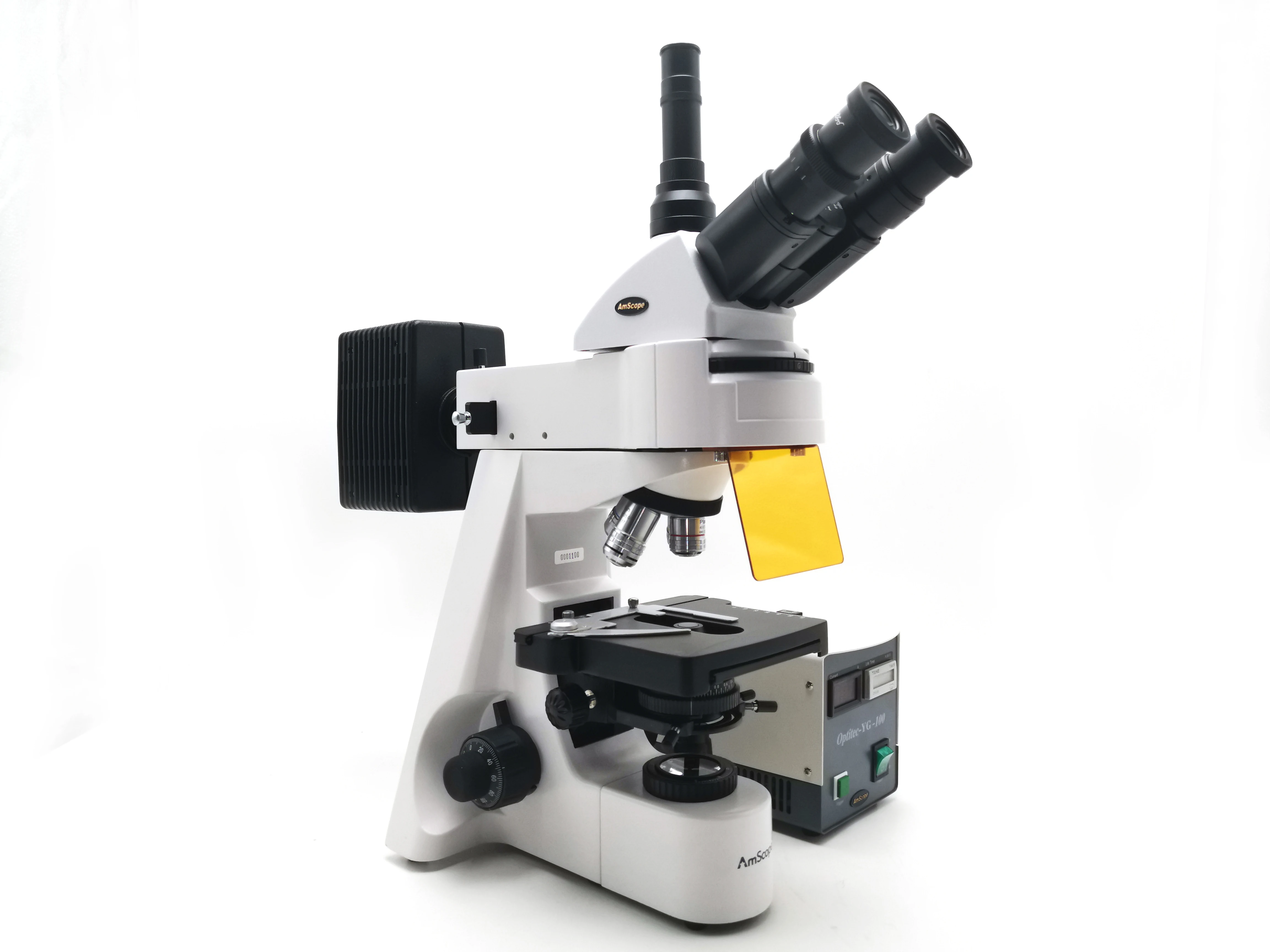

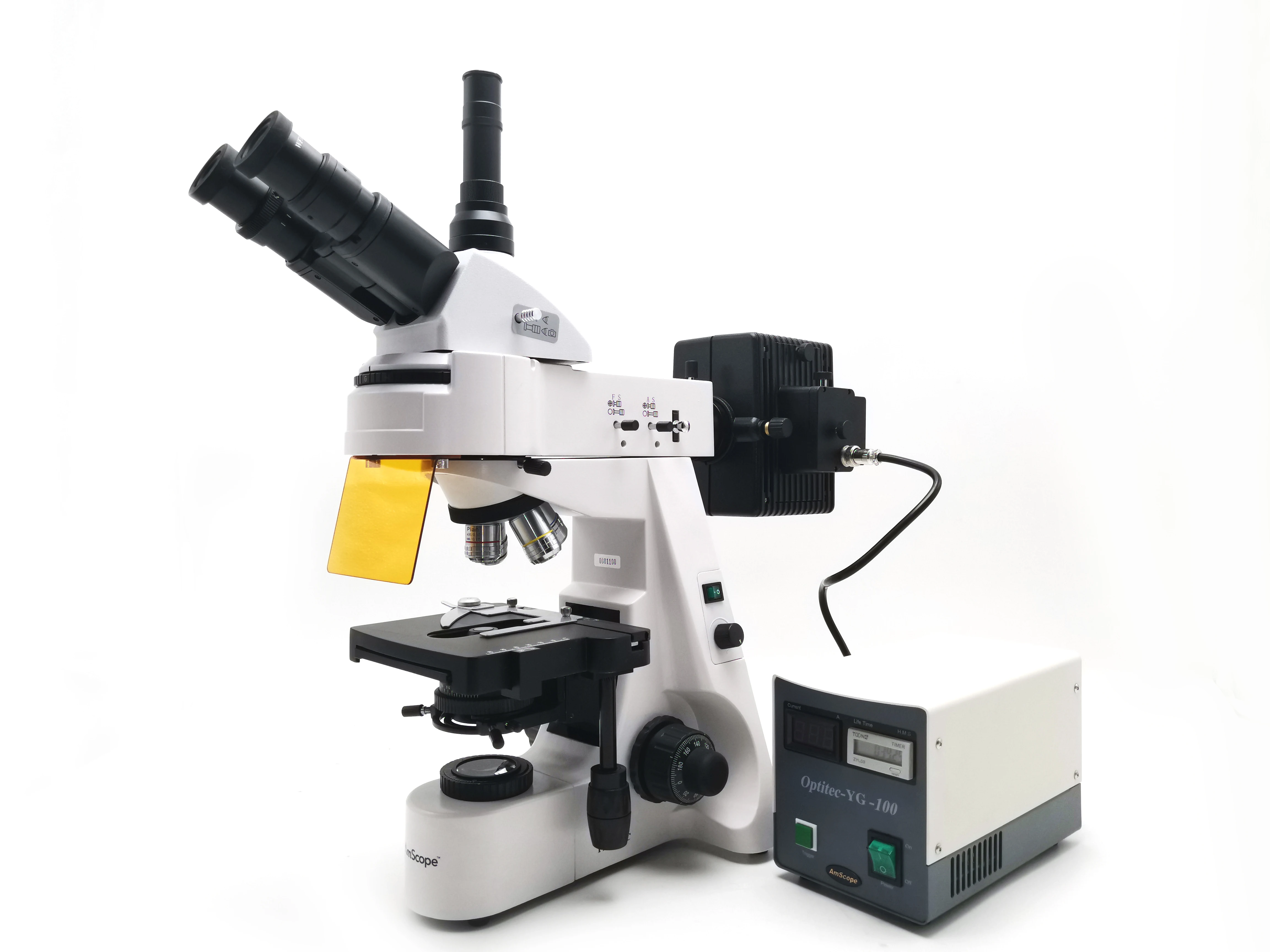

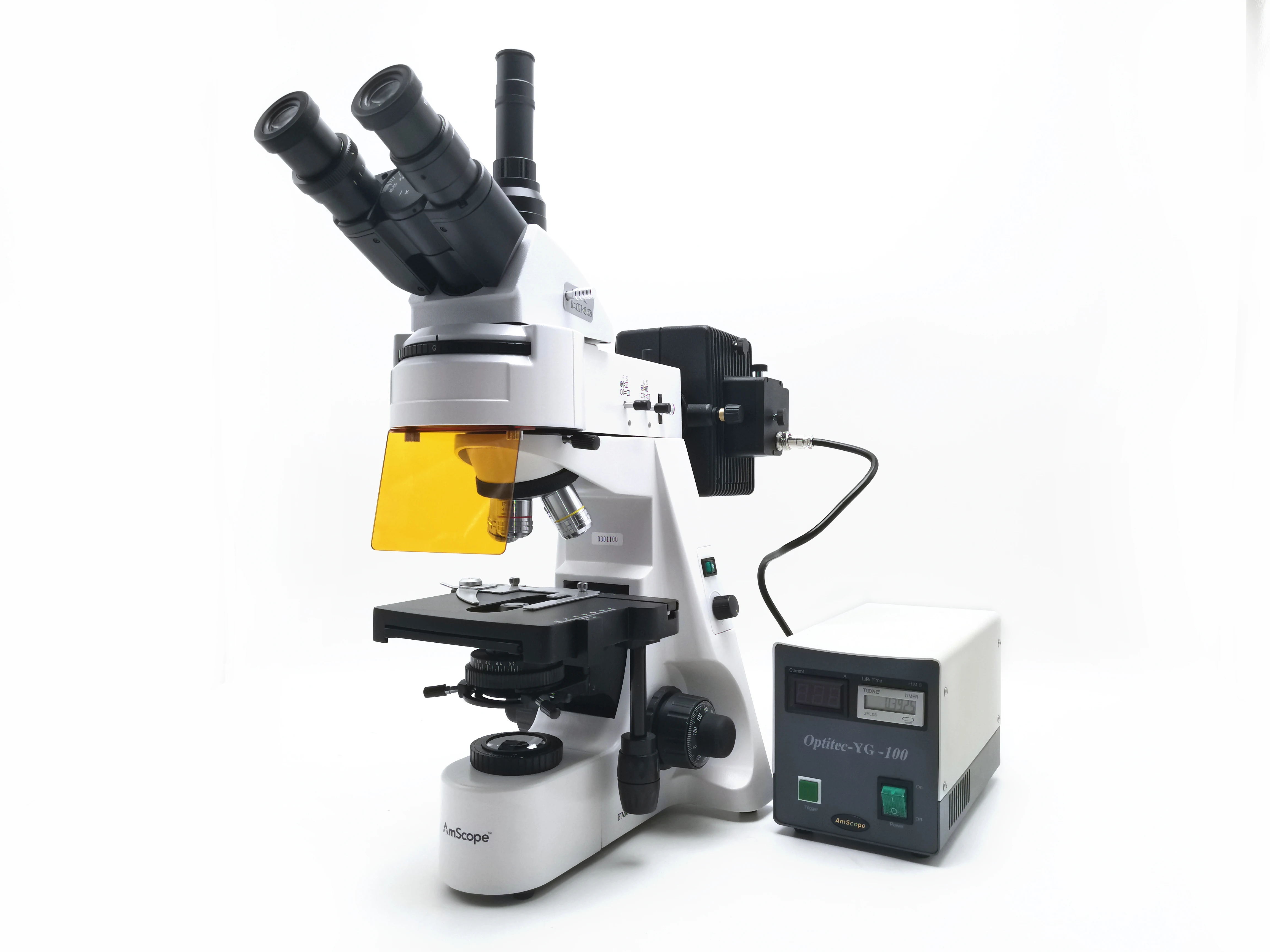

This brand new professional trinocular Infinity Epi-fluorescence microscope comes with Infinity fluorescent objectives, extreme widefield eyepieces, 30° inclined trinocular head, 30W transmitted halogen light and 100W Epi-fluorescence illumination. It offers six magnification settings: 40X, 100X, 250X, 400X, 1000X & 2500X. The microscope configurates B, G wave bands. It is a great microscope for biology, medicine, immunology, oncology, genetics, and materials science applications.

Features :

• A professional extreme widefield Infinity Epi-fluorescence microscope!

• Perfect for biology, medicine, immunology, oncology, genetics, and materials science the applications

• Six magnification settings, 40X, 100X, 250X, 400X, 1000X & 2500X

• Four Infinity fluorescent objectives included

• Two pairs of extreme widefield high-eyepoint eyepieces

• Upright photo port for photographic/video capability

• Fully coated optical system with high resolution

• Diopter adjustment on ocular

• Extra large 3-D double layer mechanical stage with stain resistant finish

• Low position coaxial stage movement control knobs

• Coaxial coarse & fine focusing with tension control

• Built-in 30 Watt halogen illumination system with variable brightness

• 100W Ultra-high pressure Mercury fluorescent EPI-illumination

• Dual side mounted focusing controls

• Precise ground glass lenses

• All metal mechanical components

• Adjustable interpupillary distance

• Rugged cast alloy frame and stand with stain resistant enamel finish

• Manufactured under ISO 9001 quality control standard

• Excellent five (5) year factory warranty

Specifications :

• Head: 30° Inclined Compensation Free Trinocular Head

• Nosepiece: Sextuple Nosepiece

• Eyepiece: WH10X/22mm and WH25X extreme widefield

• Objective: Infinite fluorescent objectives: 4X, 10X, 40X(S) & 100X (S, Oil)

• Interpupillary Distance: 2"-3" (50mm-75mm)

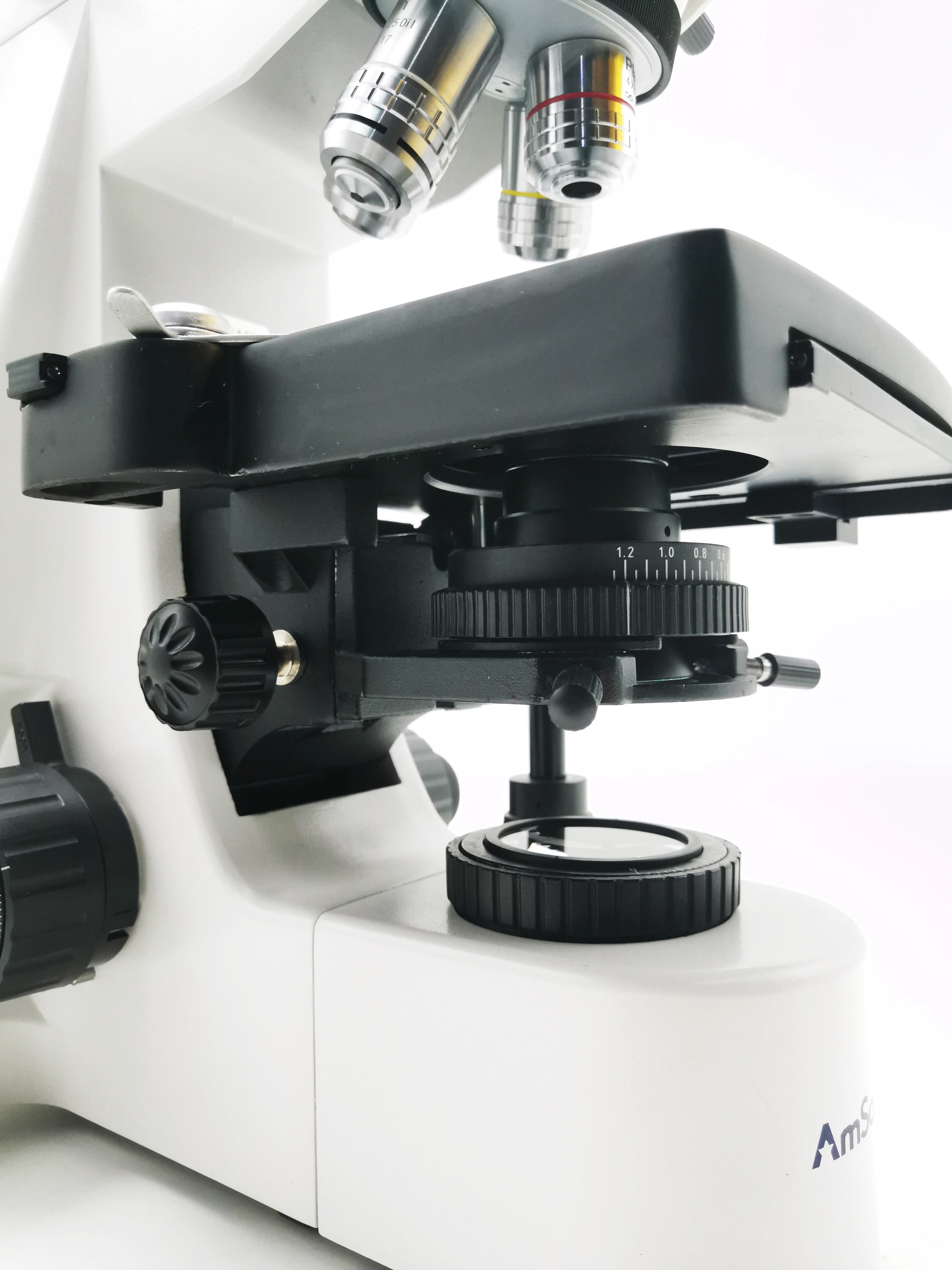

• Mechanical Stage: two-layer; size: 7.10"x5.90" (180mm×150mm); traveling range: 2.95"x1.97" (75mm×50mm)

• Condenser: N.A.1.25 Abbe condenser with iris diaphragm and filters

• Focus: coaxial coarse & fine rack & pinion focusing system with tension control; fine focusing scale value 0.000079" (0.002mm)

• Transmitted Illumination: Halogen Bulb 12V/30W, Adjustable Brightness

• Epi-fluorescence lllumination: 100W Ultra-high pressure Mercury; digital display mercury lamp constant power

• Power Supply: 110VAC 60Hz

• Fluorescence Attachment: Green, Blue excitation

Packing List :

One Trinocular Head

One Microscope Body

Four Objective lenses: 4X, 10X, 40X, 100X

One Pair of 10X Eyepieces

One Pair of 25X Eyepieces

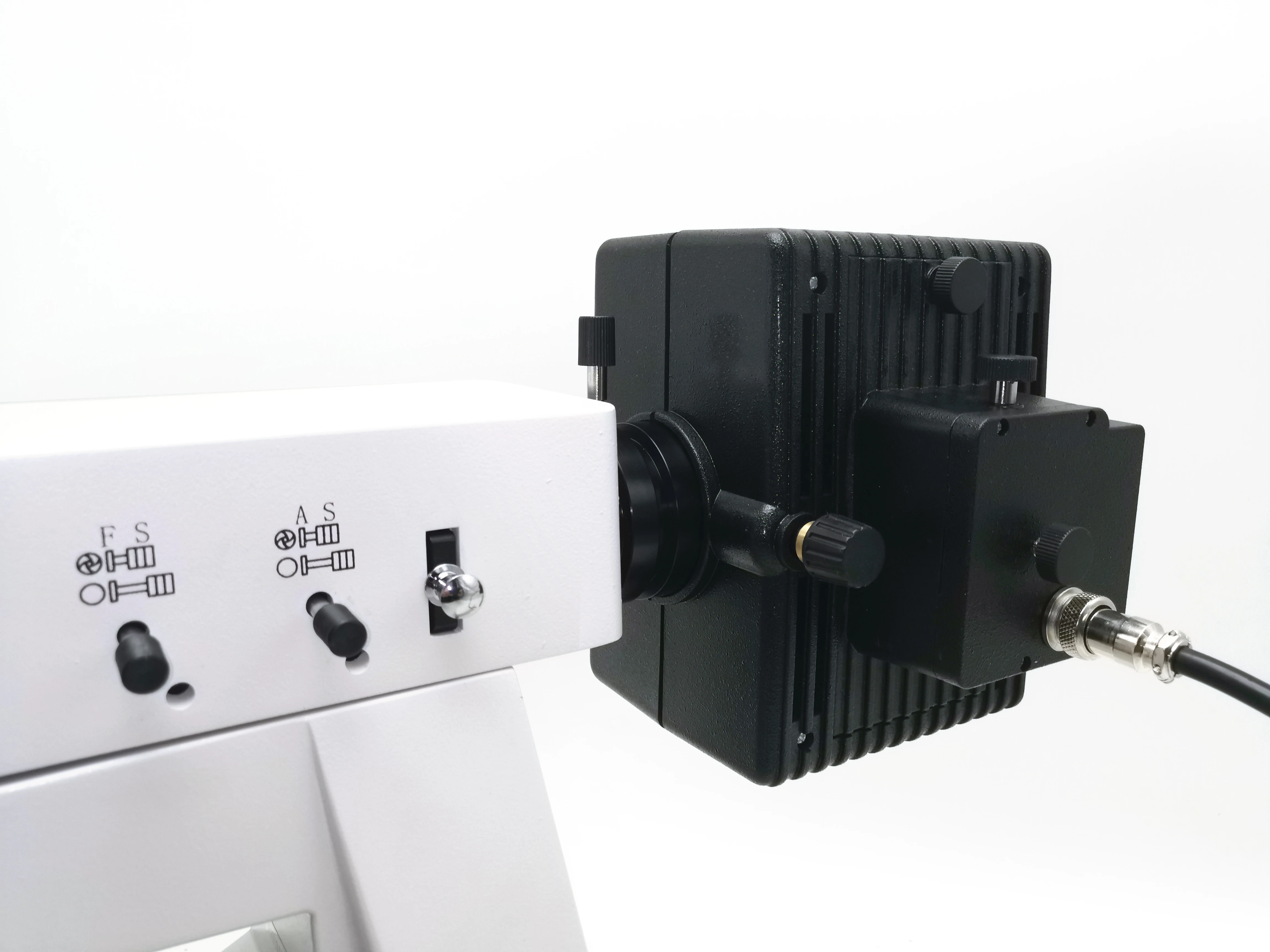

One Fluorescence Illuminator Housing

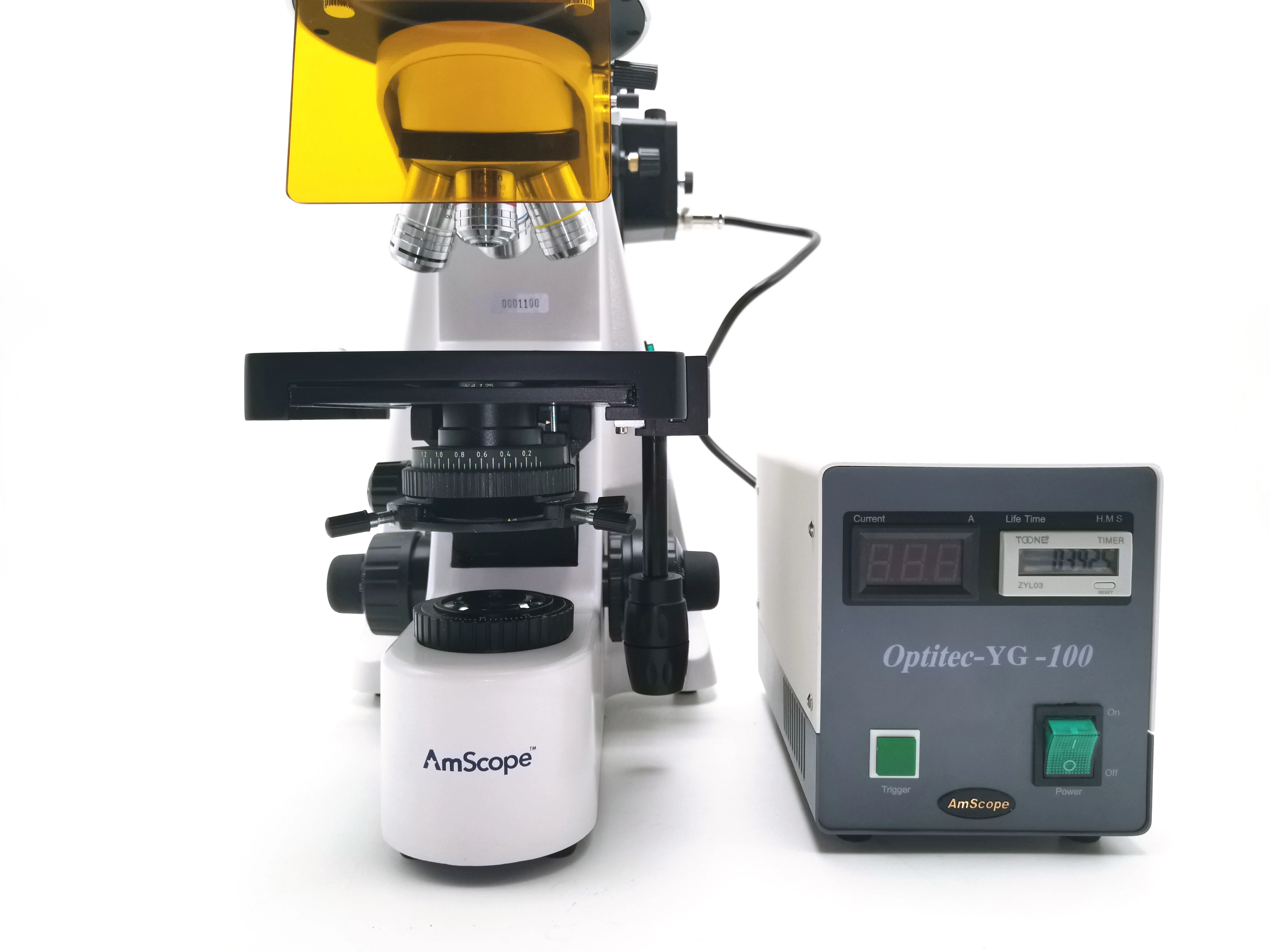

One Power Unit for Fluorescence Illuminator

One 30W halogen bulb

One 100W Mercury bulb

One Dust Cover

Color Filters

Power Cord
