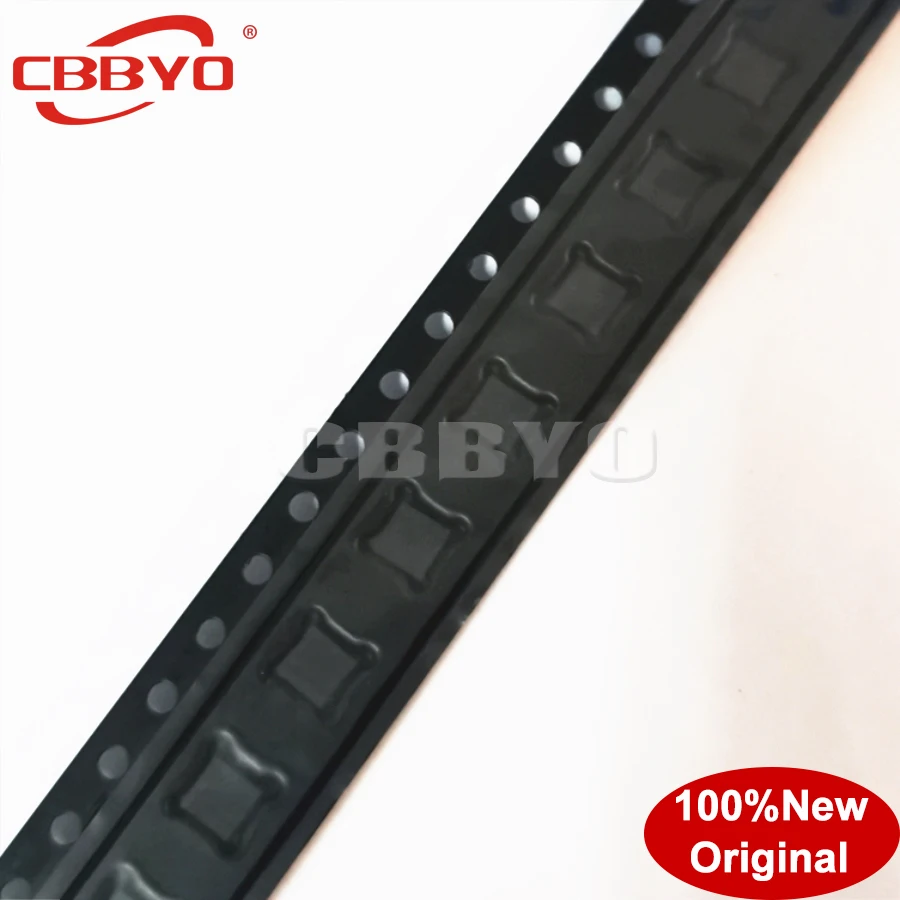

2 шт./лот New 194A SC194A SC194AMLTRT QFN-10 | Электронные компоненты и принадлежности
221,26 руб. / набор
Новое поступление

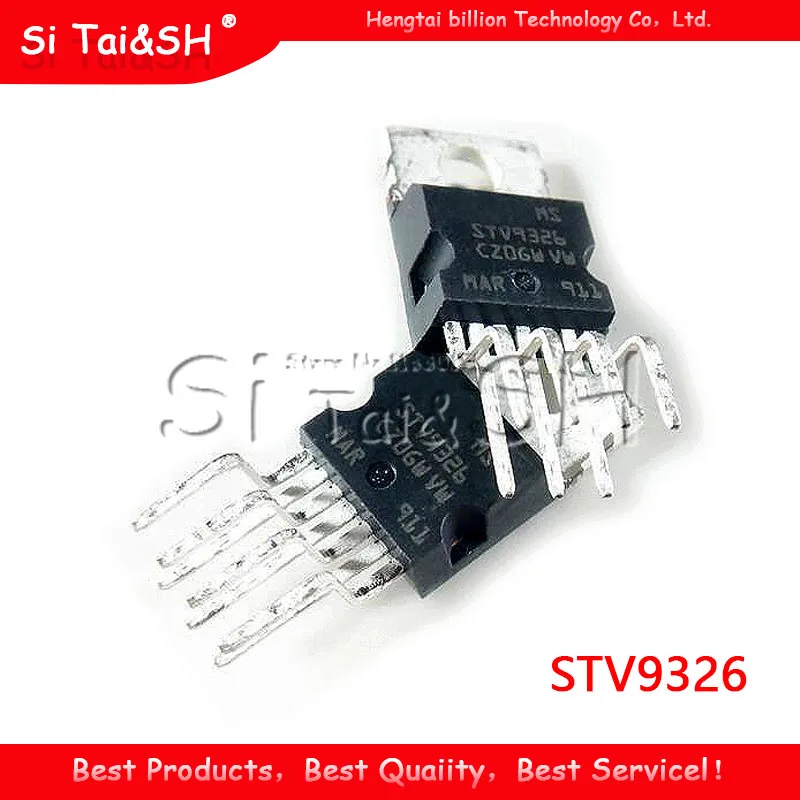

5 шт. STV9326 TO220-7 блок поля выход интегральной схемы сканирования IC чип цветной
79,65 руб. / набор
10 шт. 93C86 = 93C86WP ST SOP-8 интегральная схема | Электронные компоненты и принадлежности
109,89 руб. / набор
10PCS SN74HC573AN DIP-20 74HC573 D New and original | Электронные компоненты и принадлежности
Memory chip BGA IS62WV51216BLL-55BLI new original authentic | Электронные компоненты и принадлежности
10 шт. MMA7361LCR1 MMA7361 marking7361 LGA14 Новинка | Электронные компоненты и принадлежности
18 438,35 руб. / набор
10 шт./лот L7815CV TO220 L7815 TO-220 7815 LM7815 MC7815 Новый и оригинальный IC в наличии | Электронные
ESP8266 ESP-12E ESP12E Wifi серийный модуль плата для Arduino беспроводной трансивер удаленный
119,48 руб.
A+A+A Store
Магазина A+A+A Store работает с 22.12.2011. его рейтинг составлет 95.59 баллов из 100. В избранное добавили 14846 покупателя. Средний рейтинг торваров продавца 4.8 в продаже представленно 1605 наименований товаров, успешно доставлено 213628 заказов. 33493 покупателей оставили отзывы о продавце.
Характеристики

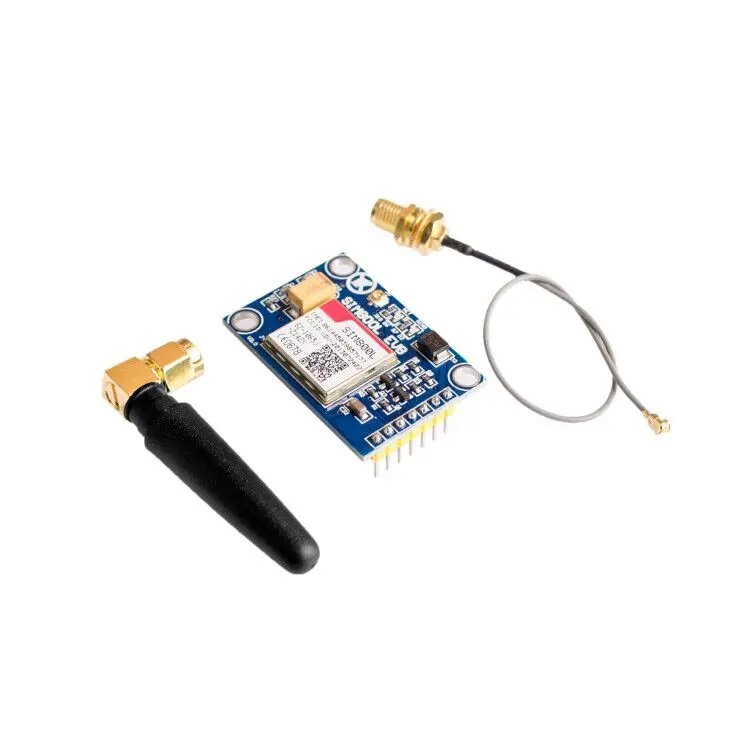

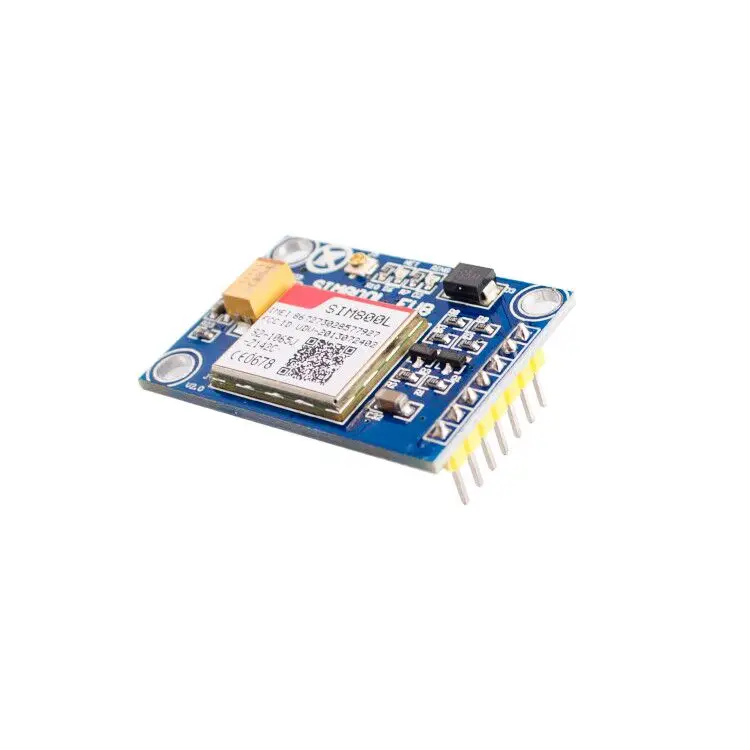

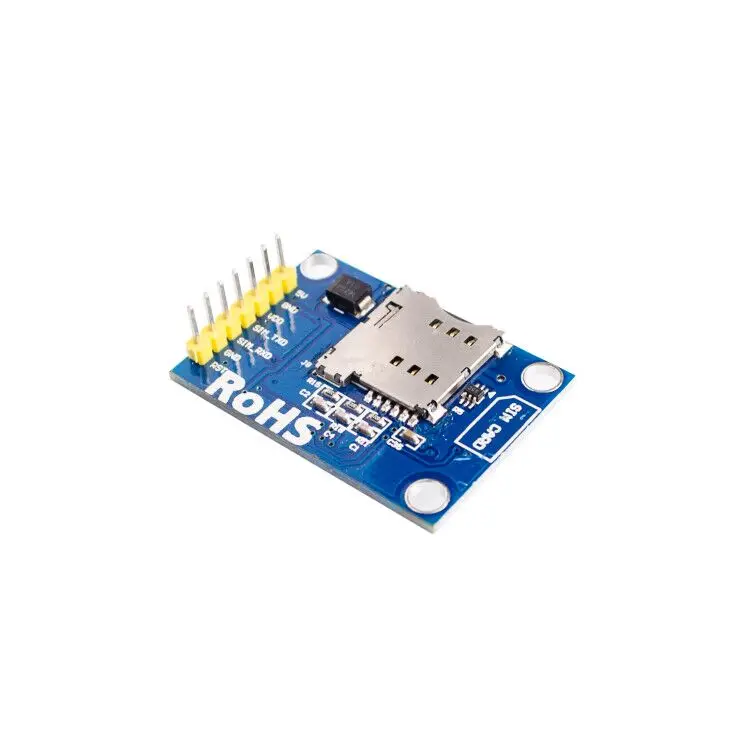

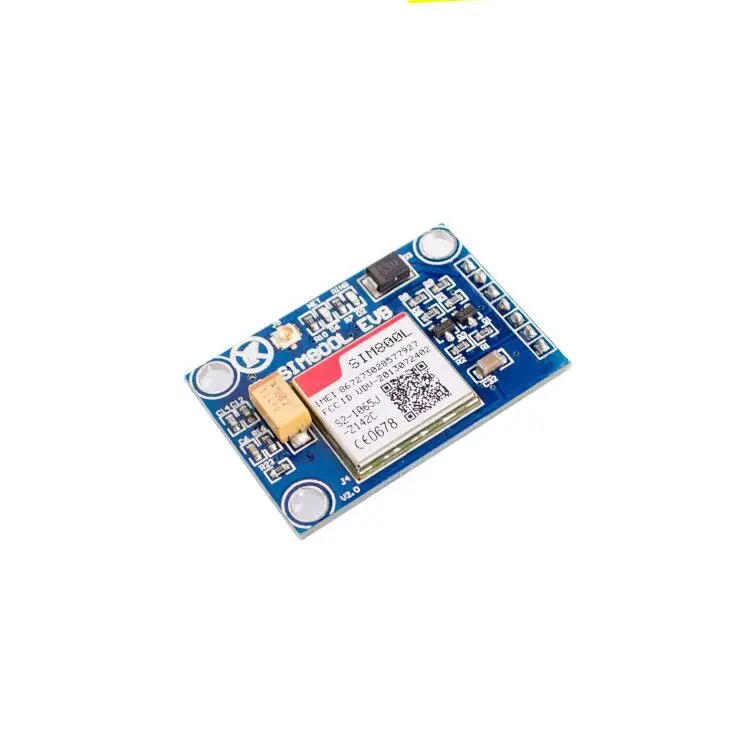

SIM800L V2.0 5V Wireless GSM GPRS MODULE Quad-Band W/ Antenna Cable Cap | Электронные компоненты и принадлежности
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Apr-04-2026 | 0.6 руб. | 0.7 руб. | 0 руб. |
| Mar-04-2026 | 0.4 руб. | 0.61 руб. | 0 руб. |
| Feb-04-2026 | 0.54 руб. | 0.17 руб. | 0 руб. |
| Jan-04-2026 | 0.79 руб. | 0.4 руб. | 0 руб. |
| Dec-04-2025 | 0.75 руб. | 0.92 руб. | 0 руб. |
| Nov-04-2025 | 0.60 руб. | 0.83 руб. | 0 руб. |
| Oct-04-2025 | 0.51 руб. | 0.53 руб. | 0 руб. |
| Sep-04-2025 | 0.84 руб. | 0.60 руб. | 0 руб. |
| Aug-04-2025 | 0.76 руб. | 0.69 руб. | 0 руб. |
Описание товара
| Sim800L is a GSM/GPRS module. You can send a message, make a call, transfer data though the GPRS or something else. |
| Overview |
| This SIM800l module has a set of TTL level serial interface, a set of power supply interface. Besides, there are a set of antenna interface on this module. |
| The chip of SIM800L basic features |
| SIM800H is a complete Quad-band GSM/GPRS solution in a LGA type which can be embedded in the customer |
| Applications: |
| SIM800H support Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power |
| Consumption: |
| With tiny size of 15.8*17.8*2.4 mm, it can fit into slim and compact demands of customer design. Featuring |
| Bluetooth, FM and Embedded AT, it allows total cost savings and fast time-to-market for customer applications. |
| General features |
| Quad-band 850/900/1800/1900MHz |
| GPRS multi-slot class 12/10 |
| GPRS mobile station class B |
| Compliant to GSM phase 2/2+ |
| - Class 4 (2 W @ 850/900MHz) |
| - Class 1 (1 W @ 1800/1900MHz) |
| Bluetooth: Compliant with 3.0+EDR |
| FM: 76~109MHz worldwide bands with 50 KHz tuning step |
| Dimensions: 15.8*17.8*2.4mm |
| Weight: 1.35g |
| Control via AT commands (3GPP TS 27.007, 27.005 And SIMCOM enhanced AT Commands) |
| Supply voltage range 3.4 ~ 4.4V |
| Low power consumption |
| Operation temperature:-40 ~85 |
| Specifications for GPRS Data |
| GPRS class 12: Max. 85.6 kbps (downlink/uplink) |
| PBCCH support |
| Coding schemes CS 1, 2, 3, 4 |
| PPP-stack |
| CSD up to 14.4 kbps |
| USSD |
| Non transparent mode |
| Specifications for SMS via GSM/GPRS |
| Point to point MO and MT |
| SMS cell broadcast |
| Text and PDU mode |
| Software features |
| 0710 MUX protocol |
| Embedded TCP/UDP protocol |
| FTP/HTTP |
| MMS |
| DTMF |
| Jamming Detection |
| Audio Record |
| TTS |
| Embedded AT (optional) |
| Specifications for voice |
| Triode |
| - Half rate (HR) |
| - Full rate (FR) |
| - Enhanced Full rate (EFR) |
| AMR |
| - Half rate (HR) |
| - Full rate (FR) |
| Hands-free operation |
| Echo suppression |
| Interfaces |
| 88 LGA pads including: |
| Analog audio interface |
| RTC backup |
| Serial interface |
| Interface to external SIM 3V/1.8V |
| GSM Antenna pad |
| FM Antenna pad |
| Bluetooth Antenna pad |
| Compatibility |
| AT cellular command interface Certifications (Plan): |
| CE |
| GCF |
| FCC |
| ROHS |
| REACH |
| The module Basic features |
| 51 STM32 AVR MCU compatible |
| Prototype expand |
| The frequency is 850/900/ 1800/1900 MHz |
| Power supply range: voltage is 4.6-5.2v; current is 1A or more (the current is very important). |
| Operating temperature range: -40 degrees C to +85 C |
| Communication interface: The TTL level serial interface compatible 2.85/3.3/5v MCU |
| LED: Two led, the Net led and the RING led. |
| Size:27*39mm |
| SIMCARD: micro SIMCARD holder |
| The description of pins: |
| The name of pins Description |
| 5v Power interface Power the module |
| CONNECT TO DC5v |
| GND |
| VDD TTL UART interface The TTL UART serial interface, you can connect the MCU like 51MCU or ARM or MSP430 directly. The pin of VDD is used to match voltage of the TTL. |
| SIM_TXD |
| SIM_RXD |
| GND if this pin is unused, keep open |
| RST RST the module, if this pin is unused, keep open |
| The name of pins Description |
| 5v Power interface Power the module |
| CONNECT TO DC5v |
| GND |
| VDD TTL UART interface The TTL UART serial interface, you can connect the MCU like 51MCU or ARM or MSP430 directly. The pin of VDD is used to match voltage of the TTL. |
| SIM_TXD |
| SIM_RXD |
| GND if this pin is unused, keep open |
RST RST the module, if this pin is unused, keep open
|
