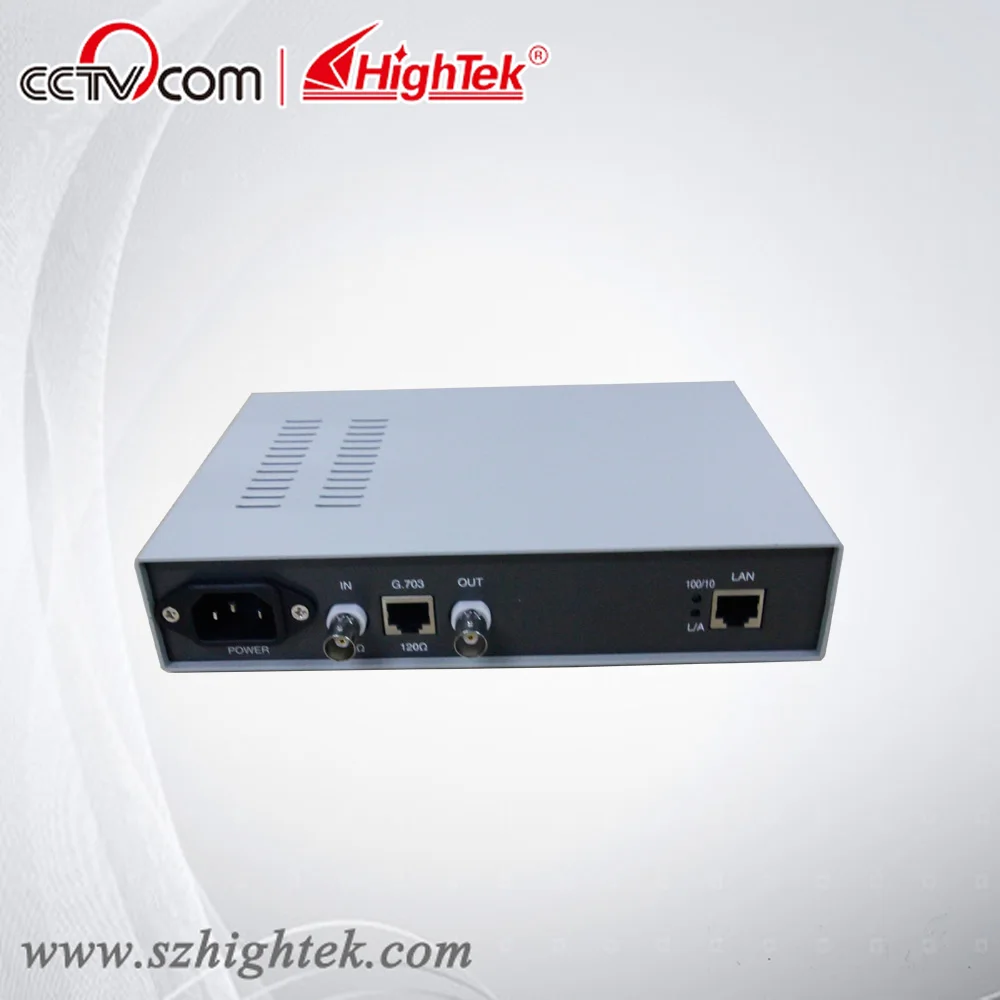

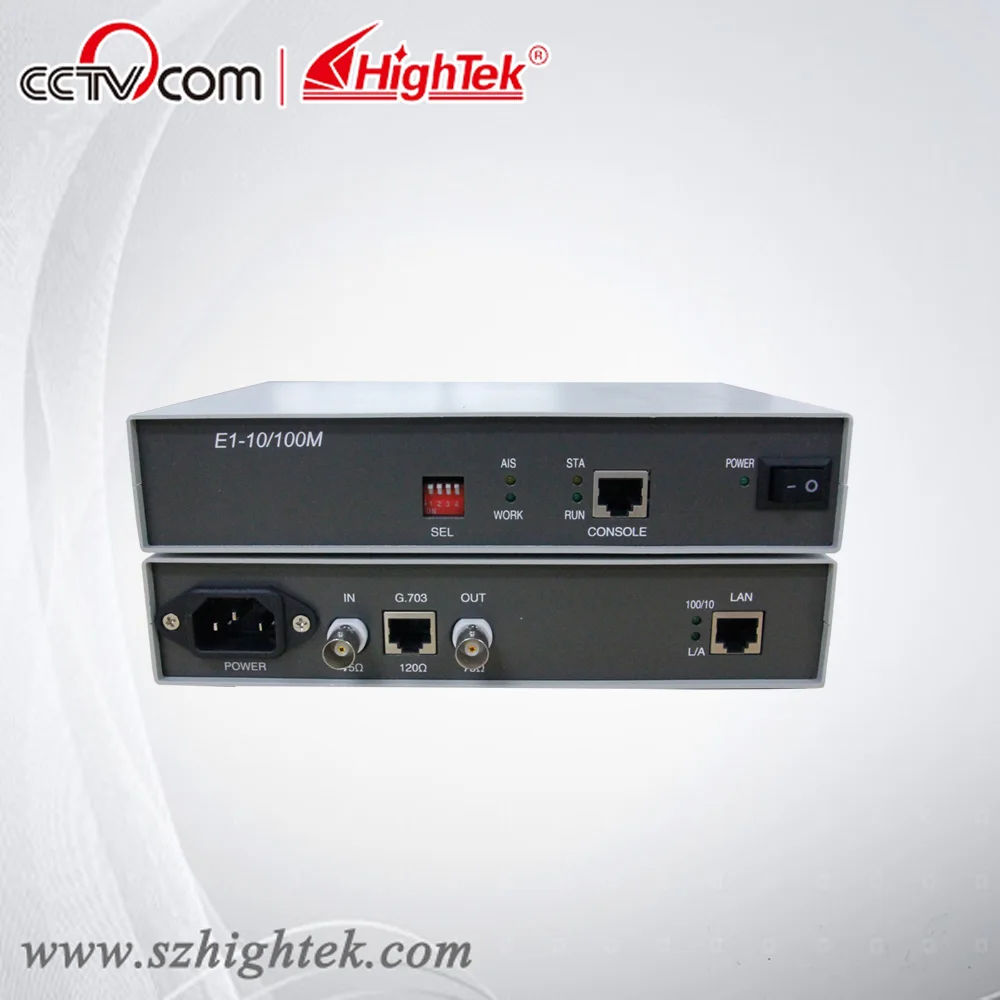

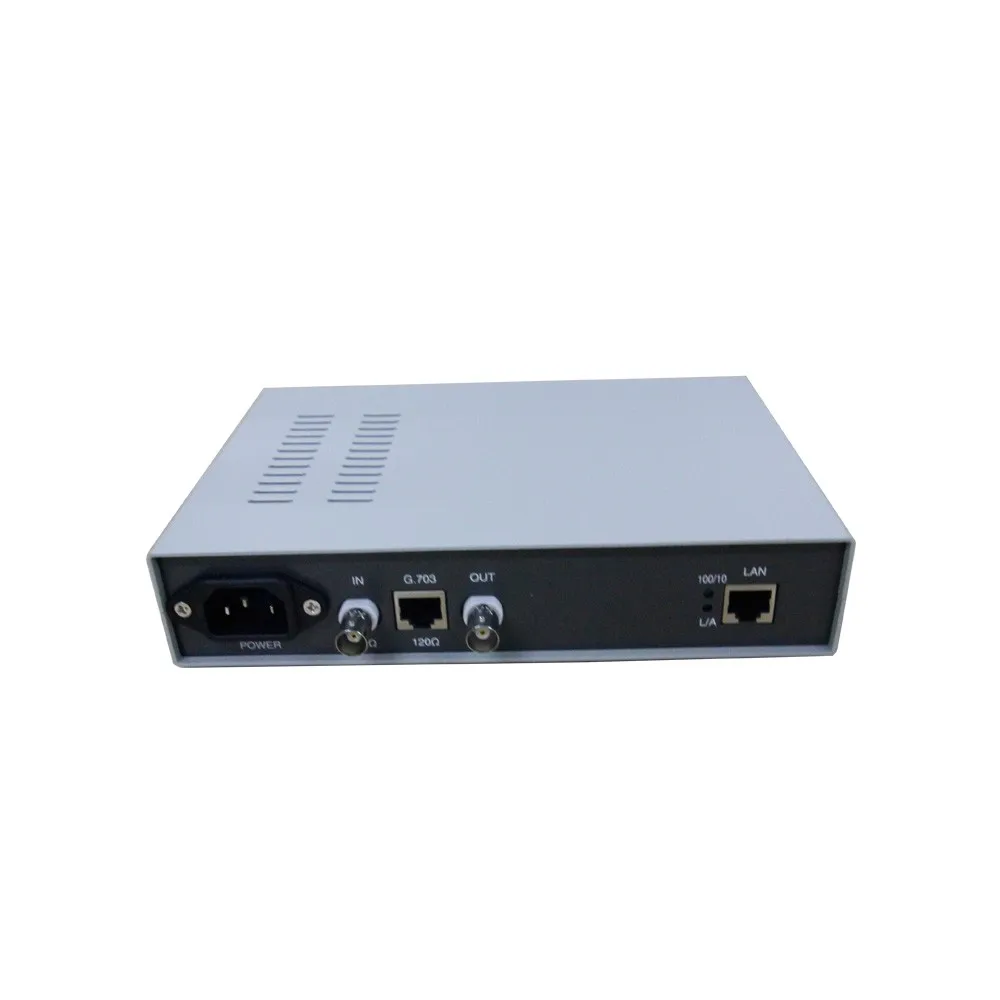

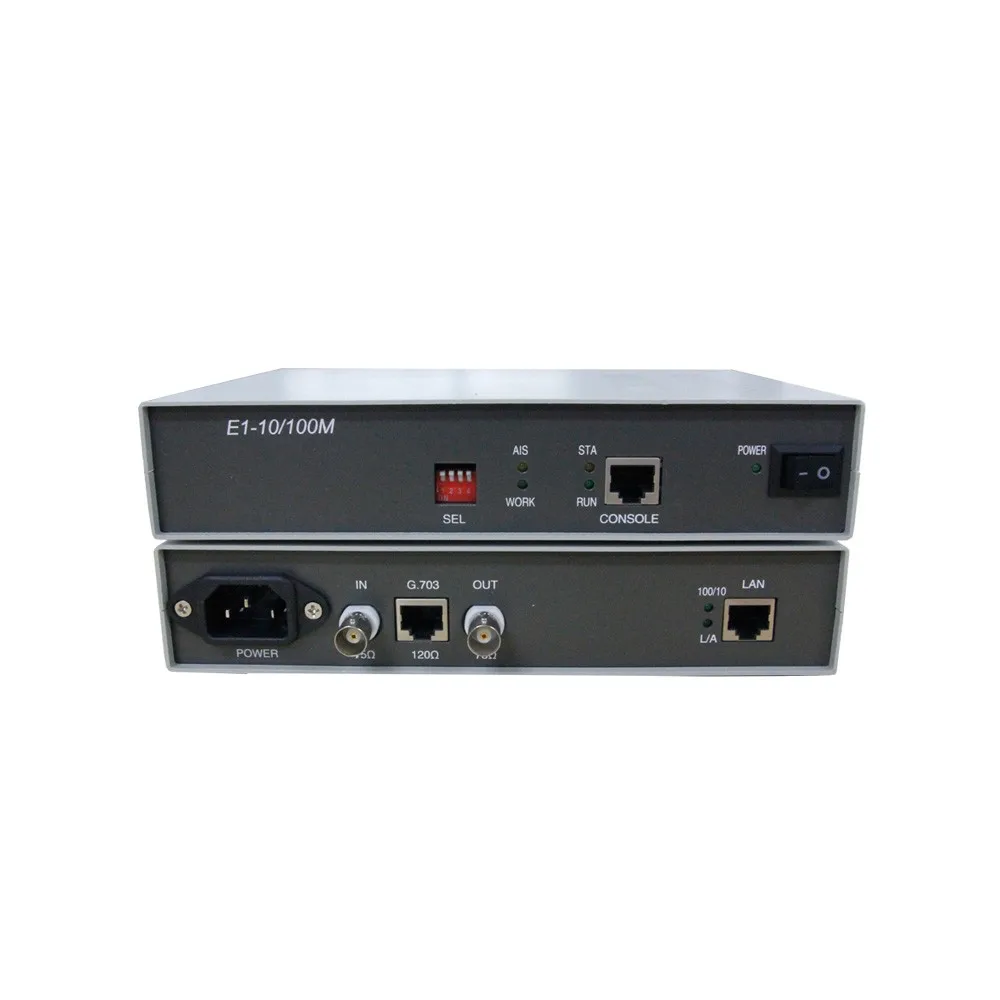

Single E1 protocol converter E1 to Ethernet bridge interface converter photoelectric switch (Non-frame)details:

Basic information:

Single E1 protocol converter is the company using the self-developed special reverse multiplexing equipment development and production of integrated circuits, the Ethernet packet multiplexing transmission in E1 1 road, can be very convenient to use public sites in existing rich resources of E1 rapidly to form a broadband Ethernet data network. The product of E1 channel without any special requirements, and can the E1 automatic fault tolerance, when the ring back to the E1 channel, equipment automatically banned Ethernet data transmission, to avoid impact downstream switches. Protocol converters, flexible configuration, simple maintenance, at the same time provide a complete network management functions.

Function description: the frame into a single E1 (75 Ω non-equilibrium) ether, in HDLC protocol, the Ethernet interface is 1 x 10/100 base - Tx, support the E1 loopback detection, support for BERT, local CONSOLE management, remote management of belt

Characteristics of the equipment

A massive chip, simple circuit, low power consumption, high reliability;

Equipment provide 1 E1 configuration, support 75 Ω and 120 Ω E1 interface impedance, support n x 64 k (n = 1 ~ 31) into E1 frame mode;

Provides a 10/100 base - Tx port;

10/100 support base - Tx port 10/100 m, full duplex, half duplex, and support auto-negotiation;

E1 channel support built-in BERT (BitErrorRateTest) function;

Automatic detection of E1 line loopback, warning and close the Ethernet interface, avoid impact downstream operations;

802.1 p priority function support;

Support is based on the flow control function of 802.3 x;

Support VLAN Ethernet frame transparent transmission;

Provides a management interface, the function of the equipment can be set flexible;

Provide 1 set of control switch, used to set up test equipment maintenance;

Adapt to a variety of power supply, 48 VDC , 220 VAC.

Technical parameters

E1 interface electrical characteristics:

Nominal rate: 2048 KBPS, tolerance + 50 PPM.

Interface type: HDB3;

Interface impedance: 75 ohms (imbalance) or 120 ohm (balance) optional;

Digital interface electric property: conforms to the ITU - TG. 703 recommendations, pulse waveform conforms to the template

Jitter transfer characteristics: conforms to the ITU - TG. 823 recommendations;

Input shake limit arouses: conforms to the ITU - TG. 823 recommendations;

Output jitter: conforms to the ITU - TG. 823 recommendations;

Level: + / - 2.37 V + / - 10% or + / - 3.00 V + / - 10%;

Interface connector is: the RJ45 or BNC coaxial.

10/100 base - Tx interface

Interface for: 10/100 base - Tx;

Interface procedures: conform to the standard of the IEEE 802.3 u;

Interface rate: 10/100 m adaptive;

Interface connector for: RJ - 45.

Management interface and extending serial interface features

Interface: RS - 232;

Interface level: RS - 232 level;

Interface connector: RJ - 45;

Management port baud rate: 57600 bit/s;

Extending serial port baud rate: biggest 19200 bit/s.

Power supply condition

Dc power supply voltage: - 48 VDC, tolerance range - 36 v ~ - 72 - v, power supply ripple: 240 MVP or less - p;

Ac power supply voltage: 220 vac plus or minus 20%, 50 hz;

Power consumption: 10 w or less.

The work environment

Ambient temperature: 0 degrees to 45 degrees Celsius;

Relative humidity: 90% or less (35 degrees Celsius);

The atmospheric pressure: 86 ~ 106 kpa.
