Характеристики
EPsolar Tracer 3215BN MPPT Solar Charge Controller Regulator 30A + Remote MT-50 |
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-18-2026 | 0.53 руб. | 0.5 руб. | 0 руб. |
| Feb-18-2026 | 0.18 руб. | 0.69 руб. | 0 руб. |
| Jan-18-2026 | 0.72 руб. | 0.73 руб. | 0 руб. |
| Dec-18-2025 | 0.97 руб. | 0.27 руб. | 0 руб. |
| Nov-18-2025 | 0.90 руб. | 0.90 руб. | 0 руб. |
| Oct-18-2025 | 0.61 руб. | 0.81 руб. | 0 руб. |
| Sep-18-2025 | 0.80 руб. | 0.34 руб. | 0 руб. |
| Aug-18-2025 | 0.9 руб. | 0.63 руб. | 0 руб. |
| Jul-18-2025 | 0.45 руб. | 0.58 руб. | 0 руб. |
Описание товара

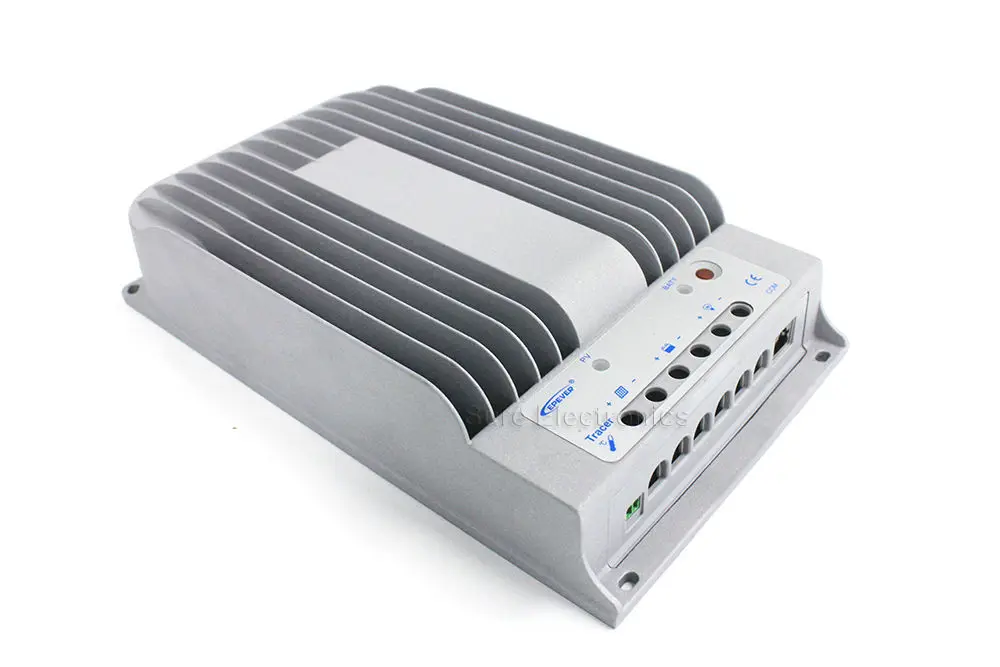

Tracer 3215BN 30A
Features:
Innovative MPPT technology
Peak conversion efficiency of 98%
High tracking efficiency up to 99%
Several seconds tracking speed
Die-cast aluminum design and nature cooling
Temperature compensation
Diversified load control to meet different requirements
Four battery type options: Sealed, Gel, Flooded, and USER
Intelligent lighting and timer control for solar lighting system
Energy statistics function
RS485 ports with MODBUS communication protocol
Optional PC monitoring software and remote meter for real-time monitoring and battery management parameter setting
Field upgradable firmware
Electronic Protections:
PV short circuit protection
PV overvoltage alarm protection
PV current limiting protection
PV reverse polarity protection
Battery overcharge protection
Battery over discharge protection
Battery reverse polarity protection
Load overload protection
Load short circuit protection
Overheating protection
Specifications:
| Model | Tracer1215BN | Tracer2215BN | Tracer3215BN | Tracer4215BN |
| Nominal system voltage | 12/24V auto work | |||
| Rated battery current | 10A | 20A | 30A | 40A |
| Rated load current | 10A | 20A | 20A | 20A |
| Max. PV open circuit voltage | 150V | |||
| Max. battery voltage | 32V | |||
| Max. PV input power | 130W (12V) | 260W (12V) | 390W (12V) | 520W (12V) |
| 260W (24V) | 520W (24V) | 780W (24V) | 1040W (24V) | |
| Equalize charging voltage | Sealed: 14.6V, Flooded: 14.8V, USER: 9~17V | |||
| Boost charging voltage | Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V, USER: 9~17V | |||
| Float charging voltage | Gel /Sealed /Flooded: 13.8V, USER: 9~17V | |||
| Low voltage reconnect voltage | Gel /Sealed /Flooded: 12.6V, USER: 9~17V | |||
| Low voltage disconnect voltage | Gel /Sealed /Flooded: 11.1V, USER: 9~17V | |||
| Self-consumption | ≤50mA(12V) ≤27mA(24V) | |||
| Grounding | Common negative | |||
| Temp. compensation | -3mV/C/2V | |||
| CommunicationPort | RS485 / RJ45 interface | |||
| Working temperature | -35C~+55C | |||
| Storage temperature | -35C~+80C | |||
| Humidity | ≤95% N.C. | |||
| Enclosure | IP30 | |||
| Overall dimension | 196x118x36mm | 217x143x56mm | 281x160x60mm | 303x183x64mm |
| Terminal | 4mm2 | 10mm2 | 16mm2 | 25mm2 |
| Net weight | 0.9kg | 1.5kg | 2.3kg | 2.9kg |

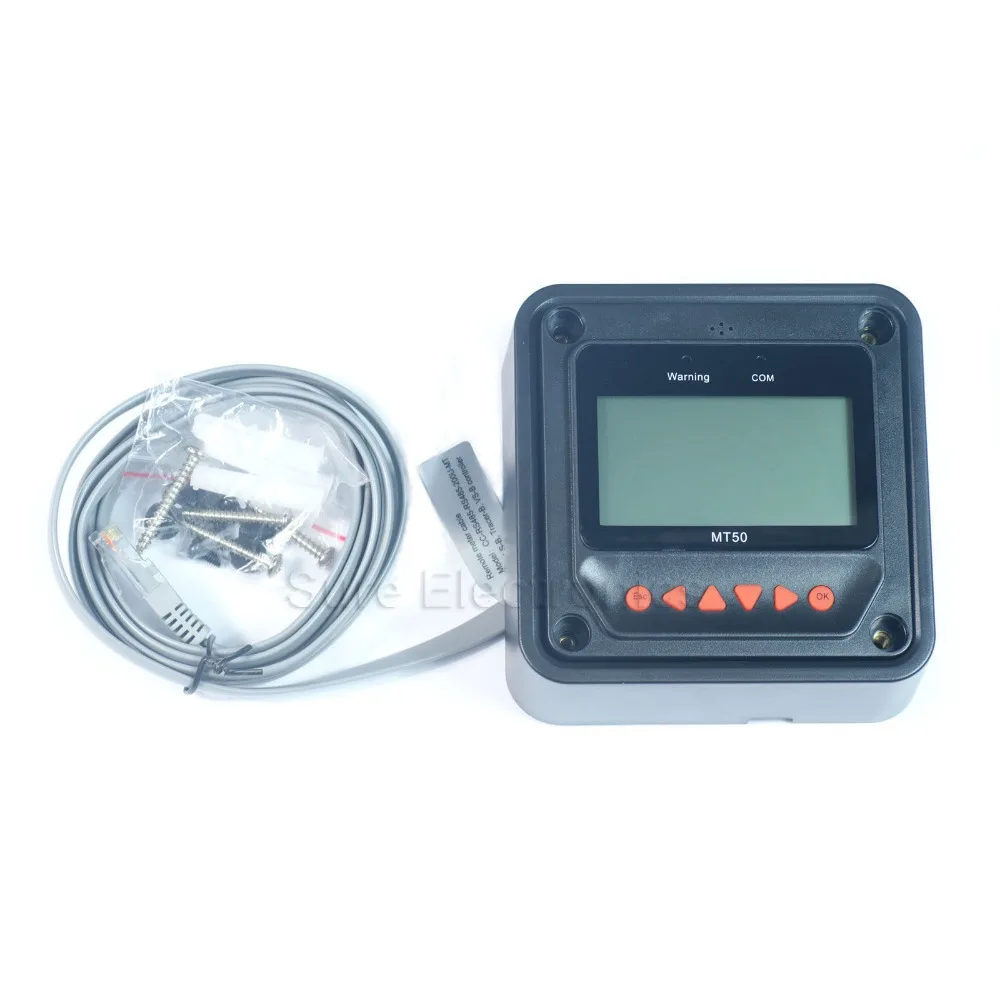

Remote MT-50
Features:
- Automatic identify the controller, and display the type, model and relevant parameter data
- Large-screen multifunction LCD displays all the operational data and system working status in digital, graphic and textual forms
- With six navigation function keys, the operation is direct, convenient and rapid
- Real-time energy statistics recording
- Both data and data flowing on the same lead ,no need for external power
- Real-time monitoring and acoustic alarm of failure information of the controller
- Longer communication distance based on RS485
More powerful function Via MT50
- Diversified load control modes : manual, light ON/OFF, Light ON+ Timer, Time Control
- Battery type selection: Gel, sealed, flooded and USER type
- Real-time monitor
- Programmable parameters
- Energy display function
Specifications:
| Self-consumption | Backlight and acoustic alarm on<65mA Backlight on<23mA Backlight off <15mA |
| Faceplate dimensions | 98×98 mm / 3.86×3.86 in |
| Frame dimensions | 114×114 mm / 4.49×4.49 in |
| Connector type | RJ45 |
| Meter cable | Standard 2m, max .50m |
| Meter weight | 0.190 Kg |
| Ambient Temperature | -20C~+70C/-4F~158F |
