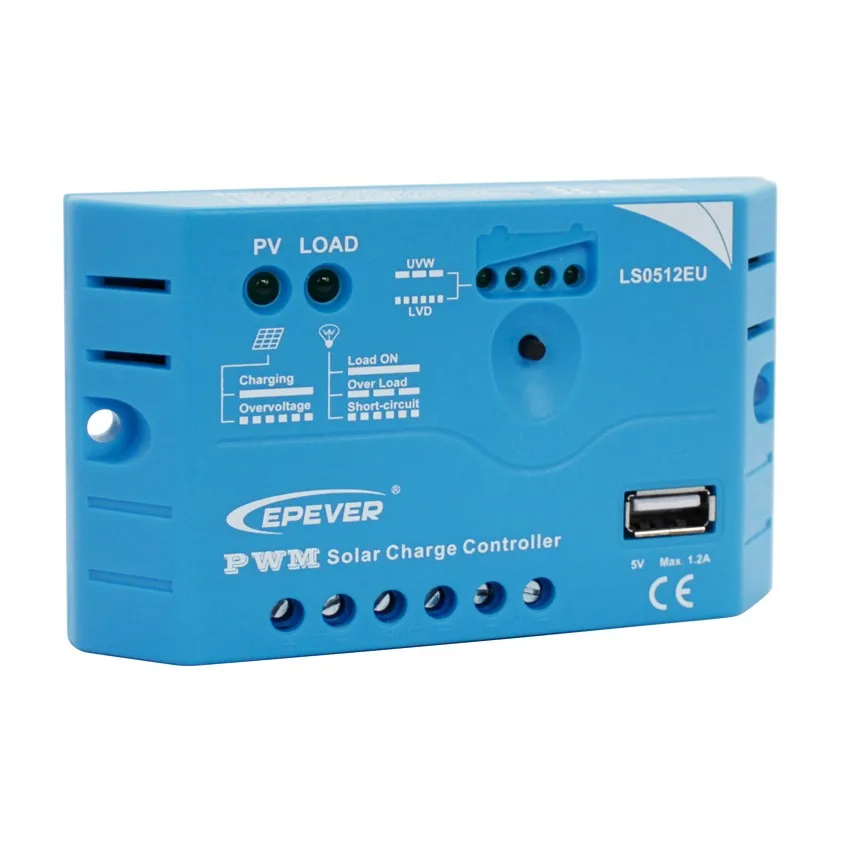

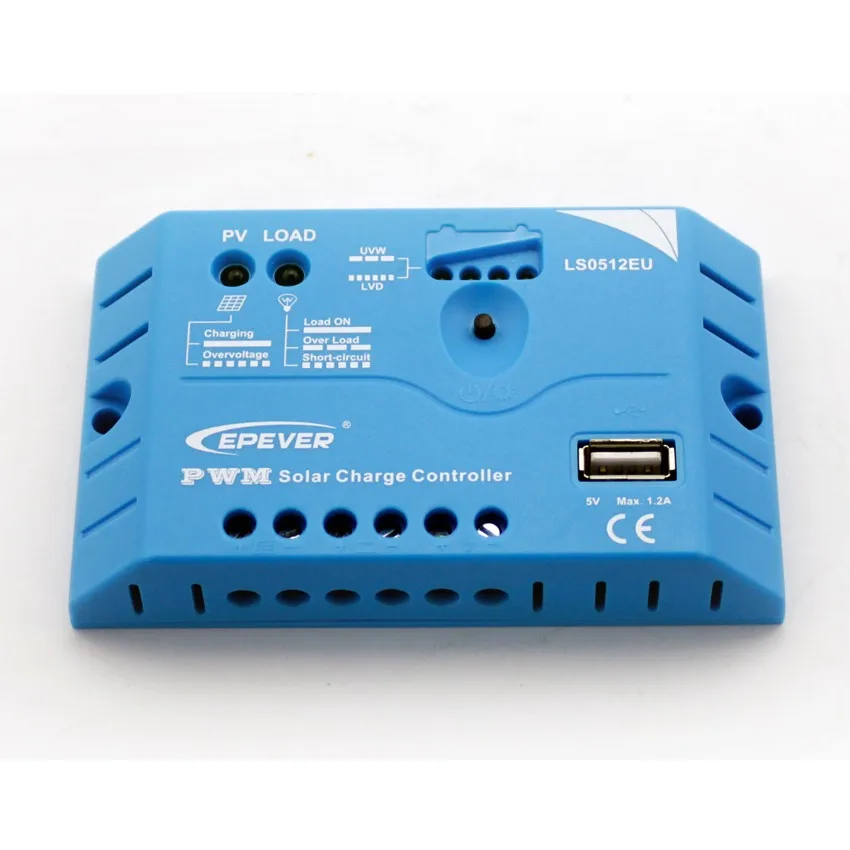

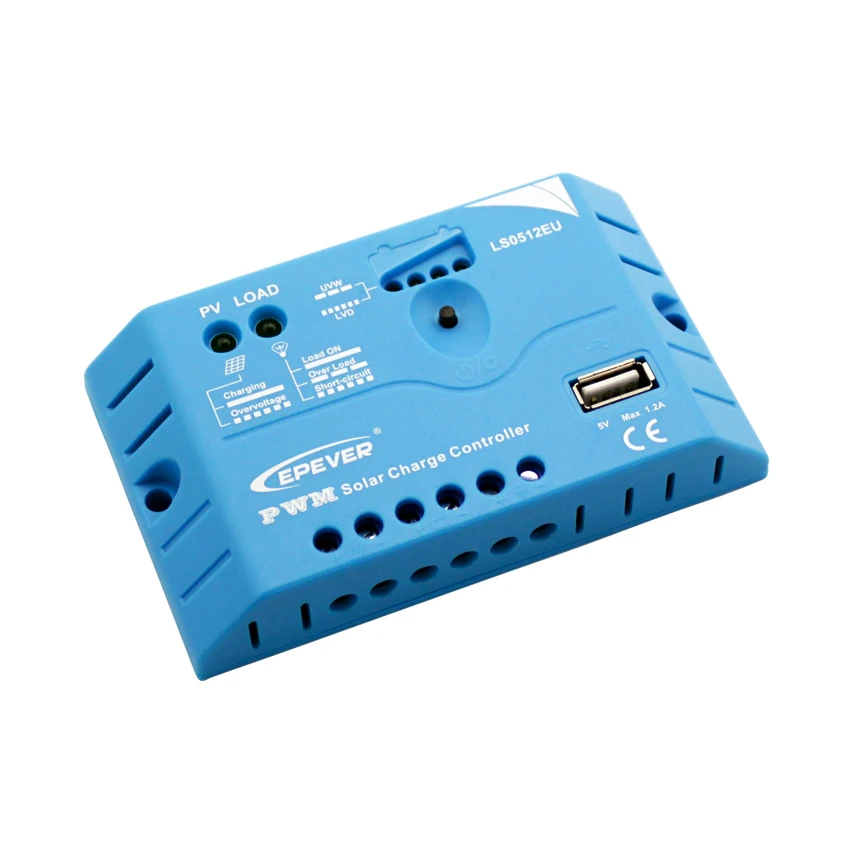

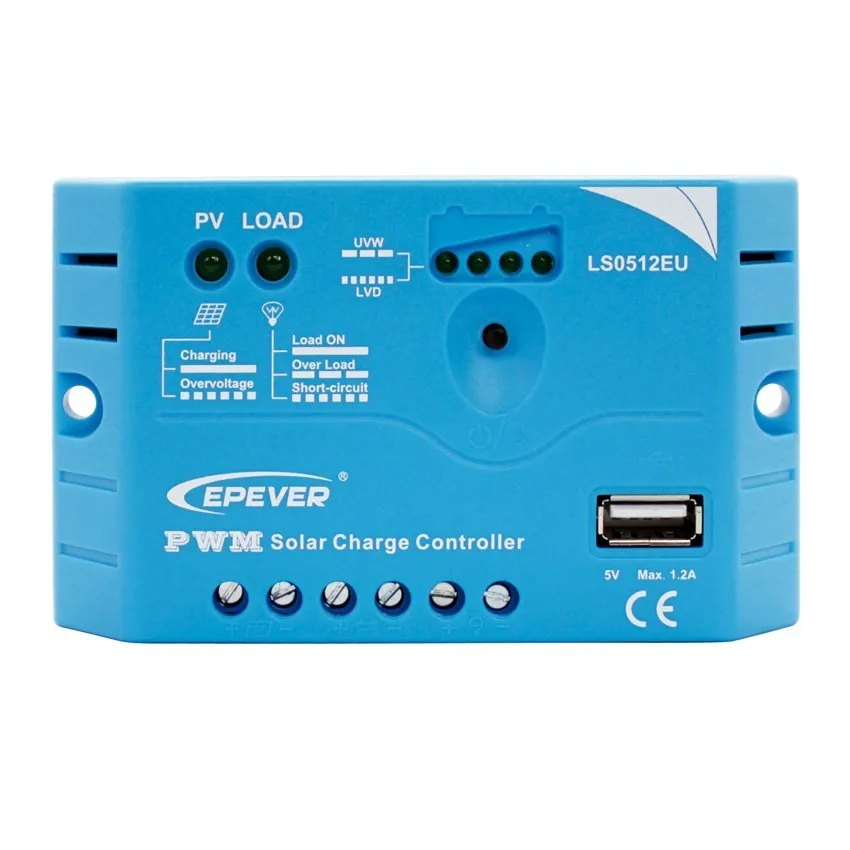

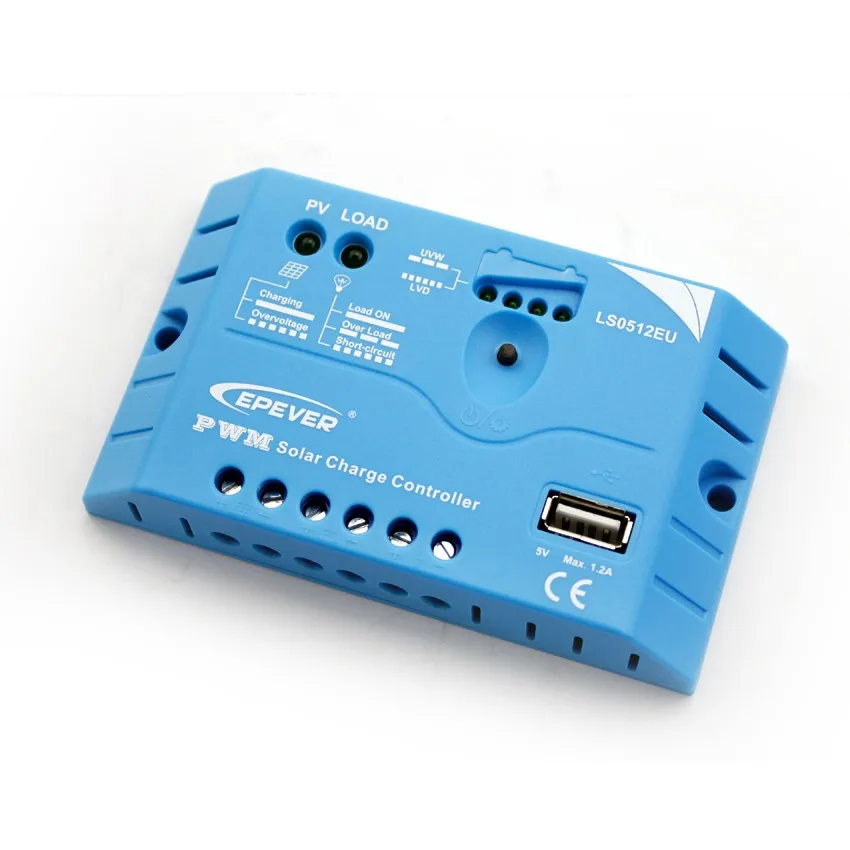

5A 12V 24V LS0512EU LandStar Solar Charge Controller with 5V USB

LS-EU economic solar controller  is new member of LandStar family and ideal for small solar system especially home system. Based on the LS-E series, LS-EU series add a +5V/1.2A USB terminal output which can charge mobile phone, fans and other electronic device.   Features:  >> High efficient Series PWM charging, increase battery lifetime and improve solar system performance  >> Use MOSFET as electronic switch, without any mechanical switch   >> Intuitive LED indicators showing battery voltage status  >> Gel, Sealed, and Flooded battery type optional  >> Manual control the output of the load  >> Temperature compensation, correct charging and discharging parameters automatically  >> Humanized  Key, more comfortable and convenient   >> Industrial grade design     Electronic Protections:  >> Load overload protection  >> Load short circuit protection  >> Battery over discharge protection   >> Battery reverse polarity protection

Specification:

Model	LS0512EU	LS1012EU
Nominal system voltage	12v
Rated battery current	5A	10A
Max. battery voltage	8-16V
Max. PV open circuit voltage	30V
Equalize charging voltage	Gel: —-, Sealed: 14.6V, Flooded: 14.8V
Boost charging voltage	Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V
Float charging voltage	Gel / Sealed / Flooded:13.8V
Low voltage reconnect voltage	Gel / Sealed / Flooded:12.6V
Low voltage disconnect voltage	Gel / Sealed / Flooded:11.1V
USB output	5VDC/1.2A
Charge circuit voltage drop	<0.26V
Discharge circuit voltage drop	<0.15V
Self-consumption	<6mA
Temp. compensation	-5mV/C/2V (ref)
Overall dimension(mm)	109x65x21	120x67x22
Mounting dimension	111.5mm	138mm
Mounting hole size	dia4.5	dia4.5
Terminal	2.5mm2	4mm2
Weight	90g	100g
Working temperature	-35 - +55 C
Storage temperature	-35  - +80 C
Humidity	<95% N.C.
Enclosure	IP20



  if you have any question of above item, please contact me by massager of talk with me, user manual and specification are

  available on request.
