TSR-60DA 3 Phase Solid State Relay 60A 3-32V DC to 30-480V AC SSR Switch mini rele 220V KS3-60DA No Contact | Обустройство дома

---

ITEM PARAMETER Brand Name KZLTD Product Name Three - phase Solid State Relay Model Number KS3-60DA Control Mode DC to AC ( Zero-crossing ) Input/Control Voltage 3-32VDC Output/Load Voltage 30-480VAC Output Current 60A Ambient Environment -20~85 Degrees Celsius Work Indicator LED One-off Time <10MS Service Times >1 Million External Size 74x33x105 MM Net Weight 300g



Product Features:

No contact, no noise, no spark; wide work voltage range, quick and stable reaction, high electromagnetic compatibility, excellent heat-sink, anti-vibration, explosion-proof, long lasting usage.

TSR-60DA Three Phase Solid State Relay 60A 3-32V DC to 30-480V AC Relay SSR Solid State Switch mini rele 220V KS3-60DA No Contact

PS: Excellent Quality & 2-year Warranty!!!





Notices:

•This SSR control resistive loads and inductive loads only.

•The output current of the relay should be at least 2 times the size of resistive loads and 6 times inductive loads.

• When load current is 5A or larger, heatsinks are suggested to be used together with relays.



Need the matching heatsink ? Please click here "SR-Y".

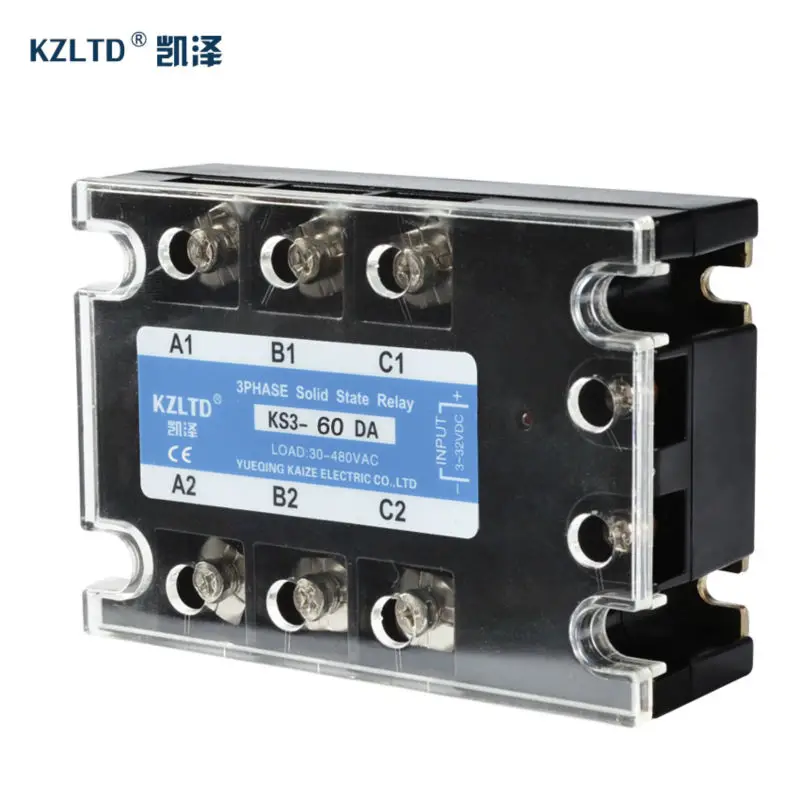

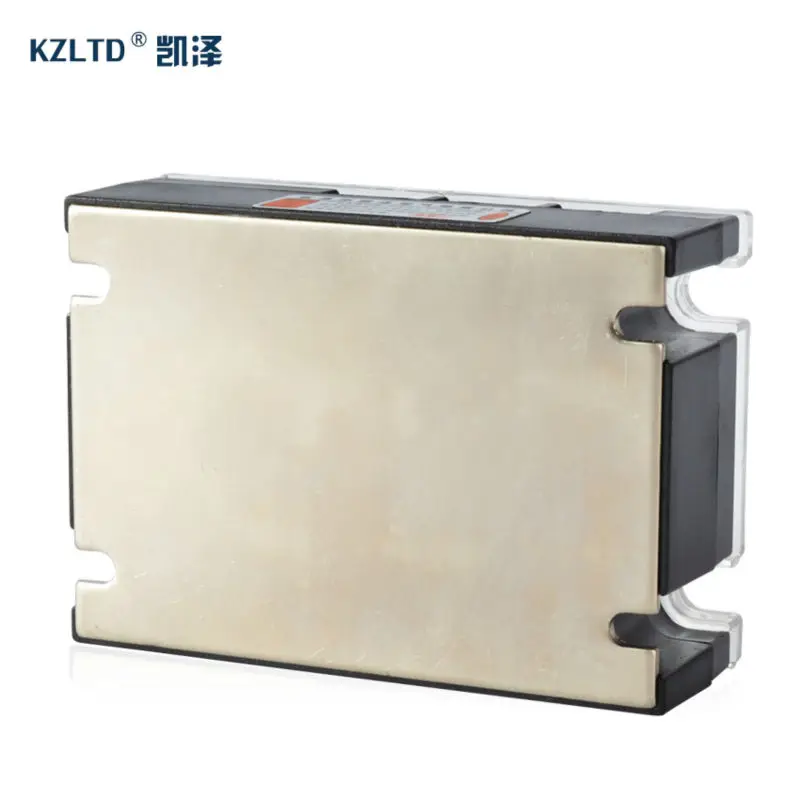

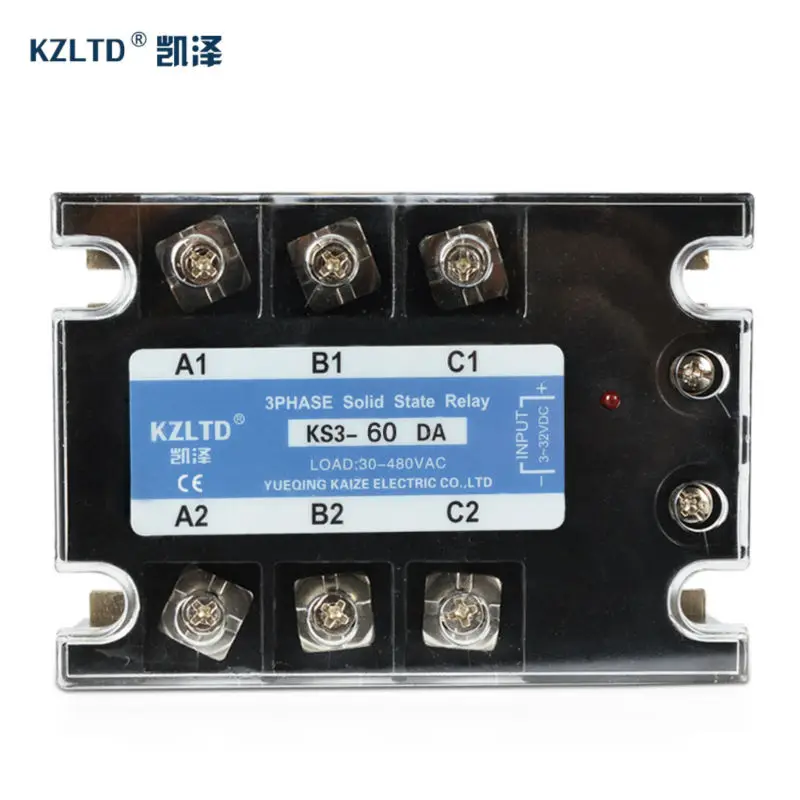

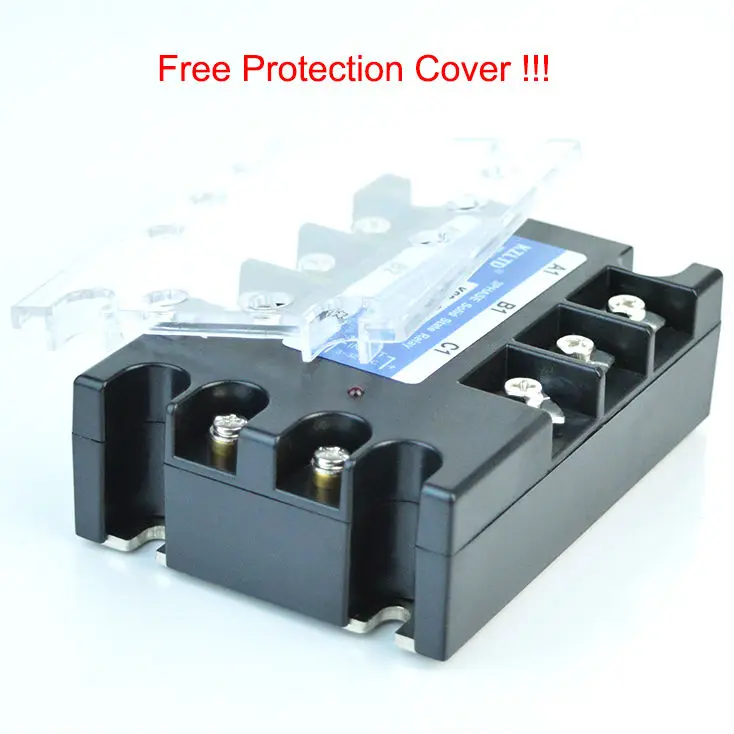

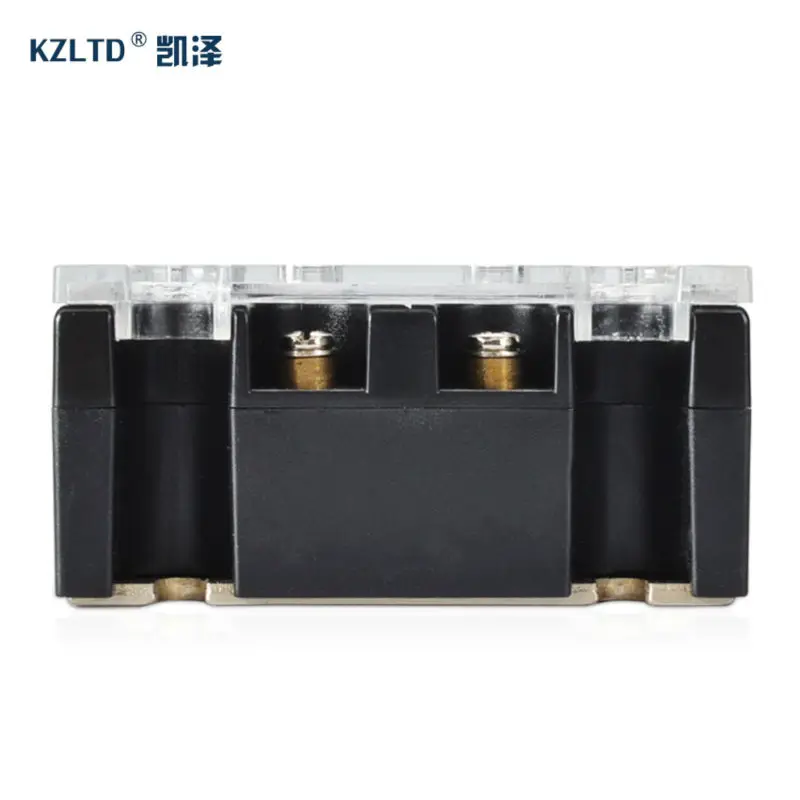

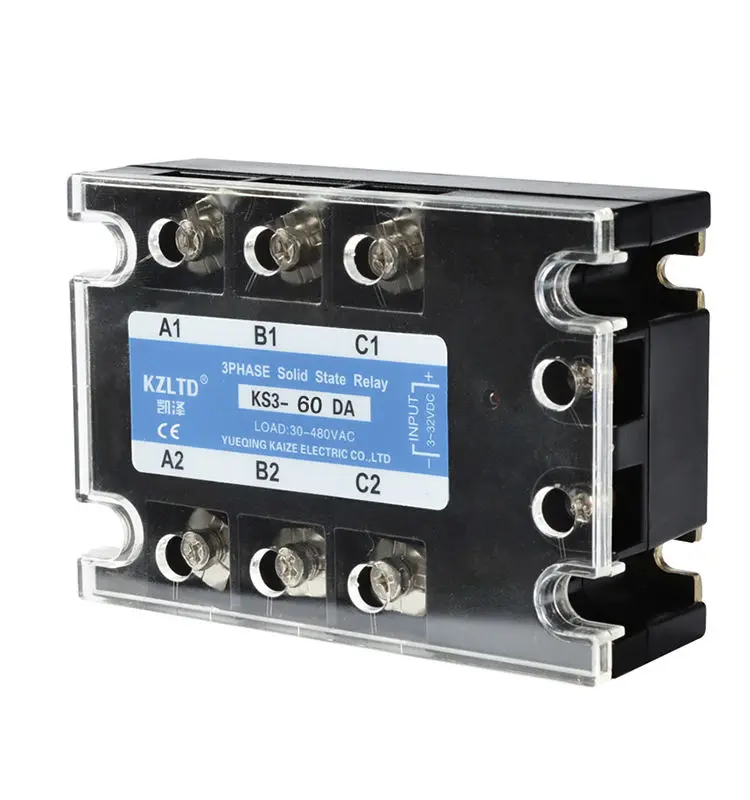

PRODUCT SHOW

Why should you choose our solid state relays?



HIGH PERFORMANCE EQUIPMENTS TWO-YEAR WARRANTY!!!

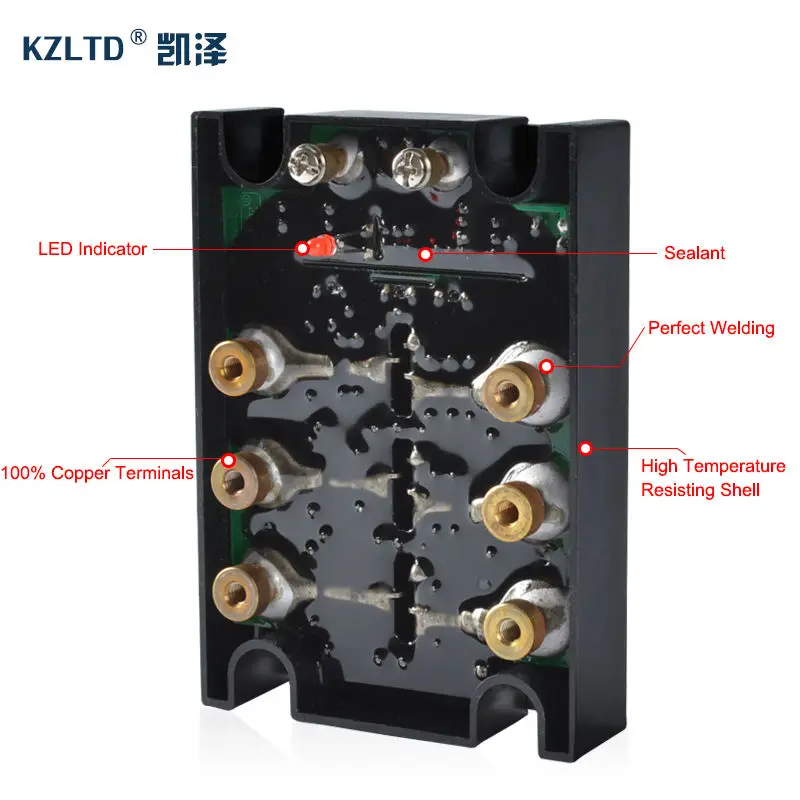

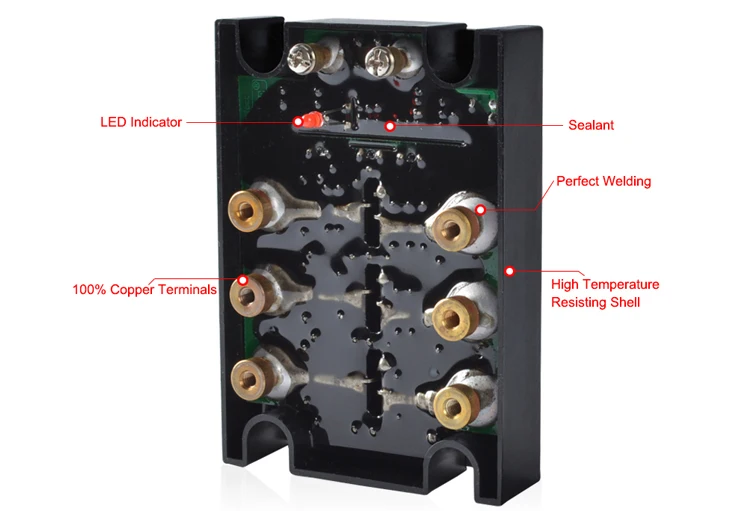

	High Reliability Optocouplers from Fairchild Semiconductor
Inner core of the relay, with quick & stable reaction and high reliability.Other cheap ones seriously can not compare with ours.

	Advanced Welding Technology
Silicon controlled rectifier and aluminum plate are soldered systematically. Non-hole Setting brings excellent firmness and heat sink.

	100% Copper Terminals
Copper terminals and full welds avoid poor contact which may make machine go hot and even incur fire. We strongly suggest to choose the relay with 100% copper terminals for the security of people and machines.

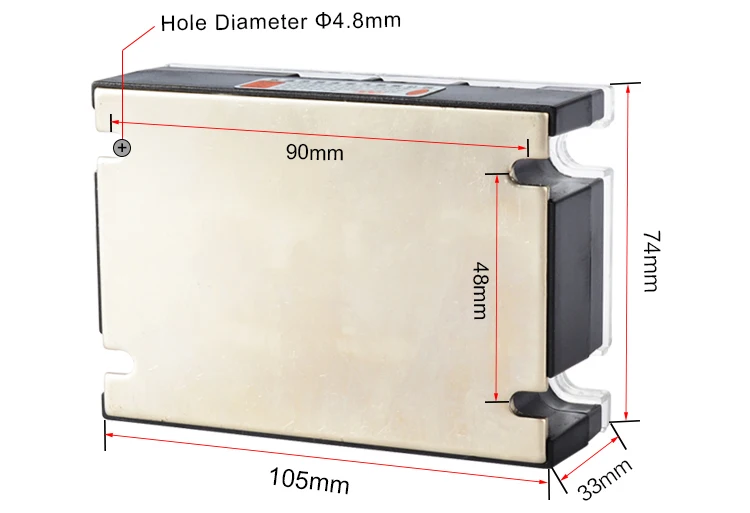

  PROFILE MAP   DIMENSION   Line-connecting Illustration

PS: Take KS3-10DA as an example. The wiring of all our three-phase DC-AC SSR are the same. Test results of its performance without loads are incorrect. Please check this SSR with multimeters only when it connect with loads.

Other Available Items

PS: More spec not listed, please feel free to contact us if you need.

Phase	Control Mode	Output Current	Model No
Three Phase	DC-AC	10A	KS3-10DA
		25A	KS3-25DA
		40A	KS3-40DA
		60A	KS3-60DA
		80A	KS3-80DA
		100A	KS3-100DA
		120A	KS3-120DA
		200A	KS3-200DA
	AC-AC	10A	KS3-10AA
		25A	KS3-25AA
		40A	KS3-40AA
		60A	KS3-60AA
		80A	KS3-80AA
		100A	KS3-100AA
		120A	KS3-120AA
		200A	KS3-200AA



Important Note This solid state relay control resistive loads, inductive loads and LED lights only. • The output current of the relay should be at least 2 times the size of resistive loads and 6 times inductive loads.(Suppose the output current is 40A, it can only control maximum 20A resistive loads.) • When load current is 5A or larger, heatsinks are suggested to be used together with relays.
Common Resistive Loads
Carbon-fiber Heating Tube Heating Bar Talfon Heating Tube Silicone Rubber Heaters Ceramic Heater
Common Inductive Loads
Solenoid Valve Fan Transformer Motor Air Conditioner
