180W NEMA 23 0.57N.m Integrated Servo Motor 36VDC 3000rpm JMC iHSV57-36-18-36

Have both V606  and V607 .Will ship V607 in default

if you need the english user manual and the software for both new and old version, please write me

• Multi Pulse Input Modes Pulse+Direction

• Opto-isolator Servo Reset Input Port ERC

• Current Loop Bandwidth:(-3dB)2KHz(Typical)

• Speed Loop Bandwidth: 500Hz(Typical)

• Position Loop Bandwidth: 200Hz(Typical)

• Motor Quadrature Encoder Input Interface: Differential Input(26LS32)

• Download parameters via RS232C from PC or Text Display.

• Users can definite subdivisions via external Dial-up switches or software.

• Overcurrent, I2T, Over-voltage, Undervoltage, Overheat, Overspeed, Overerror Protections.

• Green light indicates running, red light indicates protection or offline.

Typical applications

CNC, printinng, lazer, textile machine, etc.

Introduction:

iHSV57-XX Integrated AC Servo Driving Motor is perfectly integrated AC servo drive into servo motor, adopts vector control in DSP chip, features in low cost, full closed loop, all digital, low heat, small vibration, and high response, as well as includes three adjustable feedback loop control modes(postition loop, speed loop, and current loop). iHSV57-XX is a series of stable performance, high cost-effective motion control products.

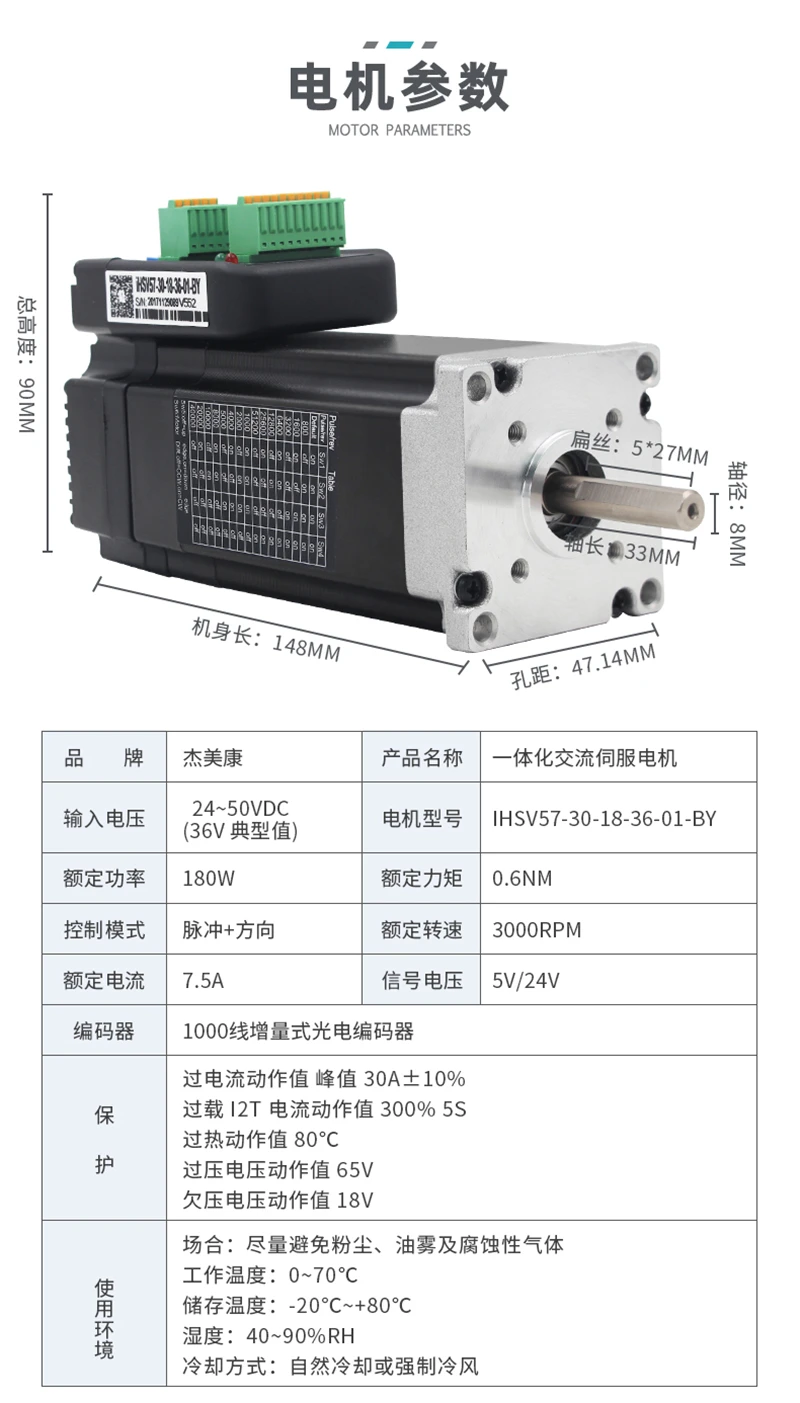

Specifications:

Environment:

Microstep Resolution Setting:

The micro steps setting is in the following table,while SW1,SW2,SW3,SW4 are all on,the internal default micro steps inside is activate,it can set by our servo software.
