New AC220V 1CH RF Wireless Mini Switch Relay Receiver +5pcs  ellipse shape Transmitters for Appliances Gate Garage Door JRL-220V-1CH

The product is electronic design and manufacture of single remote control switch 220 volts USES 10A relay, can use load higher power electronics;Can choose resistance capacity step-down or power supply module decompression;Can learn more remote control, and each remote control all buttons can learn, can be a remote control multiple switch, a switch can also be multiple remote controller, and can be implemented at short welding plate, interlock, or the workings of a self-locking;In order to facilitate the use of customer, this kind of controller can be charged dry contact output and output.Operation is simple and flexible supporting any combination;
Mainly used in lamps and lanterns, electric door, window, hoisting equipment, elevator control and security industry and other fields.

Note: the product has two kinds of output modes, 1. The output load voltage is AC220V, A, B solder connection;2. No voltage output,, A, B solder connection.Please order indicate the need what kind of pattern, if not sure, I will be no voltage output safe mode by default, thank you

RF wireless remote control system

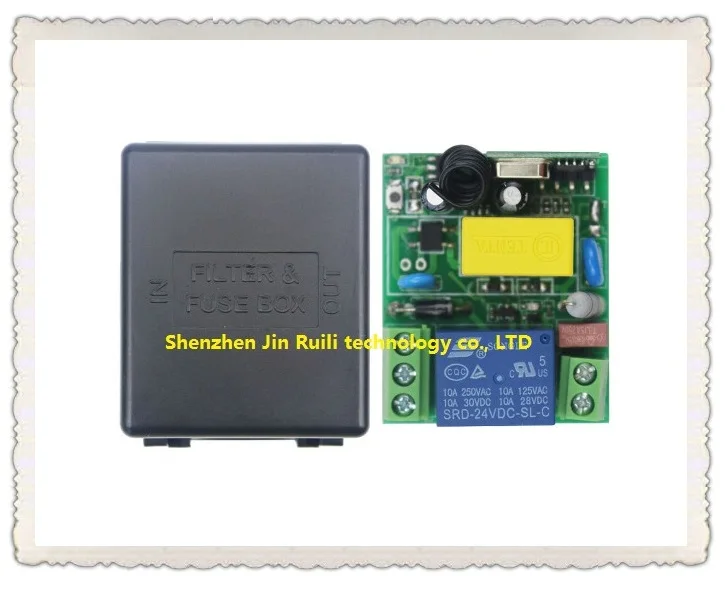

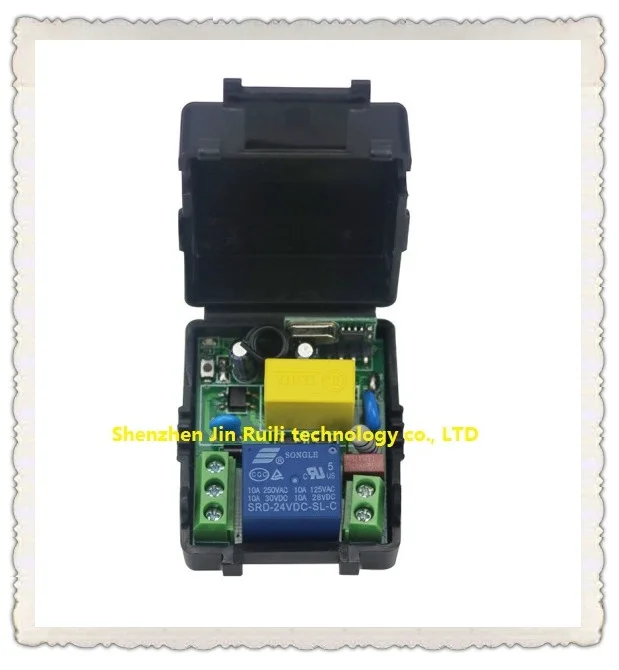

Receiver (switch)
Working Voltage : AC180-240V
Output Current : ≤10A
Working Frequency : 315MHZ/433MZH( Frequency can be customized)
Output way : Jog .Inter-lock .Self -lock
Code type :Learning code

Circuit board size: 46 mm*38.5mm*17mm
 working/output way

1.jog model:not connect
2.self-lock model:''T''connect
 3.inter-locking model:''L'' connect

Learning Method:
Press the learning button3 seconds, the indicator light off .then you press any buttons of the remote control to transmite signal . it means studying successfully when the indicator flash 3 times until the indicator light on.
Remove code:
press the learning button about 8 seconds , the indicator turn on to off to on , it means the information that you keep have been removed successfully .

Remote control (transmitter)
Remote Control:
Operating Voltage: DC12V
Operating Current: 30MA
Operating Frequency: 315/433MHz
Frequency Distance: 20-200M
(please notice that is the ideal distance without any block and signal interfere , it would rise and fall about 10%-50% with the block and signal interference ).

Note:  433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency

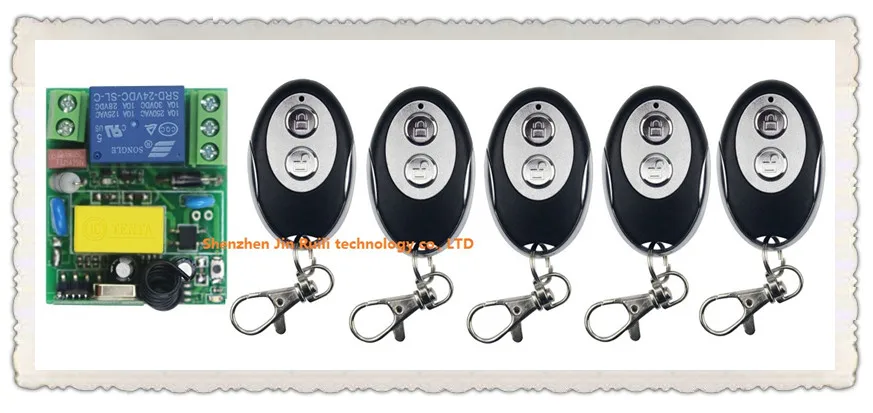

3.Package Included:
1x Receiver

5 x Transmitter
