WIRED 7" TFT LCD Apartment VIDEO INTERCOM DOOR PHONE SYSTEM 700TVL CMOS Camera, Clearer video! Unlock Via Password, Remote control, ID keyfobs and screen!

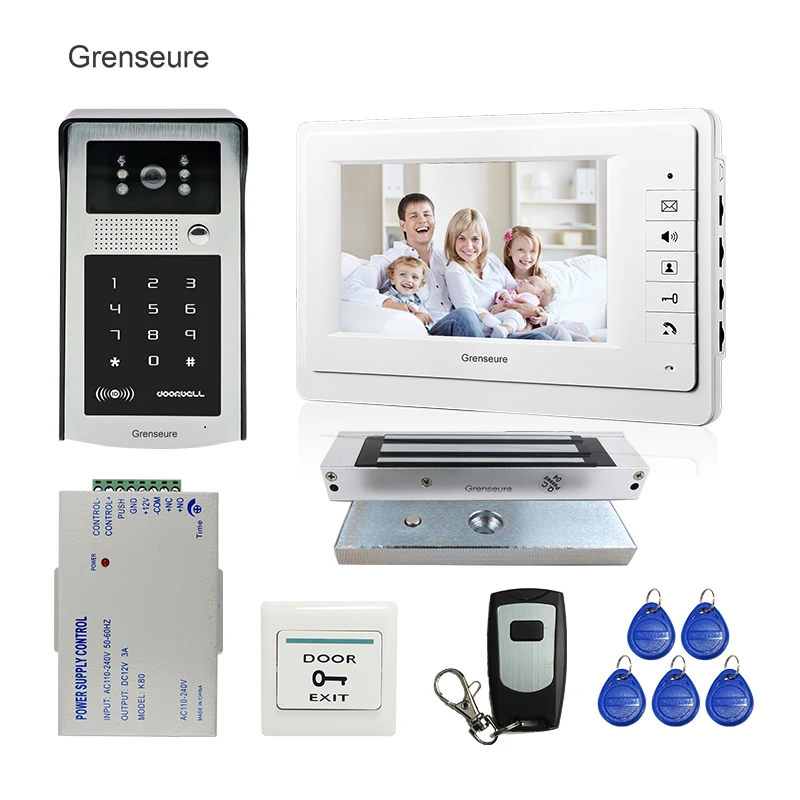

This full Hard-wired Video Door phone Intercom System consists of one 7'' color TFT monitor,  one door camera, 5 RFID keyfobs, a push release button,  a remote control , a power supply. Upgraded chips are adopted for highly stable performance and it has a nice appearance. It is your perfect choice to use in villas with 700 lines CMOS camera, which can achieve monitoring, dual-way intercom and unlocking. You also can monitor outside image even without people pressing the Monitor button on the Indoor unit.

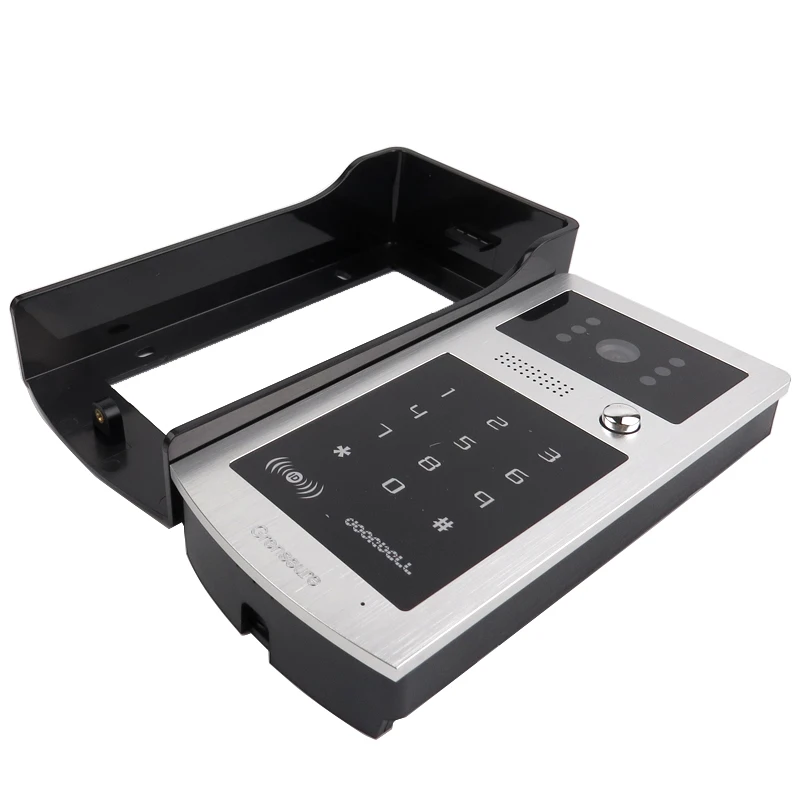

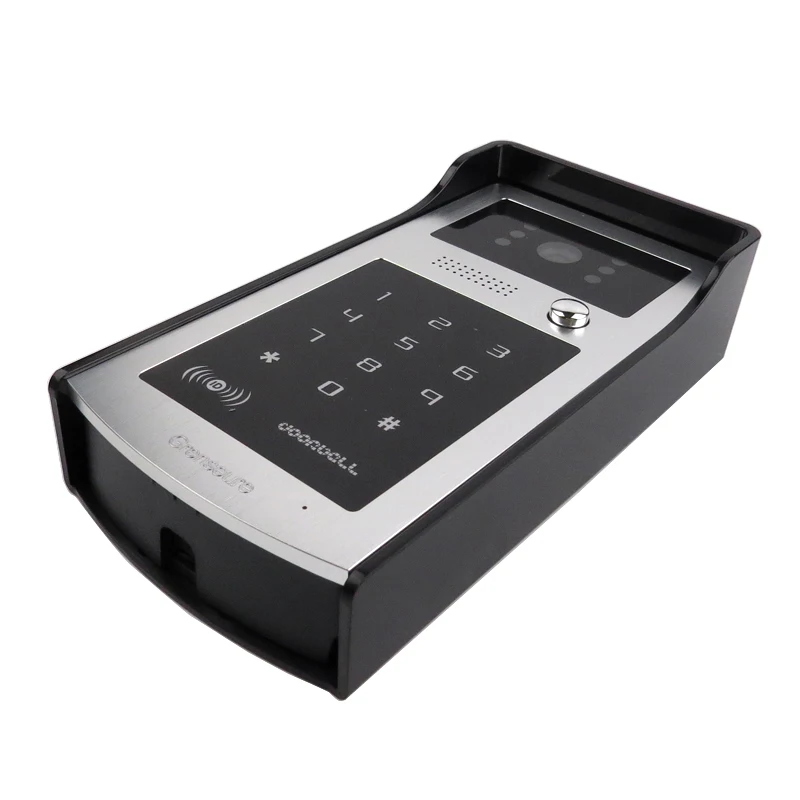

This new released outdoor unit has a code keypad, it supports to unlock via password or RFID card, very convenient to unlock. Besides, it is fully waterproof, supports outdoor working. with 6 LED for night vision.

Features

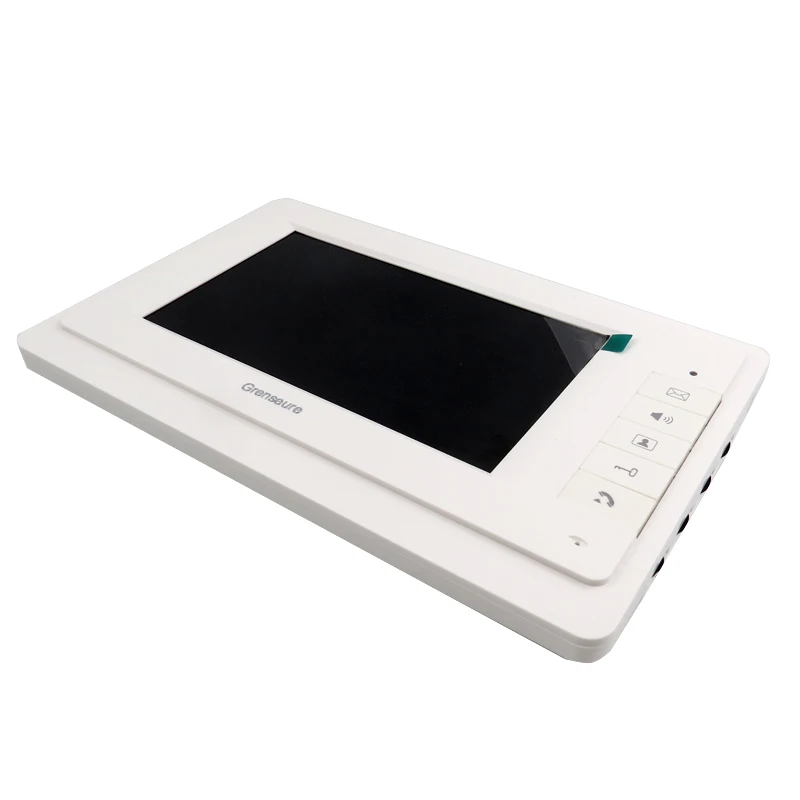

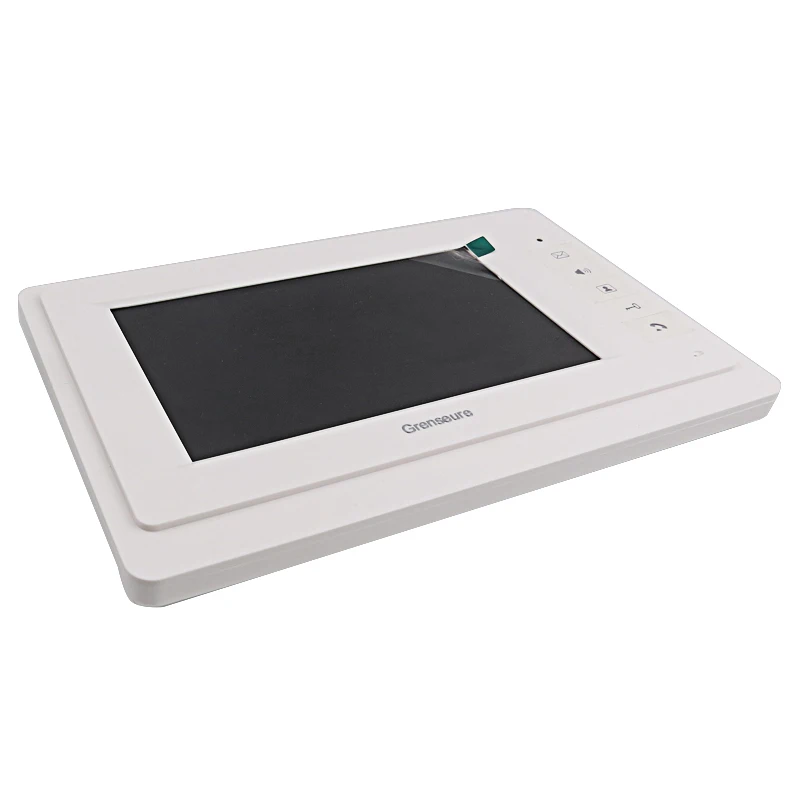

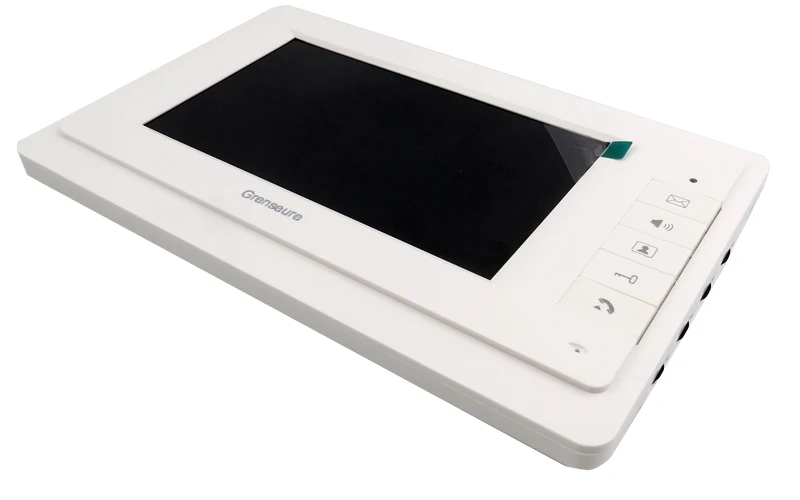

• 7" TFT digital color LCD;
• 16 melodies for ringing selection;
• Show outdoor image manually.
• Dual-way intercom;
• Supports communication between two indoor monitors.
• Monitor unlock control;
• Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking remote controlling etc.
• TFT color screen with low power consumption, no radiation and high definition Resolution: 800*480.
• Hands-free intercommunication.
• Brightness, chroma and volume adjustable
• Ring cancel function, do not disturb mode.
• Comes with 10 RFID keyfobs, a push release button switch.
• Support maximum 500 rfid keyfobs
• Supports one password, you can unlock via code or RFID card
• Fully waterpoof, support outdoor working.
• With micro-processing technology, auto-remote control, excellent performance and high Reliability.
• This system supports 4(optional) and 4 outdoor cameras at most.(It needs a controller when install 2/3/4 outdoor cameras, please contact us if you want to install 2/3/4 cameras)

Details

Remote Control

If you purchase this Access Control System now, we will supply the following Remote control to you for free, when you want to go out, you just need to click this Remote control, then you can go out:

Power supply

This is a 110V-260V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.

It controls electric lock directly.    Can reduce the load of access controller, save wiring to reduce the hidden trouble   Based delay control circuit, lock time can be in 0-15 seconds    Automatic protection function, unexpected situations such as when the power supply short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off    Operative device: E/M Lock, Access Controller, Exit Push Button.

Electric Magentic lock

Voltage: 12V DC  Mode: NC(locked whilst power supply is operating), fail safe mode  Application: wood, iron doors Main body dimensions: 171 x 39.2 x 22mm  Pack includes: electric magnetic lock, installation diagrams  Construction: stainless steel. Waterproof version, can work outside Performance Testing: 1000000 times aging test Safety function: Built-in voltage spike suppressor Anti-Residual Magnesium Designed Weight:1.3kg

Wiring

• We provide 4-core or 5-core or 6-cables.(please see the packaging contents.)
• The cables are very easy to be found in your local market as they are international standard.
• We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
• The total length of the connection cables can NOT exceed 100 meters.
• If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.

  	0.2mm2	0.5mm2	1.0mm2
  Indoor to outdoor max distance	30m	50m	100m
  Indoor to indoor max distance	20m	50m	100m
  Outdoor to Electric lock max distance	2m	3m	5m

Specification

Package

NOTE: We have the user manual in English , French, Spanish and Russian language.We send the user manual in English/Russian language in default, please leave us message if you want the user manual in other language.
