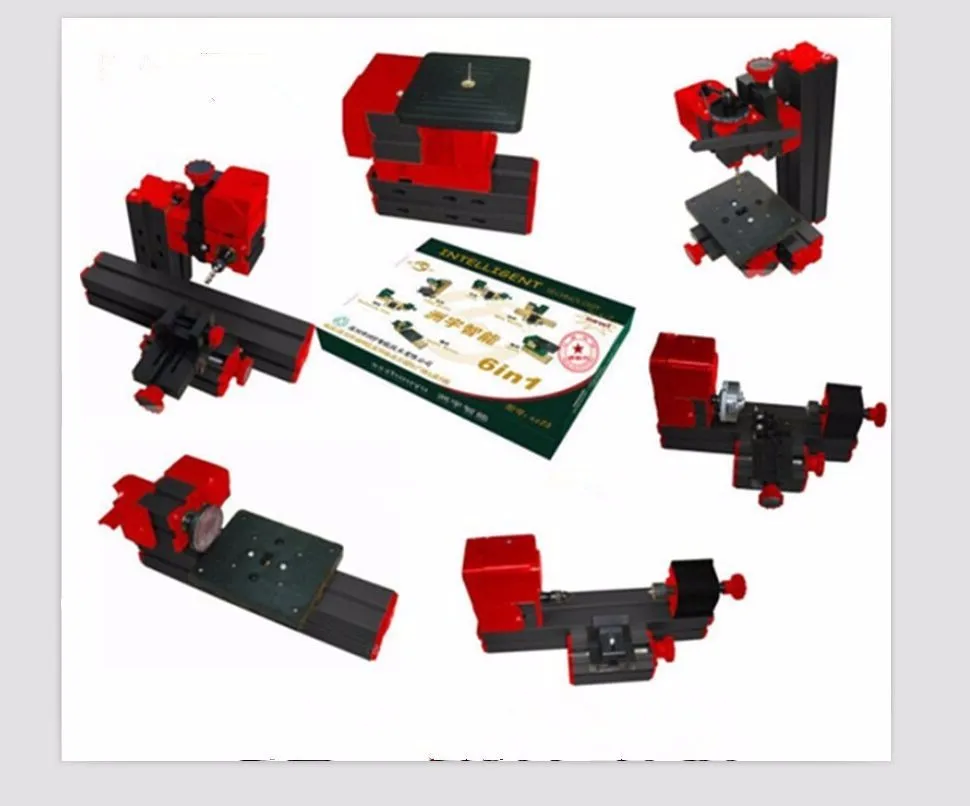

6 in 1 Mini Lathe ,Milling ,Drilling ,Wood Turning ,Jag Saw and Sanding Machine,Mini Combined Machine Tool, DIY Tool

DRILLER:

Technique Data:

1) Motor speed: 20,000rpm

2) Headstock speed: 2,000rpm

3) Motor input: 14.5VDC/2000mA

4) Slide travel: 50 and 20 respectively

5) Stroke: 25mm

6) 8 collects from: 0.5 to 6 mm

7) Table size: 123 x 100mm

8) Working radius (distance between drill and machine bed): 71mm

9) Material: Carbon steel, Aluminum, ABS

10) Can process soft-aluminum, brass, copper, wood, plastics, other soft, colored and precious metals

11) Maximum measurements on 3D(cm L/W/H): 15/15/28

12) Net weight: 1.46kg

Miller:

Technique Data:

1) Motor speed: 20,000rpm

2) Headstock speed: 2,000rpm

3) Motor input: 14.5VDC/ 2000mA

4) Slide travel: 30 and 50mm

5) Collets from 0.5-6mm milling cutter

6) Vice capacity: 25 x 25mm

7) Material: Carbon steel, Aluminum, ABS

8) Can process hard wood strips (beech-tree, nut-tree), wooden bars (max. 20mm diameter)or plastic and soft metal.

9) Do not touch the turning tools, it is very dangerous

10) Maximum measurements on 3D(cm L/W/H):28/18/15

11) Net weight: 1.45kg

Wood Lathe:

Technique Data:

1) Motor speed: 20,000rpm

2) Headstock speed: 2,000rpm

3) Motor input: 14.5VDC/2000mA

4) Max. Cutting diameter: 45mm (bigger diameter is possible with intermediatepiece)

5) Center distance: 135mm (with accessories extra long machine bed can longer to 360mm)

6) Material: Carbon steel, Aluminum, ABS

7) All types of wood (also hard wood) can be processed

8) Recommended types of wood: Lim wood, birch, maple, pear tree, cherry tree (medium hard), beech tree, oak (hard)

9) Every suitable chisel and gouge can be used

10) Maximum measurements on 3D(cm L/W/H):28/10/10

Metal lathe:

Technique Data:

1) Motor speed: 20,000rpm

2) Headstock speed: 2,000rpm

3) Motor input: 14.5VDC/2000mA

4) Tree 3-jaw chuck (self-centering)

5) Max. Cutting diameter: 20mm(bigger diameter is possible with intermediatepiece)

6) Center distance: 135mm(with accessories extra long machine bed can longer to 360mm)

7) Material: Carbon steel, Aluminum, ABS

8) Can process soft-aluminum, brass, copper, wood, plastics, other soft, colored and precious metals

9) Maximum measurements on 3D(cm L/W/H):28/10/10
