Microscope Camera Set 1080P HDMI USB Digital Industrial camera 180X C-mount Lens 8” Monitor Big Boom Stand LED for PCB Repair |

Microscope Camera Set 1080P HDMI USB Digital Industrial camera 180X C-mount Lens 8” Monitor Big Boom Stand LED for PCB Repair |

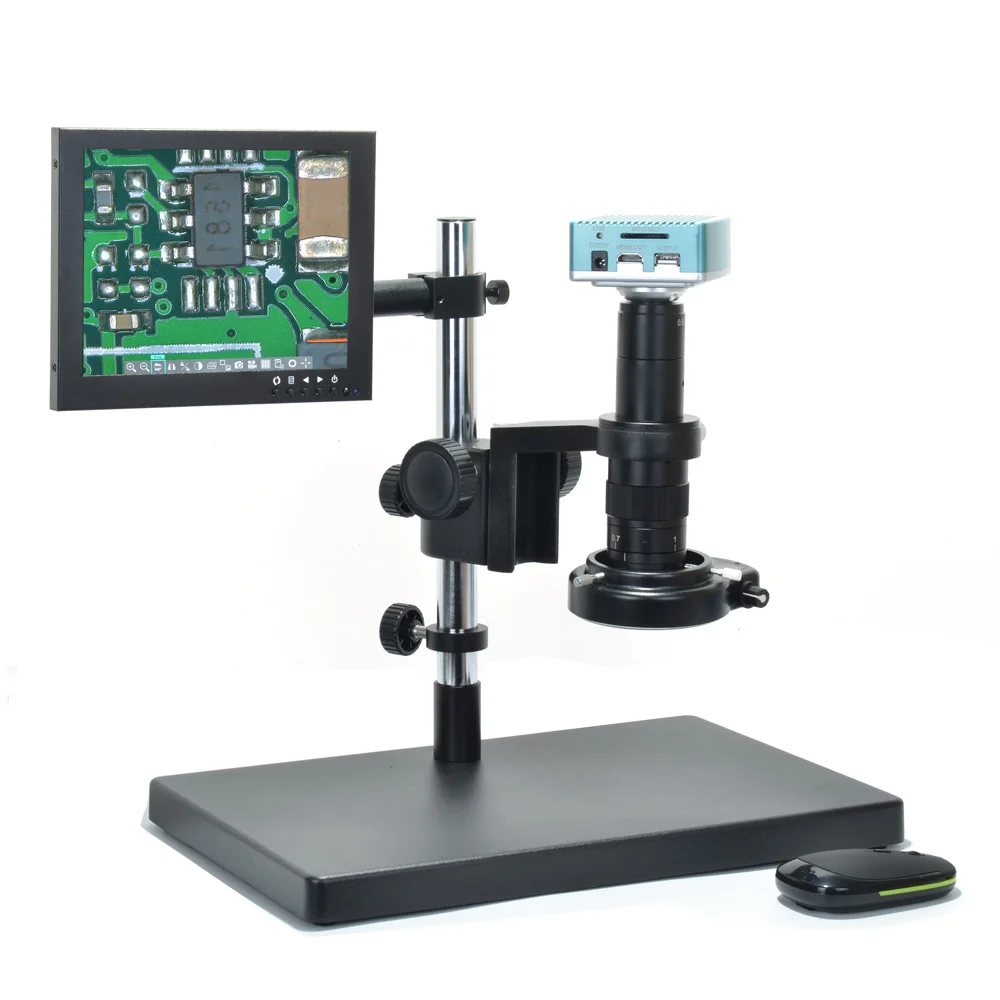

Full HD 1080P HDMI USB Digital Industrial Microscope Camera+180X C-mount Lens+8 inch Monitor + Big Boom Stand Holder+ LED Light

Noted!!!
When use USB connection, please make sure no SD card in the camera.
Otherwise computer might define the camera as USB disk,  can't find it as new device.


Features:

High Quality, High Resolution, Clear Images
1080P HDMI output
SD Card Video Recorder
1920x1080 FULL HD Panasonic Image sensor
1/2.86 inch sensor
1920x1080 pixels
The pixel size is 2.75x2.75um
High Speed which can up to 60FPS
All metal shell
Certificate:CE,FC,RoHS
Industry CMOS Camera. It can Show the live image directly on any HDMI monitor or Projector.
Supply HDMI and USB output ports.


Specification:

Image sensor: 1920x1080 FULL HD Panasonic Sensor
Frame rate: 29fps(USB Output)
Pixel size: 2.75*2.75um
Frame rate: 60fps
Definition: Full HD
Housing: Standard iron/ Alloy
Lens mounting: C mount/ CS mount
White balance: Auto/ manual
Digital magnification: 10 times zoom in or zoom out
Brightness control: Auto/ manual
Color: R/ G/ B adjustable
Freeze: Support
OSD: UI design, mouse control
Edge enhancement: Support
Film and video: Support
Cross cursor: Support, multi-color, size adjustable
Transverse and vertical line: 4pcs of transverse line/vertical line, movable and size adjustable
Image contrast: Support
Wide dynamic: Support
Digital dynamic: Support
HDMI interface: Standard HDMI output
USB interface: Standard USB2.0 output

25FPS@1920x1080 pixels, HDMI output

60FPS@1080 x 720, 30FPS@1920*1080, USB output



8" HDMI TFT LCD Color Monitor:

8 inch (1024 x 768) high resolution TFT LCD monitor
Clear image and colorful display
Support BNC input for professional security system,which can reduce signal interference to achieved a best signal state
Multi video input supported (RCA, VGA, BNC)
Support 15-pin VGA input , connect with PC (1024*768)
Suitable for CCTV monitor, PC monitor or indoor use
Built-in high quality speakers
Auto standy function with timer switch and no signal
Screen Size : 8"
Screen Resolution : 1024 x 768 pixels
Aspect Ratio : 4 : 3
Screen Brightness : 400 cd/m2
Screen Contrast : 400 : 1
Viewing Angle : 160° (H) x 160° (V)
Response Time : <= 12ms
Video Input : HDMI, AV-in, VGA, BNC
Power Supply - Input: AC 100~240V, 50~60Hz (worldwide voltage) - Output: DC 12V, 400mA
Dimensions : - approx. 195 (W) x 160 (H) x 32 (D) mm


C-MOUNT Lens:

Working distance: 95mm
zoom c-mount Lens
0.5X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 180mm(L) * 50mm(DIA)
Weight: 450g


144 Bulbs Microscope LED Ring Light:

144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm


Package Content:

1 x Microscope Camera
1 x Power Supply
1 x 180X C-mount Lens
1 x Big Table Stand
1 x 144 LED Light with Power Adapter
1 x 8" LCD Monitor
1 x Wireless Mouse
