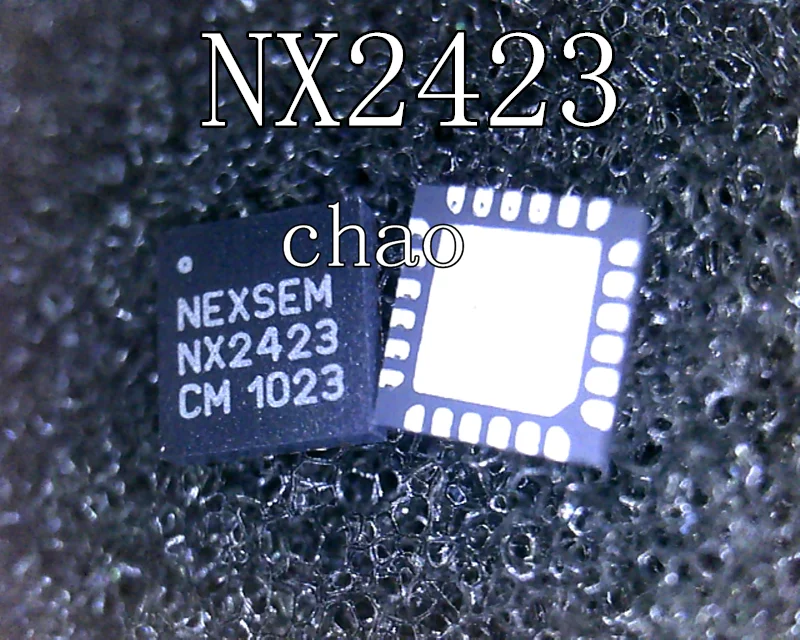

5pcs/lot NX2423CM NX2423 QFN | Обустройство дома

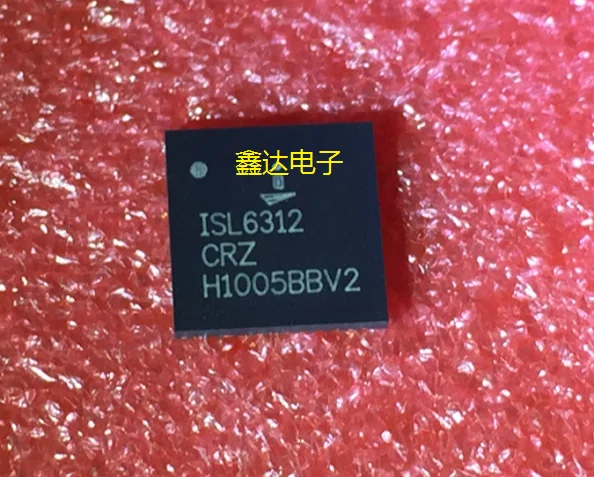

10pcs/lot ISL6312CRZ QFN | Обустройство дома

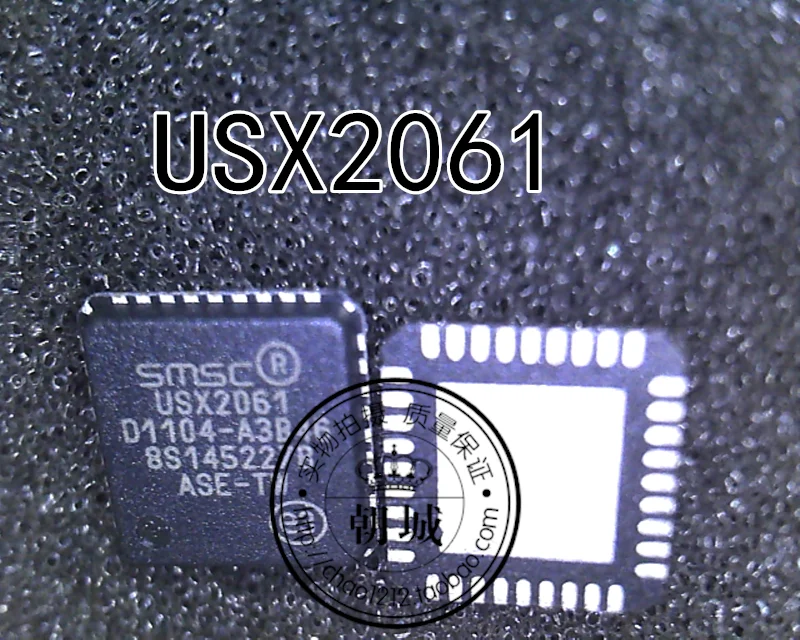

5pcs/lot USX2061 QFN | Обустройство дома

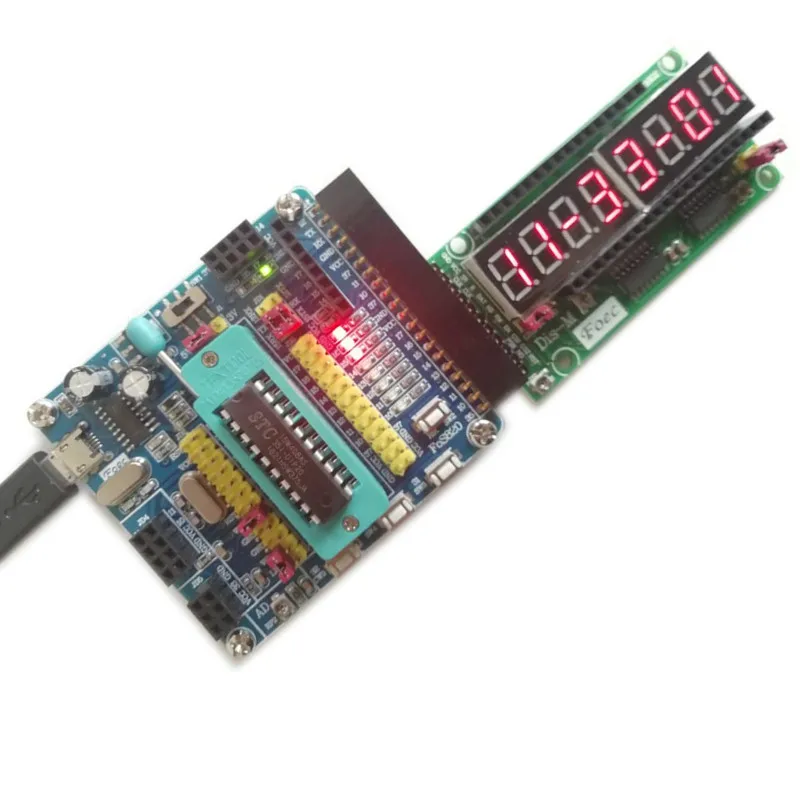

Новая 51-дюймовая макетная плата MCU stc12c2052 15W408AS обучающая STC8 до 20-футовой
New 433MHz RF Amplifier 2W Foot Power Medium Broadband | Обустройство дома
US $20.47
Фонарь MSD6A818QVC BGA | Обустройство дома
449,19 руб.
ChiFun K Workshop Store
Магазина ChiFun K Workshop Store работает с 18.08.2014. его рейтинг составлет 94.6 баллов из 100. В избранное добавили 2812 покупателя. Средний рейтинг торваров продавца 4.8 в продаже представленно 3398 наименований товаров, успешно доставлено 5641 заказов. 1297 покупателей оставили отзывы о продавце.
Характеристики
1PCS / Free shipping Original authentic Tyco relay EV200AAANA 1618002-7 | Обустройство дома
История изменения цены
*Текущая стоимость 5 330,87 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-19-2026 | 6343.45 руб. | 6660.82 руб. | 6501.5 руб. |
| Feb-19-2026 | 6289.69 руб. | 6603.92 руб. | 6446 руб. |
| Jan-19-2026 | 5277.94 руб. | 5541.65 руб. | 5409 руб. |
| Dec-19-2025 | 6183.46 руб. | 6492.64 руб. | 6337.5 руб. |
| Nov-19-2025 | 5383.20 руб. | 5652.24 руб. | 5517.5 руб. |
| Oct-19-2025 | 6076.88 руб. | 6380.50 руб. | 6228 руб. |
| Sep-19-2025 | 6023.45 руб. | 6324.26 руб. | 6173.5 руб. |
| Aug-19-2025 | 5970.3 руб. | 6269.42 руб. | 6119.5 руб. |
| Jul-19-2025 | 5916.6 руб. | 6212.49 руб. | 6064 руб. |
Описание товара

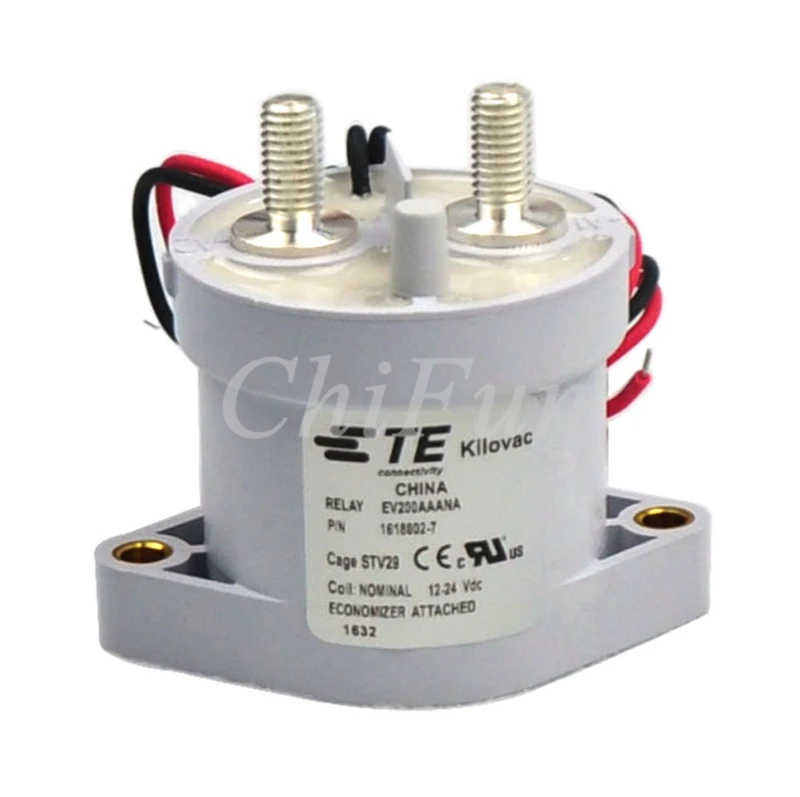

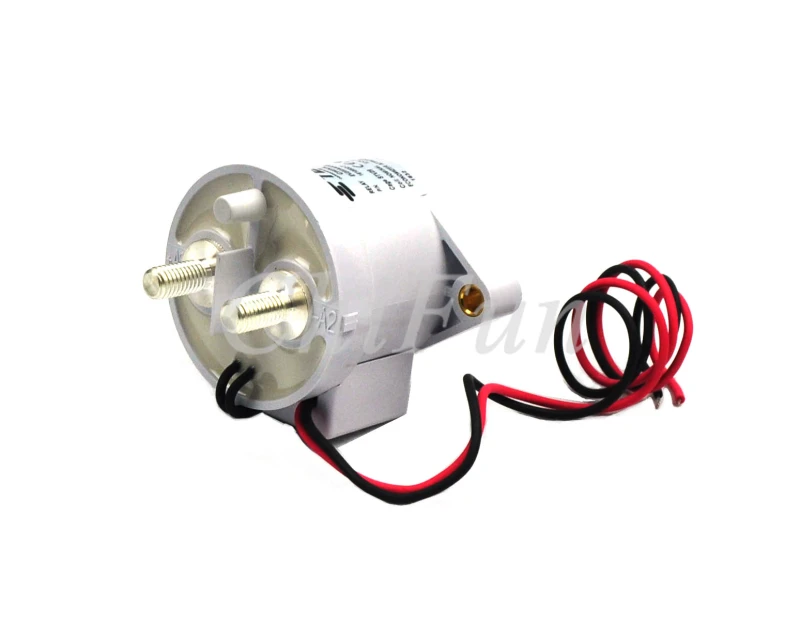

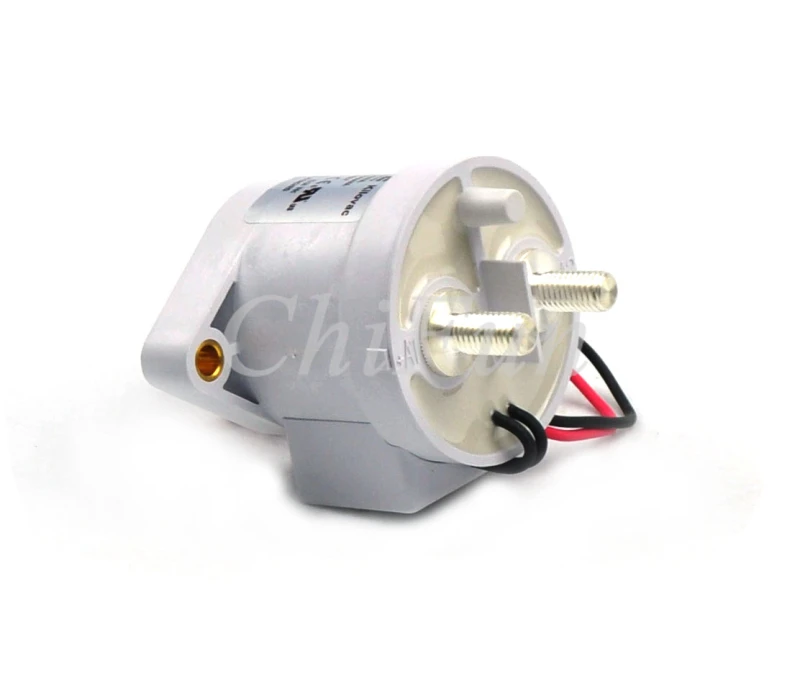

Original authentic Tyco relay EV200AAANA
As EV200RelaySmall size, high contact current, and therefore suitable for batteriesswitchBackup, DCVoltagePower control, circuit protection and security. Its built-incoilWhen saving the device in the 12Vdc, just 1.7W to maintain power, so the backward EMF to zero voltage. The coil connection can be realized through the connector jumper or optional. Optional auxiliary contacts can be used to monitor electrical contact locations. EV200relay mechanical life of 1 million times, the normal operating temperature range of -40 DEG C to 85 C. These relays meet the CE requirements for EC applications, they also comply with the AIAG QS9000 indicators, through the United States and Canada UL E208033 file authentication. Dimensions: 2.58 "x 3.17" X "tall"
Main applications: electric vehicle / ship / industrial control equipment / high power test equipment / mining machinery / electrical equipment / environmental control / light electric vehicles, electric vehicles, electric commercial vehicles, electric off-road vehicles, electric buses, etc.
EV200 series The following is the specific model
EV200AAANA
EV200ADANA
EV200ADANA
EV200HAANA
9-1618389-5
EV200HDANA
EV200HJANA
EV200HRANA
EV200A1XXA03
EV200AAACA02
EV200AAAJA01
EV200AXANA02
EV200B5ANA
EV200BAANA
EV200GAANA
EV200HRANA02
EV200P4ANA
| series Series | LEV100/200 | EV200 | EV250 | EV500 | K61/81 | |
| Model Type | LEV100 (200) A4 --- LEV100 (200) A5 --- LEV100 (200) A6 --- LEV100 (200) H4 --- LEV100 (200) H5 --- LEV100 (200) H6 --- | EV200AA--- EV200AD--- EV200AJ--- EV200HA--- EV200HD--- EV200HJ--- | EV250-1A EV250-1B EV250-2A EV250-2B EV250-5A | EV500-4A EV500-4B EV500-5A EV500-5B | K61A--- K61B--- K61C--- K81C--- | |
| Safety certification Agency Approval | - | - | - | - | ||
| contact form Contact Form | A= normally open H= normally open + auxiliary contact A=Normally Open H=Normally Open with Aux. Contacts | - | 4= no auxiliary contact 5= assistedcontact 4=No Aux. Contacts 5=with Aux. Contacts | A=SPST-NO B=SPST-NC C=SPDT | ||
| Rated workVoltage Rated Operating Voltage | 12-900 VDC | 12-900 VDC | 28-1800VDC | 28-1800VDC | 10KV/ K61 25KV/ K81 | |
| Continuous carryingElectric current Continuous (Carry) Current, Typical | 500Amps 65 C | 500Amps 85 C | 400Amps 500Amps/6 minutes | 600A270VDC, 85 C 1600A/10 seconds | 6AmpsDC/60Hz | |
| Disconnect current 320VDC Break Currents | 2000Amps | 2000Amps | 2500Amps | 3300Amps | - | |
| Typical / maximum contact resistance Contact Resistance, Typ./ Max. | 0.2 M 200A | 0.2 M 200A | 0.0003 ohm | 0.0002 ohm | 0.05 / 0.5 | |
| Mechanical life Mechanical Life | 100000 times | 1000000 times | - | - | - | |
| auxiliarycontactMaximum contact current Aux. Contact Current Max. | 2A30VDC 3A125VAC | 2A30VDC 3A125VAC | - | - | - | |
| Minimum contact current Aux. Contact Current, Min. | 100mA8V | 100mA8V | - | - | - | |
| auxiliarycontactMaximum contact resistance Aux. Contact Resistance Max. | 0.41730VDC 0.150125VAC | 0.41730VDC 0.150125VAC | - | - | - | |
| insulationresistance500VDC Insulation Resistance | 100 M ohm | 100 M ohm | 100 M ohm | 100 M ohm | - | |
| temperature range Operating Ambient Temperature | -40 ~ 65 C | -40 ~ 85 C | -40 ~ 85 C | -40 ~ 85 C | -55 ~ 85 C | |
| Nominal weight (kg) Weight, Typical | 0.60 | 0.43 | 0.7 kg / 0.8 kg | 1.53kg | - | |
| coil data Coil Operating Voltage | nominal Voltage Coil Voltage | 4=12VDC 5=24VDC 6=48VDC | A=9-36VDC D=32-95VDC J=48-95VDC | A=12VDC B=24VDC | A=12VDC B=24VDC | 2=12VDC 3=26.5VDC 5=115VDC |
| Voltage Range Voltage (will operate) | 9.6-13.2VDC 19.2-26.9VDC 38.4-52.8VDC | A=9-36VDC D=32-95VDC J=48-95VDC | - | - | - | |
| Maximum voltage Voltage Max. | 15VDC 30VDC 60VDC | 36VDC 95VDC 95VDC | - | - | - | |
| Max pick Voltage Pickup (close) Voltage Max. | 9.6VDC 19.2VDC 38.4VDC | 9VDC 32VDC 48VDC | -1A/B: 8.3/ 16.6VDC -2A/B: 9/ 18VDC -5A: 9VDC | 9.9VDC 19.7VDC | 8VDC 16VDC 80VDC | |
| Installation mode Mounting Terminals | Bottom / side Bottom/ Side | bottom Bottom | pc board PC Board | |||
| Connection mode Terminal Options | Bolt / lead Male 10mm * M8 Terminals/ Threaded Wires | Bolt Male 10mm * M8 Threaded Terminals | Lead wire, pin Wires/ Pin Terminals | |||
high pressureDirect contactor Widely used in power supply section:
1, * vehicle and gun control unit
Armored vehicles, artillery and tanks, amphibious vehicles, supply trucks, * * bulldozer, dump truck, crane equipment and services
2, Aviation, aerospace, space station distribution equipment and ground tractor
3, Sea ship/Ships and underwater equipmentDCPower supply)
4, Hybrid vehicle-Truck, bus, rail vehicle
Power supply, auxiliary power supply, diesel heaterDCConnect
