High precision LXM1530 cnc route for wood mdf/woodworking cnc router
Product Description

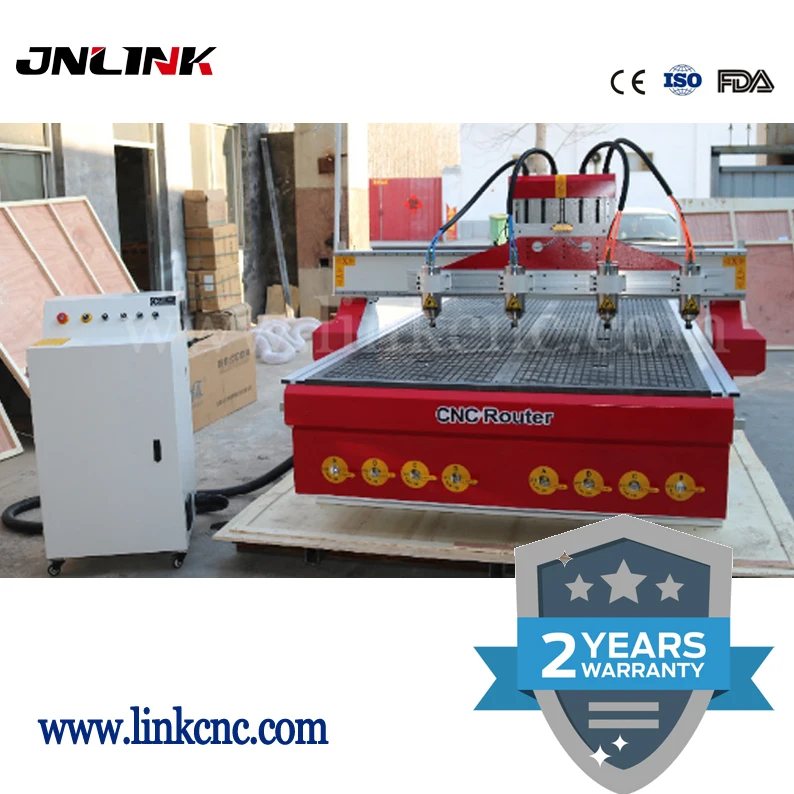

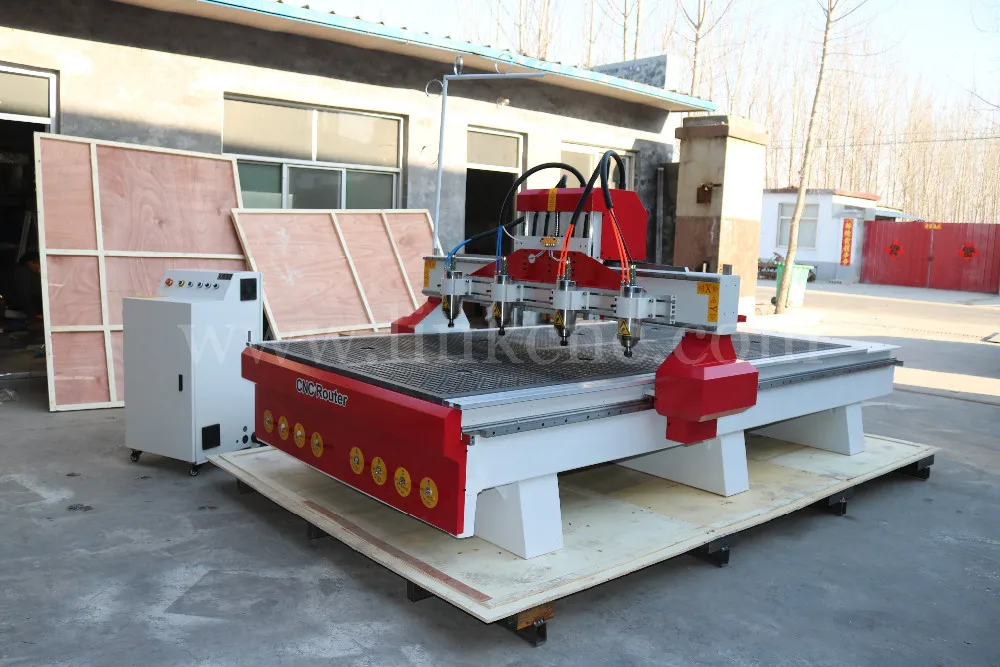

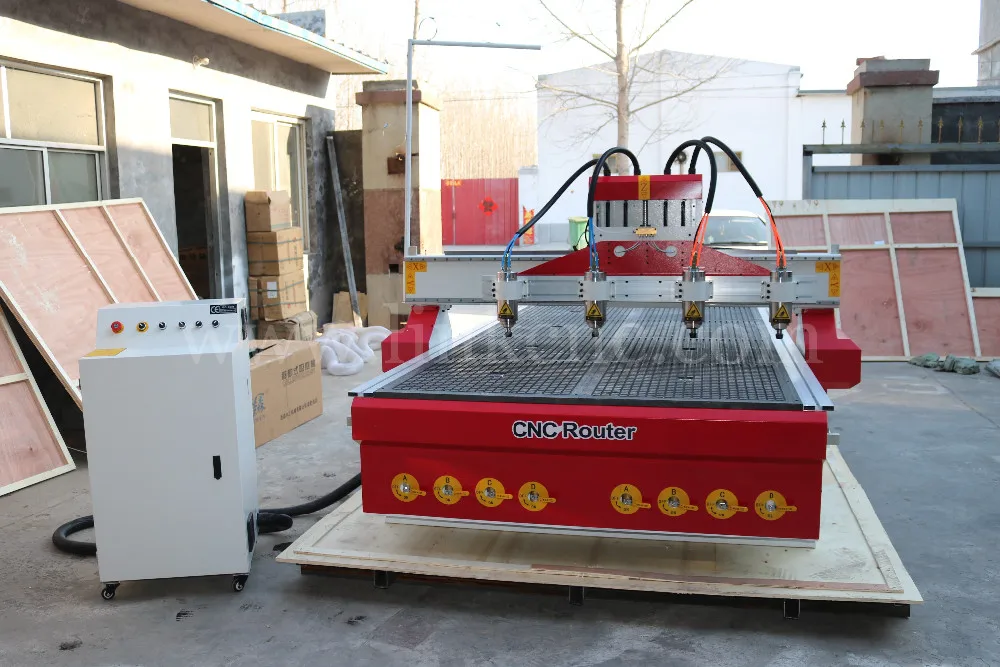

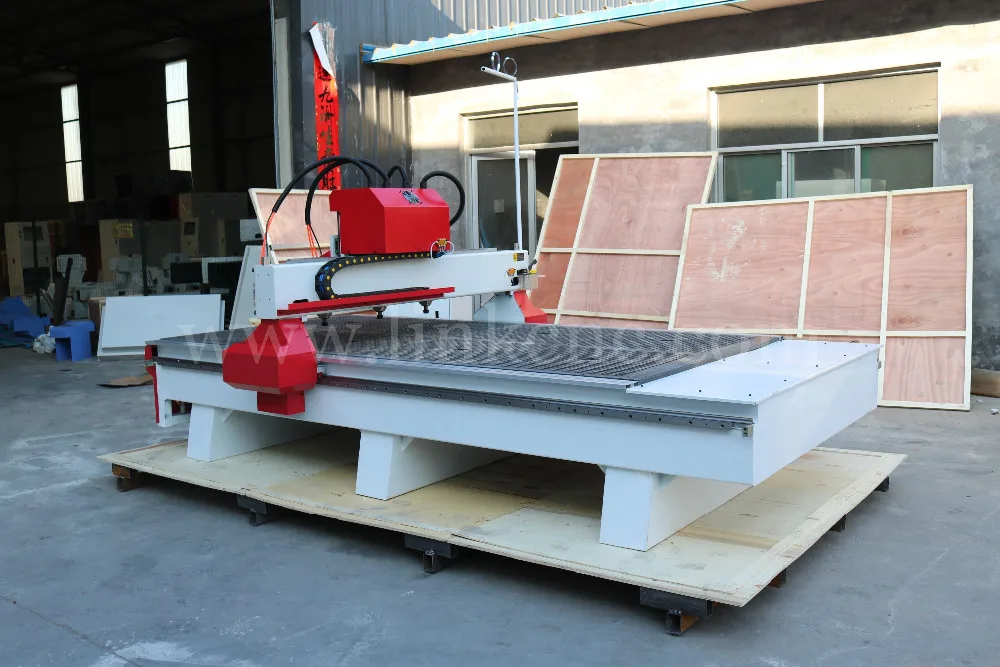

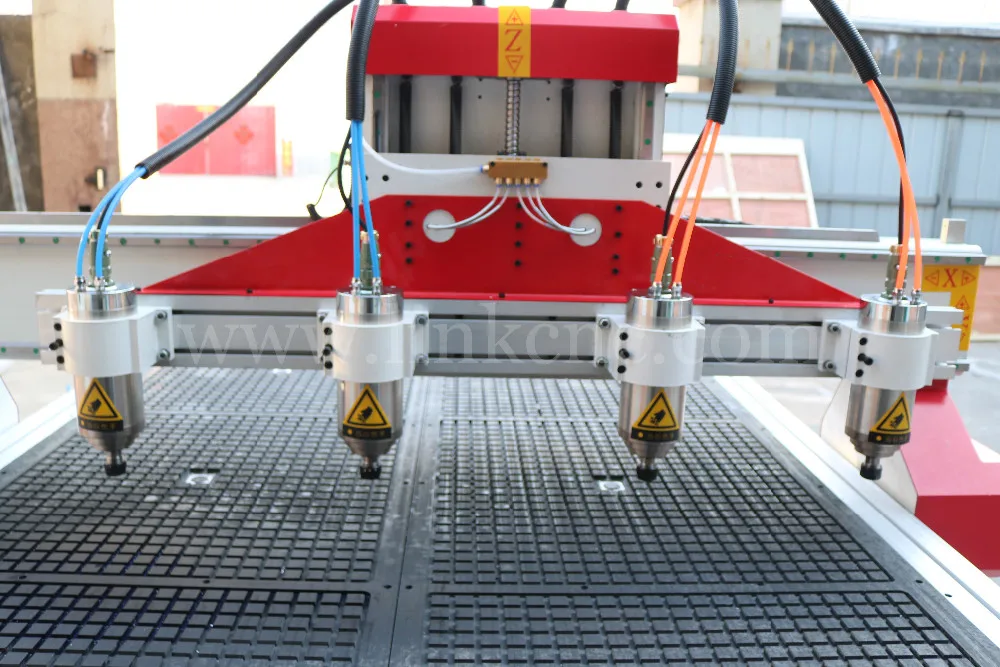

The pictures of the cnc router 1530
Features of the cnc router 1530
1. Whole machine is welded with thick square seamless steel structure; the stability is excellent,
not easy to be deformed.
2. Three axes adopt high precision hiwin rails; X and Y axes adopt rack and pinion transmission,
fast working, high efficiency and low cost. Z axis adopts ball screw,with high precision and long
life time.
3. High power 3.0kw water cooling spindles, low noises and super strong cutting force, which
improve workingefficiency greatly.
4. Famous brand drivers and motors have characteristics such as powerful strength, fast processing
speed.
5. Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc.
6. Has the function of re-carving after break point and power failure.
7. Has the function of forecasting process time.
8. Perfect oil lubrication system makes maintenance much easier. And electric limit switch on
all axis, make sure machine running well.

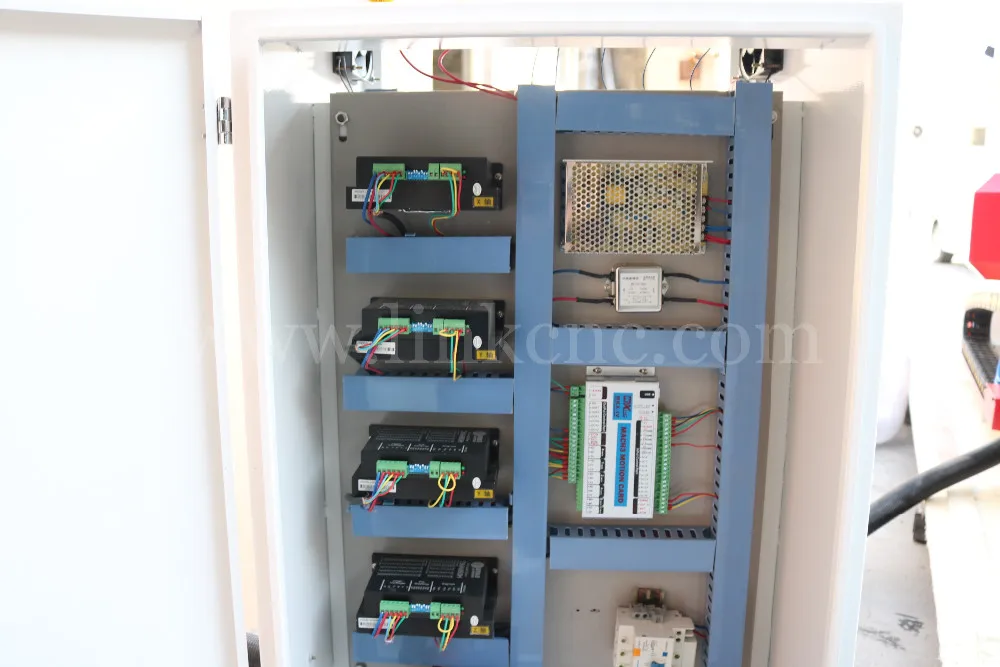

9. Independent control box make control easier.
Features of the cnc router 1530
| NO. | Detail Pictures | Items | Brand |
| 1 |
|

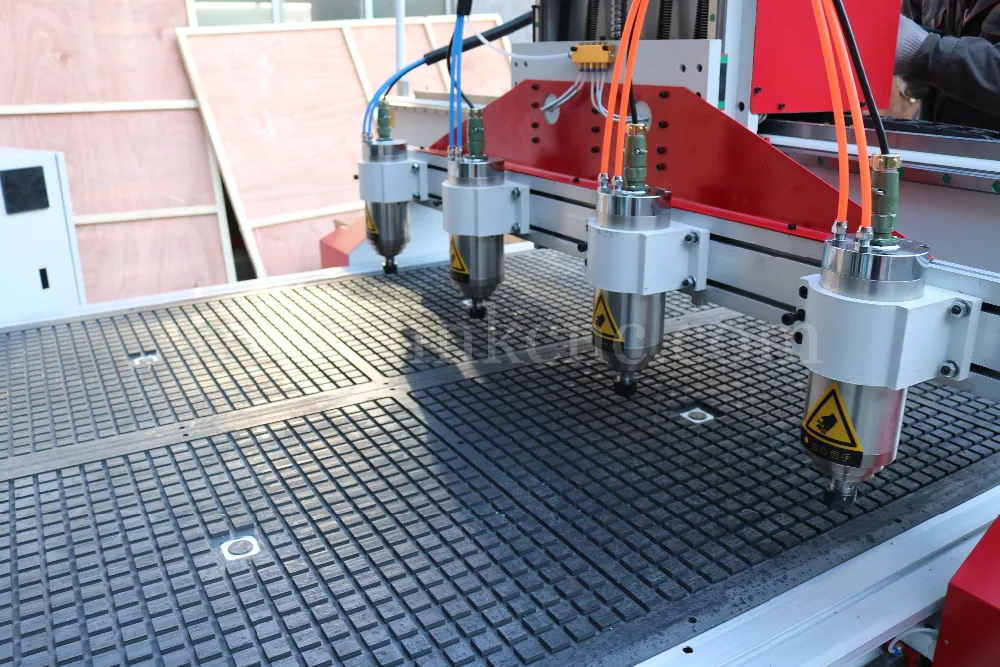

Water cooling Spindle |
1.3.0kw high speed spindles (water-cooling), adopt imported bearing which with dust cover, more secure; 2. Strong carving power, high precision, long service life; 3. Adopt grinding technology, can improve the motor concentricity, prolong service life. |
| 2 |
|
vacuum table |
No need human fix the material. Absorb the material automatically. More efficent than T-slot table. |
| 3 |
|

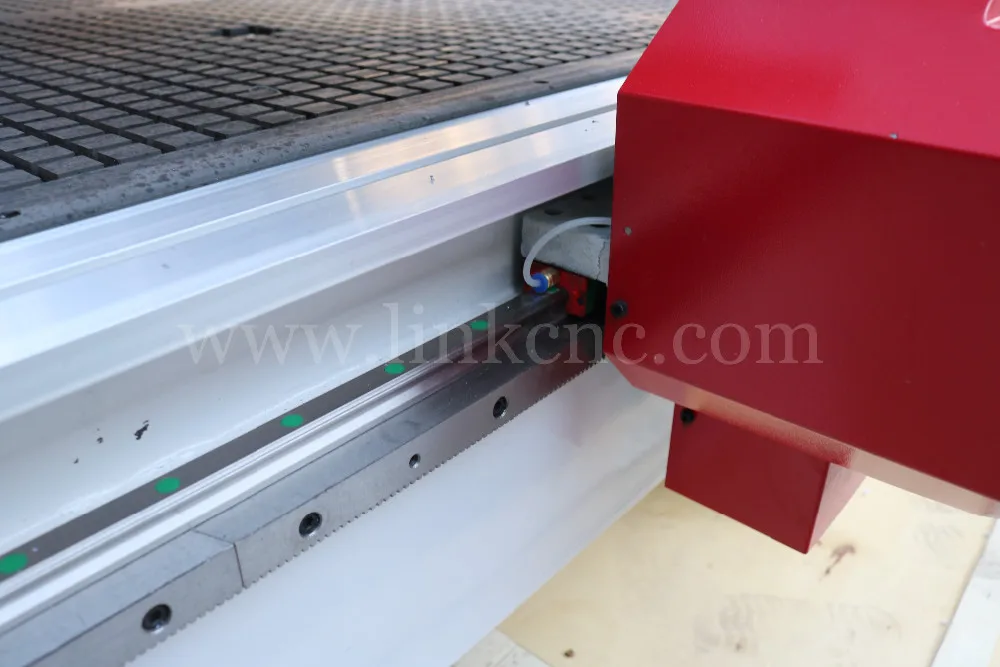

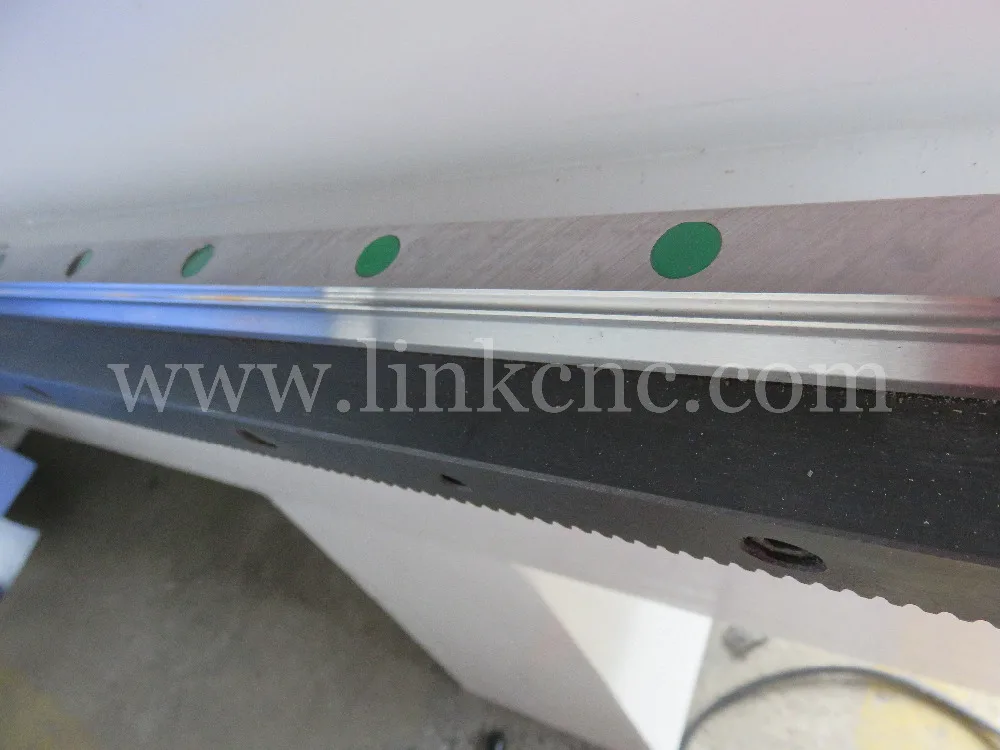

Guide Rail |
X axis Y axis and Z axis adopts Taiwan Hiwin 20mm guide rail, adding scraping devices external and dust proof protection, extending the service life of the guide rail effectively. |
| 4 | |||
| 5 |
|
Frequency Inverter |
Fuling Inverter |
| 6 | |||
| 7 | Electrical Component Cable |
Special shielded cable drag chain special high flexible, can bend millions of times, drag chain support 150 degrees bend, effectively protect the cable. |
|
| 8 |
|

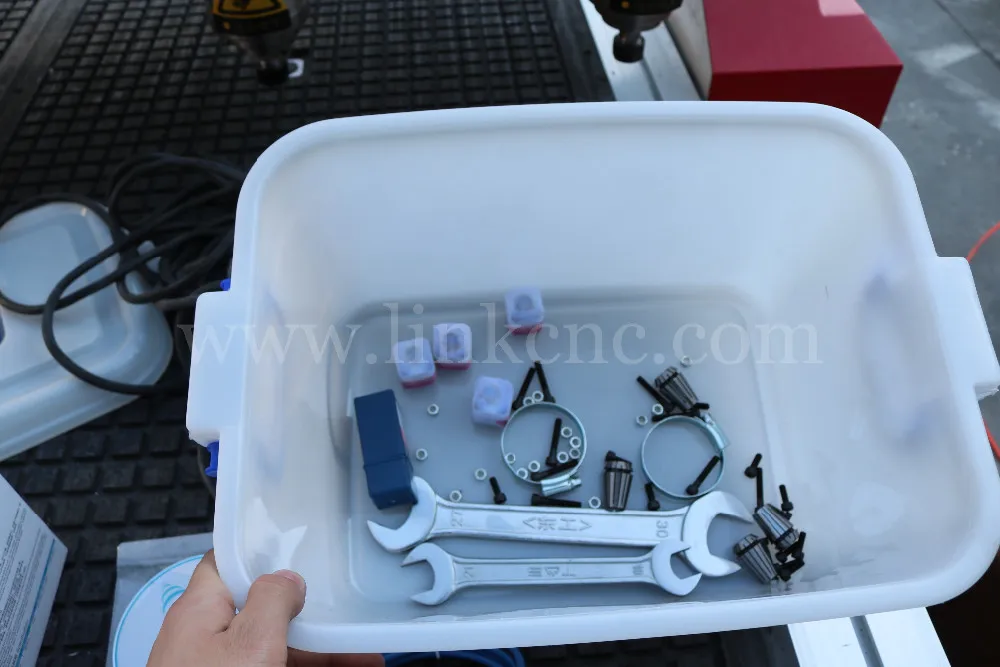

Tool box | 10 tools,3 collect,6 material holders,water pump |
Parameter of the cnc router 1530
|
Model |
LXM1530 |
|
X Y working area |
1500 x 3000 mm |
|
Feeding height |
200 mm |
|
Structure |
Welded struvture |
|
Motor |
Stepper motor |
|
Big Driver |
Leadshine |
|
X Y Z |
X Y Gear rack , Z ball screw X Y Z ----- hiwin rails |
|
Spindle power |
3.0kw water cooling |
|
table |
vacuum table |
|
Dust absorption |
3kw |
|
Control system |
nc-studion |
|
Working Speed |
0-10,000mm/min |
|
Working precision |
0.05mm/300mm |
|
Command code |
HPGL, G code |
|
Repeatability |
0.01 mm |
|
Power |
AC220V/380v ±10% / 50~60Hz |
|
Compatible Software |
Type3/Artcam/UG/Pro-E/Mastercam/Ucancam V8 etc |

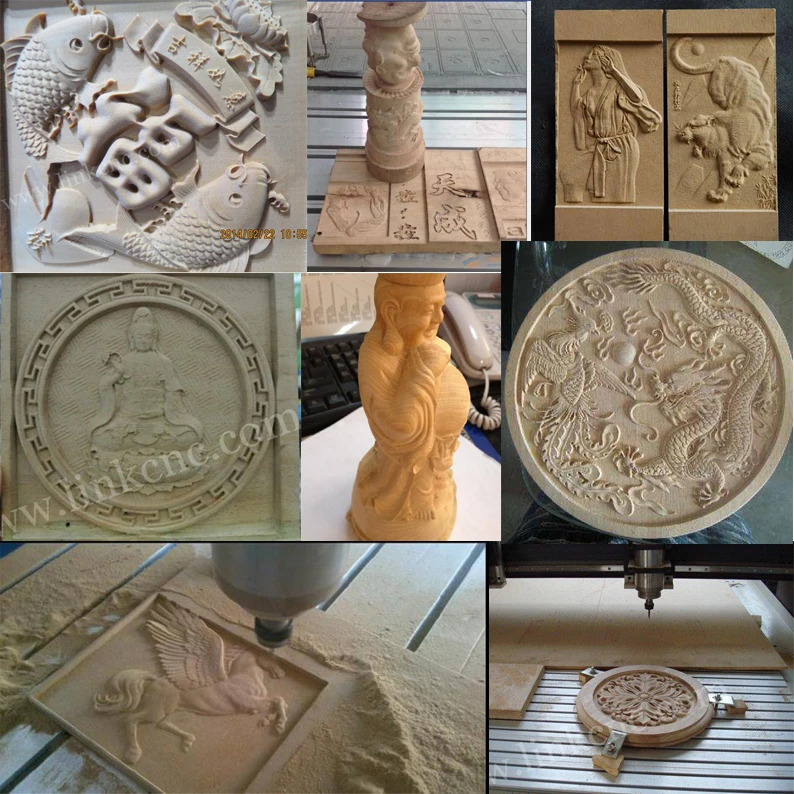

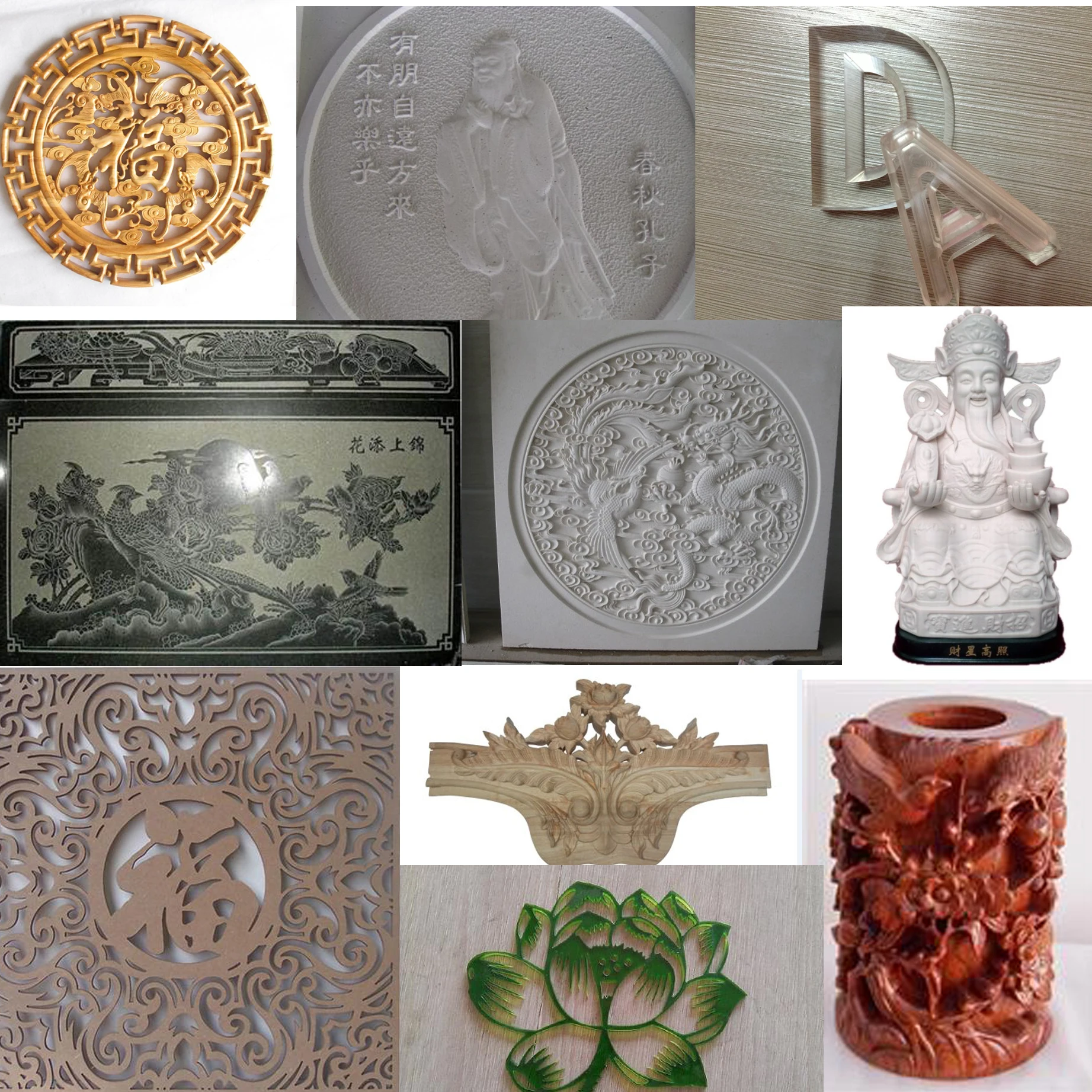

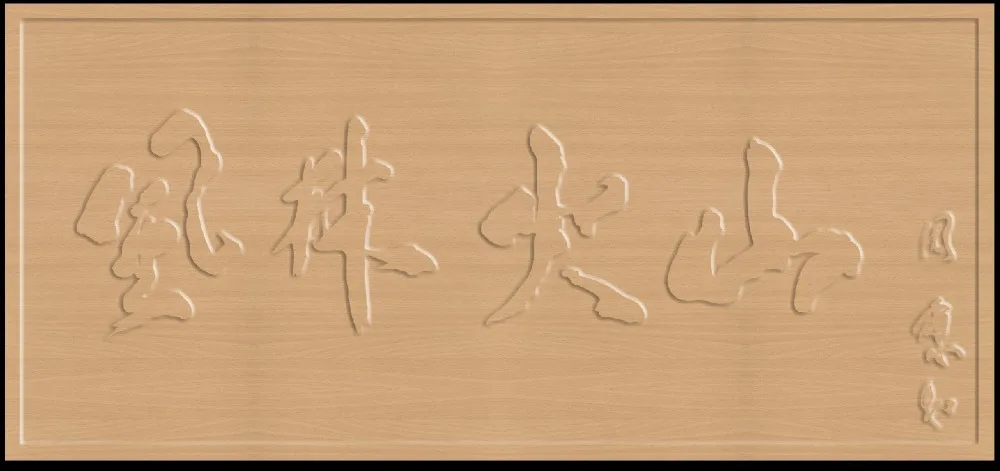

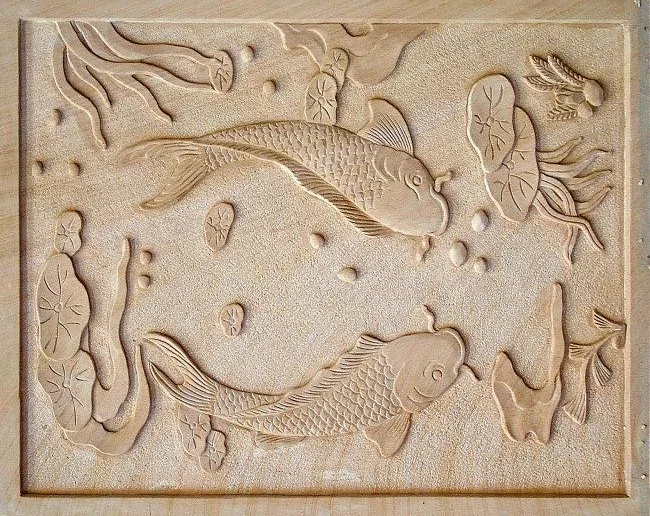

Application of the cnc router 1530
1. Advertising industry: cutting/engraving/drilling./photo engraving on wood, MDF, bamboo, plastic, PVC, acrylic, two colors board, metals, stone etc.
2. Manufacturing industry: engrave, cut, drill, photo engraving on copper, iron and aluminum, alloy, steel etc.

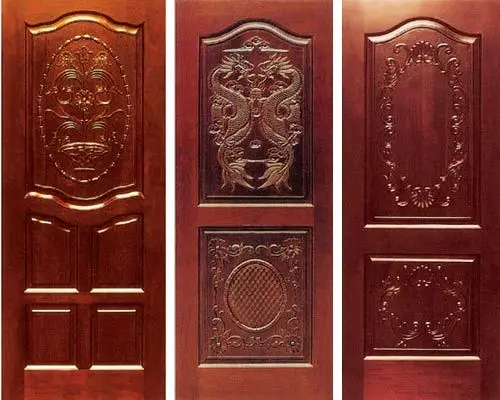

3. Furniture making: wood door cutting, wood door artwork engraving, wave boards making,
3d photo engraving, small or large relief works, cylinder materials engraving, 3d photo engraving etc.
4. Artwork industry: Figure engraving, character engraving and cutting, name brand making, small gift
cutting, souvenirs making, Carving various decoration letters, figures on small windows, fences, wall, etc.
| 1.Tracing the working condition by email per month. | ||||
| 2.24 hours technical support by email, call, video. | ||||
| 3.English CD and manual for machine using and maintainance. | ||||
| 4.Whole machine two year warranty. | ||||
| 5.Gantry, lathe bed, stand whole life warranty. | ||||
| 6.Exceed warranty period 2 year: if the cnc machine parts have any problem, we can offer new machine parts with cost price and your side pay all the shipping cost. |
1. A: what is your payment terms?
Q: our payment terms is T/T, Alibaba payment,L/C, western union.
2. A: what time do you delivery?
Q: 7 - 12 days after receiving the balance.
3. A: What can you do anything to help me?
Q: Please don't hesitate to contact me, I'm not only a saler but also your solution provider.
contact usWhatsapp:+8617686428589 skype: lingxiangcnc2 e-mail: export02/at/linkcnc.com
