24V 4 Channel RF Wireless Remote Switch Control Light System CH Receiver + 2 Transmitters IN 433.92Mhz | Обустройство дома
История изменения цены
*Текущая стоимость US $13.35 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-19-2026 | 17.84 руб. | 17.61 руб. | 17 руб. |
| Jan-19-2026 | 13.46 руб. | 13.39 руб. | 13 руб. |
| Dec-19-2025 | 16.24 руб. | 16.5 руб. | 16 руб. |
| Nov-19-2025 | 16.59 руб. | 16.39 руб. | 16 руб. |
| Oct-19-2025 | 13.4 руб. | 13.60 руб. | 13 руб. |
| Sep-19-2025 | 16.81 руб. | 16.74 руб. | 16 руб. |
| Aug-19-2025 | 16.20 руб. | 16.77 руб. | 16 руб. |
| Jul-19-2025 | 16.50 руб. | 16.73 руб. | 16 руб. |
Описание товара
Model :AK-RK04S-12
1.Working Voltage: DC24V±10%
2.Current:Standby less than 6mA, Working less than 128mA
3.Working Temperature: -40'C—+80'C
4.Receiver Frequency: 433.92MHZ Optional
5.Receiving Sensitivity: -105dB
6.Output State: Switching Value
7.Max Load:10A Relay, Resistive load less than 8A,Inductive load less than 3A
8.Receiver Board Size:70*50*18mm
9.Case Size:75 * 55 * 30mm
Encoding Type: Learning Code

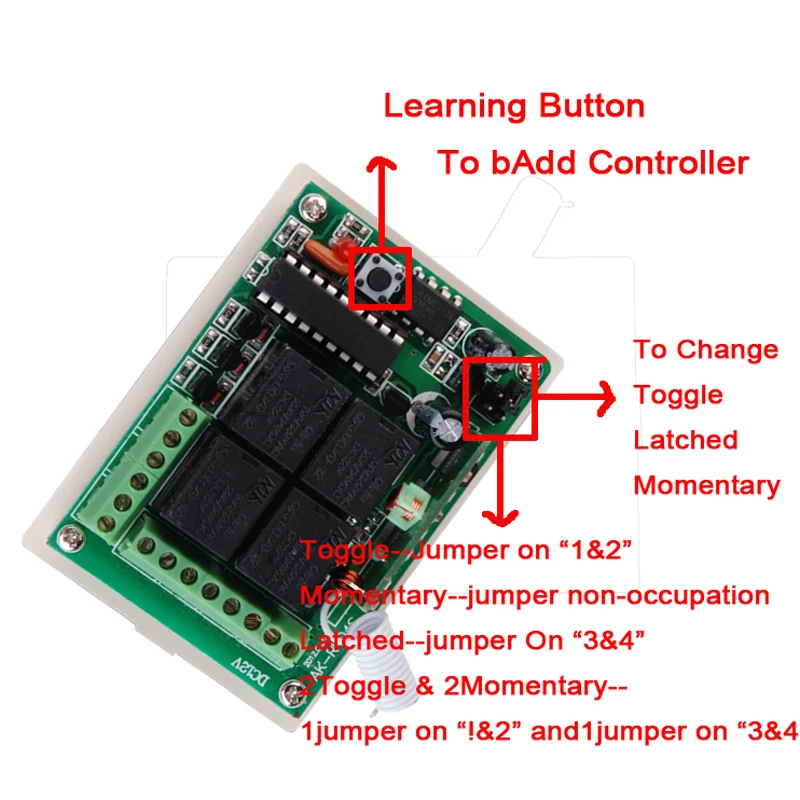

Add transmitter by the Learning Button on the receiver

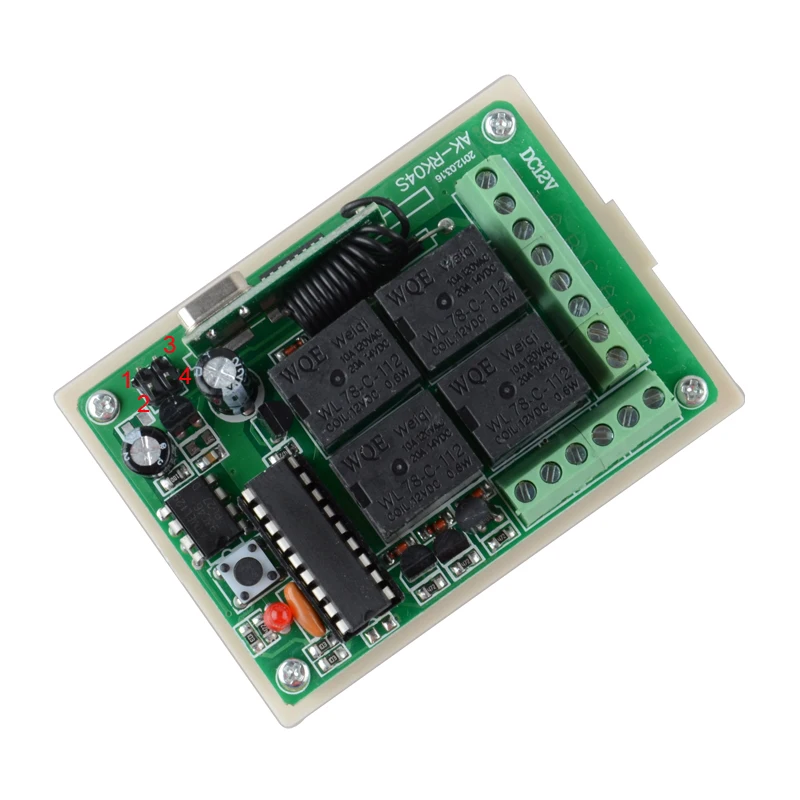

Output State: It is adjusted by the Jumper on the Receiver Board,
Momentary-----Jumper on 1 Pin or Take away the Jumper
Toggle--------Jumper on "3&4"
Latched-------Jumper on "1&2"
2CH Momentary 2CH Toggle----Jumper NO.1 on "1&2" , Jumper.2 on "3&4"
Momentary-----Press the transmitter button A,the receiver relay A is ON; Release button A ,The receiver relay A is OFF ,The same as B/C/D
Toggle--------Press the transmitter button A For 1 time ,the receiver relay A is ON; Press button A again,The receiver relay A is OFF ,The same as B/C/D
Latched------
Press transmitter button A,the receiver relay A is ON,the relay B/C/D is OFF
Press transmitter button B,the receiver relay B is ON,the relay A/C/D is OFF
Press transmitter button C,the receiver relay C is ON,the relay A/B/D is OFF
Press transmitter button D,the receiver relay D is ON,the relay A/B/C is OFF
It mean ,Latched only can keep 1CH ON,and it will ofen have 1CH is ON
Learning Method:
Input DC24V Power for the receiver,press the learning button , LED indicator ON,Then press transmitter ,the LED indicator flash 3 times,It mean learning successfully.
Clearing Code:
Keeping press the learning button 8 seconds until the LED indicator OFF, It mean the code have been cleared successfully.

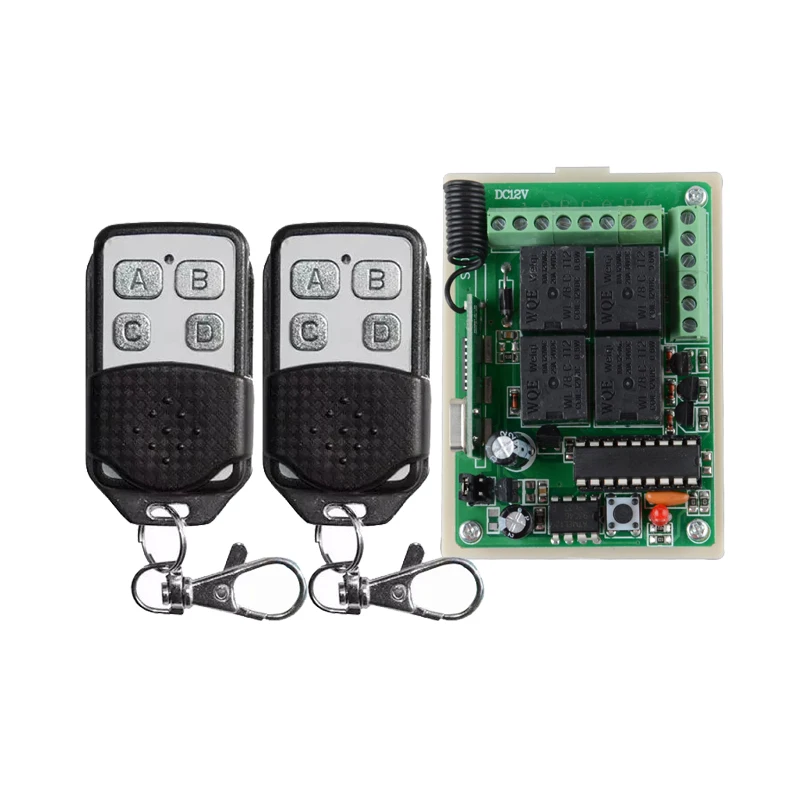

Package included:

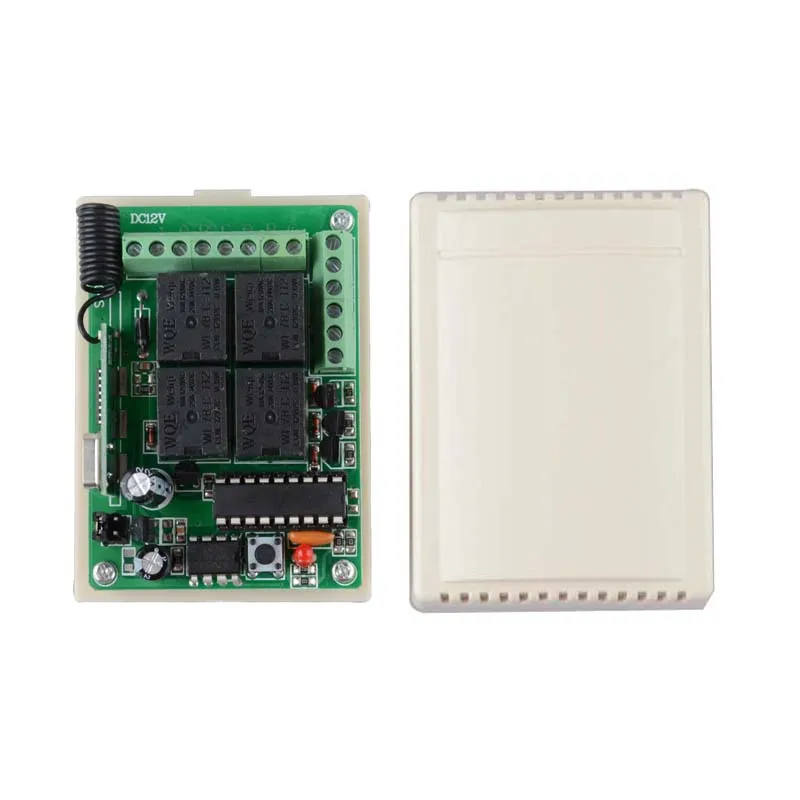

1*receiver (with cover)
2*transmitter (with battery)
