Handheld Tweezers Digital Resistance Capacitance Diode Meter Tester Multimeter R/C SMD 3999max reading + Relative Measurement |

Handheld Tweezers Digital Resistance Capacitance Diode Test Multimeter Meter R/C SMD 3999max reading + Relative Measurement

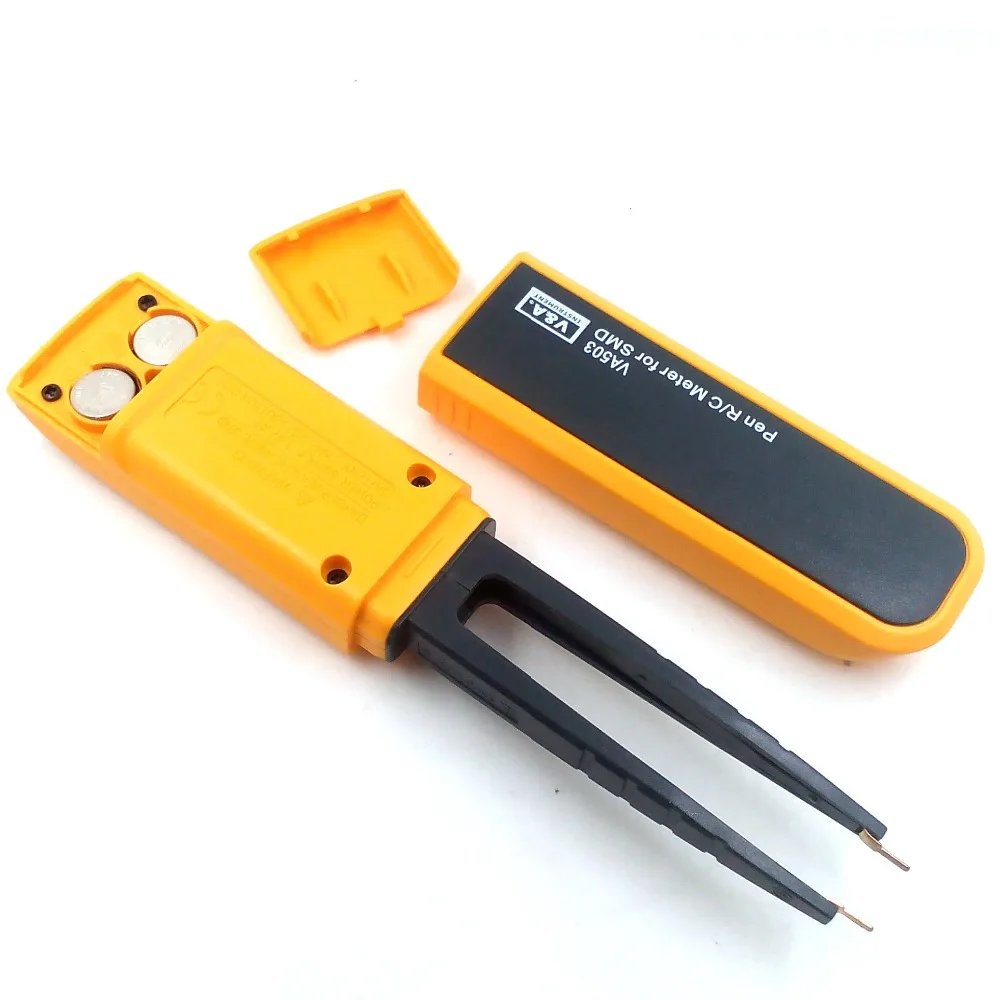

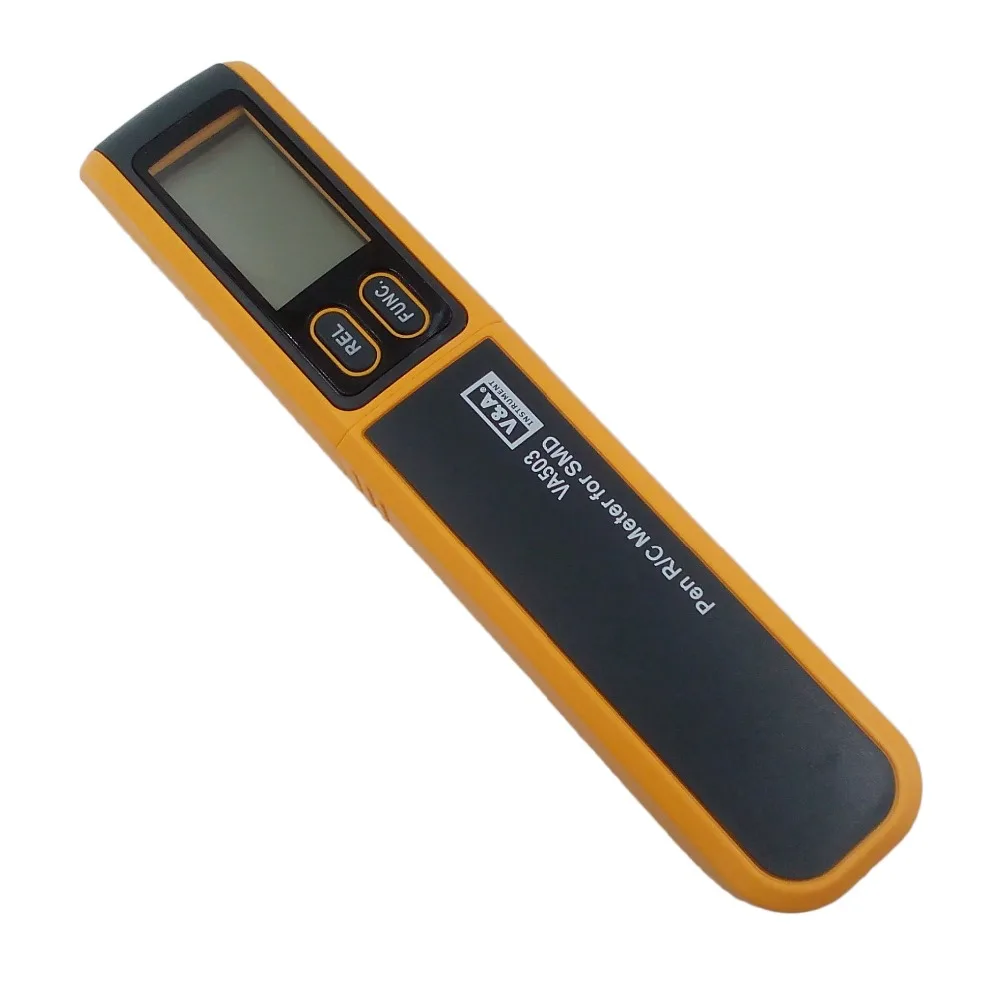

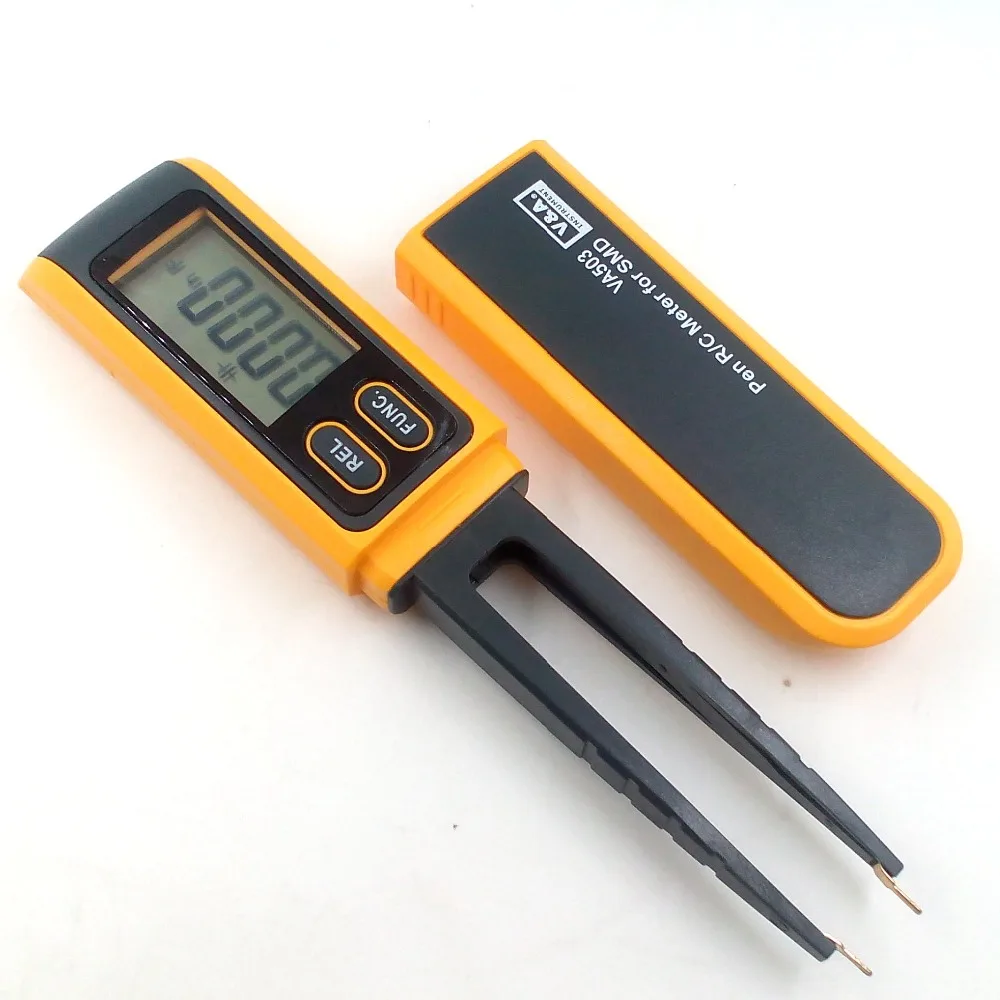

This pen R/C meter for SMD is designed to accurately measure small chip components. Measures diode & polar capacitance and capable for relative measurement. It has large LCD display with3999max reading. Surface mount devices are usually tiny and without wire leads, making it much more difficult to test and identify Surface Mounted Device (SMD) than conventional components. Using this multimeter is an easy way to sort and evaluate loose components and perform on-board measurements and debugging. The precise non-magnetic steel tips are able to hold and contact reliably even smallest SMD components and devices already mounted on a board. The probe can also be used to test conventional components with too short wire leads to insert into the test terminals.

Features

• Quickly measure high Resistance, Capacitance and Diode Test
• Relative Measurement
• High precision Resistance and Capacitance probe

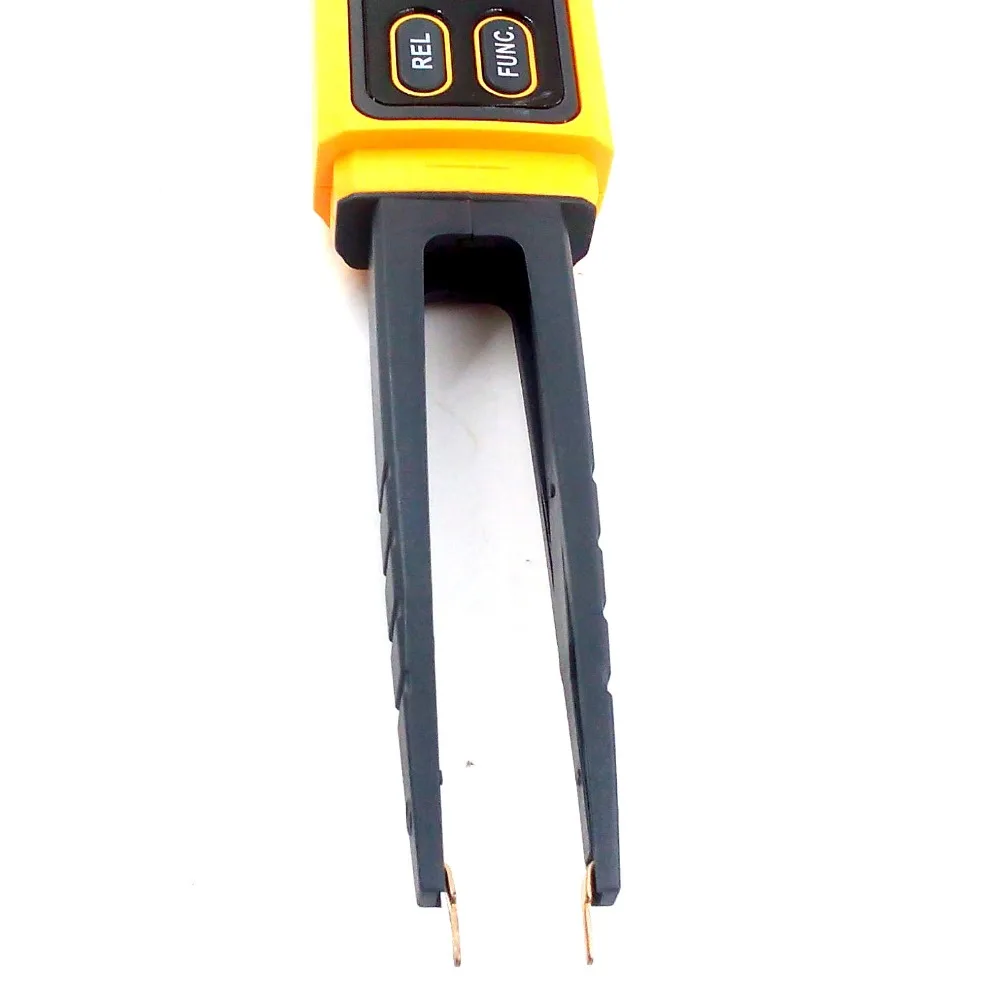

• Precise tips for small-size devices
• With sampling rate of 3 times per second
• Over range and Low battery indication
• Auto Power off function
• Low battery indication

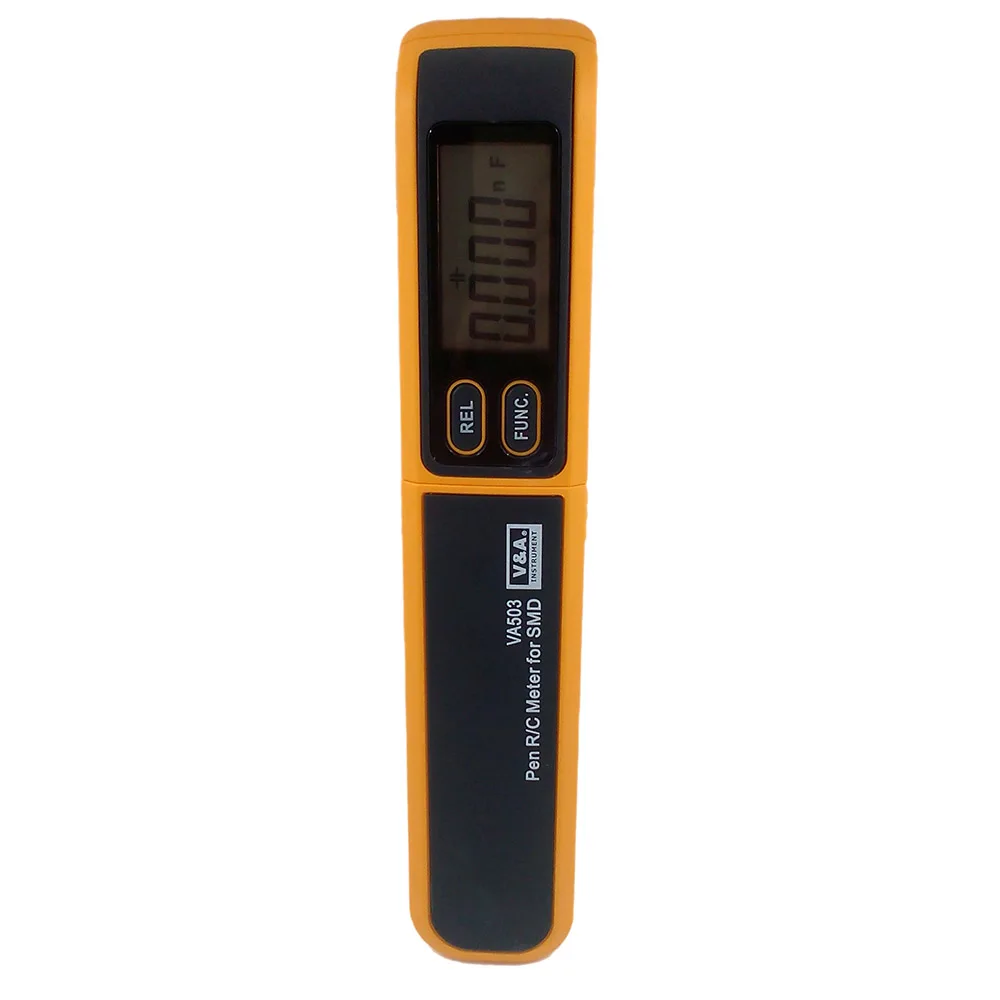

• Large LCD display with Maximum reading up to 3999
• Ideal tool for Surface Mount Devices (SMD)

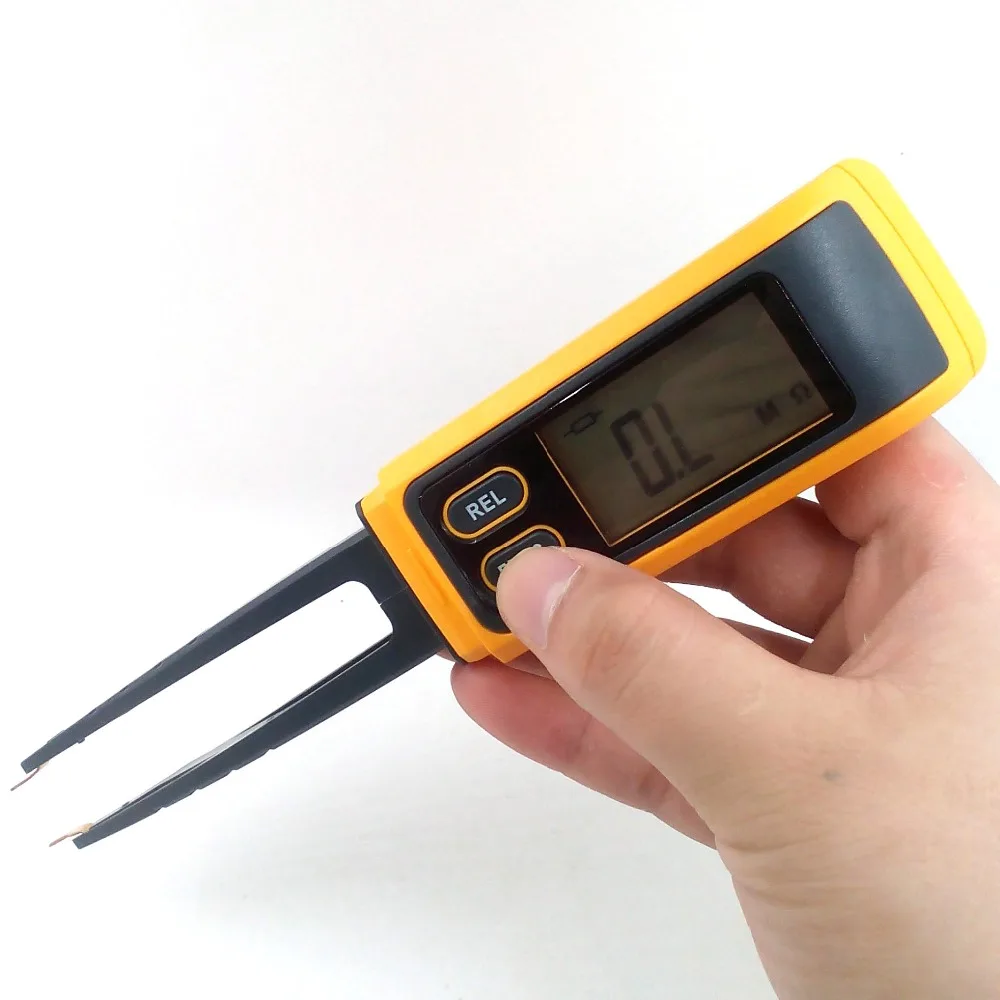

• Ergonomic design with one-hand operation
• Tested according to European international guidelines and standards (CE marking)
• Passed IEC1010 set standards with Pollution Degree 2 & Altitude <2000m

Specifications

• Resistance


  Range	Resolution	Accuracy
  400	0.1	(1.2 % of reading + 3 digits)
  4k	1
  40k	10
  400k	100
  4M	1k
  40M	10k	(2.0 % of reading + 5 digits)

• Capacitance

  Range	Resolution	Accuracy
  4nF	1pF	(5.0 % of reading + 5 digits)
  40nF	10pF	(3.0 % of reading + 5 digits)
  400nF	100pF
  4µF	1nF
  40µF	10nF
  200µF	100nF

• Diode Test


  Range	Description	Test Condition
  	Display read approximate forward voltage of the diode	Forward DC current: approximate 1mA Reversed DC voltage: approximate 1.5V

• Environment conditions

  • Pollution degree: 2
  • Altitude < 2000 m
  • Operating temperature: 0~40C, (<80% RH, non-condensing)
  • Storage temperature: -10~60C, (<70% RH, battery removed)
• Temperature Coefficient: 0.1 x (specified accuracy) /C (<18C or >28C)
• MAX. Voltage between terminals and earth ground: 50V DC or 36V AC rms
• Sample Rate: 3 times/sec for digital data
• Display: 3 3/4 digits LCD display with max. reading 3999
• Power Supply: 2 x 1.5V Button Battery(NOT included)
• Dimensions: 181 x 35 x 20mm (L x W x H)
• Weight: approx. 65g (no battery)

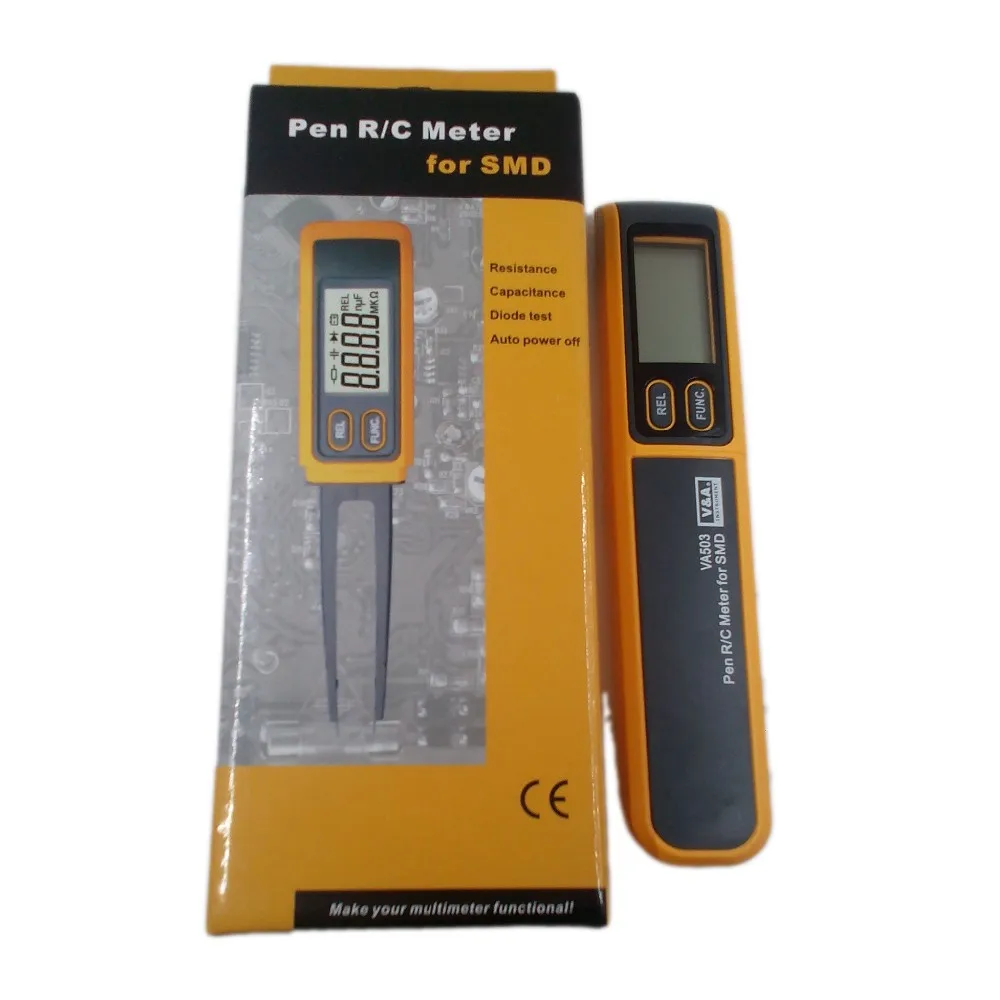

Set Includes

• 1 x RC Pen-Type Multimete
• Quick Start Guid
