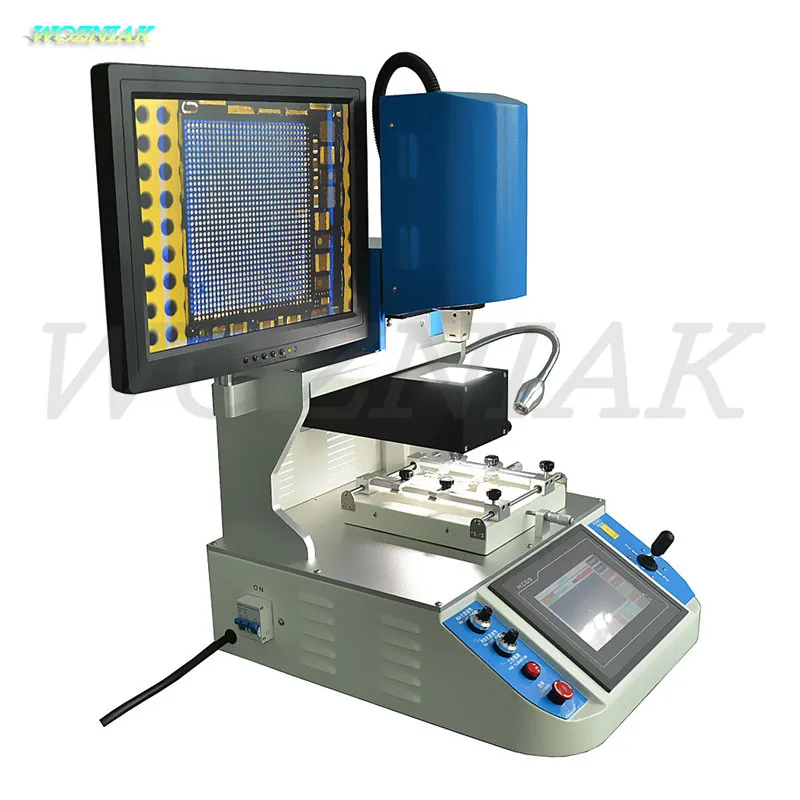

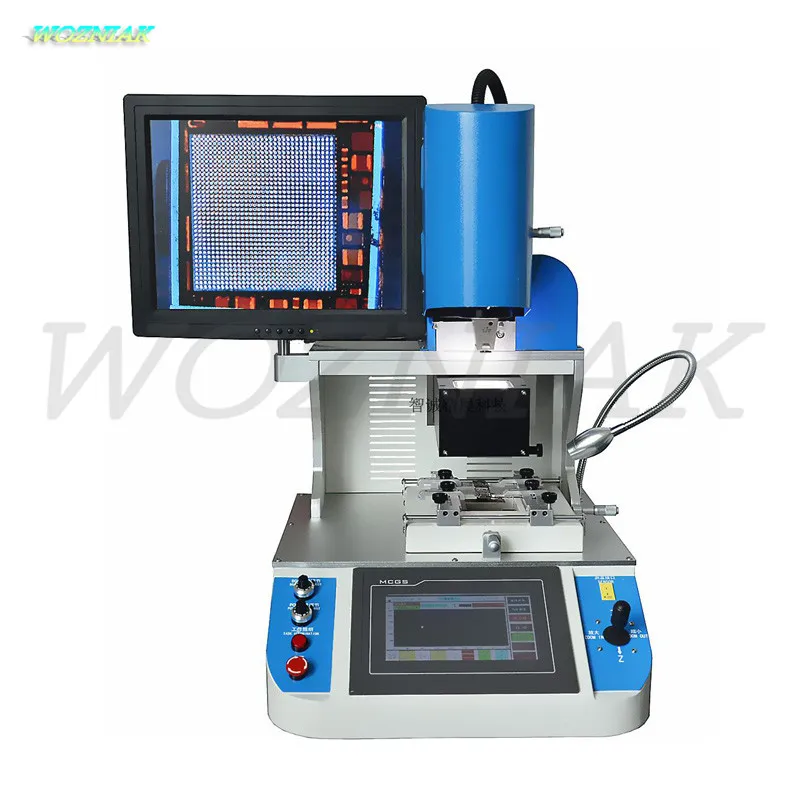

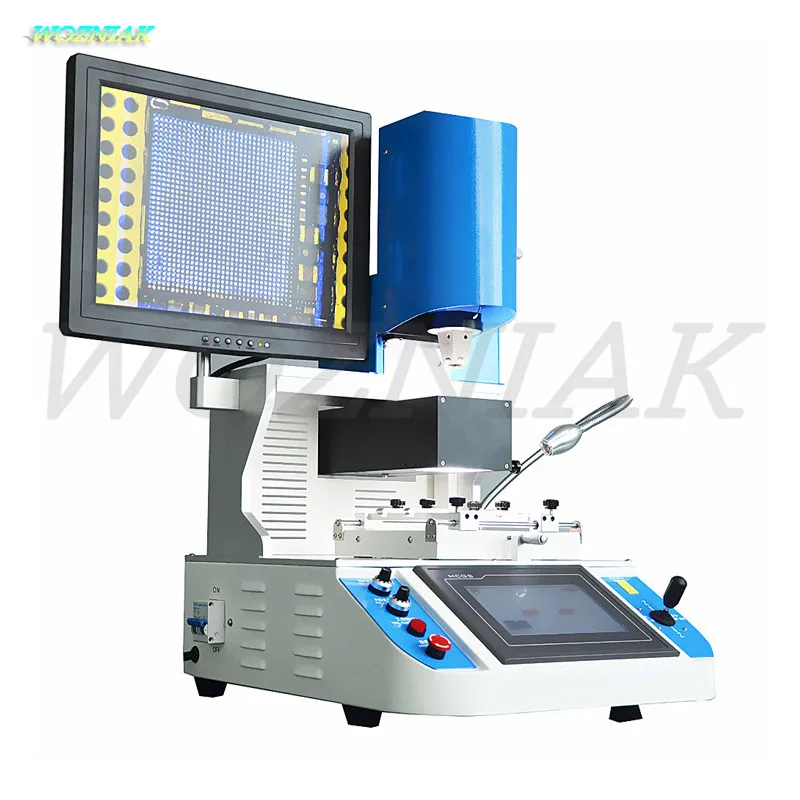

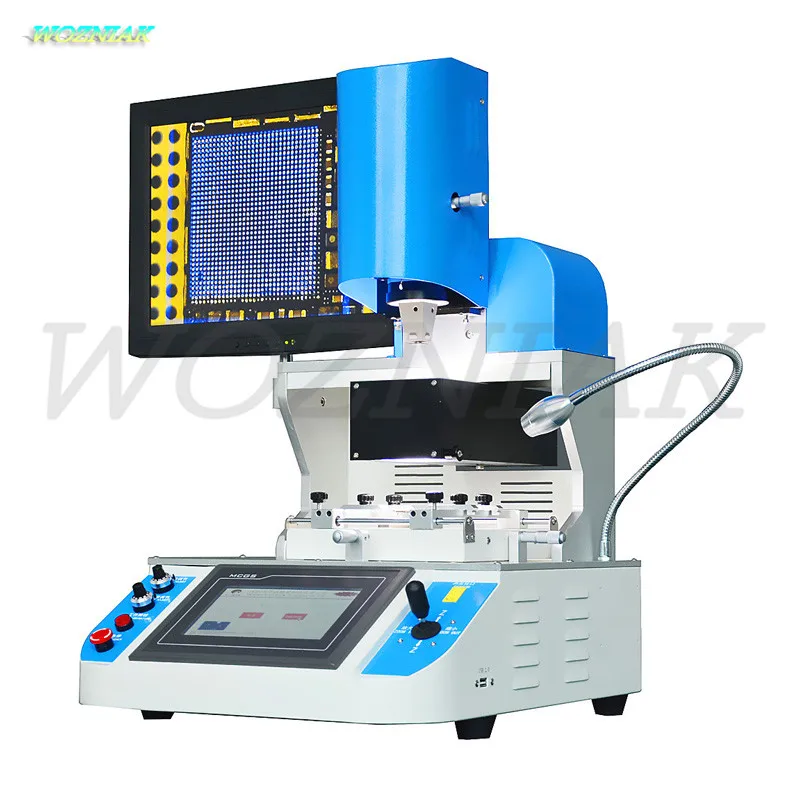

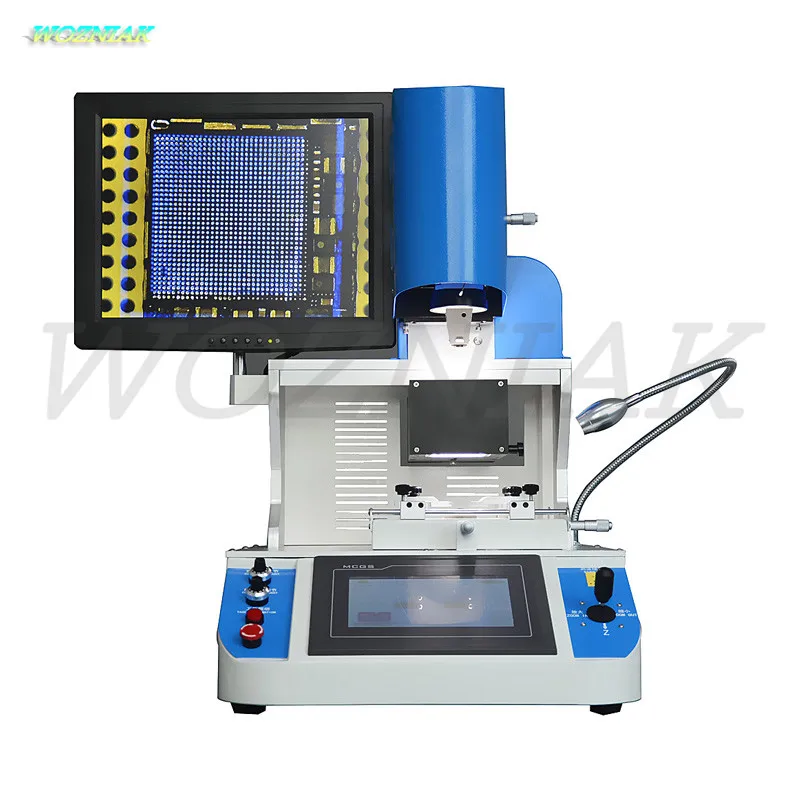

Wozniak Optical alignment system BGA rework station WDS-700 for motherboard Iphone/Samsung/HTC IC repair machine | Инструменты

---





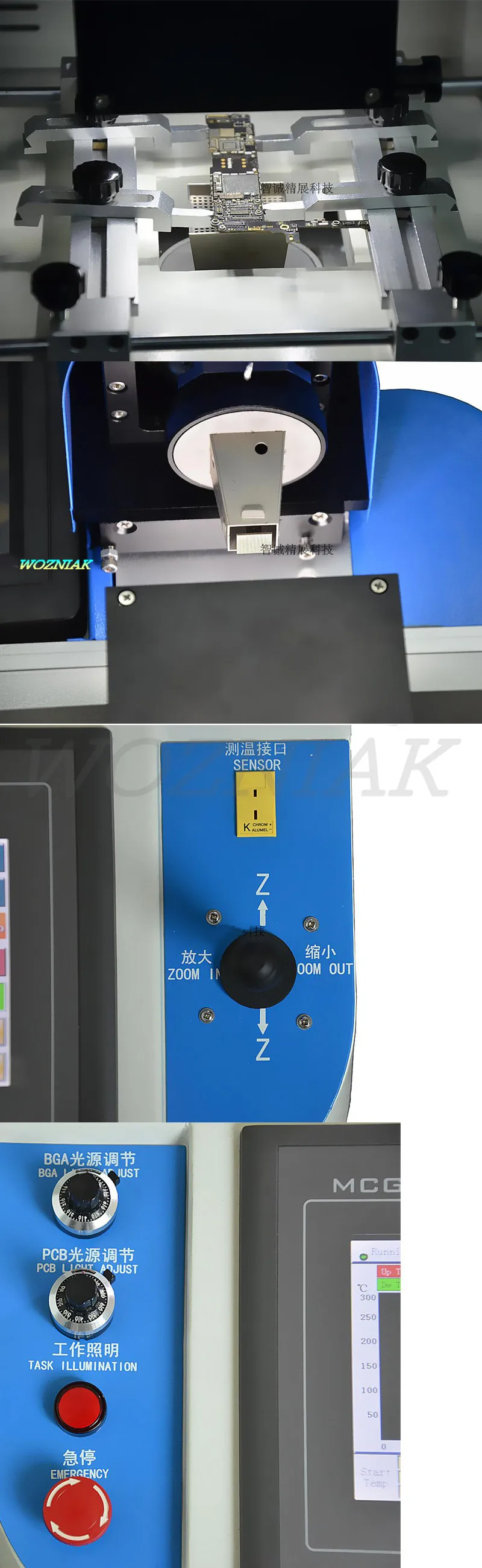

Features of special repair platform for WDS-700 mobile phone: Independent temperature control system of two temperature zones: The upper and lower temperature zones are heated by hot air, the temperature is accurately controlled at + 1 DEG C, and the upper and lower temperature zones can be heated simultaneously from the top of the component and the bottom of the PCB. The 8 sections of temperature control can be set at the same time, so that the PCB plate can be heated evenly. The local heating of the BGA chip and the PCB board can be carried out at the same time, and the upper and lower heater energy can be freely assembled by using the upper temperature zone or the lower temperature zone separately. The use of high precision K type thermocouple closed-loop control and PID parameter self-tuning system; can simultaneously display four temperature curves and store multiple sets of user data, and has the moment curve function; to achieve the precise temperature detection external temperature interface can be analyzed and proofread the actual acquisition of BGA time temperature curve. The temperature parameter curve analysis, setting and correction can be carried out on the touch screen at any time; The optical alignment precision: high-definition CCD adjustable color optical vision alignment system, with optical zoom and autofocus, and is equipped with automatic color resolution and brightness adjusting device, can adjust the imaging resolution; with 15 "HD lcd. A versatile and user-friendly operating system Adopt high definition touch screen man-machine interface, upper heating device and mounting head integrated design, equipped with various specifications of titanium alloy BGA wind mouth, the air nozzle can rotate at any degree of 360 degrees, easy to install and replace. The X, Y axis and R angle are fine tuned by micrometer. The alignment is accurate, and the accuracy can reach + 0.01mm. The excellent safety protection function: after welding or disassembly and welding, it has the alarm function. When the temperature is out of control, the circuit can automatically power off, and has double overtemperature protection function. Temperature parameters with password protection, to prevent any modification, and many other security protection and anti - stop function WDS-700 product specifications and technical parameters • advantages: the machine can be more different sizes of BGA chip to generate the corresponding temperature curve. Power: AC 220V + 10%50/60Hz • total power: Max 2500W Heater power: upper temperature zone 1200W, lower temperature zone 1200W The electrical drive motor selection: +PLC intelligent temperature controller + color touch screen Temperature control: K type thermocouple closed loop control, independent temperature control, accuracy of up to + 1 degrees Location mode: laser positioning lamp, +V type card slot, PCB bracket, X, Y adjustment and configuration of universal fixture PCB size: Max140 * 160mm Min 5 * 5 mm Apply chips: Max 80 * 80mm Min 1 * 1 mm Size: L450 * W470 * H670mm • temperature measurement interface: 1 Machine weight: 30kg Exterior color: White + blue
