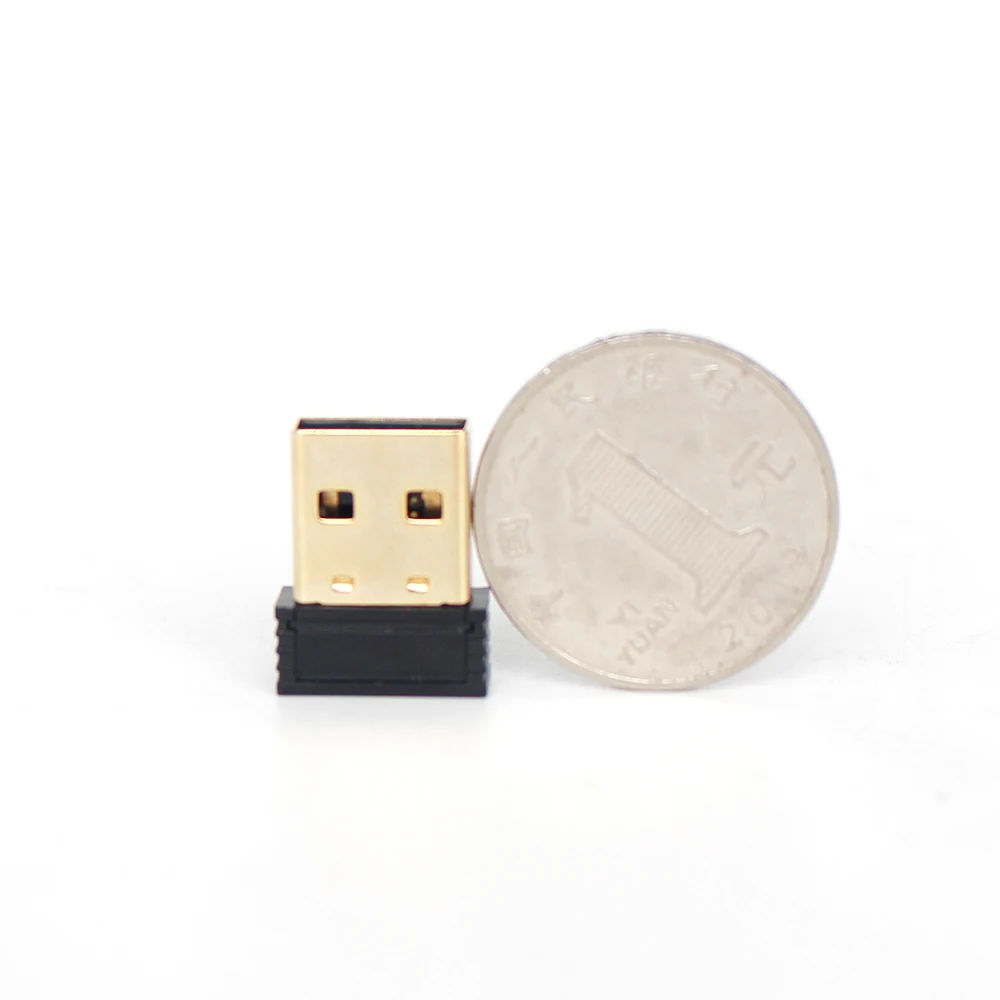

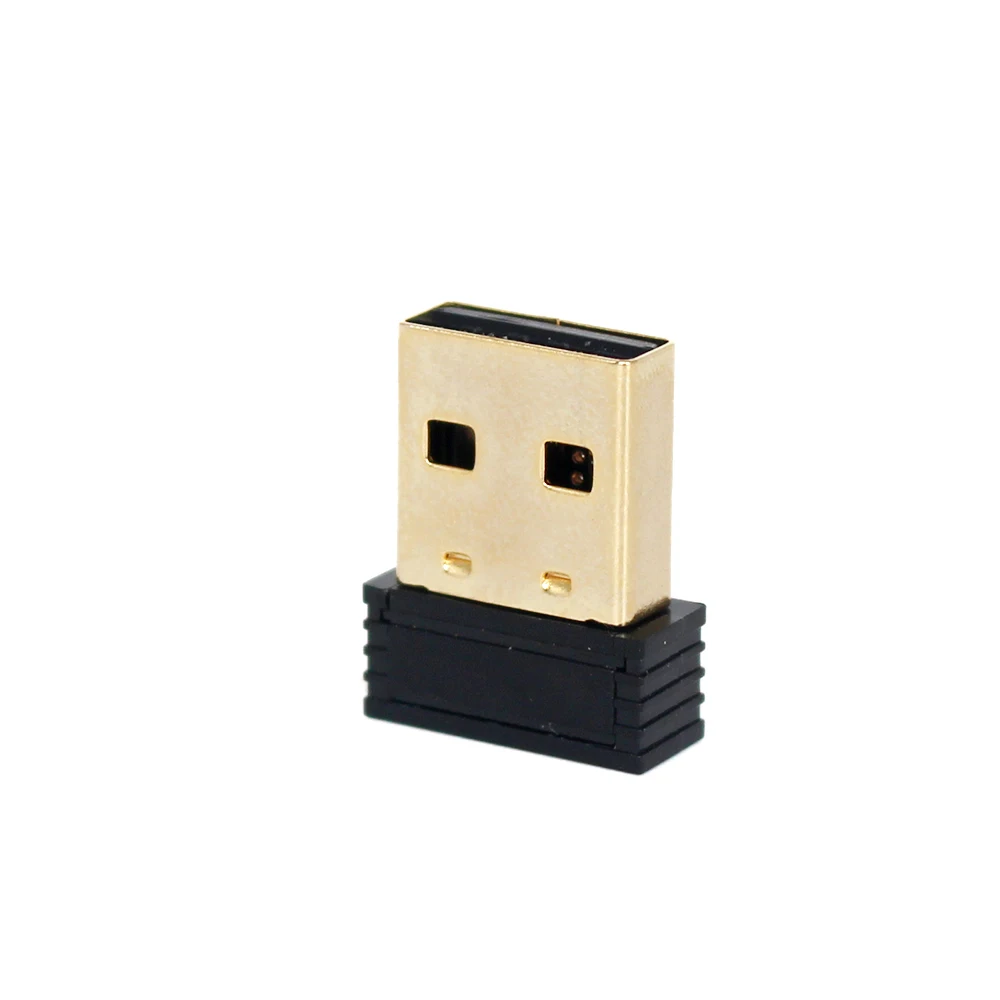

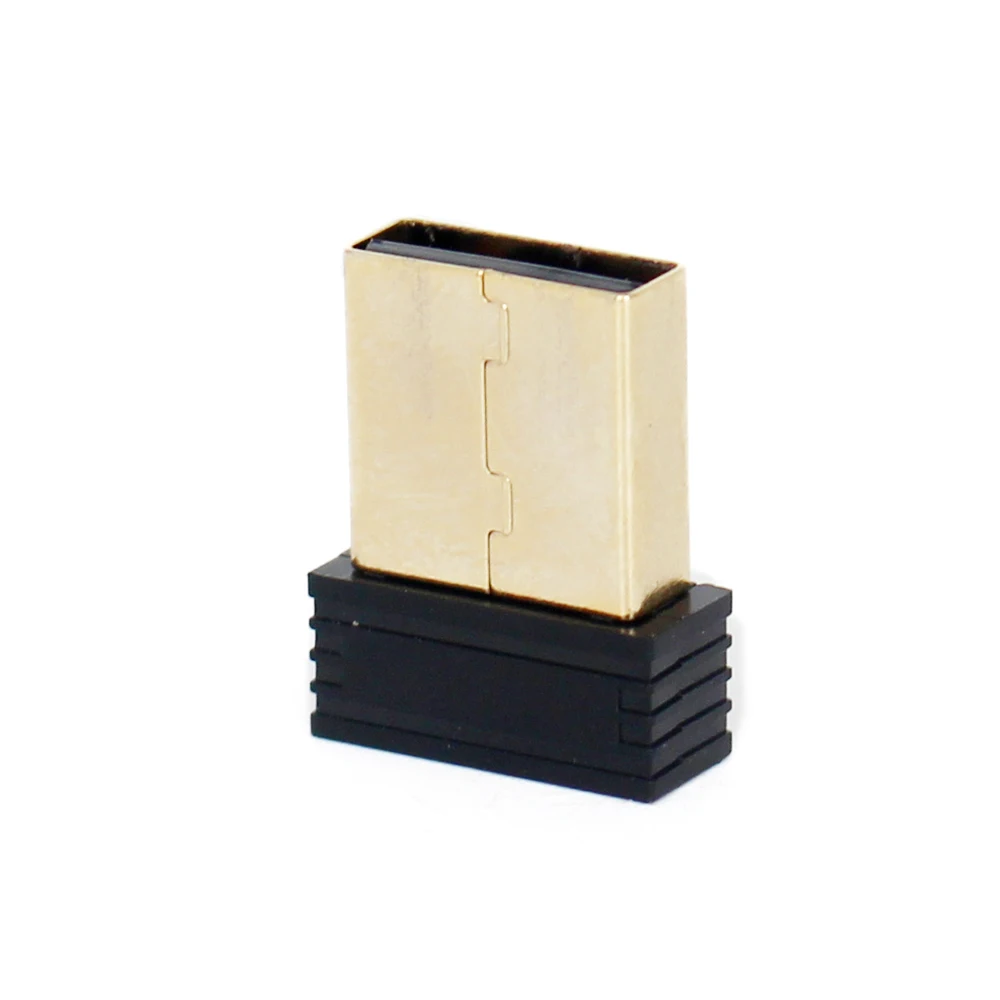

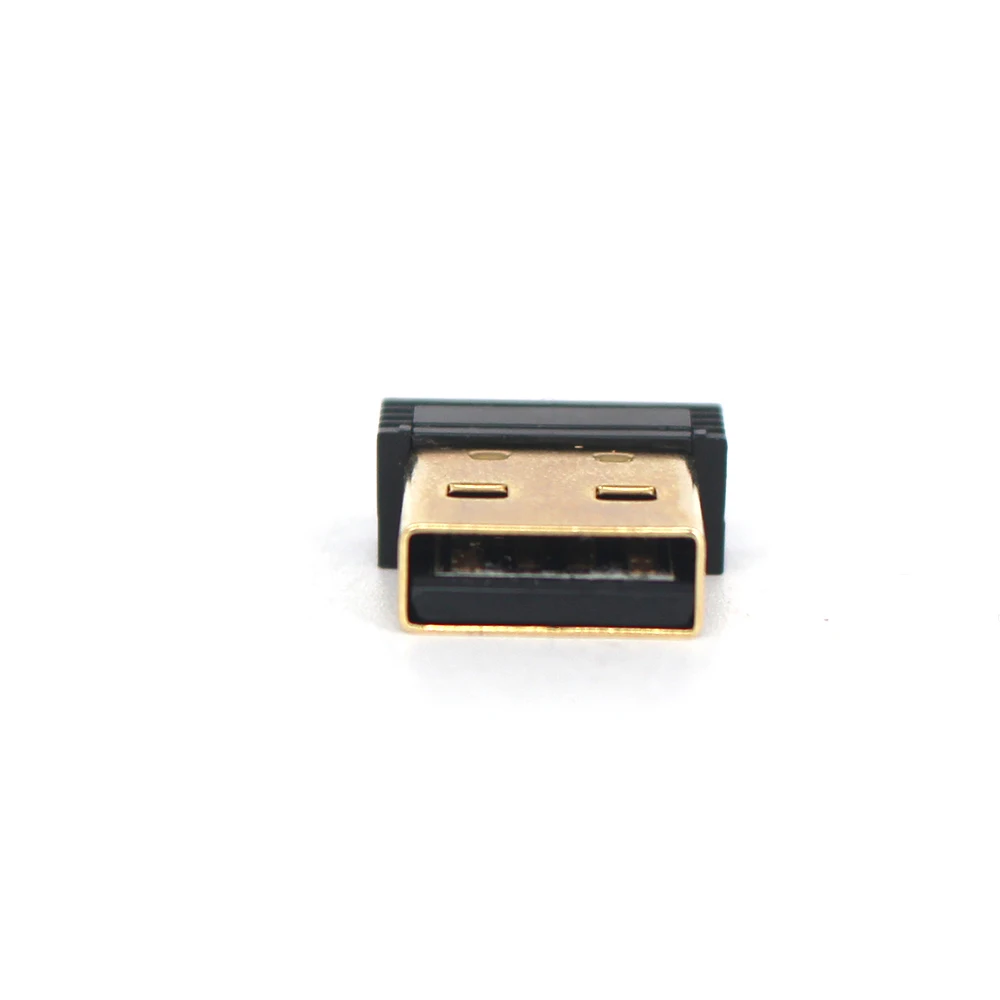

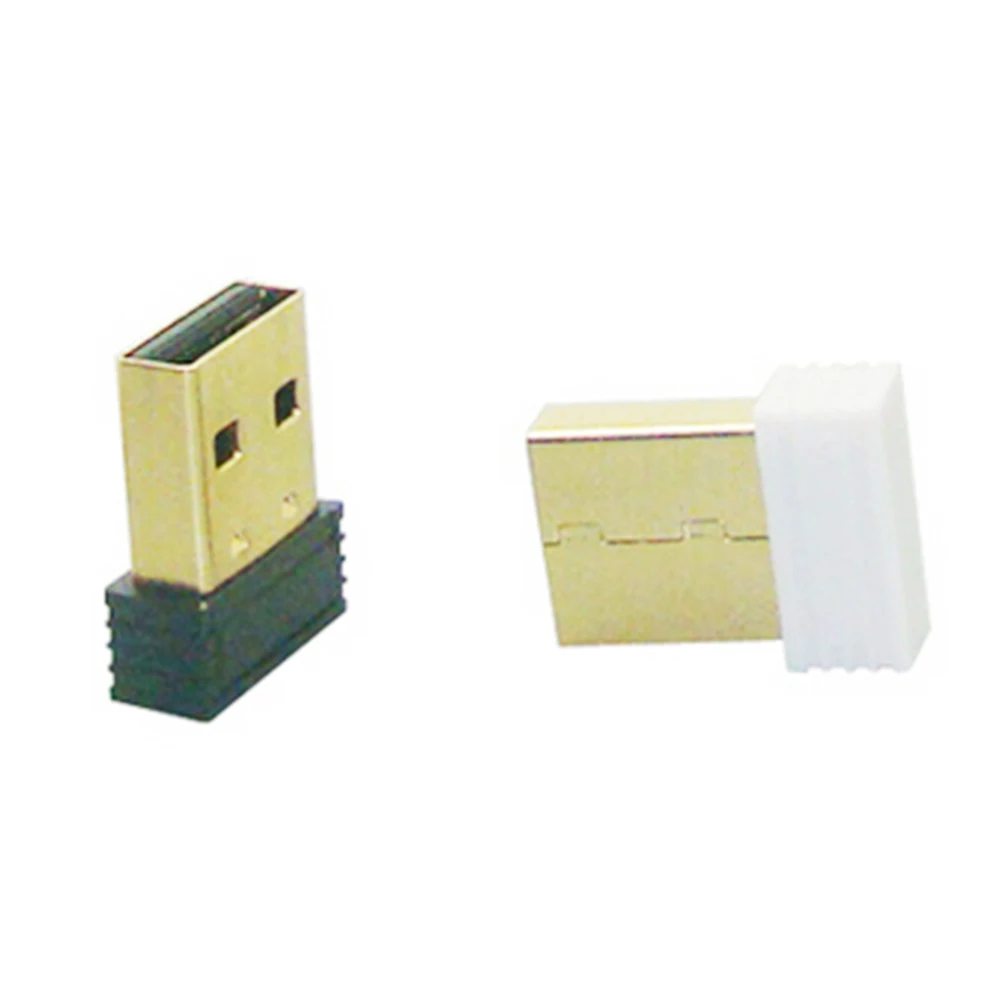

Text description may not be detailed .

If you need detailed instructions , you can ask me , i can send PDF to you .

————————————————————————————————————————————————————————————

1、APP download

Android APP download address: http://pan.baidu.com/s/1gfKUoOb access password: hil4.

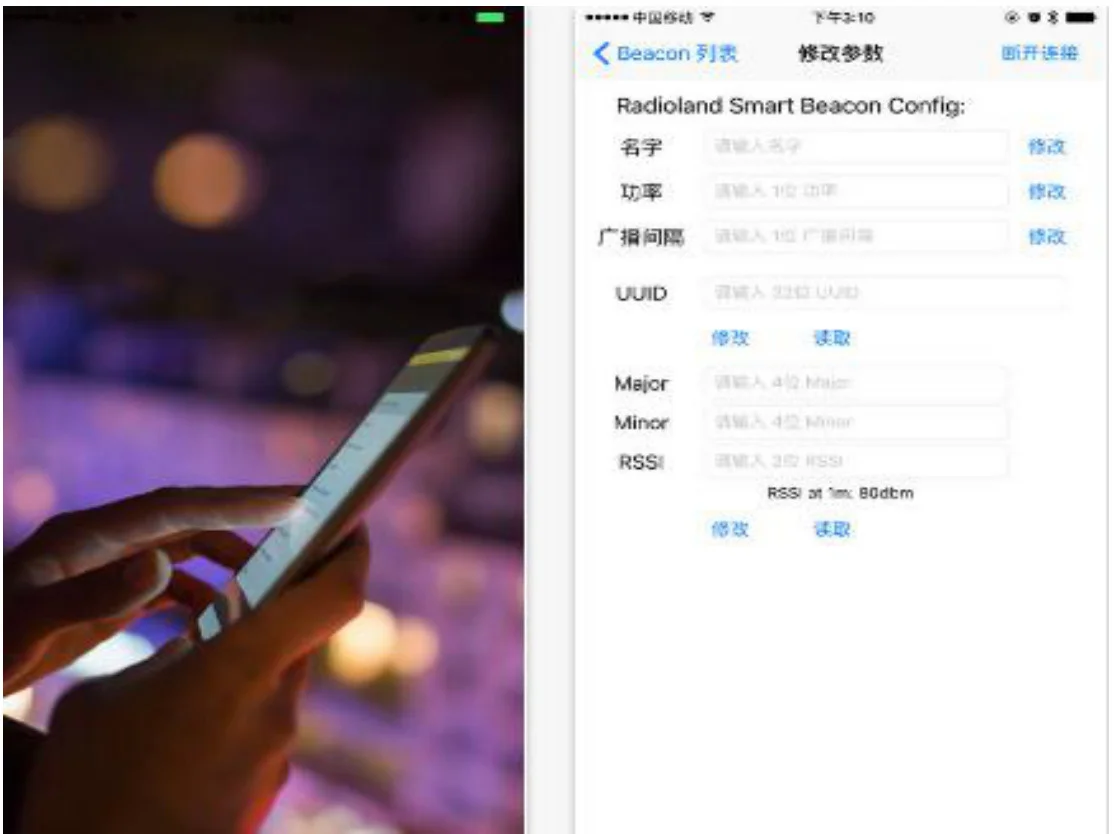

Apple APP can search APP Store for” RL beacon” downloads.

2、

APP operation

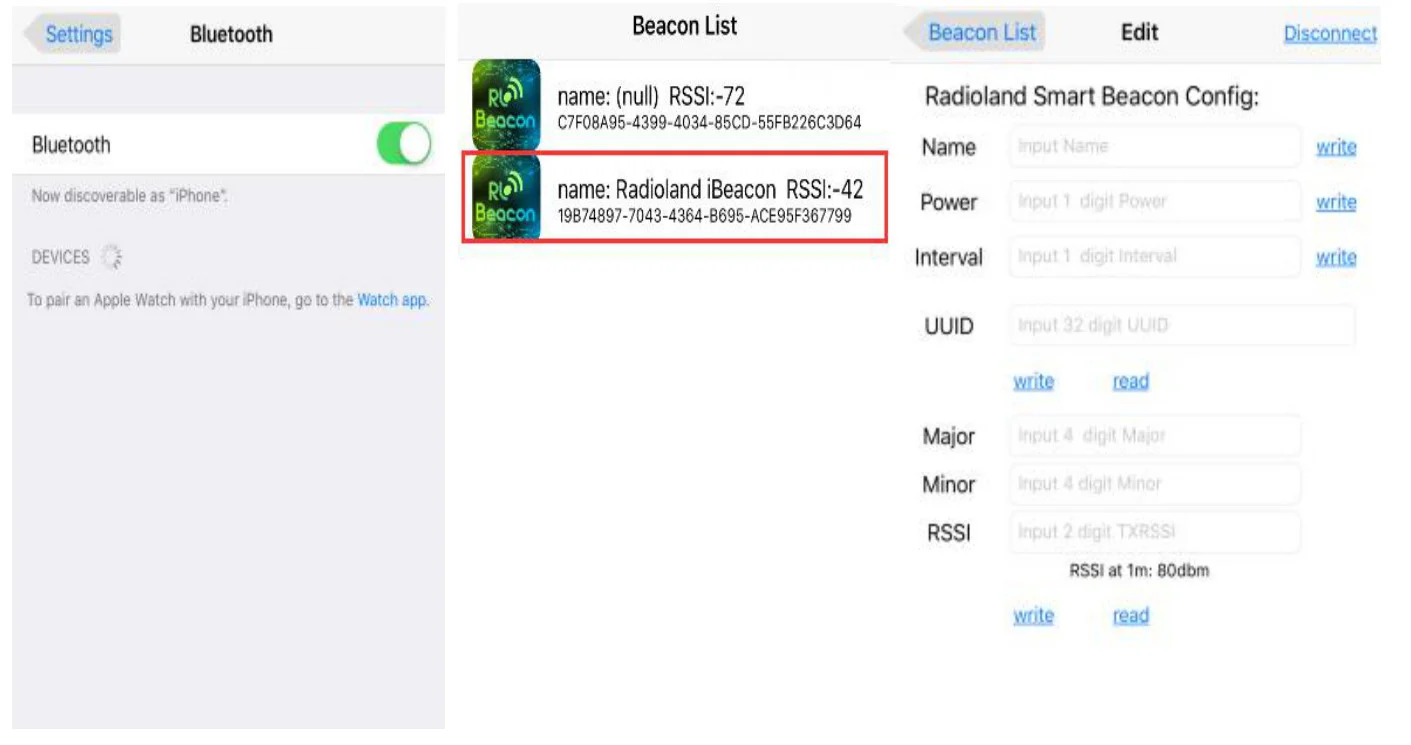

Open Bluetooth and APP to find the device click connect

Modify name

Write the name can’t more than the 8 byte (Letter, number or underline)

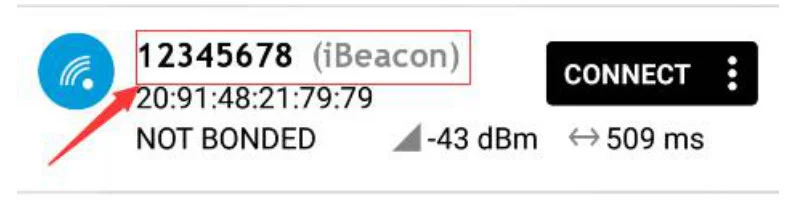

Example: Modify 2541-Beacon broadcast name is 12345678

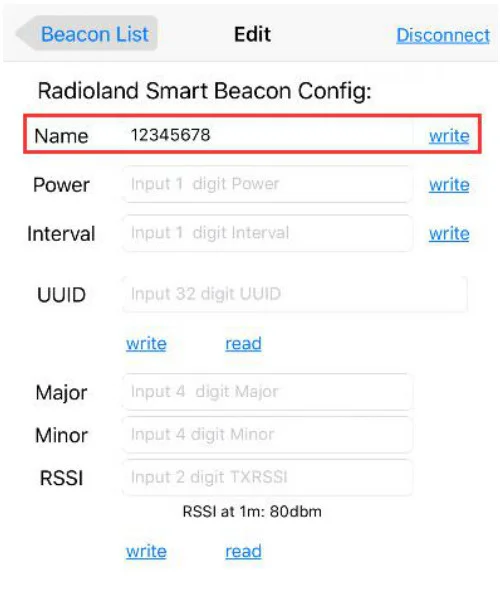

1) Find the name item, enter you want to modify the name (12345678), click modify

2)View modify name in the Android app

Link：http://pan.baidu.com/s/1smm4ahJ password：19a1

Modify tx power:

Different chips modify the parameters are not the same,Please refer to Appendix 2 for

details

Example: Modify CC2541-Beacon power to -6dBm

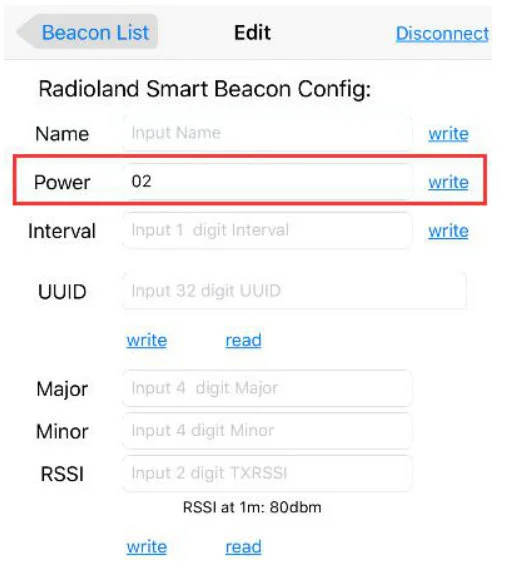

1)Find the power item, enter 02, click modify

2) Weak power is seen in Android app

Modify broadcast interval:

Enter two hexadecimal digits (02 to C8) * 50 = Broadcast interval (ms)

Example: Modify cc2541-Beacon broadcast interval to 500ms

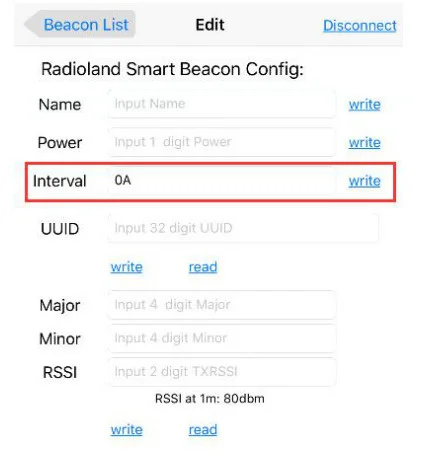

1)Find the broadcast interval item, enter 0A, click modify

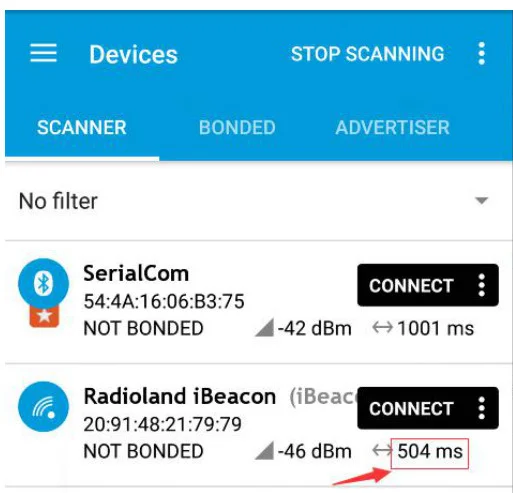

3) available atin in Android app and Oscilloscope

0A Parameter explanation: 0A is hexadecimal, convert to 10 decimal

According to the formula: Broadcast Interval (ms) = Input Parameter (02-C8) * 50

So here broadcast interval is 0A-> 10 * 50 = 500ms

———————————————————————————————————————————

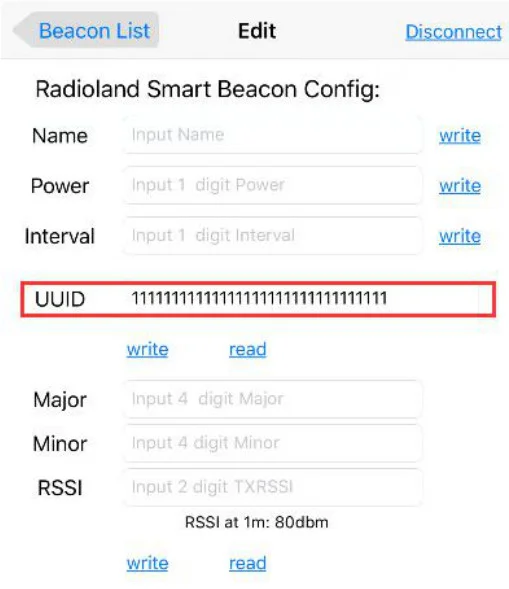

Modify broadcast UUID:

Write at random 32 bytes (here UUID refers to broadcast UUID, not service UUID)

Example: Modify CC2541-Beacon broadcast UUID

1)Find the UUID item, enter 32byte, click modify

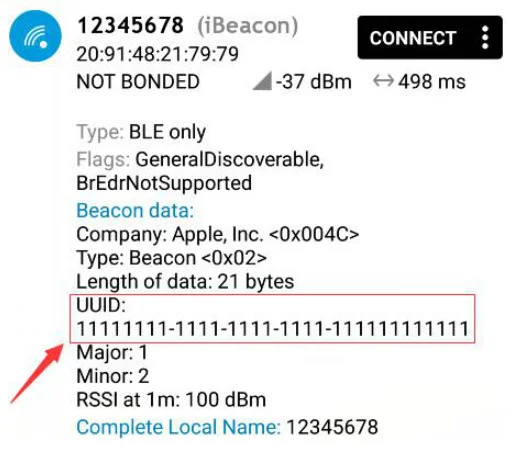

2)Modify to view in Android APP

Modify Major Minor and RSSI：

Major two byte hexadecimal , Minor two byte hexadecimal , RSSI one byte hexadecimal

All three values need to be input RSSI, where the default is that the battery power

varies with the actual value.

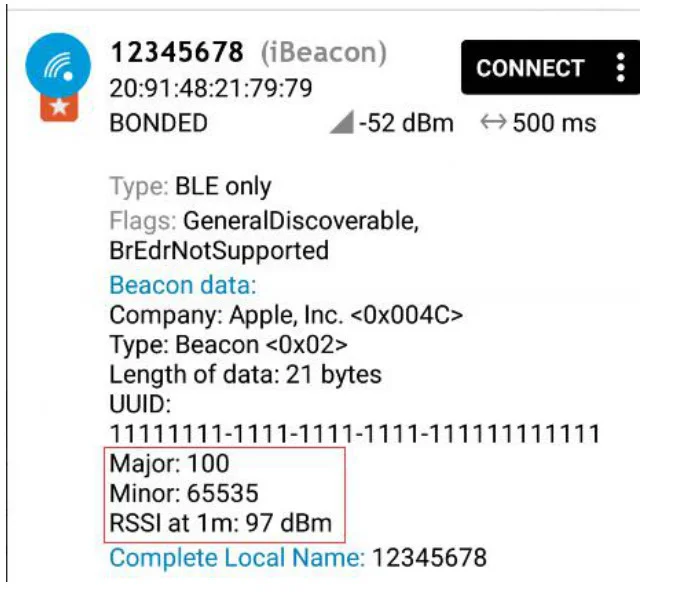

Example：Modify Major to 100，modify Minor to 65535， modify RSSI to 50

Note：if is Android app,

Major ：0064（100）

Minor ：FFFF（65535）

RSSI（Battery power）: 34(50)

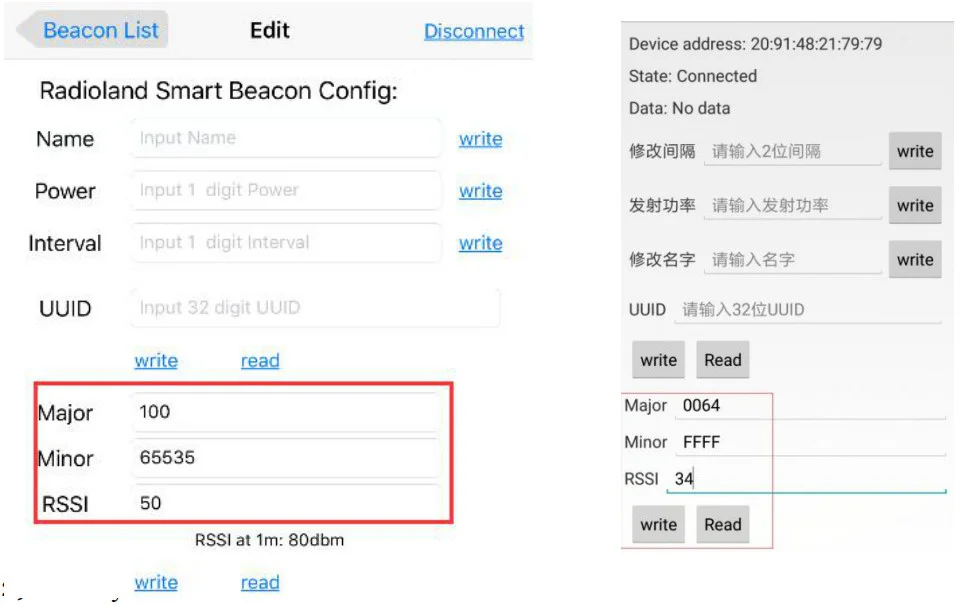

1)APPLE app write to(left)and android app write to（right）

3.CC254x/nRF51822 /CC2640iBeacon Interface

CC254x / nRF51822/CC2640iBeacon use 128bitUUID, through the definition of GATT

Service planning a simple communication protocol, users can quickly modify the App

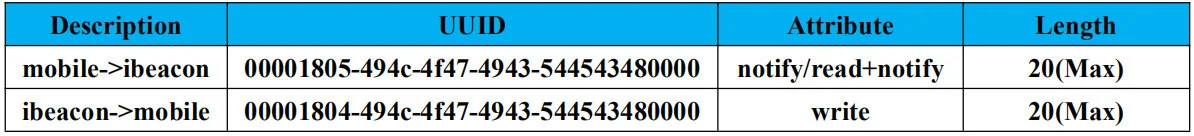

parameter to the iBeacon, iBeacon notify the way through the modified feedback to the App. Service UUID：00001803-494c-4f47-4943-544543480000

Broadcast content :

BattPower is the battery power displayed in the broadcast, the user can read through the radio

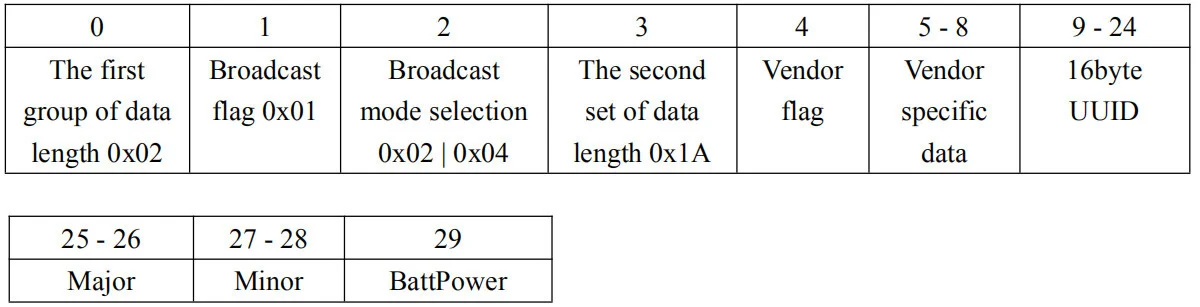

iBeacon battery charge written in the app does not have specific meaning but must be written, when the power is updated after the data. Broadcast data as shown below, the maximum 31 (unit:

byte)

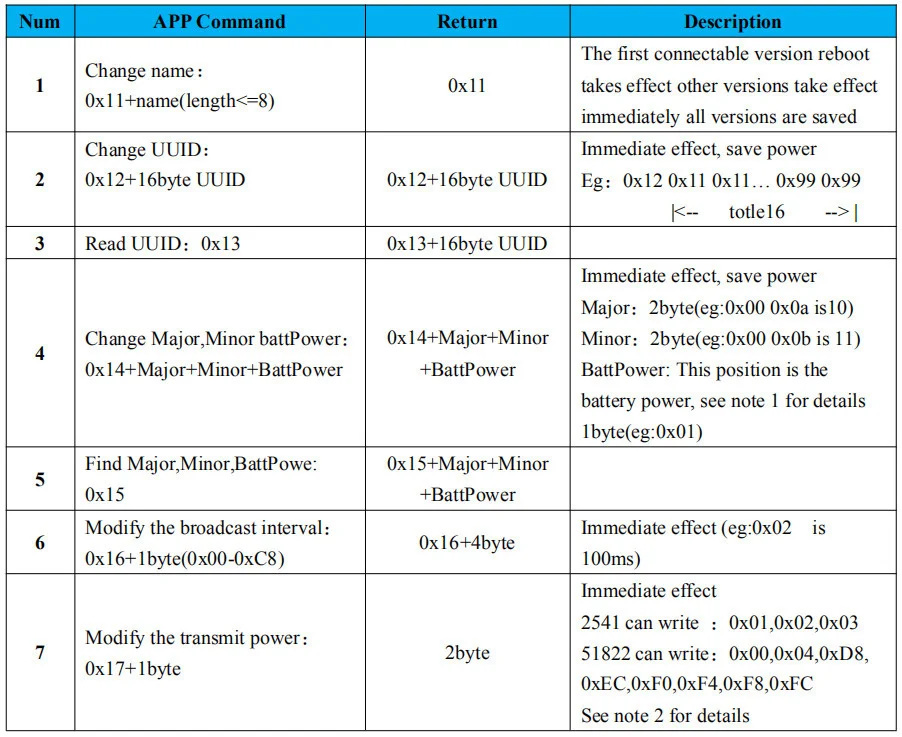

APP Command
