Set of 2x 400mm 16" Stroke 4mm/s 1500N/150KG Linear Actuator W/ Wireless Electronic Controller for Electric Medical Industry Use |

---

      Linear actuators are widely used in many industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on. With reliable performance, sensitive action stable running, the same characteristics of push and pull and good environment adapt- ability etc.   Set of 2x 400mm 16" Stroke 4mm/s 1500N/150KG Linear Actuator W/ Wireless Electronic Controller for Electric Medical Industry Use

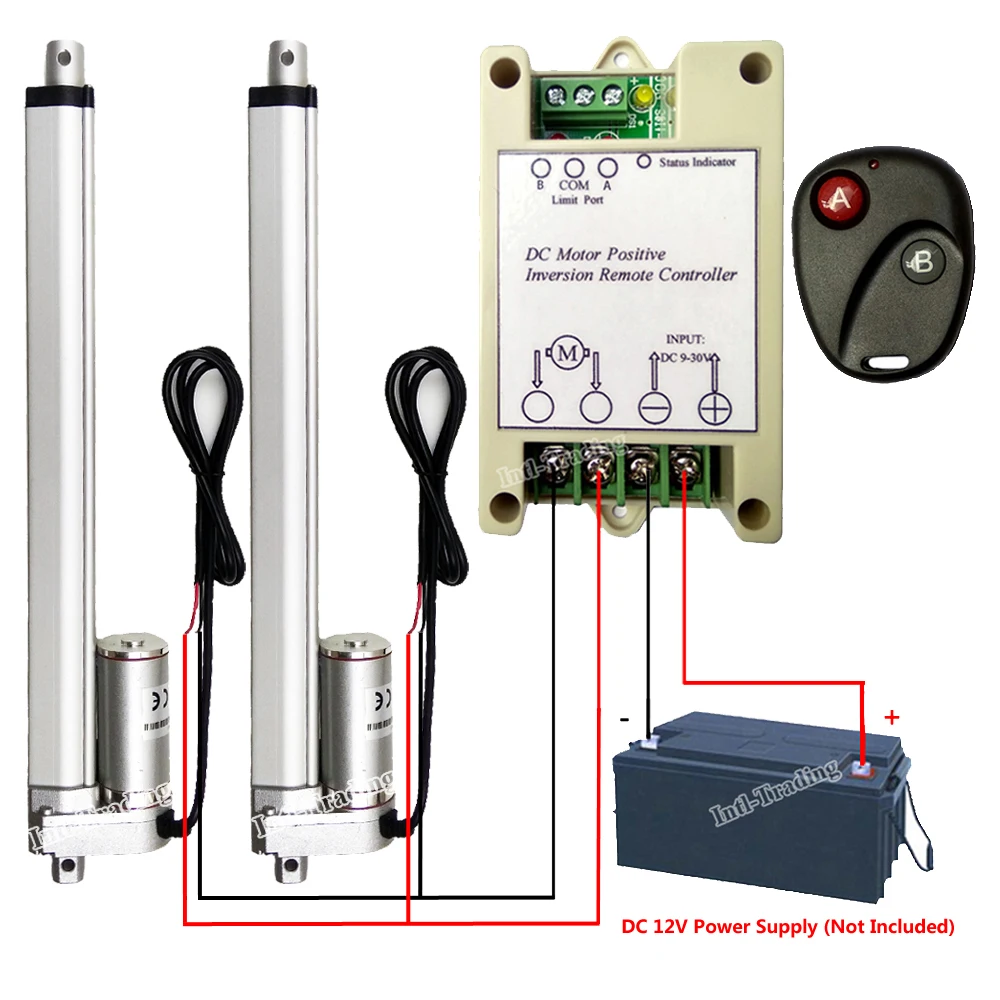

Here for sale is 2PCS DC 12V 400mm/16" Stroke 1500N/330lbs max push load 4mm/s speed Linear Actuators,  It comes

with 1 Set Wireless Remote Control Kits together for convenient operation.

The wireless remote control kit can control the 2PCS linear actuators at the same time.  The control kit comes with a remote

which is very small in size, convenient for operation.



Note 1:  The power supply in the photo is only for reference and is not included in the package.       Note 2: If there is no reaction after correct wiring, pls try to exchange the positive and negative pole.





Product Name	Linear Actuator
Stroke Length	250mm/10"	300mm/12"	400mm/16"	450mm/18"
Retracted Length	355mm	405mm	505mm	555mm
Extended Length	605mm	705mm	905mm	1005mm
Net Weight	1.16kg	1.24kg	1.35kg	1.40kg
Condition	100% New
Input Voltage	DC 12V
Max Push Load	1500N/150KG/330lbs
Max Pull Load	1200N/120KG/264lbs
Travel Speed	4mm/s(±0.1mm/s)
Duty Cycle	25%
Operating Frequency	20%
Material	Aluminum Alloy
Color	Silver Grey
Operation Temperature	-26 ° C ~ +65 ° C
Protection Class	IP65
No-load Current	1A
Max load Current	6A
Certification	CE&SGS
Warranty	Standard 1 Year Warranty



Want to buy Other Stroke Length? Pls Click Here

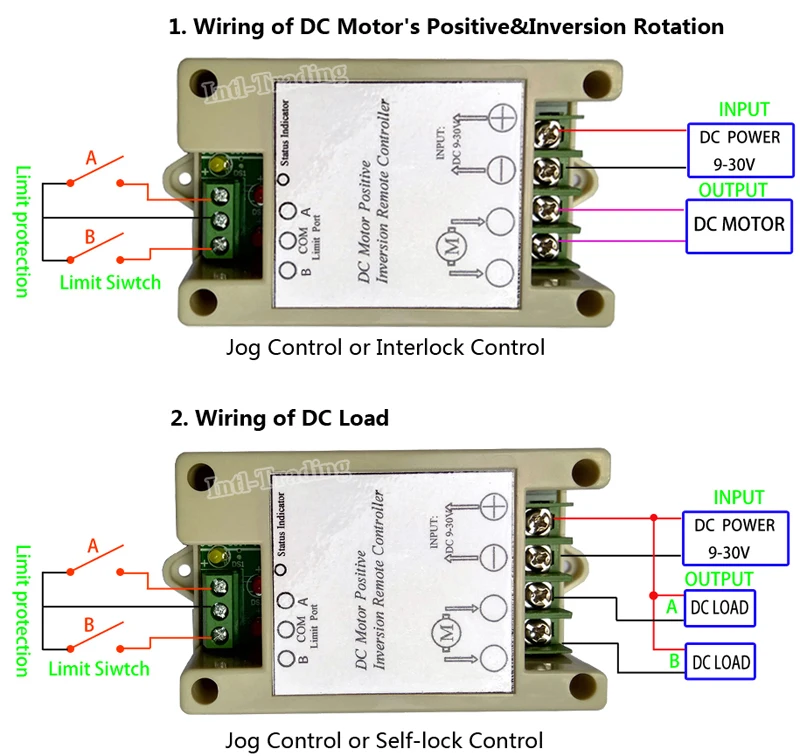

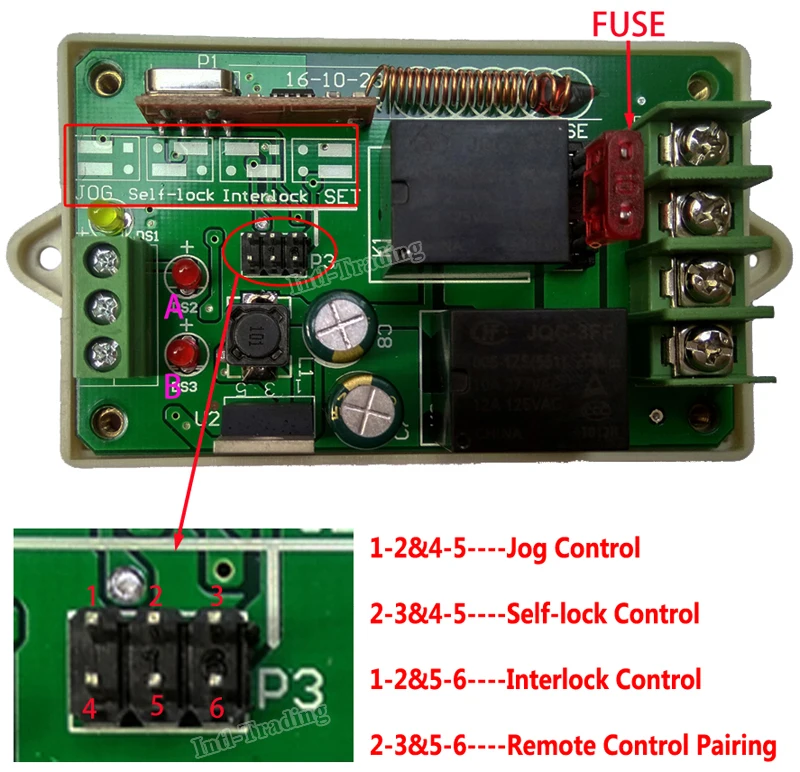

This controller owns the function to control DC motor’s positive&inversion rotation or control two-way DC loads.The controller comes with 3 operation modes: Jog Control, Self-Lock Control, Interlock Control, these 3 modes can be switched by the jumpers on the PCB board, users can set and choose any of the three modes based on actual requirements.

    Specification:

Operating Voltage	9-30V DC
Max Discharge Current	10A
Fuse	10A/30V
Operating Temperature	-20 to + 60℃
Protect Class	IP42
Controller Dimension	96(L) × 50(W) × 32(H) (mm)
Frequency	433MHZ

    Features:   *  Wide voltage design, operating voltage range is DC 9-30V   *  Over-current, over-load and short-circuit protection   *  Can control DC motor’s positive&inversion rotation or control two-way DC loads   *  Three control modes (Jog Control, Self-Lock Control, Interlock Control) are switchable, easy for operation   *  The wireless remote with learning function, easy for coding   *  With million group address coding which are independent, high reliability and industrial design   *  With highly sensitive receiver, remote control distance is more than 100meters   *  With limit port;     For more details of our Wireless Controller, Pls Click Here           * 2PCS 400mm/16" Stroke DC 12V 4mm/s Speed Linear Actuators;   * 1PCS Electronic Controller Box;   * 1PCS Wireless Remote.
