Описание товара

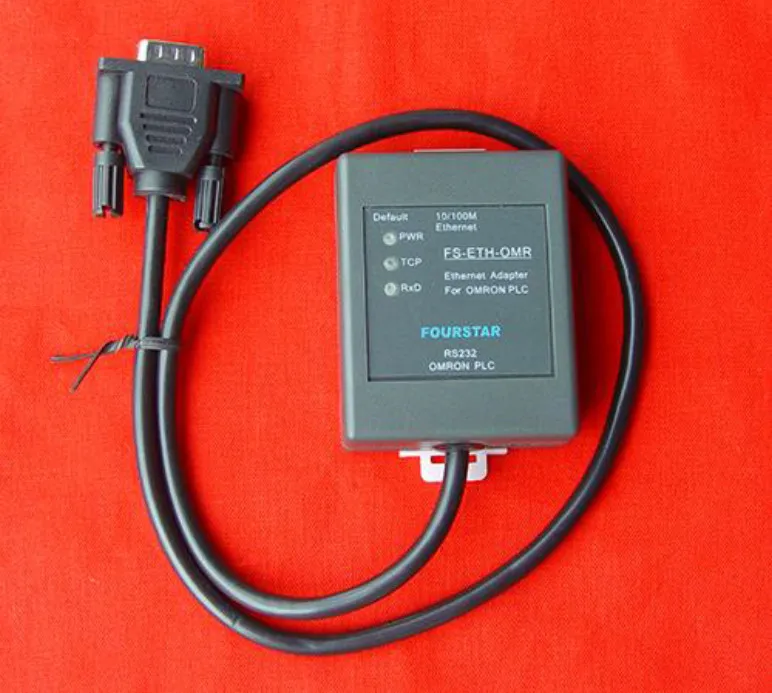

EthernetModule for PLC, Din rail Mounting
FS-ETH-OMR is an industrial-grade serial-to-Ethernet adapter for OMRON PLC (RS232 interface using PLC). The user can implement the following functions through parameter configuration:
- Ordinary serial to Ethernet server, support TCP or UDP, to achieve serial and network port data transparent transmission.
- MODBUSTCP / RTU standard gateway, to achieve MODBUSTCP protocol and RTU protocol bi-directional conversion.

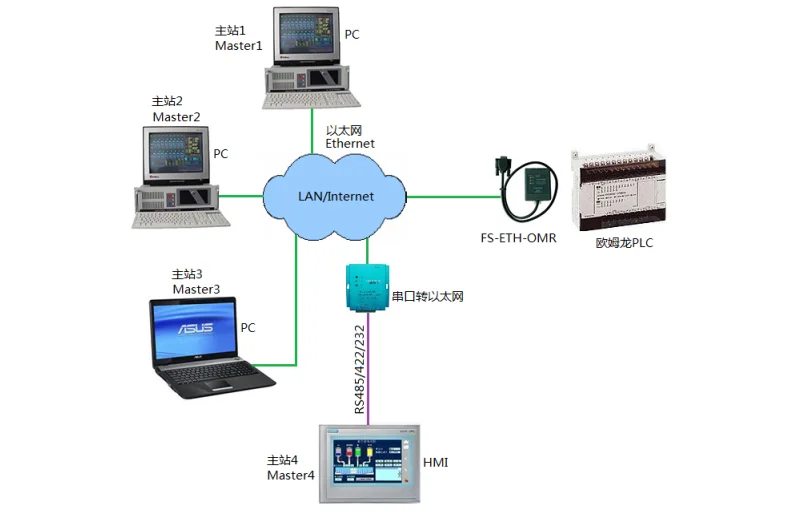

- Multi-master shared serial server, to achieve multiple master station at the same time real-time monitoring of a PLC or a serial bus on multiple PLC.
- Can be through the local area network or the Internet to achieve remote upload PLC, download program data and monitor PLC. In the case of
Features:
- Using time-division technology to support up to 96 main stations at the same time access to a serial device or a bus on a number of serial devices to support multi-host while collecting data and control PLC. In a typical query system, you can achieve A master station for on-site monitoring, B master station for central monitoring, C master station to collect data to the database ... ...
- Applicable to the query RS485 / 232/422 system (also known as polling, answering system), typically such as MODBUS system.
- Provide virtual serial port driver software, to achieve the existing system seamless upgrade, enhance the control level and grade.
- Support transparent TCP / IP direct connection and MODBUSTCP / RTU protocol two-way conversion, fully support all kinds of configuration software.
- Can achieve multi-host hot standby operation. Multiple computers can run exactly the same or different acquisition monitoring software, and does not affect the software control. If a computer is paralyzed, other computers will be able to continue to work without any impact, doubling the system reliability.
- With a strong network fault detection and automatic reconnection mechanism.
- Industrial design, with a strong anti-interference ability, serial and network port isolation.
- Miniaturized design, the shape of the volume is less than a pack of cigarettes, DIN35mm standard rail installation.
Parameter classification | Project | Indicators |
Network port parameters | Port type | RJ45 socket with LED indicator. |
rate | 10 / 100Mbps adaptive. | |
Isolation protection | Built-in isolation transformer, isolation voltage 1500V. | |
Maximum transmission distance | 100 meters, automatically adapt to the straight line and cross cable. | |
Serial port parameters | Port type | RS232 interface, DB9M plug straight Omron PLC RS232 communication port. |
Communication parameters | Baud rate: 1200bps-115200bps. | |
Data bits: 5/6/7/8. | ||
Check digit: None / Odd / Even / Mark / Space. | ||
Stop bit: 1/2 | ||
Flow control: no flow control, CTS / RTS, XON / XOFF. | ||
Interface protection | RS232 interface surge protection and 15kVESD protection. | |
Software parameters | Ethernet protocol | TCP, UDP, IP, DNS and other standard TCP / IP protocol. |
Industrial communication protocol | MODBUSTCP / RTU standard gateway. | |
Operating mode | TCP Client | |
TCP Server | ||
UDP | ||
MODBUSTCP_Master-MODBUSRTU_Slaver | ||
MODBUSRTU_Master-MODBUSTCP_Slaver | ||
Multi-master mode, supports up to 96 masters. | ||
Single master mode. | ||
Parameter configuration mode | Web browser. | |
communication method | Socket, virtual serial port. | |
General parameters | Working voltage and power consumption | Voltage DC5V, power consumption 1W, by the PLC programming communication port power supply, no need to follow. |
Interface isolation | The serial port and the network port are isolated from each other, and the isolation voltage is 1500V. | |
Operating temperature | -40 ° ~ + 85 °. | |
Dimensions | 65mm × 51mm × 26mm (length × width × height). | |
weight | 90 grams. | |
Installation method | DIN35mm standard rail mounting. |
