    Welcome to our store---BIG'K GPS/GSM MODULE PROFESSIONAL CO,.LTD

1.EC25 EC25-AU +2pcs antenna+1pcs GPS antenna+MINI PCIE To USB adapter include SIM slot  CAT4 support GPS GLONASS, BeiDou, Galileo and QZSS

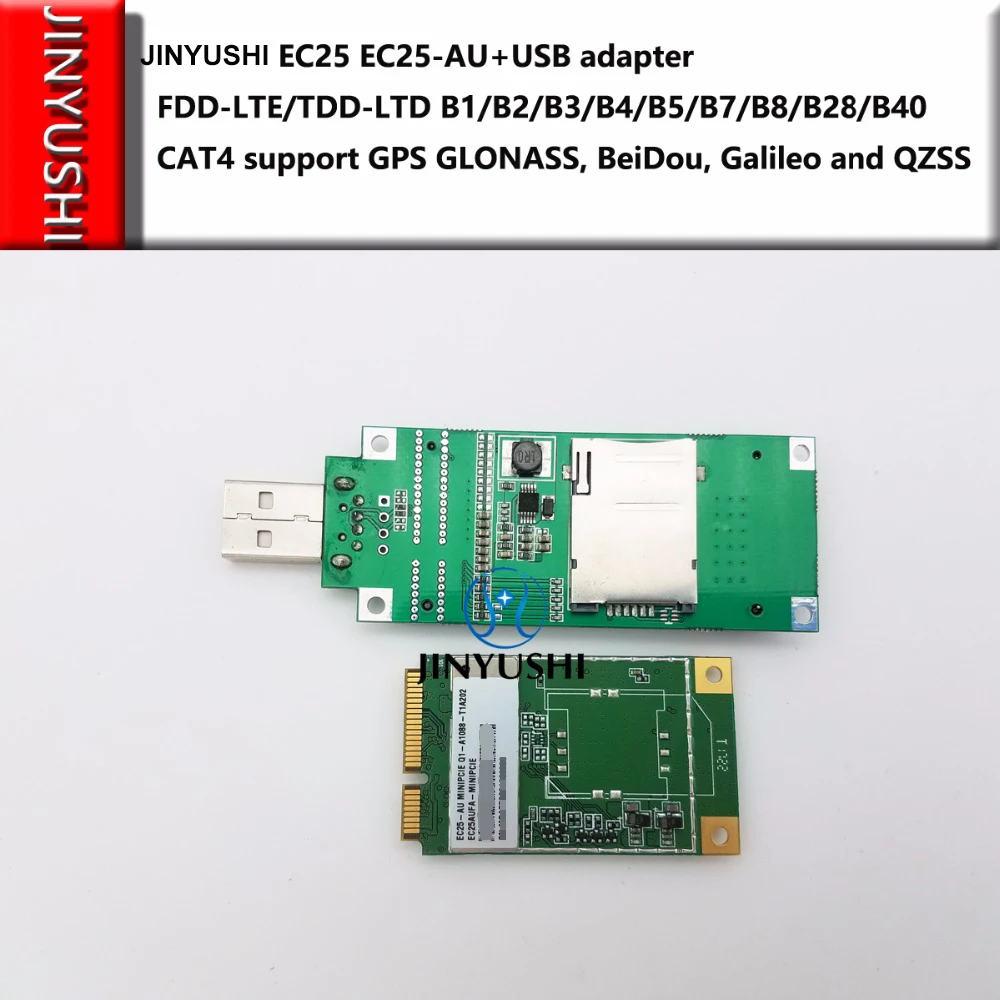

EC25 Mini PCIe

Overview

 EC25 Mini PCIe is a series of LTE category 4 module adopting standard PCI Express^® MiniCard form factor (Mini PCIe). It is optimized specially for M2M and IoT applications, and delivers 150Mbps downlink and 50Mbps uplink data rates.

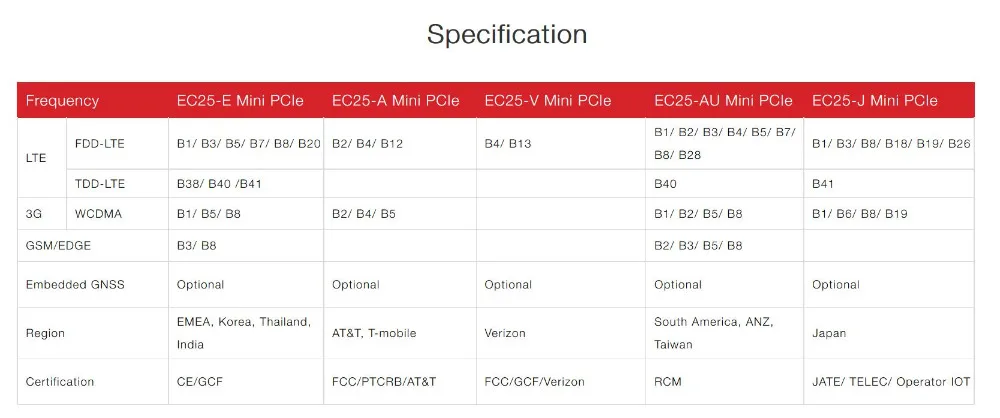

EC25 Mini PCIe contains 5 variants: EC25-J Mini PCIe, EC25-E Mini PCIe, EC25-AU Mini PCIe, EC25-V Mini PCIe and EC25-A Mini PCIe. This makes it backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage.

EC25 Mini PCIe supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows XP,   Windows Vista, Windows 7/8/8.1/10, Linux, Android/eCall) extend the applicability of the module to a wide range of M2M applications such as industrial router, industrial PDA, rugged tablet PC, video surveillance and digital  signage.

Key Benefits

● LTE category 4 module optimized for broadband IoT applications
● Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage
● Standard PCI Express^® MiniCard form factor (Mini PCIe) ideal for manufacturers to easily integrate wireless connectivity into their devices
● MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
● Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment

* Under development

LTE FDD: Max 150Mbps (DL) Max 50Mbps (UL)

LTE TDD: Max 130Mbps (DL) Max 35Mbps (UL)

  DC-HSPA+ Max 42Mbps (DL) Max 5.76Mbps (UL)

  UMTS Max 384Kbps (DL) Max 384Kbps (UL)

  TD-SCDMA Max 4.2Mbps (DL) Max 2.2Mbps (UL)

  EDGE Max 236.8Kbps (DL) Max 236.8Kbps (UL)

  GPRS Max 85.6Kbps (DL) Max 85.6Kbps (UL)

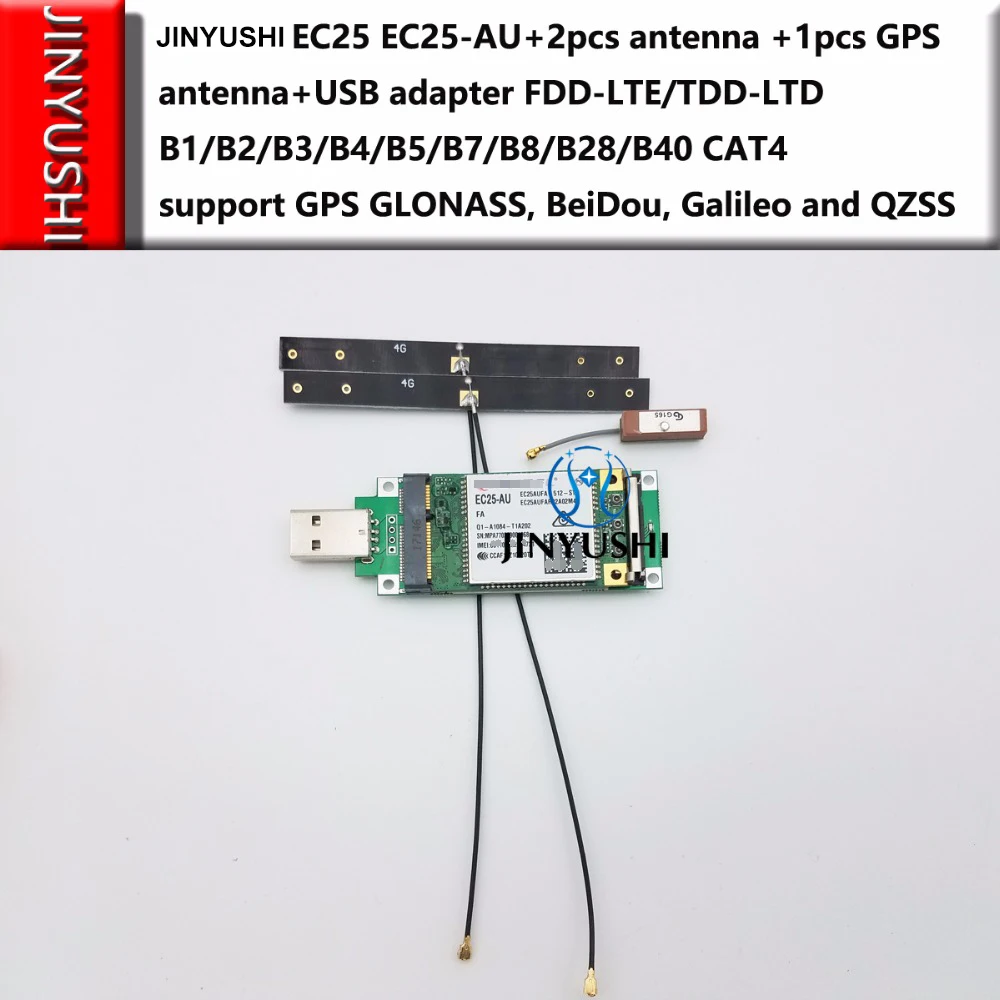

2.Packing List :

 EC25 EC25-AU MINI PCIE*1PCS

IPEX 4G PCB Antenna *2PCS

IPEX GPS Antenna *1PCS

MINI PCIE To USB adapter include SIM slot *1PCS
