LTC1293DCSW LTC1293 - Single Chip 12-Bit Data Acquisition System | Электроника
История изменения цены
*Текущая стоимость US $12.80 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Apr-06-2026 | 14.16 руб. | 15.64 руб. | 14.5 руб. |
| Mar-06-2026 | 14.91 руб. | 15.96 руб. | 14.5 руб. |
| Feb-06-2026 | 12.21 руб. | 13.31 руб. | 12.5 руб. |
| Jan-06-2026 | 14.31 руб. | 15.40 руб. | 14.5 руб. |
| Dec-06-2025 | 12.2 руб. | 13.1 руб. | 12.5 руб. |
| Nov-06-2025 | 14.99 руб. | 15.47 руб. | 14.5 руб. |
| Oct-06-2025 | 14.97 руб. | 15.16 руб. | 14.5 руб. |
| Sep-06-2025 | 13.55 руб. | 14.4 руб. | 13.5 руб. |
| Aug-06-2025 | 13.89 руб. | 14.60 руб. | 13.5 руб. |
Описание товара
LTC1293DCSW LTC1293 - Single Chip 12-Bit Data Acquisition System
Features and Benefits
- Software Programmable Features:
- Unipolar/Bipolar Conversion
- Differential/Single Ended Inputs
- MSB-First or MSB/LSB Data
- Built-In Sample and Hold
- Single Supply 5V or ±5V Operation
- Direct 4-Wire Interface to Most MPU Serial Ports and All MPU Parallel Ports
- 46.5kHz Maximum Throughput Rate
- System Shutdown Output (LTC1296)
Product details

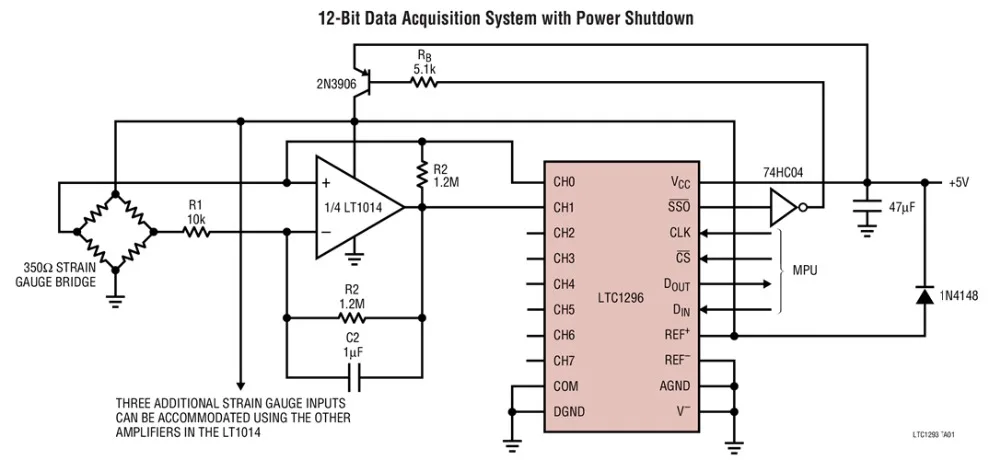

The LTC1293/4/6 is a family of data acquisition systems which contain a serial I/O successive approximation A/D converter. It uses LTCMOS™ switched capacitor technology to perform either 12-bit unipolar, or 11-bit plus sign bipolar A/D conversions. The input multiplexer can be configured for either single ended or differential inputs (or combinations thereof). An on-chip sample and hold is included for all single ended input channels. When the LTC1293/4/6 is idle it can be powered down in applications where low power consumption is desired. The LTC1296 includes a System Shutdown Output pin which can be used to power down external circuitry, such as signal conditioning circuitry prior to the input mux.
The serial I/O is designed to communicate without external hardware to most MPU serial ports and all MPU parallel I/O ports allowing up to eight channels of data to be transmitted over as few as three wires.
Applications
- Resolution: 12 Bits
- Fast Conversion Time: 12µs Max Over Temp
- Low Supply Current: 6.0mA
