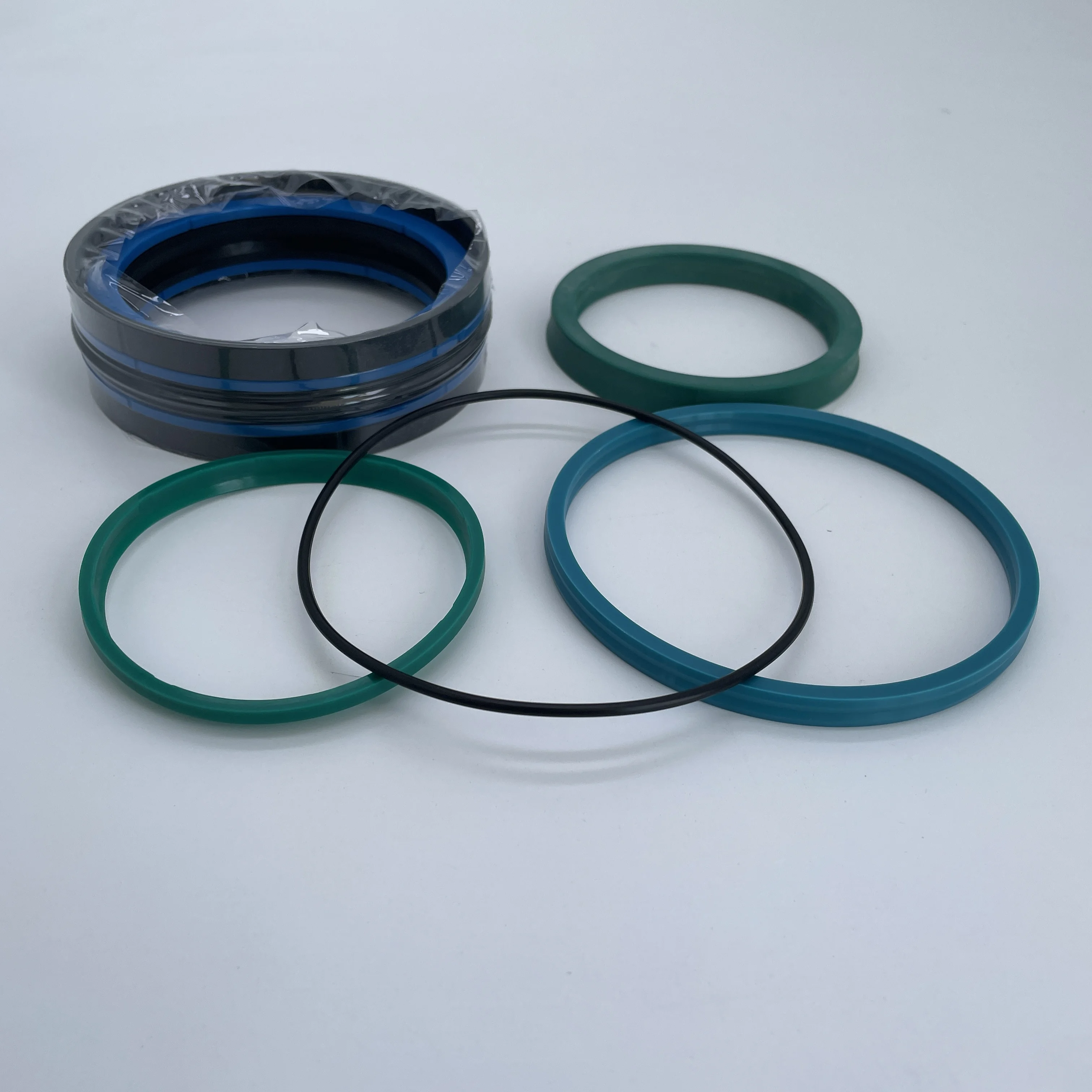

PM-477431 Seal Set Repair Kits for Putzmeister Concrete Pump | Accessories
8206.49
Новое поступление
Автомобильный насос 4500psi 300bar 30mpa 12 110 220 В Pcp Air Rifle Compressor Pumps Compressors.
12099.1

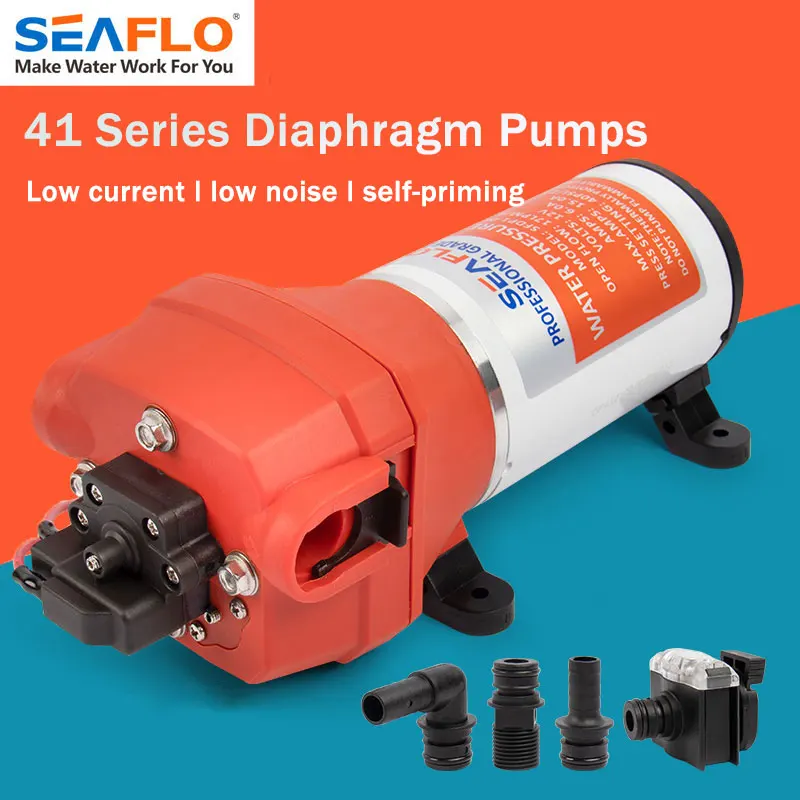

SEAFLO 12V24V DC 4 Cavity Diaphragm Pump Self-Priming Suitable For RV Yacht Family Industrial Boat on. -> Сифло 12V24V постоянного тока 4-х полостная диафрагменная насосная станция самовсасывающаяся подходит для RV, яхт, семейных промышленных судов.
6595.69
HG-750 промышленный вихревой вентилятор поглощения увеличивает кислород/воздушный

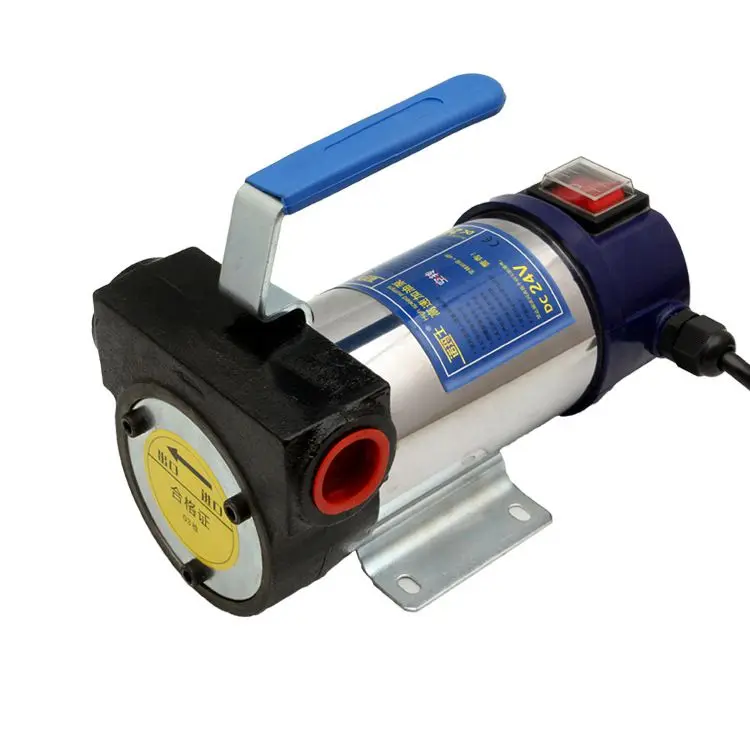

Motor drive oil pump diesel special 12v 24v 220v | Pumps
2617.31
12 24 V Volt Mini Brushless DC Diaphragm Air Inflate&Suction Vacuum Pump | Pumps
3883.07

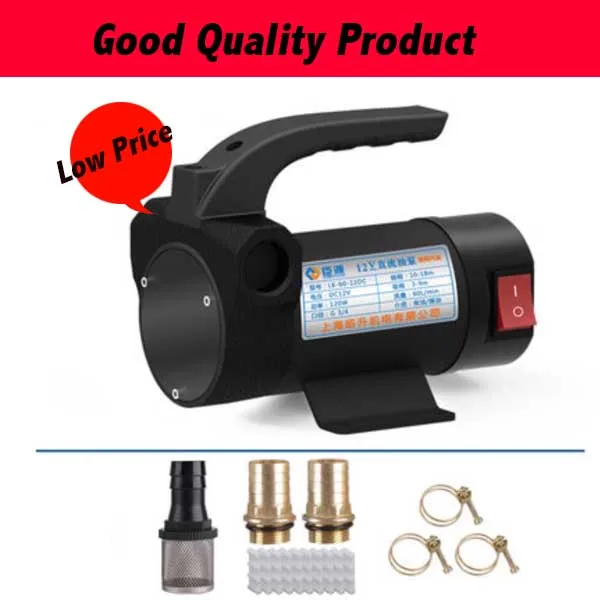

Горячая распродажа 24V/12V Мини-насос для перекачки масла в автомобиле на электрической основе (только насос, не включая маслопистолет)
15L/Min PTFE Aluminum Alloy Air Diaphragm Pump Double Way Ink Circulation For Flexo Printing | Pumps
12653.39
Характеристики
Микродиафрагменный вакуумный насос высокого отрицательного давления -99 кПа устойчивый к коррозии для отбора газовых проб в лаборатории с мини-воздухом использования OEM.
История изменения цены
*Текущая стоимость 31394.65 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-18-2026 | 37359.84 руб. | 39227.13 руб. | 38293 руб. |
| Feb-18-2026 | 37045.2 руб. | 38897.43 руб. | 37971 руб. |
| Jan-18-2026 | 31080.90 руб. | 32634.67 руб. | 31857 руб. |
| Dec-18-2025 | 36417.73 руб. | 38238.8 руб. | 37327.5 руб. |
| Nov-18-2025 | 31708.25 руб. | 33293.85 руб. | 32500.5 руб. |
| Oct-18-2025 | 35789.6 руб. | 37578.30 руб. | 36683.5 руб. |
| Sep-18-2025 | 35475.21 руб. | 37249.59 руб. | 36362 руб. |
| Aug-18-2025 | 35161.73 руб. | 36919.27 руб. | 36040 руб. |
| Jul-18-2025 | 34847.93 руб. | 36589.81 руб. | 35718 руб. |
Описание товара
Description

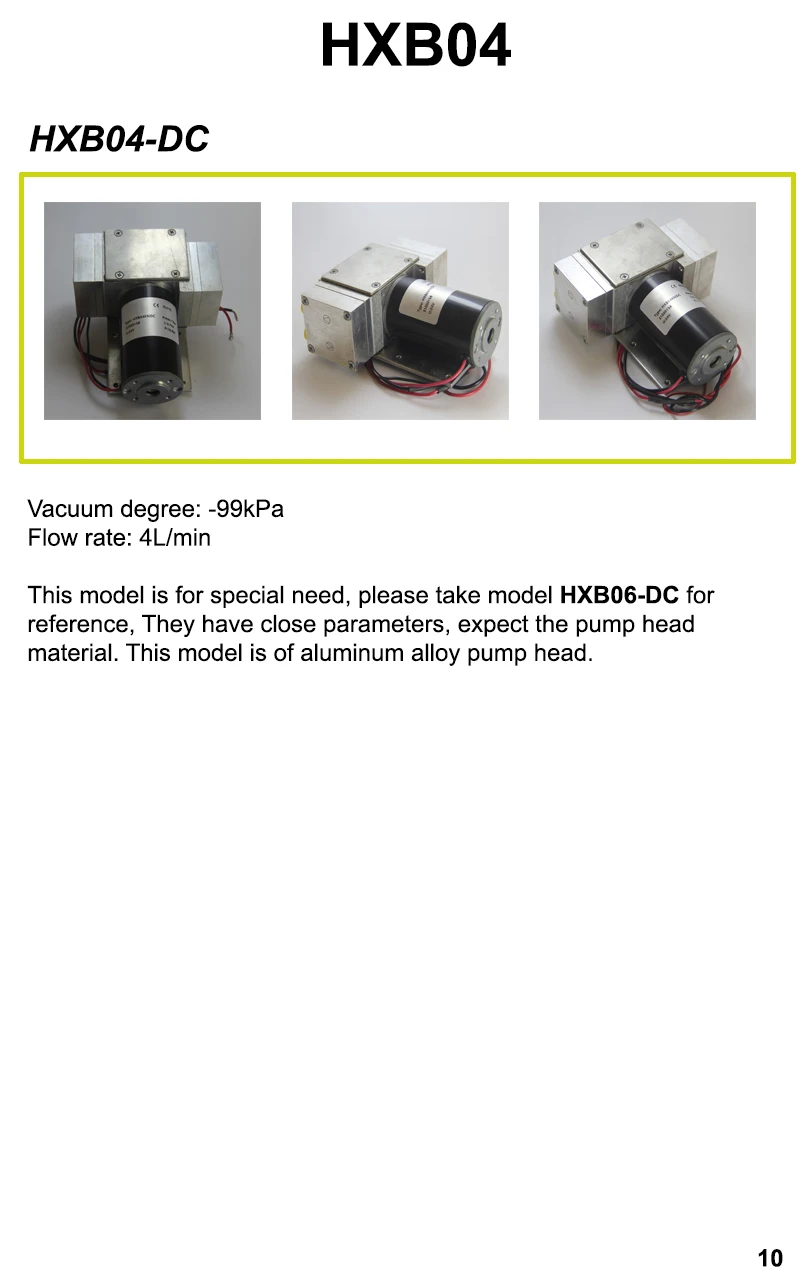

Sorry!! this model is currently not available. So plz consult us for the prices and ignore the prices that is listed above.
Coz this model is of aluminum pump head, it is only for special requirements. If you don't require aluminum pump head
you can try out this same model with plastic pump heads. as in following:
Above 12V PTFE/24V PTFE, the defaulted valve plate material setting is FPM. If you are looking for FFPM valve plate material, please consult us. Thanks!!
Miniature Diaphragm Vacuum Pump
Principle
The design of our micro diaphragm pumps are based on the priciple of the oscillating displacement pump, which is remarkably simple. The eccentric in our pump converted the circulation power of the motor into vertical movement.The motion is then transmits to the diaphragm through a connecting rod which in conjunction with an inlet and outlet valve to create a pumping action (inhale and exhale)
Extreme chemical resistance
We use chemical ressistant materials such as PTFE, PVDF, FFPM or other material combinations for the pump parts which come into contact with the liquid. Thus, our pumps are available for neutral and corrosive gases/ air/ liquids.
Dry running, long-life and maintenance free
The systematization, optimization of the pumps, and the precise manufacturing of every single pump parts, ensures the safe operation of our pumps and allow them to run in severe environment or dry running.
Performance Parameters
Flow rates: 4 L/min
Vacuum degree: -99kPa
Voltage: 12V/24V
General Data
Material: Aluminium alloy
Diaphragm: EPDM (PTFE optional)
Working ambient temperature: -30℃~+60℃
Working media temperature: +5℃~+50℃
Advantages
Small in size. compact
Flexible options on head materials
Extreme chemical resistanct
High vacuum degree and good gas tightness
Quiet and low vibration
Applications
Inkjet printing
Medical devices
Environmental analysis instrument
