Free Shipping Spindle 1.5KW CNC Motor Air Cooled 110V/220V Router Frequency Converter Adjustable Inverter For Milling | Инструменты

---

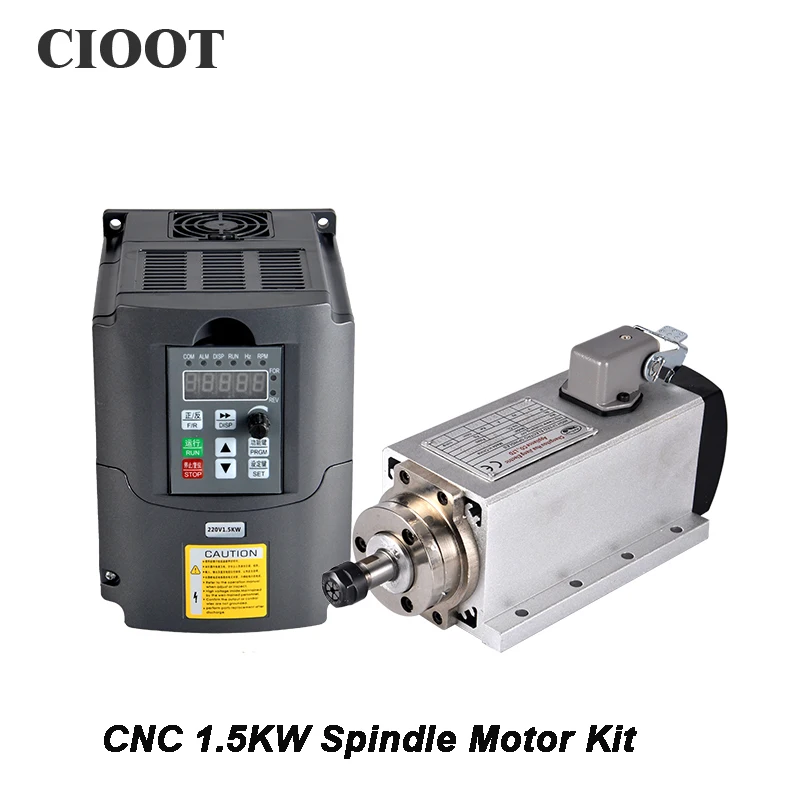

Package includes:

1 x 1.5kw Spindle  1 x 1.5KW Inverter   Features:

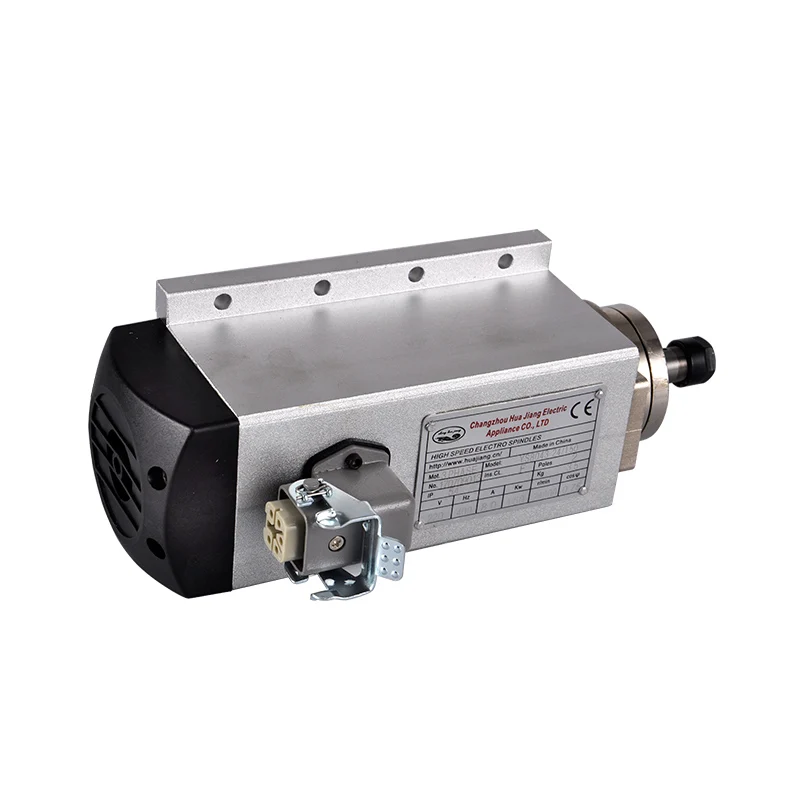

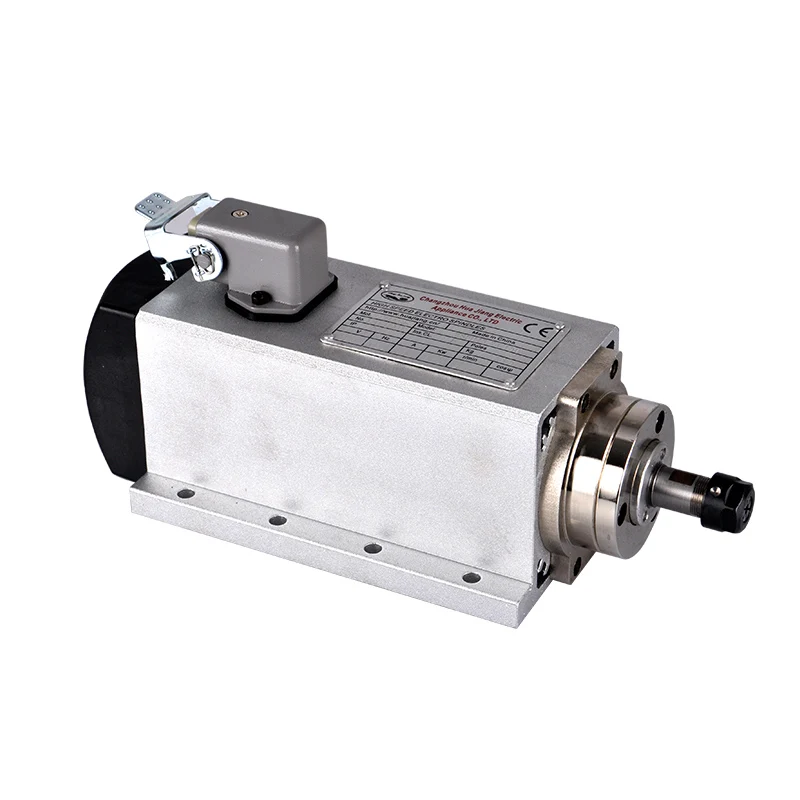

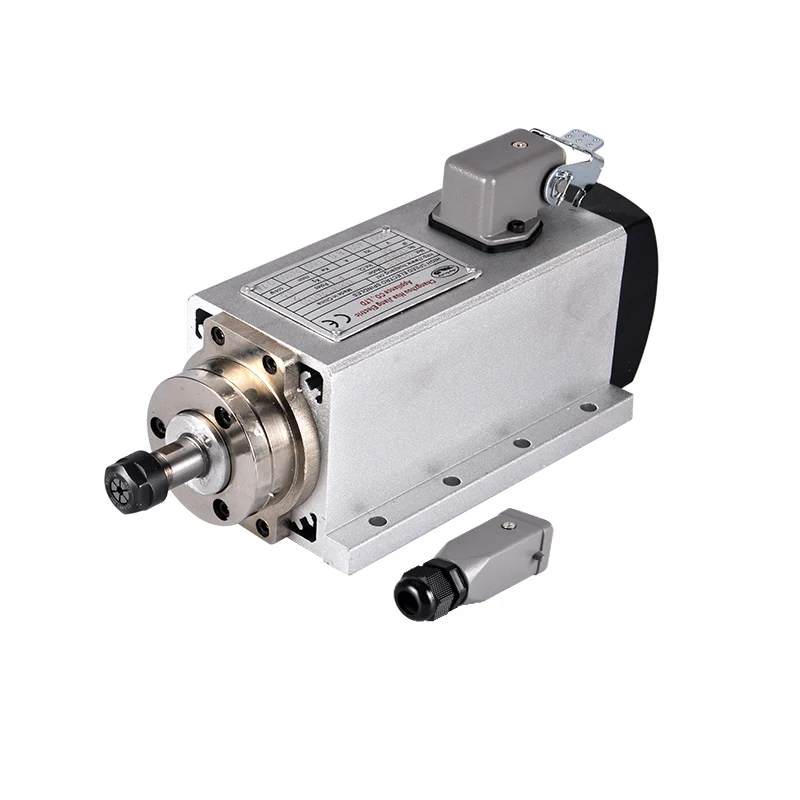

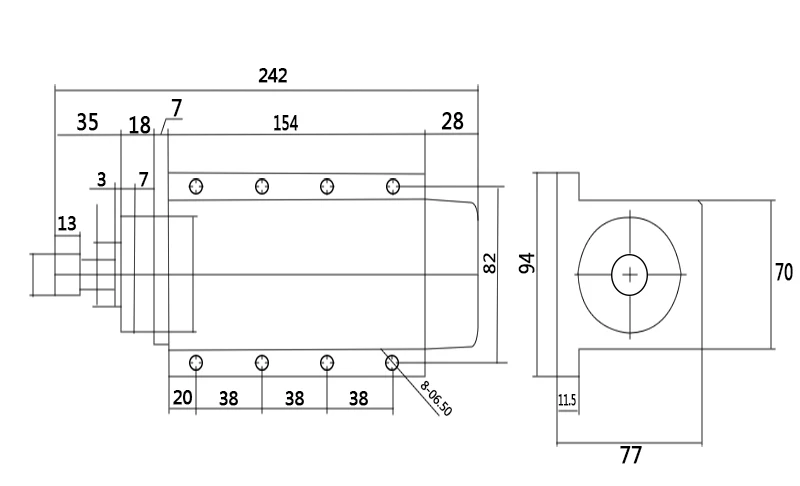

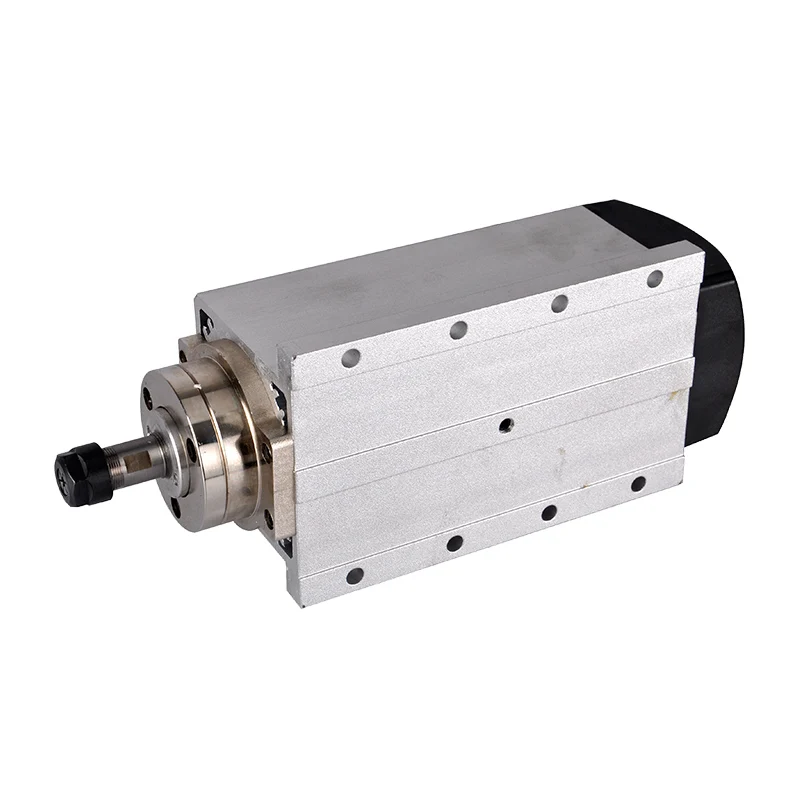

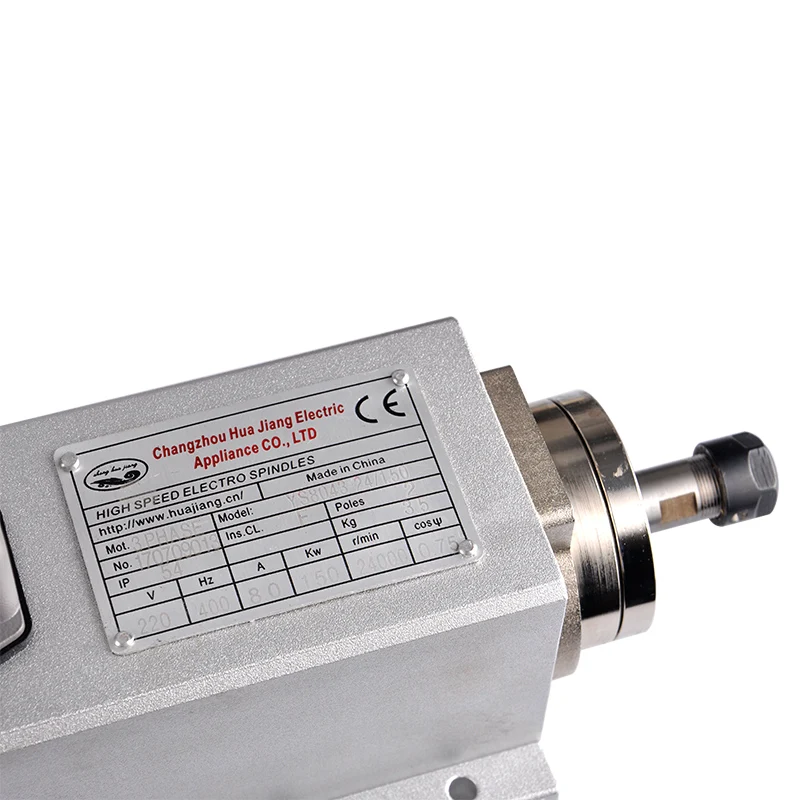

1.Air Cooled Spindle:

Power:1500W Voltage:220V/110V Frequency:0-400Hz Speed:0-24000rpm Air Cooling ER11collet  Runout off:less than 0.005mm Grease Lubrication Bearings: NSK6002*4 ​Note: When starting-up the spindle, reference frequency and maximum frequency must be set to 400Hz. Then it can be adjusted to a lower frequency slowly.

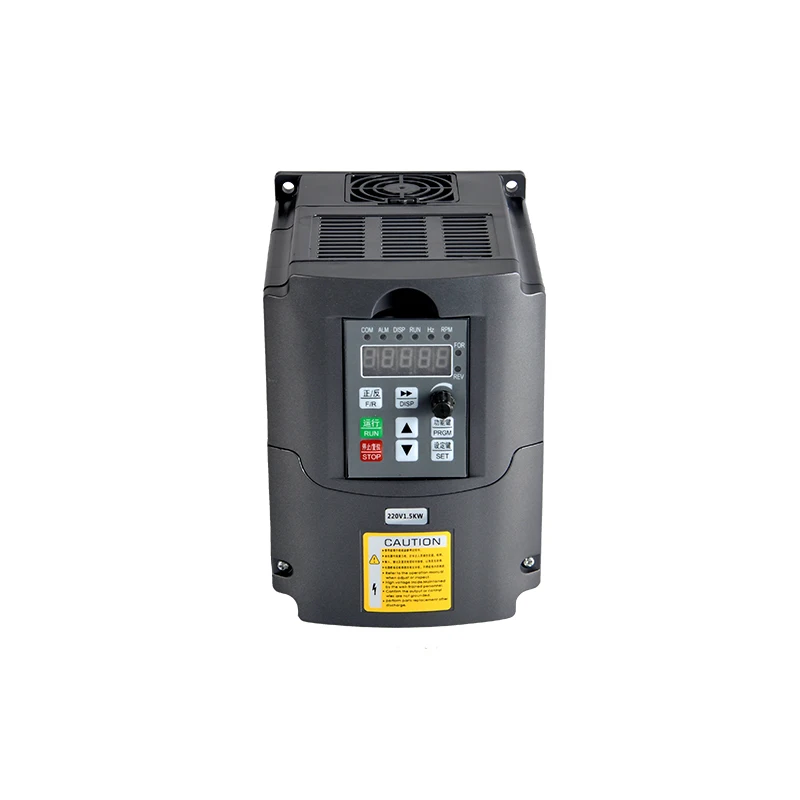

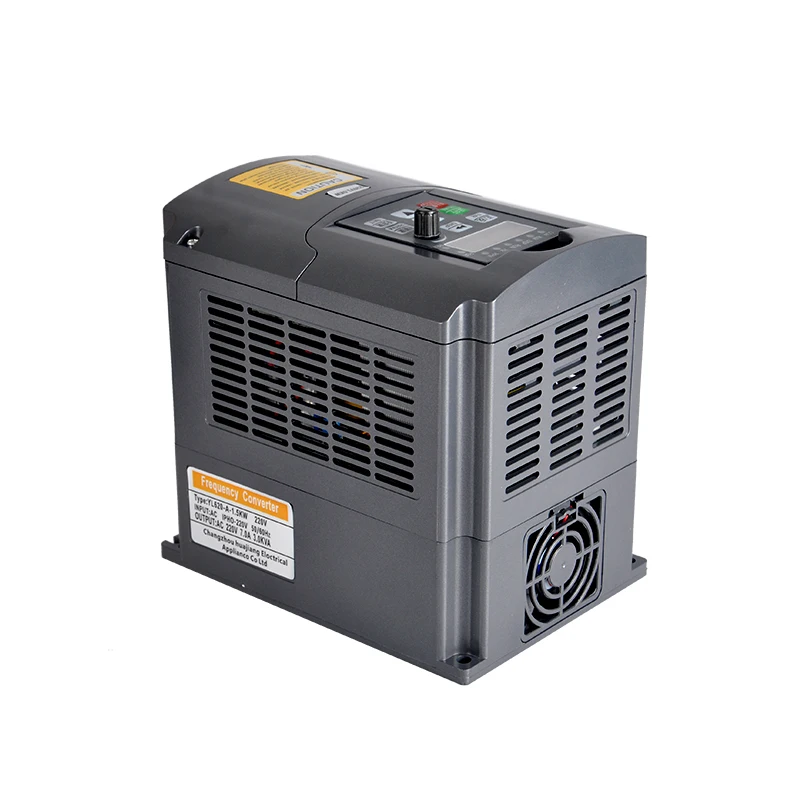

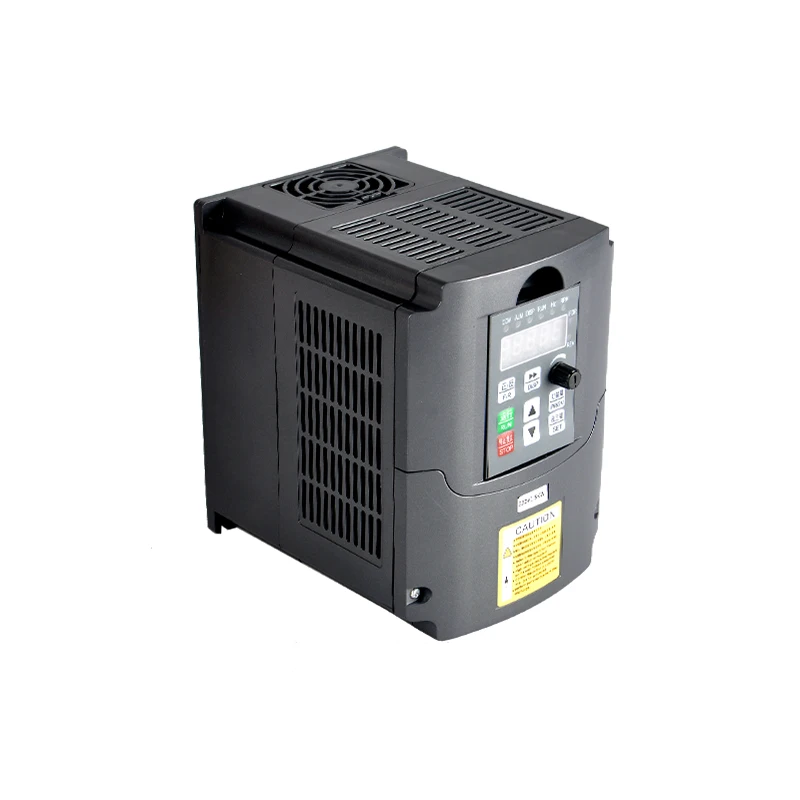

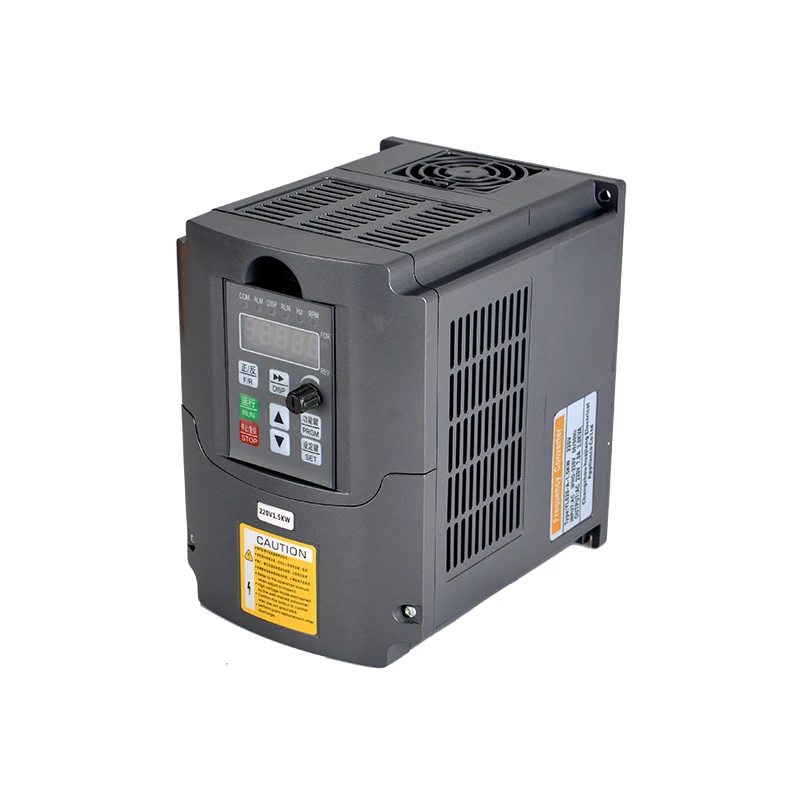

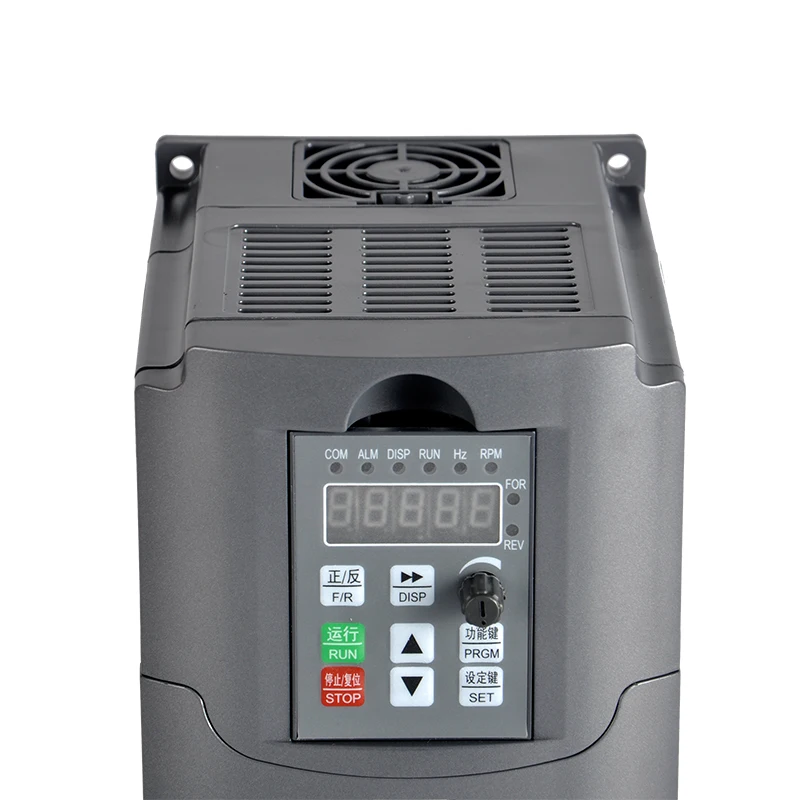

2. Inverter :

Brand Name : HY Inverter Type:1.5KW 220V/110V Tech parameters: Input Voltage: 220V/110V(+/-15%)  Output Voltage: 110V/220VAC Input Frequency: 48-63 Hz Output Frequency: 0-400 Hz Input Phase: 1 or 3 phase Output Phase: 3 phase   Warranty: 1 year from the date you purchased   Product Features:   PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability; Easy PLC function can realize 16 legs of speed and inverter control function; RS485 communication port, adopting standard international MODBUS main circuit control; With extremely strong anti-jamming capability Low output ratting torque0.5HZ-150%, low speed running ability; Carrier adjustable by 16KHZ, completely soundless working environment; Broad voltage working area, normal running in 304V-456V; Auto voltage regulation (AVR) technique, for ensuring the inverter load capability; Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes; With perfect error protection and short circuit starting protection capability;
