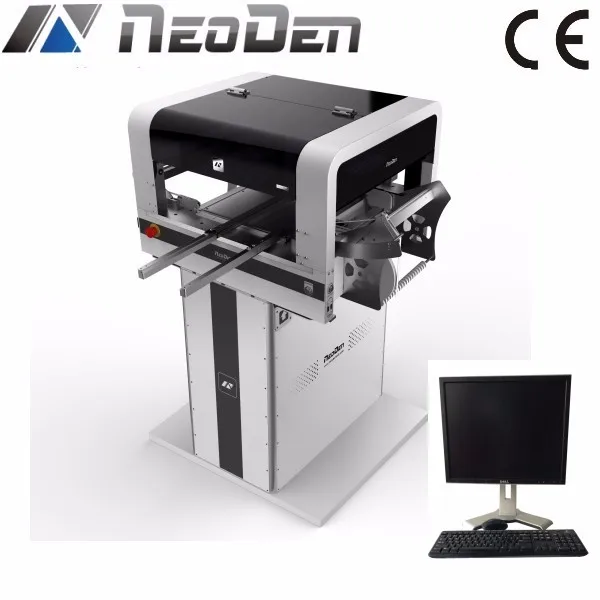

NeoDen4 Introduction

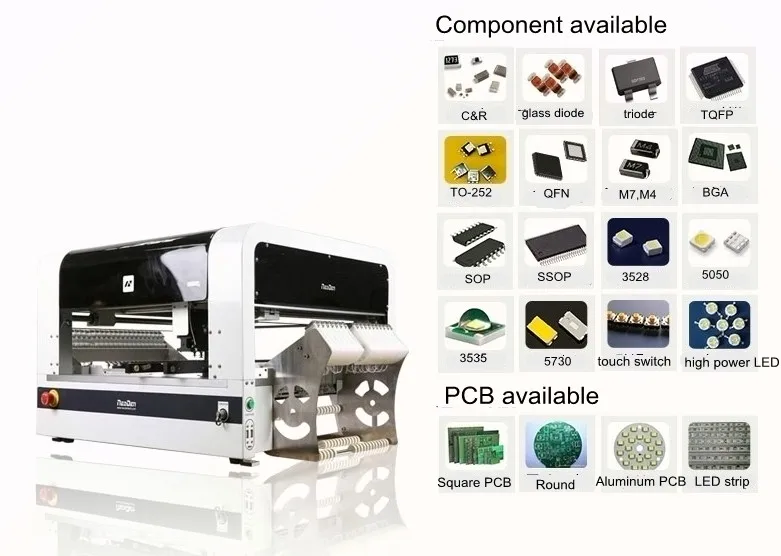

Neoden4 equipped dual cameras, auto rails, auto electronic feeders and 4 placement heads, which could support to mount 0201, BGA, QFN, especially, it is applicable for 0.8m/1.2m/1.5m LED strip. NeoDen4 is the best choice to satisfy all demands of high precision, high capacity, stable performance and low cost.

 Pls Note: Feeder of Neoden4 need to be charged.

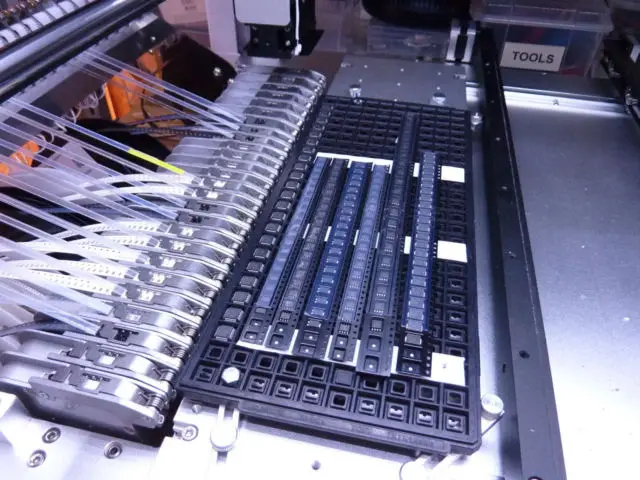

Standard feeders of NeoDen4 include

8mm feeder---USD 60.0/pcs, 12mm feeder---USD 75.0/pcs, 16mm feeder---USD 90.0/pcs, and 24mm feeder---USD 120.0/pcs.

And no feeders offered in this case, pls kindly contact us if you need.If you placed the order without contact to Neoden,

will put 3pcs of 8mm feeder only for you.

We'll arrange it according to your real production needs.

New Features

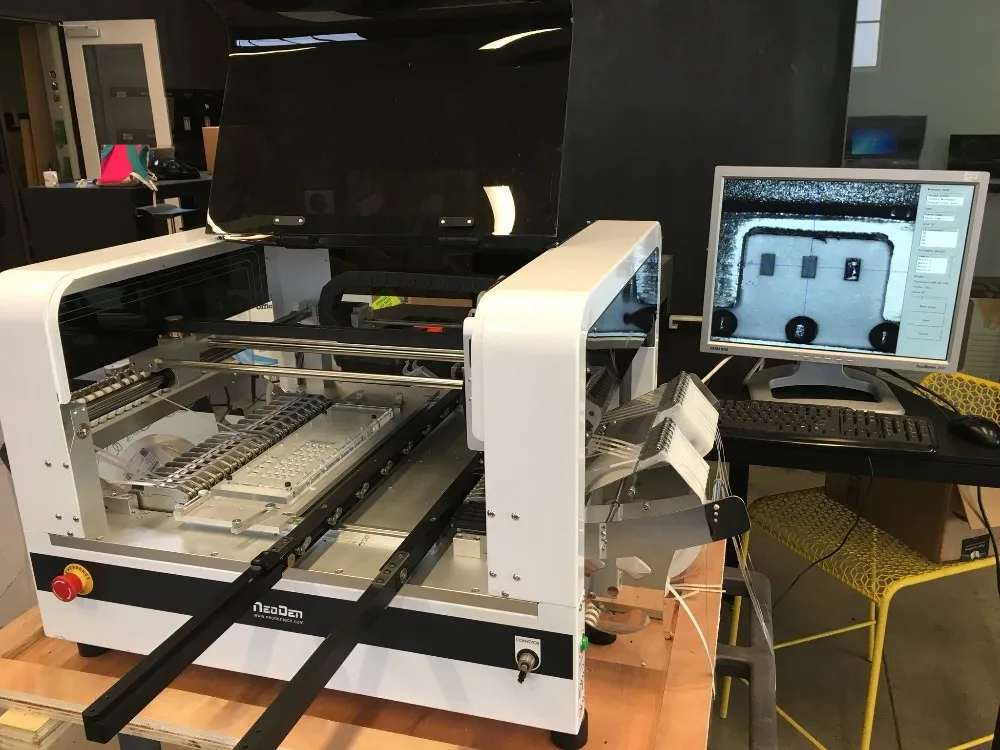

1. Vision system (an up-looking camera and a down-looking camera) identifies and calibrates the different components simultaneously, and tremendously improves the accuracy of placement from 0201 to BGA;

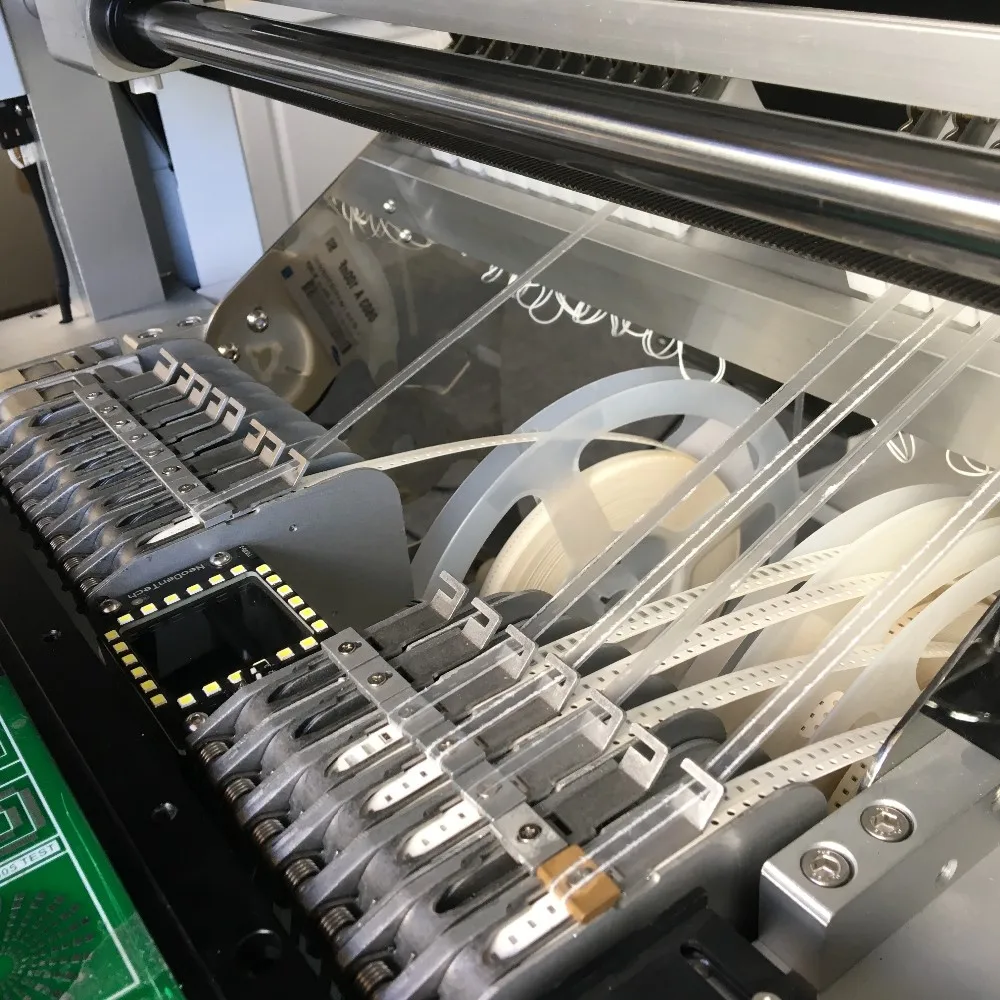

2. Auto electric feeders greatly reduce the feeding deviation;

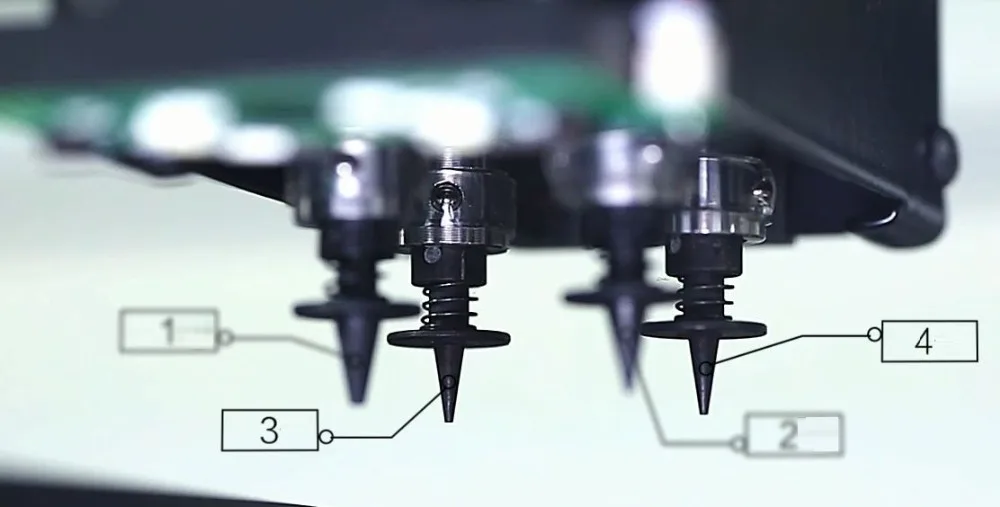

3. Four placement nozzles help to pick up and calibrate components at the same time;

4. The device supports remote system upgrade, NeoDen provides a life-long system upgrade service without charge.

Specification of NeoDen4

Standard Package of NeoDen4:

Details:

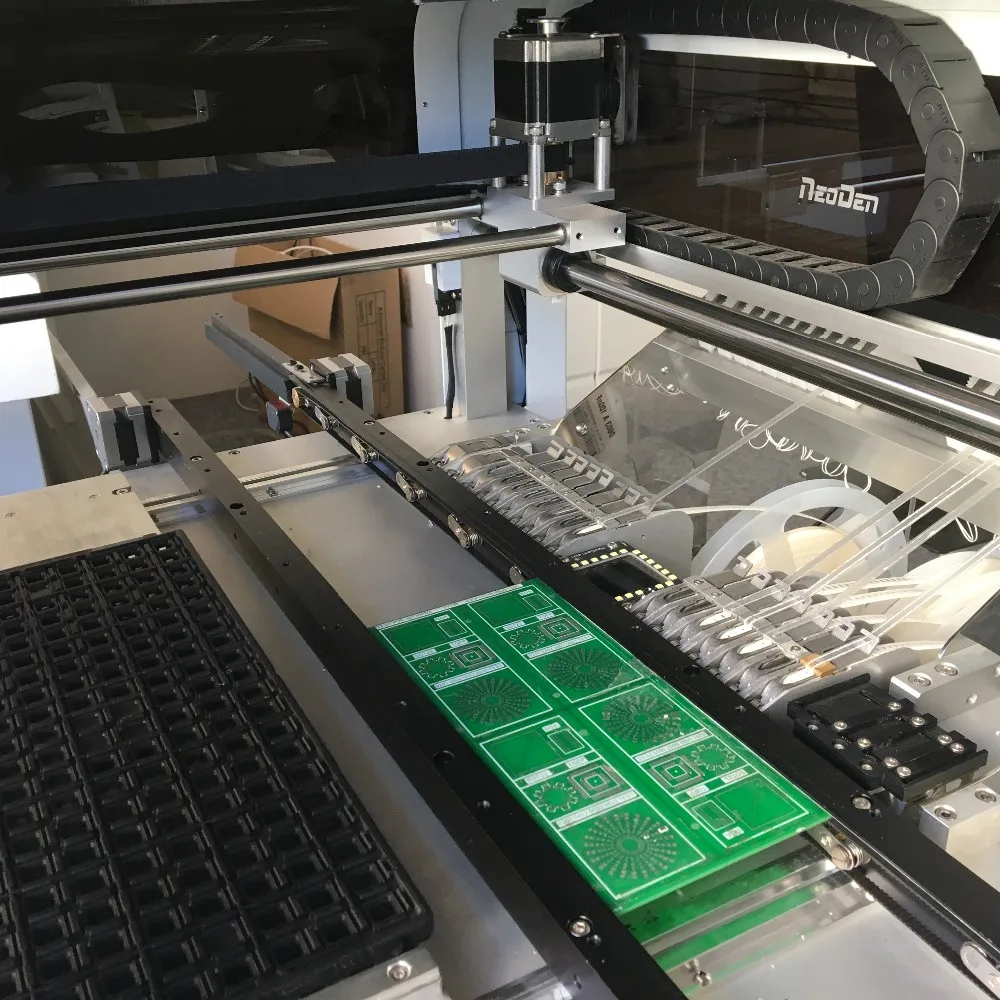

Placement Effect:

Packing:

​

Why choose NeoDen

1. NeoDen is specialized in Desktop Pick and Place machine with more than 30 patents and CE certificate;

2. Total 8 Agencies in Japan, India, EU, South Korea, Iran, Turkey, Brazil and Chile, which helps to provide direct service and better communication in local territories;

3. The after-sale service team consists of 14 professional engineers, which contributes to not only faster and better response of customers’ queries and enquiries, but also more efficient and professional solutions all year round;

4. With light weight body, NeoDen PnP machines occupy small area and could easily go through standard doors;

5. Entry-level device, with user friendly interefaces, no necessary for having a professional SMT engineer to operate it;

6. High integrated device, no need to have extra pumps or any other supporting facilities;

7. Especial for laboratory research and development,samples,to avoid any patents and designs revealment.

Payments & Shipments:

1. All prices are quoted by EXW;

2. Lead time: 3-7 working days;

3. Packing material: non fumigation wooden case;

4. Payment term: 100% T/T in advance before shipping;

5. Shipping ways: DHL/TNT/UPS/FEDEX/EMS or customer appoint

Thank you so much for your kindly attention to our NeoDen's PnP machines.

Please contact us if you have any questions to ask.
