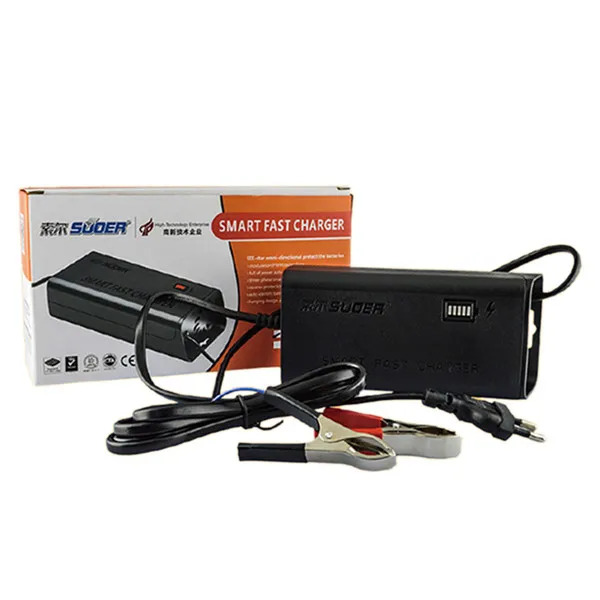

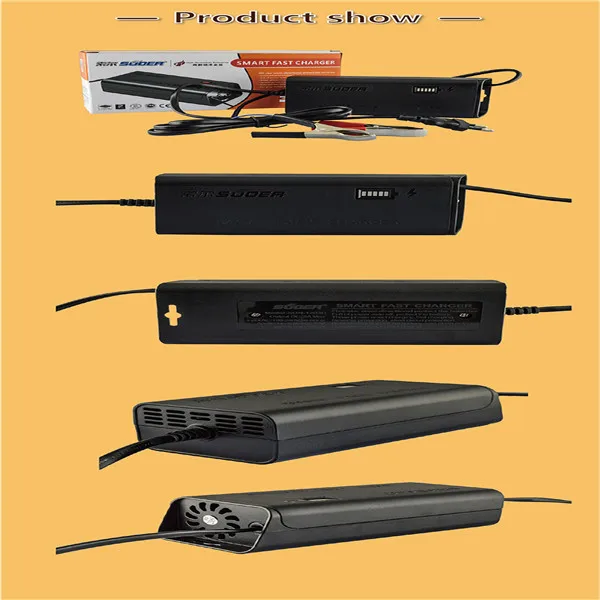

Safe 12V 5A Intelligent Smart Automatic Lead Acid Battery Fast Charging Quick Charger 100V-240V with Display Lamp |

Safe 12V 5A Intelligent Smart Automatic Lead Acid Battery Fast Charging Quick Charger 100V-240V with Display Lamp |

Description:

Smart chip, fast charge

Automatically stop charge when fully charged

Heat dissipate function, safer for charging

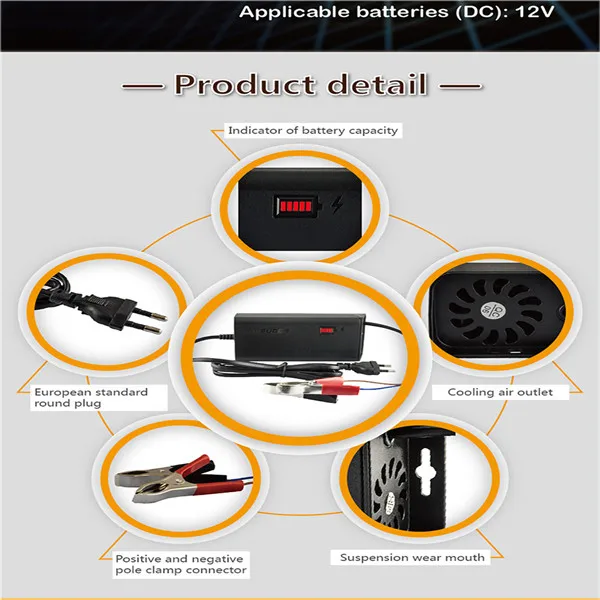

Positive and negative pole clamp connector

Easy to carry, simple to use, just connect and plug in

Charging process displayed by the indicator makes the user grasp the battery charging state

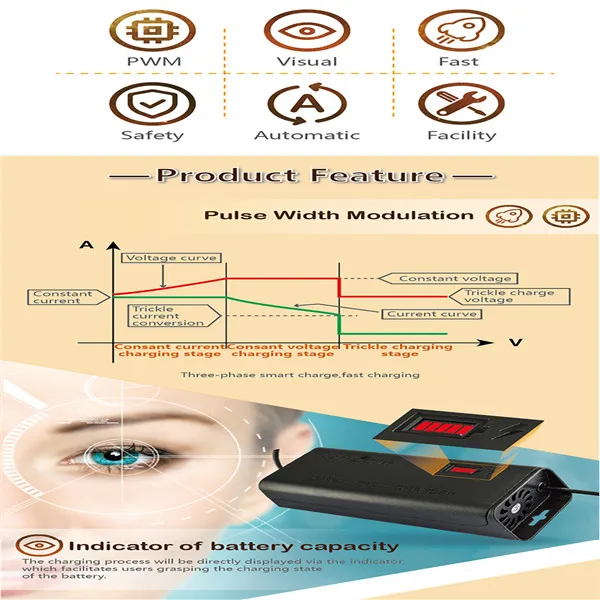

Three-phase charging mode for the efficient (constant current, constant voltage, floating ) PWM charging mode

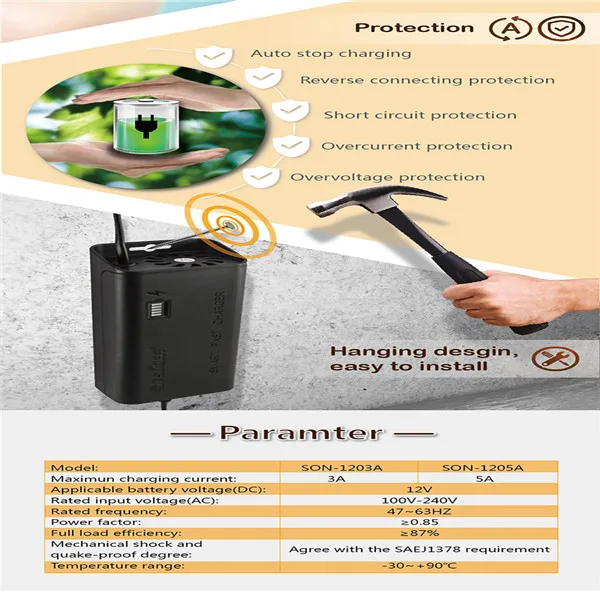

With battery-line detection, short circuit, over-current, over-voltage and reverse polarity protection and other functions.

Specifications:

Applicable battery : 12V Lead Acid Battery/Gel battery

Max charging current: 3A/5A

Rated input voltage: 100-240V

Rated efficiency: 47-63Hz

Rated frequency: ≥ 0.85

Full load efficiency: ≥ 87%

Temperature range: -30- + 90 ℃

Plug: US Plug / UE Plug

Plug cable length: 55in/ 140cm

Clamp connector cable length: 14in/ 350mm

Steps:

Check whether the battery's rated voltage matches the charger's rated voltage;

Connect the charger and the batteries together as required correctly .

Check whether power supply's voltage matches charger's rated input voltage

Connect the battery and charger to the power supply, then observe if the charging indicator lights or not.

If the charging indicator doesn't light, please cut off the power supply and check the power supply, battery and all connections.

After fully charged, please first disconnect the power supply ,and then disconnect the battery cable

Instructions:

Connect the power supply plug to the 110V/220V socket, if power indicator is on, the product will enter standby state.

The two ends of charging output power cable are connected to the battery positive and negative poles, if battery indicator lights which means the battery is charging (pay attention to distinguish between positive and negative poles, otherwise the battery can not be charged normally)

If battery indicator lights, it means the battery is fully charged and the charging ends.

Specifications:

Smart chip, fast charge

Automatically stop charge when fully charged

Heat dissipate function, safer for charging

Positive and negative pole clamp connector

Easy to carry, simple to use, just connect and plug in

Package Included:

1 x 12V 3A/5A Battery Charger

Notes:

The charger is designed for 12V lead-acid batteries and gel batteries, not as a power supply for other electronic devices.

Charger inside is with high voltage and dangerous, if it fails, please contact us, users or non-professionals are strictly prohibited to open the charger!

Due to the inevitable thermal loss generated when charging, so the charger and the battery should be used in a well-ventilated indoor environment , don't use them in a humid, high-heat or flammable gas environment.

This charger has reverse polarity protection function, its output end has no output voltage if not connected with the battery, only when they connect together, then it has output voltage.
