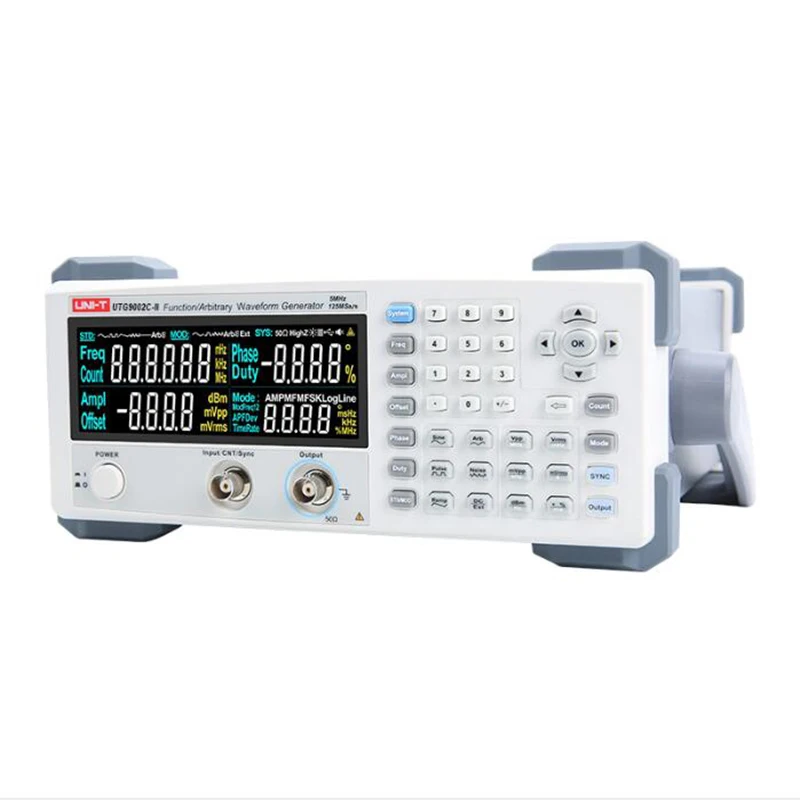

UNI-T UTG9002C-II/UTG9005C-II функция/произвольный генератор сигналов 2MHz/5MHz одноканальный
16 911,93 - 18 382,60 руб.
8 каналов осциллограф для тестирования транспортного средства
6 417,63 руб.
BNC разъем типа папа в двойной осциллограф Аллигатор Кабель Тестового зонда
252,92 руб.
Hantek 6254BC PC USB Oscilloscope 4 Channels 250MHz 1GSa/s Waveform Record Function Portable Osciloscopio | Инструменты
Цифровой мультиметр Hantek 6052BE портативный осциллограф логический анализатор на
13 873,35 руб.
O032 Hantek 1025G 25MHz Arb 200MSa/s Wave Function Arbitrary Waveform Generator | Инструменты

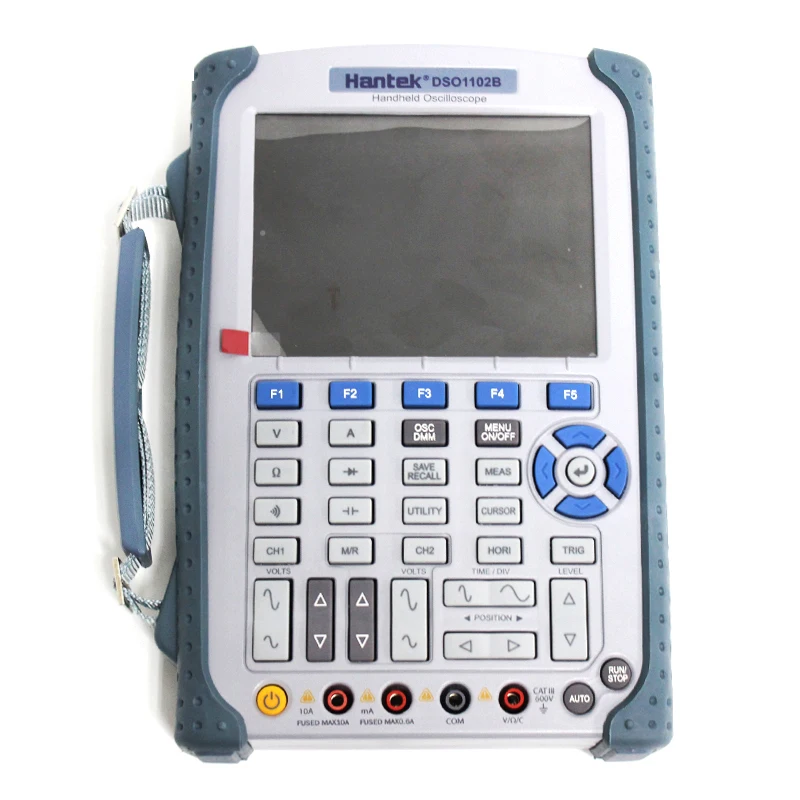

Цифровой Ручной осциллограф Hantek DSO1102B/мультиметр 100 МГц 1GSa/s | Инструменты
43 766,94 руб.
Характеристики
Hot 6082BE Hantek Automotive Oscilloscope USB 2 Channels 250MSa/s Digital Oscillograph 80Mhz PC Based Oscilloscopio | Инструменты
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-18-2026 | 0.95 руб. | 0.80 руб. | 0 руб. |
| Feb-18-2026 | 0.20 руб. | 0.32 руб. | 0 руб. |
| Jan-18-2026 | 0.0 руб. | 0.45 руб. | 0 руб. |
| Dec-18-2025 | 0.7 руб. | 0.75 руб. | 0 руб. |
| Nov-18-2025 | 0.76 руб. | 0.55 руб. | 0 руб. |
| Oct-18-2025 | 0.62 руб. | 0.29 руб. | 0 руб. |
| Sep-18-2025 | 0.5 руб. | 0.76 руб. | 0 руб. |
| Aug-18-2025 | 0.98 руб. | 0.87 руб. | 0 руб. |
| Jul-18-2025 | 0.12 руб. | 0.10 руб. | 0 руб. |
Описание товара
modname=ckeditor

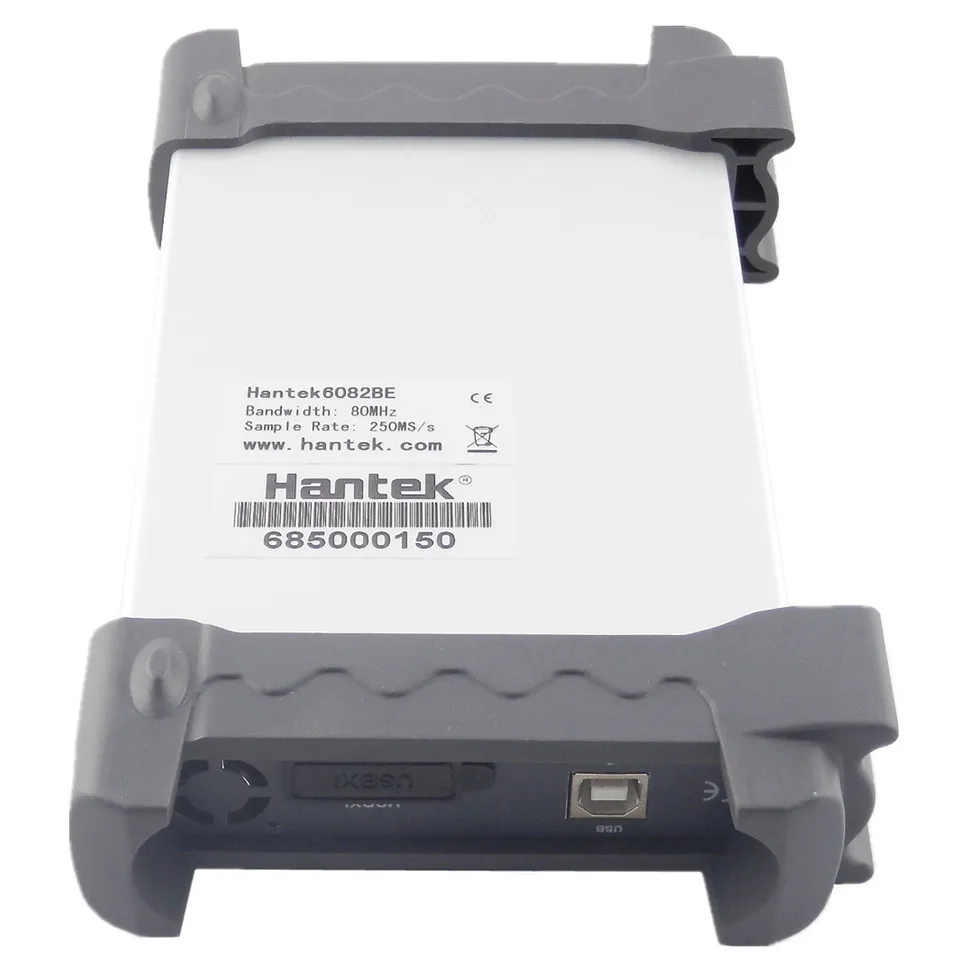

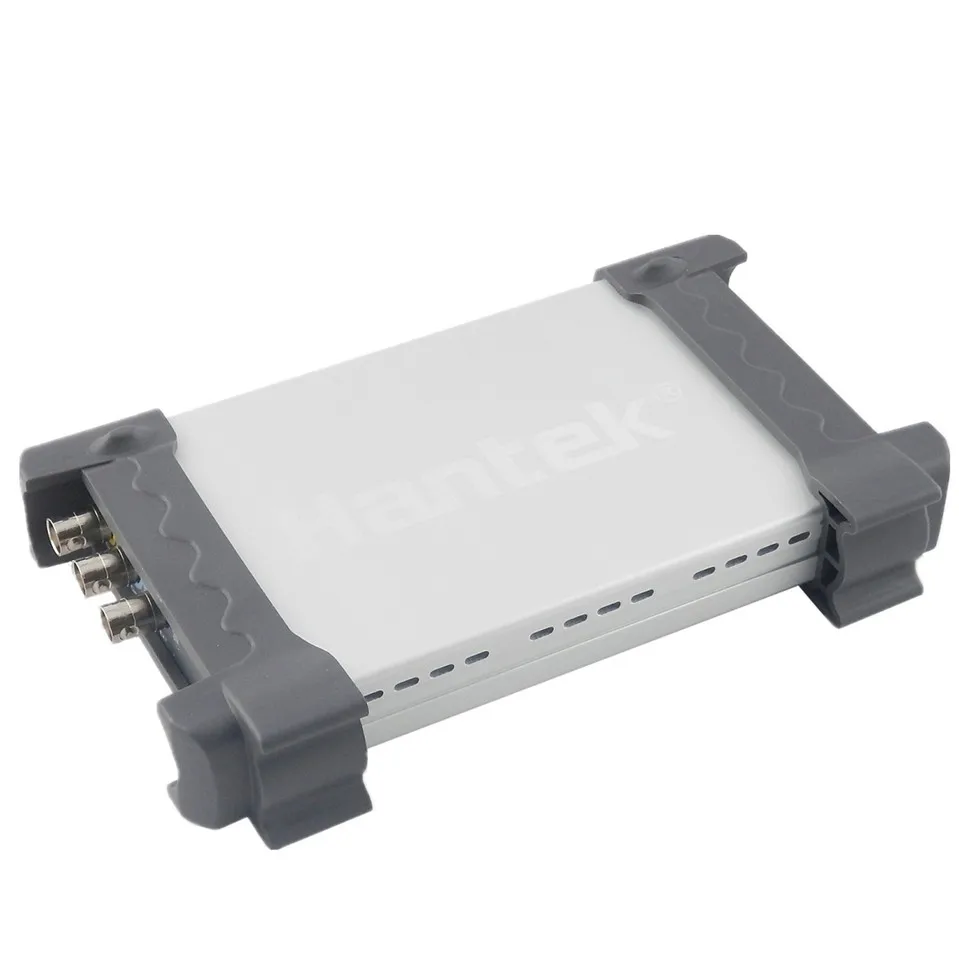

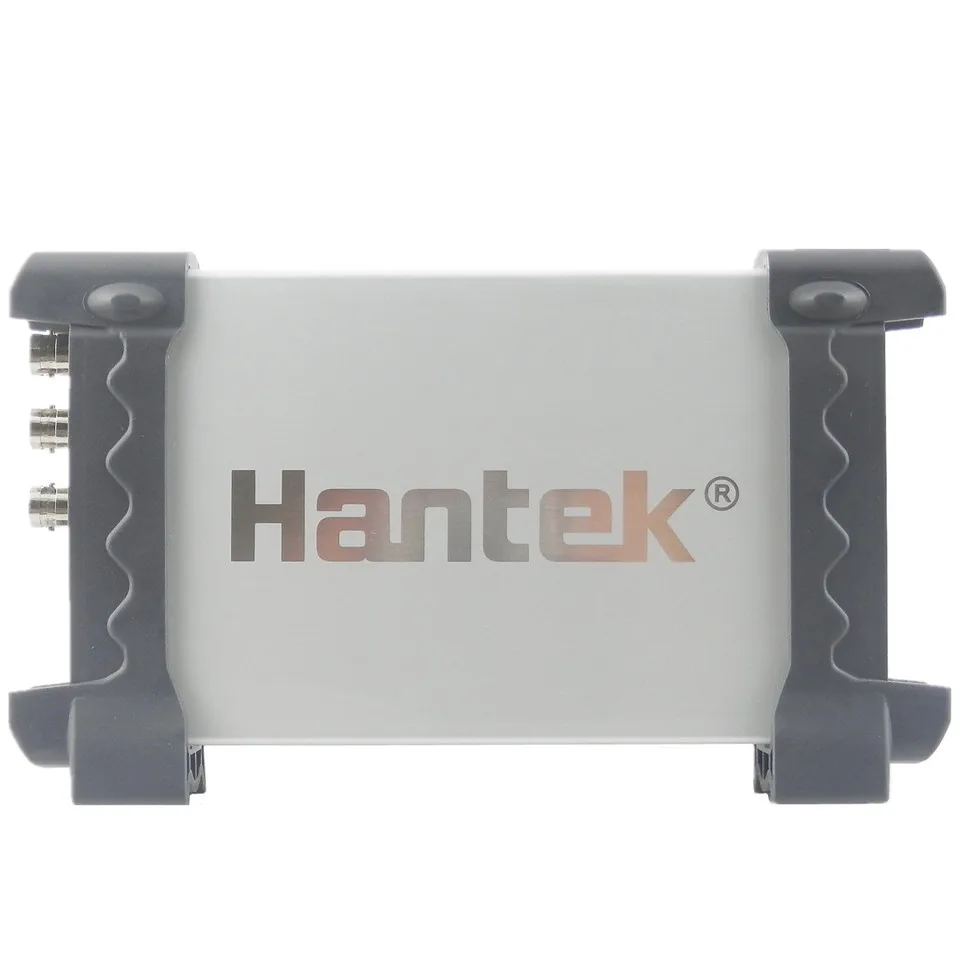

6082BE Hantek Automotive Oscilloscope USB 2Channels Digital Oscillograph 80Mhz PC Based Oscilloscopio Portatil Diagnostic-tool
1.Features:
*Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.

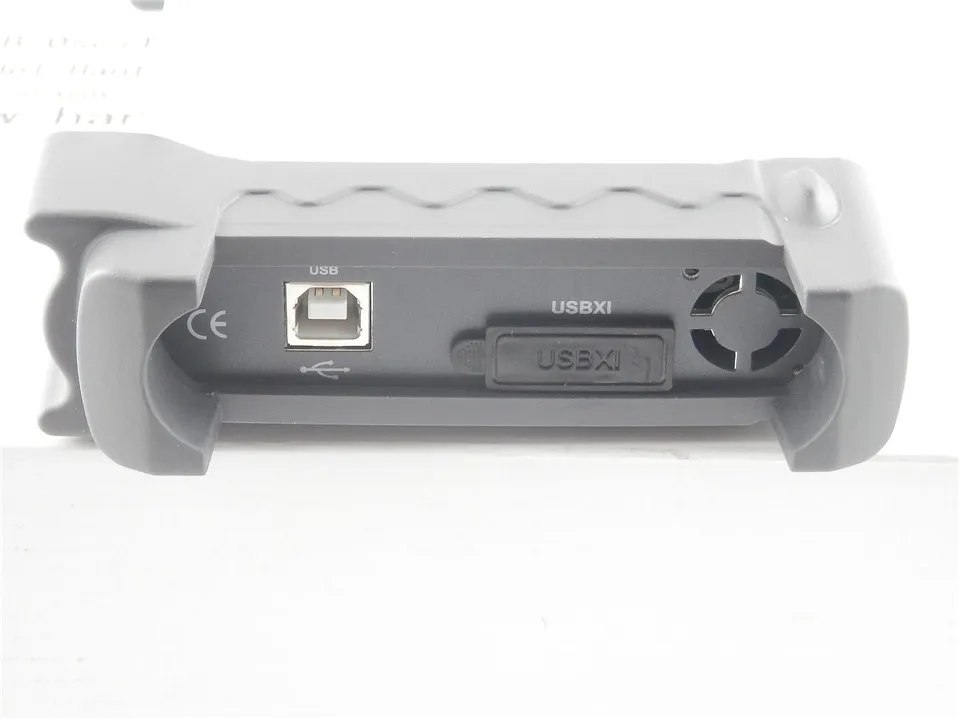

*Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.
*USB2.0 interface, no external power source required, easy to use.
*Be suitable for notebook computer, product line maintenance,be used easily on business.
*Dimensions (mm):205(L) x120(W) x35(H), be carried easily.
*High performance, 250MS/s real-time sampling, 80MHz Bandwidth,
*Operating System: Windows 7, Windows NT, Windows 2000, Windows XP,VISTA.
*23 measurement functions, PASS/FAIL Check, be suitable for technical application.
*Waveform average, persistence, intensity,invert,addition, subtraction, multiplication, division,X-Y plot.
*Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
*FFT
*One computer can connect many DSO, extend channel easily.
*Labview\VB\VC\Delphi\C++Builder Second Design instance.
2.Software:
Operating system: Windows 7,8, Windows NT, Windows 2000,Windows XP, VISTA
3.Second Design:
Supply DEMO code(VC,CVI,VB,LABVIEW) and technical support.
4.Specification:
Channel | 2 Channels |
Bandwidth | 80MHz |
Input Impedance | 1MΩ 25pF |
Max. Sample rate | 250MS/s |
Coupling | AC/DC/GND |
Vertical resolution | 8Bit |
Gain range | 10mV-5V, 9Steps |
DC accuracy | ±3% |
Timebase range | 4ns-1h, 38 Steps |
Vertical adjustable | Yes |
Input protection | Diode clamping |
X-Y | Yes |
Autoset | Yes (30Hz to 80MHz) |
EXT. input | Yes |
Trigger Mode | Auto, Normal and Single |
Trigger Slope | +/- |
Trigger level adjustable | Yes |
Trigger Type | Rising edge, falling edge |

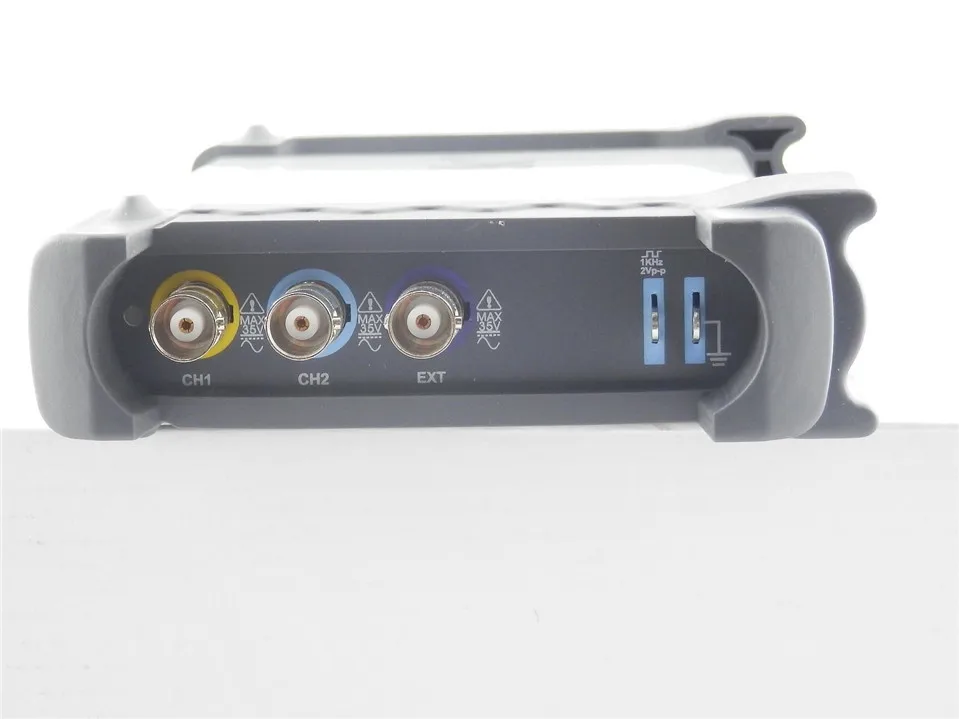

Trigger Source | CH1, CH2, EXT |
Pre/Post trigger | 0-100% |
Buffer size | 10K-64KB/Channel |
Sampling selection | Yes |
Waveform Display | port/line, waveform average, persistence, intensity |
Network | Open/Close |
Vertical mode | CH1, CH2, Dual, ADD |
Cursor measurement | Yes |
Math | FFT, addition, subtraction, multiplication, division. |
Cursor | Frequency, Voltage |
Data Samples | 10K-64K/Channel |
Accessories | S/W CD, probes, manual, USB cord |

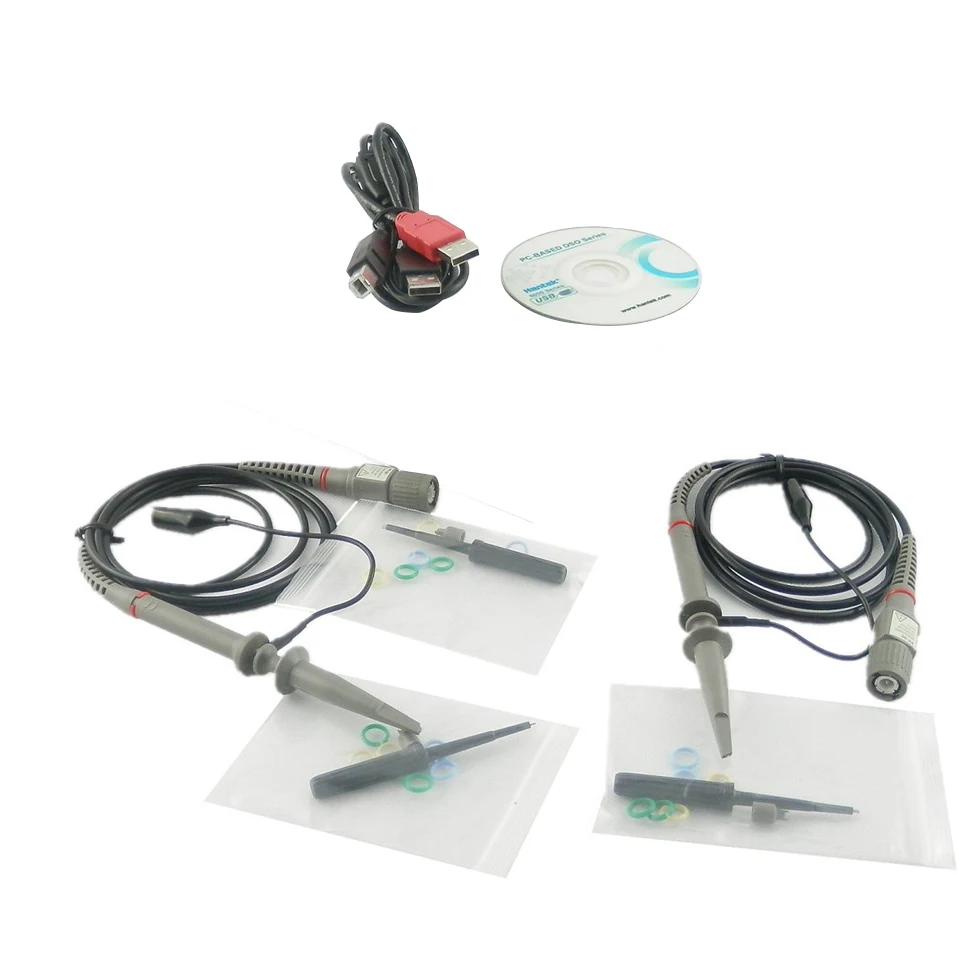

Package (airbubble envelop):
1 x 6082BE oscilloscope
2 x oscilloscope probe
1 x USB cable
1 x CD (manual etc.)
