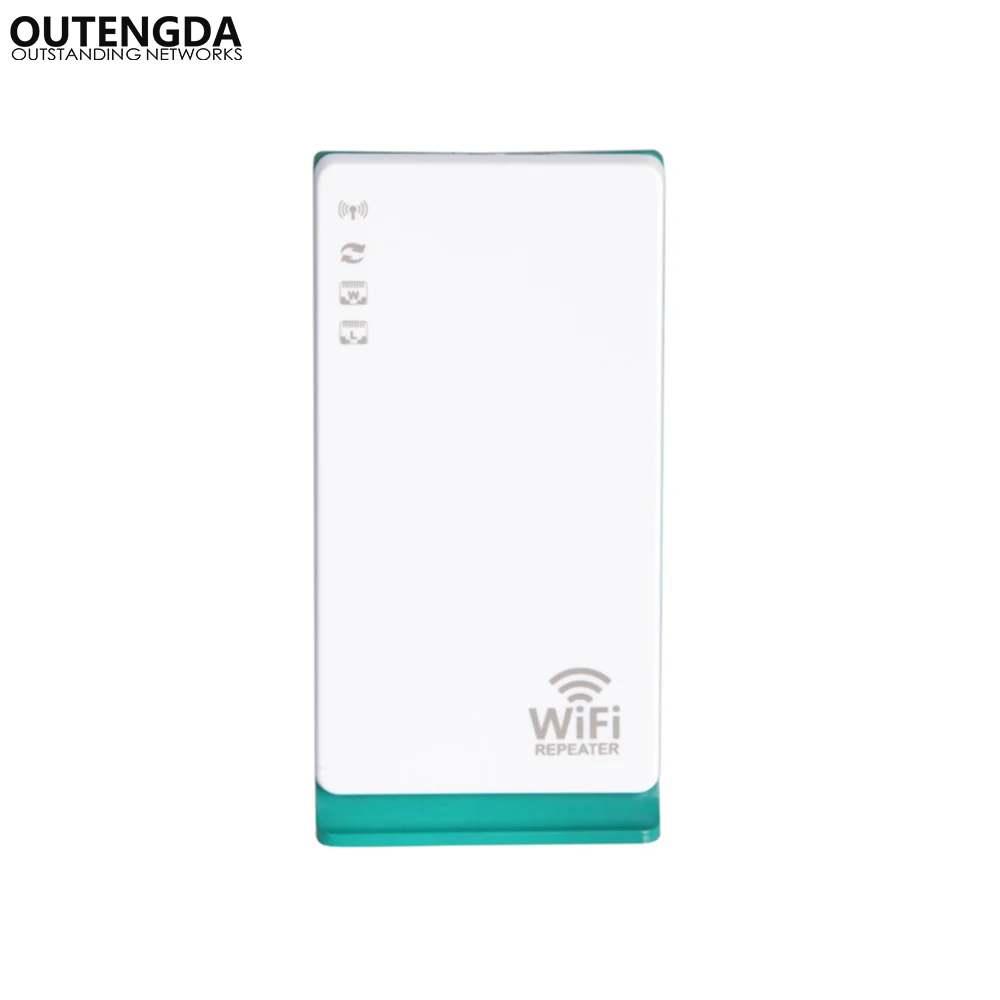

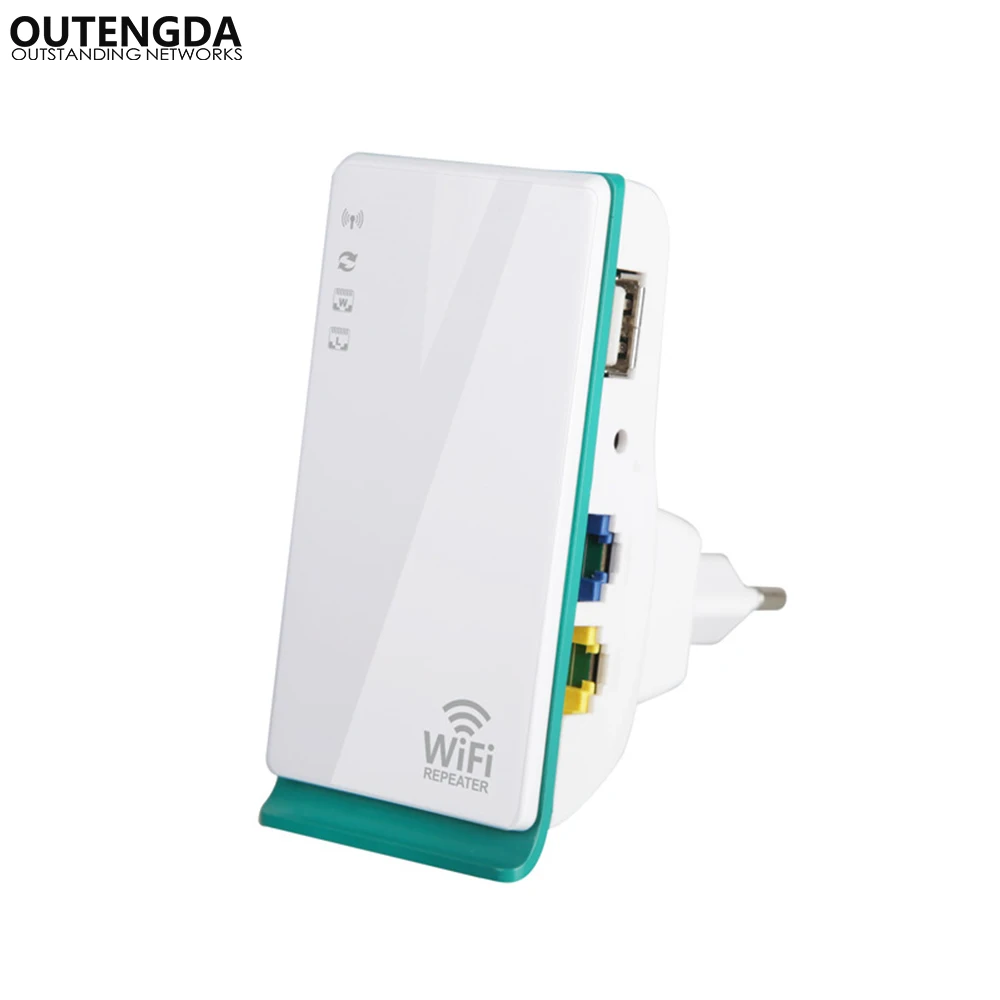

Wireless-N Router WiFi Repeater 2.4Ghz Network AP Access Point Wifi Signal Amplifier Range Extender Multi-mode with USB charging |

---

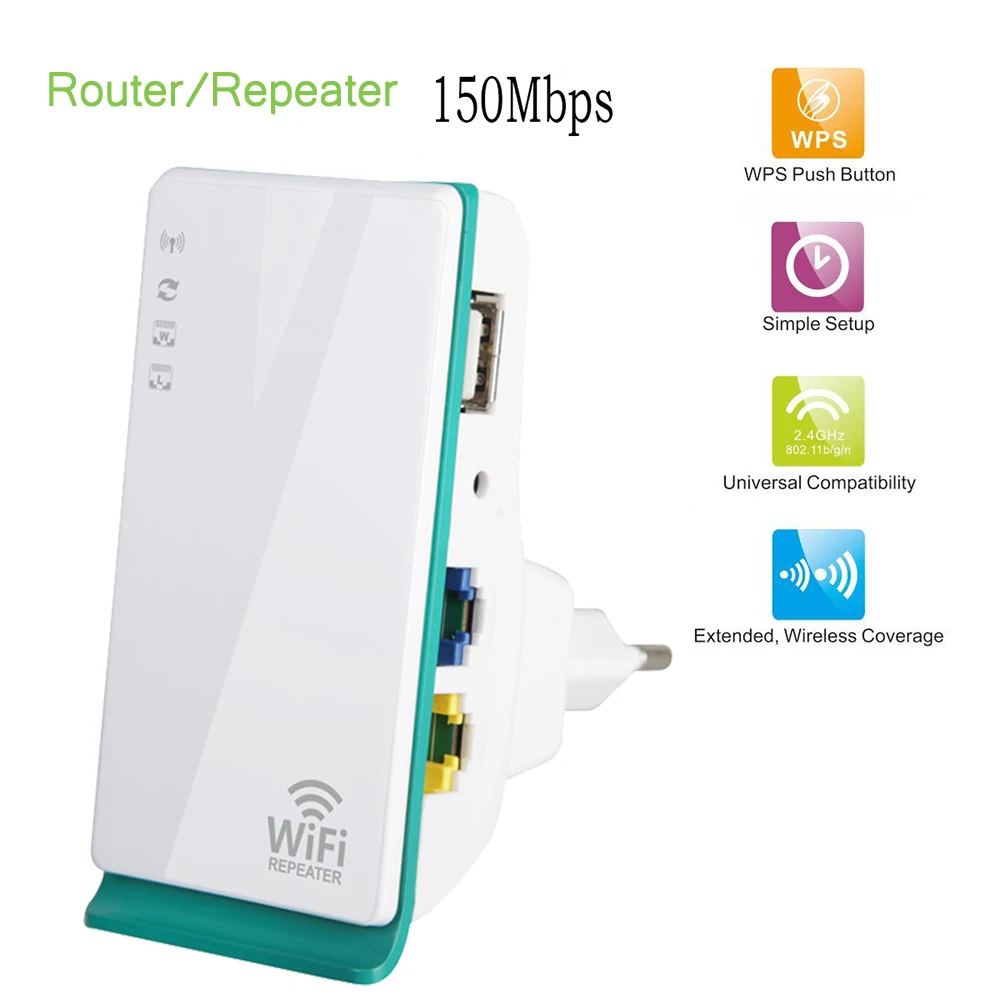

Wireless-N Router WiFi Repeater 2.4Ghz Network AP Access Point Wifi Signal Amplifier Range Extender Multi-mode with USB charging port

Descriptions This Wireless Mini Router supports 802.11 N wireless transmission standards, and compatible with IEEE802.11 b/g standards, which supports data rate up to 150 Mbps. It is Mainly used for providing free WIFI service in big area such as factory, community, street etc. The normal enhancer can expend distance up to 100 meters away. It supports WEP, WPS adn WPA/WPA2 of personal and enterprise encryption standards.   The Wireless Mini Router can work well with WiFi mobile phone, tablet PC, Laptop, Notebook etc. It provides stable and high-speed wireless signal that makes you surf internet more smooth and much faster.



Features

Complies with IEEE 802.11n, IEEE 802.11g and IEEE 802.11b standards. Supports AP, Router, Client, Bridge and Repeater modes.
Without External power adapter.

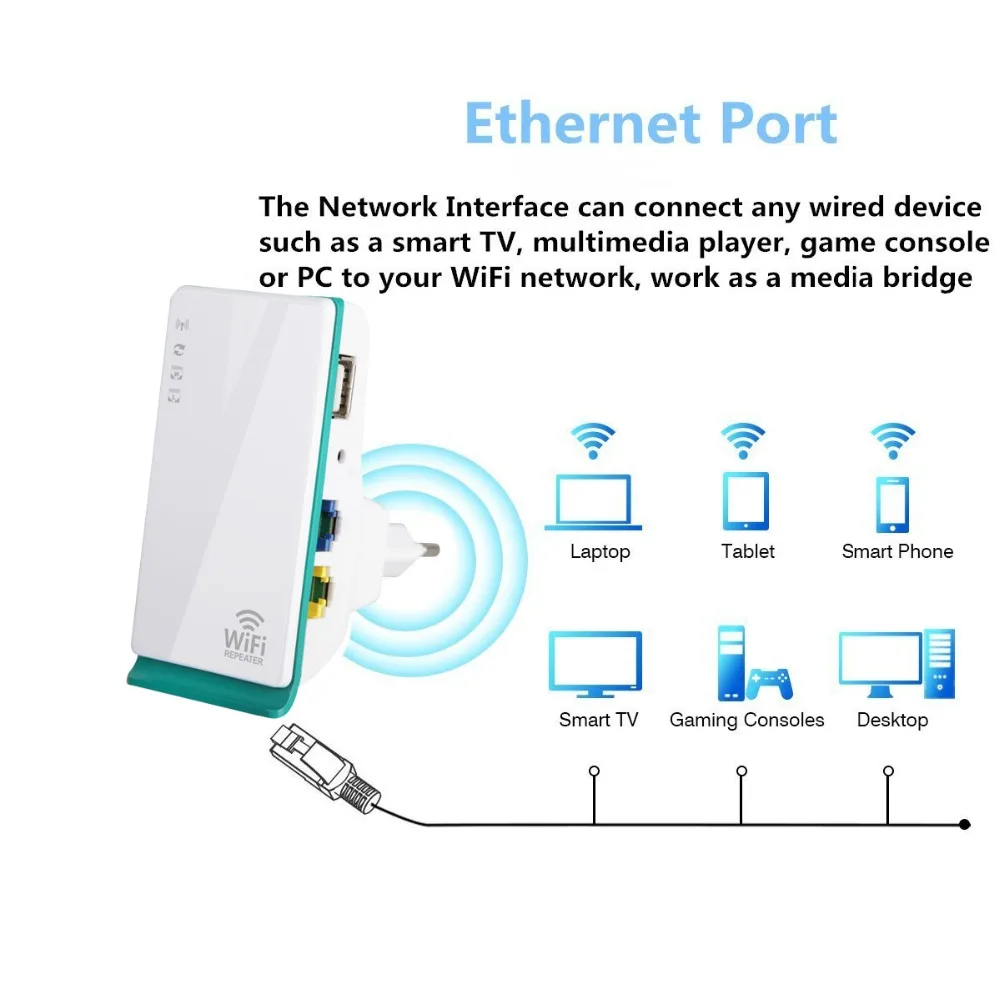

Provides one 10/100Mbps Auto-Negotiation Ethernet WAN/LAN port.
Provides one 10/100Mbps Auto-Negotiation Ethernet LAN port.
WLAN 802.11n for wireless high-speed access up to 150Mbps, ideal for video streaming, online gaming and Internet calling.
2T2R MIMO™ delivers greater throughput at range versus conventional 1T1R.
Easy Setup Assistant provides quick & hassle free installation.
Supports SSID broadcast control.
WMM and WMM-APSD supported.
Internal Omni Directional antenna.
Supports 64/128/152-bit WEP, complies with 128 bit WPA(TKIP/AES), supports MIC, IV Expansion, Shared Key Authentication, IEEE 802.1X.
User interface supports free WEB software updates.
Supports configuration file backup and restore.
Mini and pocket design, ideal for home or travel use

Specifications

HARDWARE

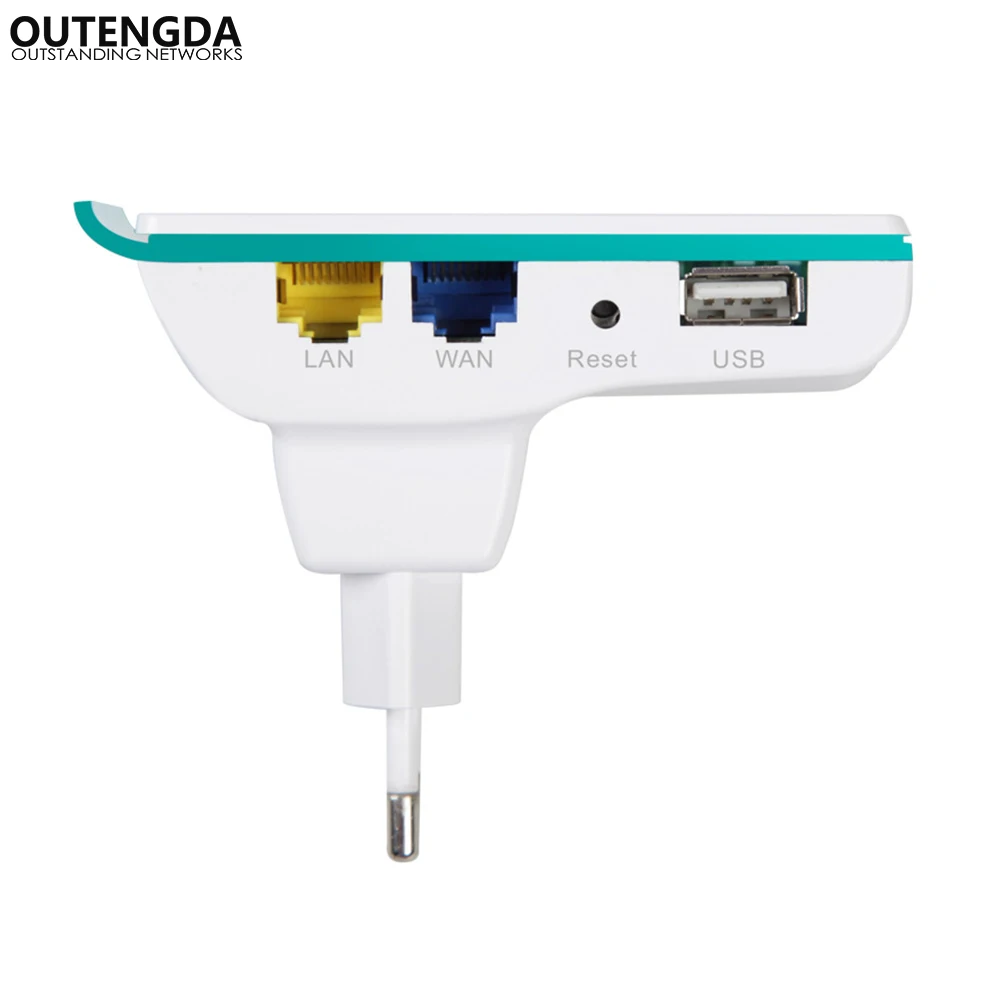

Interface	1 * 10/100Mbps Lan port; 1 * 10/100Mbps WAN port; 1 * USB2.0 Charging port
Button	Reset button
Antenna	2 * Internal Omni Directional antenna
Wireless standard	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency & Rate	2.4GHz - 2.485GHz, up to 150Mbps
Wireless transmit power	20dBm(EIRP)
Reception sensitivity	270M: -68dBm@10% PER, 130M: -68dBm@10% PER, 108M: -68dBm@10% PER, 54M: -68dBm@10% PER, 11M: -85dBm@8% PER,  6M: -88dBm@10% PER,  1M: -90dBm@8% PER

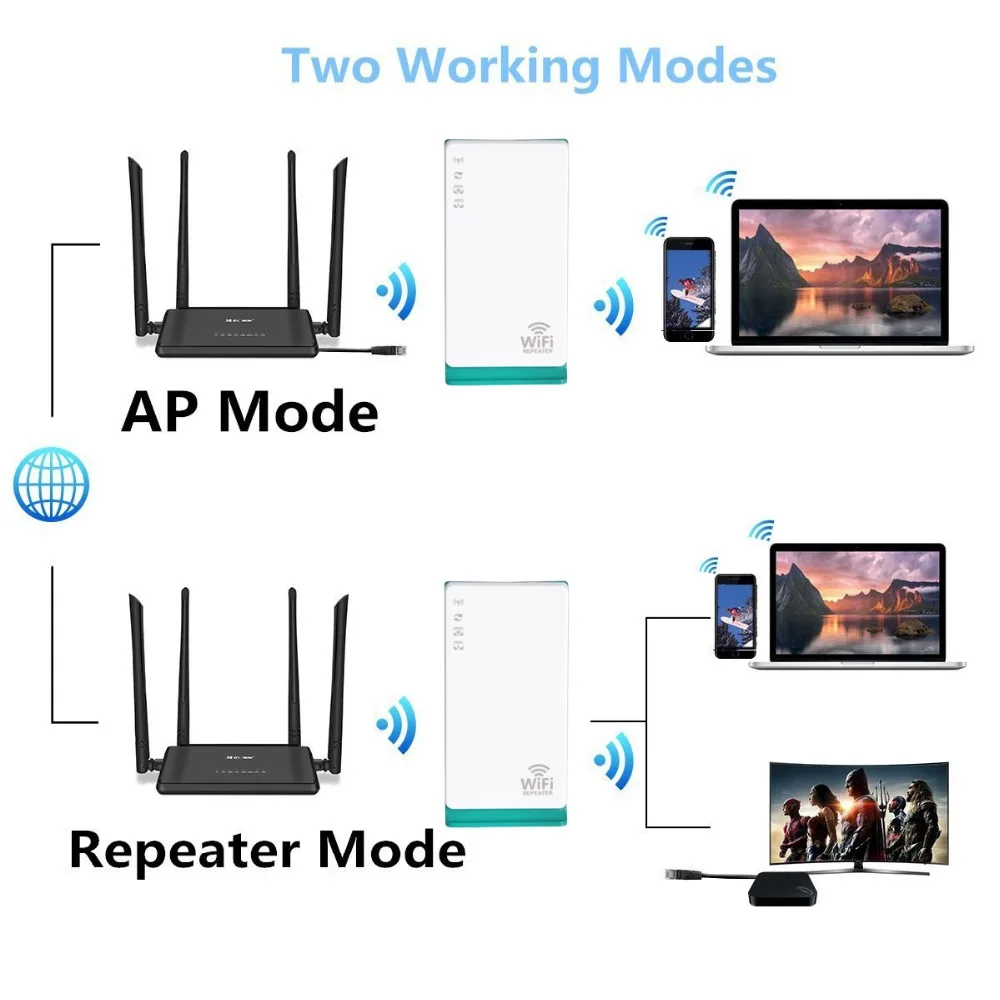

Wireless modes	Router, Repeater, AP mode
Wireless functions	Enable/Disable wireless radio, WDS Bridge, WMM, Wireless Statistics
Wireless security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption
SOFTWARE
WAN type	Dynamic IP/Static IP/PPPoE/PPTP/L2TP
DHCP	Server, Client, DHCP, Client List, Address Reservation
Quality of service	WMM, Bandwidth Control
Port forwarding	Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS	DynDns, TZO
Firewall security	DoS, Firewall, IP address filter/MAC address filter/Domin filter IP and MAC address binding
Management	Access control, Local Management, Remote Management
OTHER
System requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, MAC OS, NetWare, UNIX OR Linux
Environment	Operating Temperature: 0 - 40 degree, Storge Temperature: -40 - 70 degree, Operating Humidity: 10% - 90% non-condening, Storage Humidity: 5% - 90% non-condensing

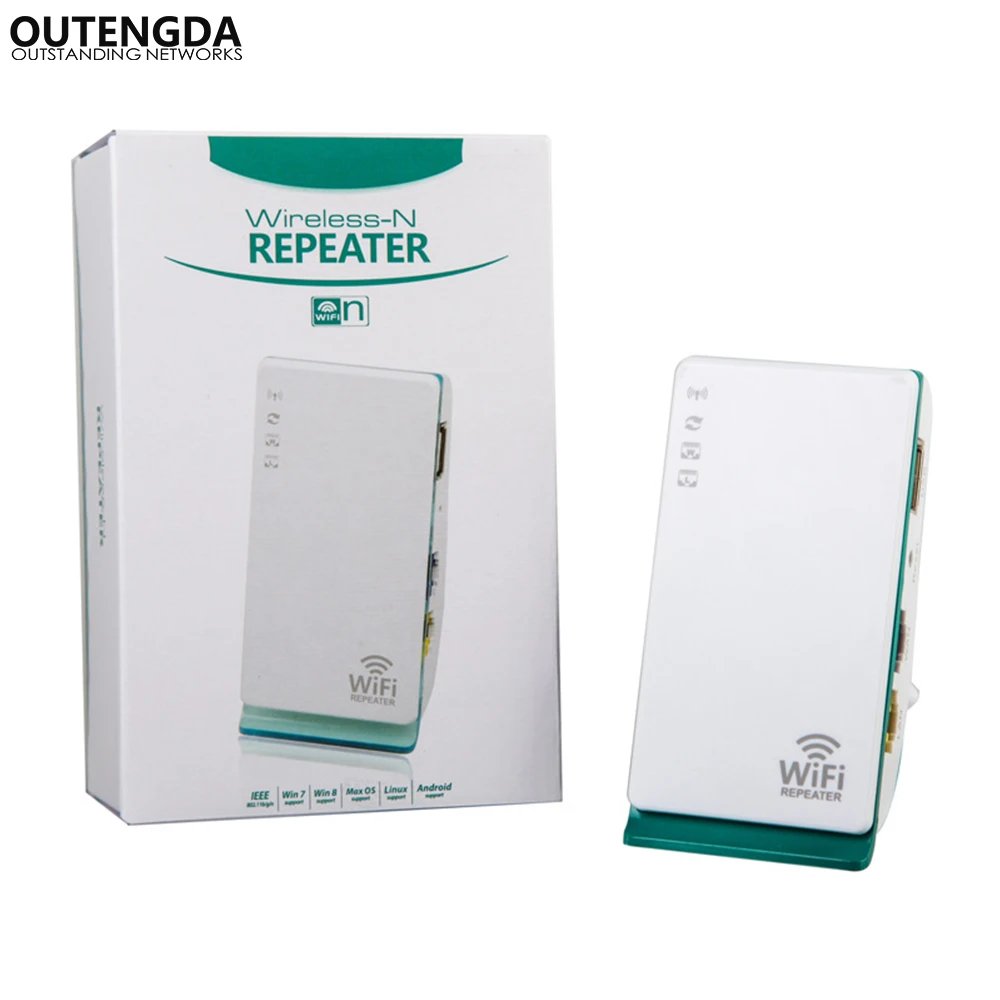

Package Contents 1X 40WR Wireless Repeater (EU Plug)
1X English User Manual Original gift box packing
