Product Description:

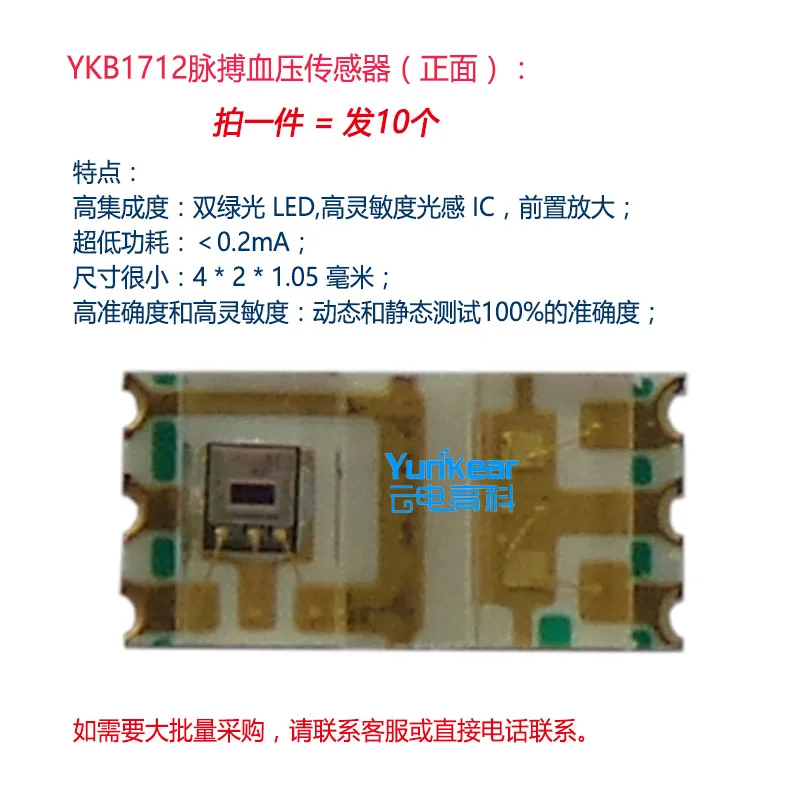

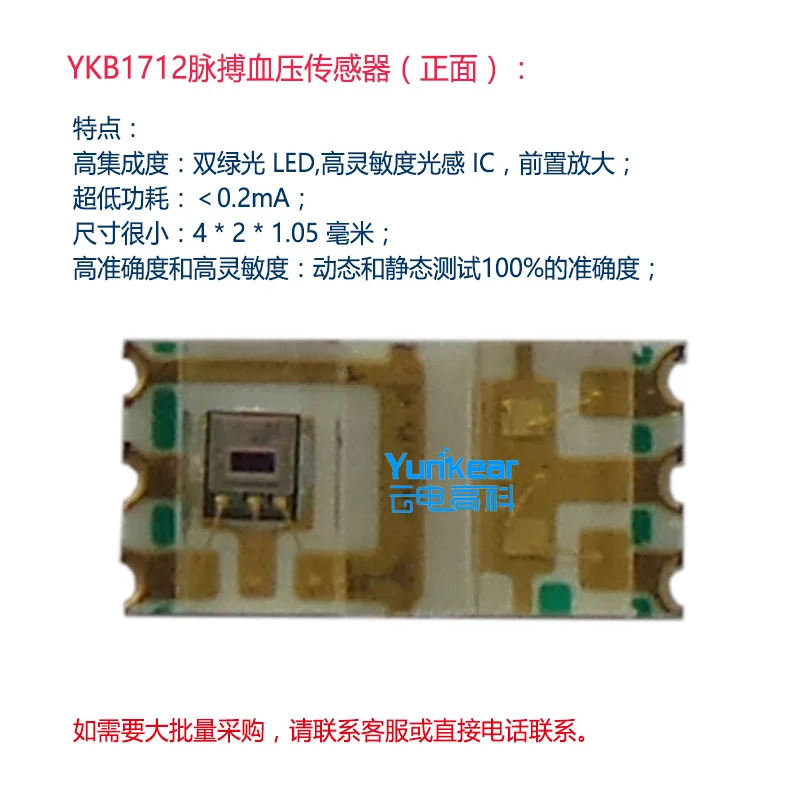

YKB1712 is the latest ultra low power pulse blood pressure sensor chip, which uses the photoelectric volume pulse wave tracing (PPG) to induce the human heart's heartbeat information and extract the pulse wave. The product uses high sensitivity light sensing IC, 2 green LED and low noise preamplifier, and has lower power consumption. It is suitable for wearable products, mobile phones, medical devices and other fields.

The reflective photoelectric pulse sensor chip is used to make the measurement more freer, and can be placed in various parts of the body to test the heart rate and pulse. Heart rate and pulse measuring instruments are widely used in wearable electronics and new testing methods.

The YKB1712 pulse sensor chip is integrated with a high tech nano coating environment light detection sensor, filtering the light source that does not need, and reducing the miscarriage of judgment by other light sources. The accuracy is high.

The YKB1712 pulse blood pressure sensor chip uses the green light that is most suitable for measuring the 550nm wavelength of pulse, which is higher in reflectivity and higher in measurement than infrared light, and improves the characteristic of S/N ratio.

Parameter characteristics:

• High integration: dual green LED, high sensitivity photosensitive IC, pre amplification.
• Ultra low power consumption: < 0.2mA
• The size is small: 4 * 2 * 1.05 mm
• Independent power supply
• high sensitivity
• Dual green light LED wavelength: 550nm
• Receiver wavelength: 550nm
• Nanoscale coatings with corresponding wavelengths on the receiving end
• crystal-less
• Working voltage: 2.3V-6V
• The mean voltage is 3V, based on customer decision

• Ultra low power consumption: < 0.2mA; it solves the high power consumption annoyance of heart rate sensor, supports long time dynamic heart rate pulse monitoring and perfectly takes into account other functions.
• SMT package, small volume: 4mm X 2mm X 1mm;
• High accuracy and high sensitivity, as well as precise testing of any parts of the body for any group of people.
• The circuit is simple and the peripheral devices are few, so it is convenient for development and design.
• Customer defined usage environment: active monitoring of or long term monitoring;
• Motion monitoring to meet the needs of large data analysis.
• Customization function: passive heart rate monitoring, pulse wave analysis, dynamic heart rate monitoring … …

The most important features:

• Low cost: more than 50% lower than the same type of product; using the whole heart rate / blood pressure program provided by cloud electric high tech has a very high price performance ratio.

• Exercise heart rate monitoring:

• Motion heart rate monitoring with serial port output:

Application scope:

It can be widely used in medical treatment, portable electronic products, watches, bracelets, fitness equipment and sports products.

Intimate service:

Provide full range of technical support to help customers debug the most satisfactory state.

Product technical data link

• YKB1712 pulse blood pressure sensor chip "Data Handbook" link:
• YKB1712 heart pulse blood pressure sensor chip and HR6706 heart rate IC application circuit link:
• HR6706 heart rate IC "Data Handbook" link:

• The exercise heart rate monitoring kit includes one YKB1712 sensor chip, a HR6706 heart rate IC, which can directly output square wave signal and sine wave according to our circuit diagram, which is convenient for customers to use.
• The motion heart rate monitoring kit with serial port output includes a YKB1712 sensor chip, a HR6707 heart rate IC and a SF9709 algorithm MCU, which can directly output the square wave signal, the sine wave and the serial port UART signal according to our circuit diagram, which is convenient for the customer to use. Cloud electric high school official Taobao shop:

'
