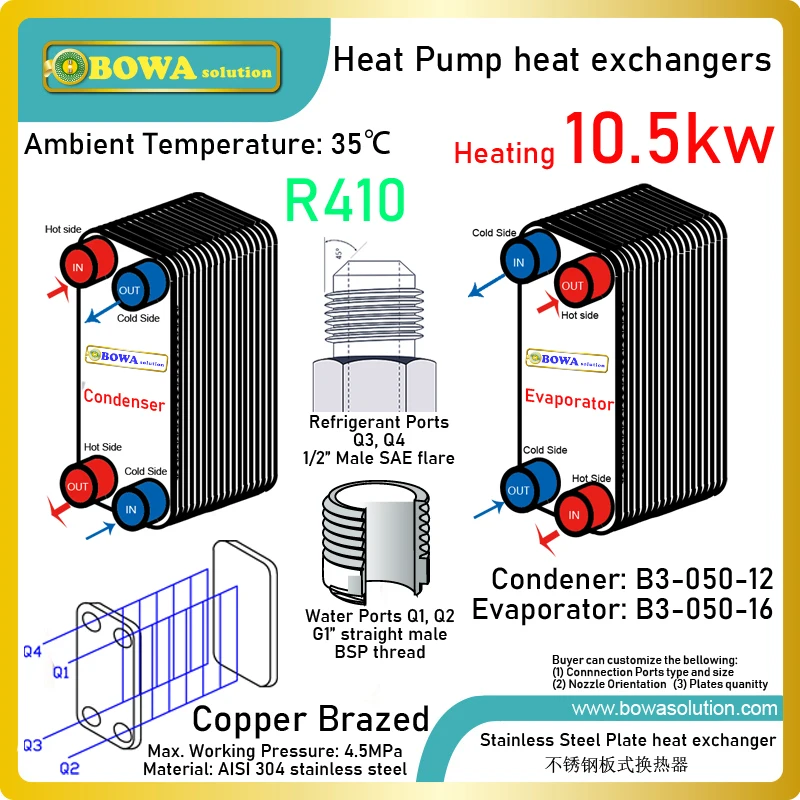

Медный паяный пластинчатый теплообменник 9000 кКал для компрессора 3HP R410a с водяным
18 561,09 - 39 128,79 руб.
5PCS~50PCS/LOT TC58BVG0S3HTA00 TSOP48 New original | Бытовая техника
1 227,79 - 8 767,61 руб.
Чистый синусоидальный инвертор PCB Материнская плата пустая (20 трубок)
1 679,28 руб.
K-50M Balun 1:1 баллон для коротковолновой антенны любительской | Бытовая техника
4 255,25 руб.

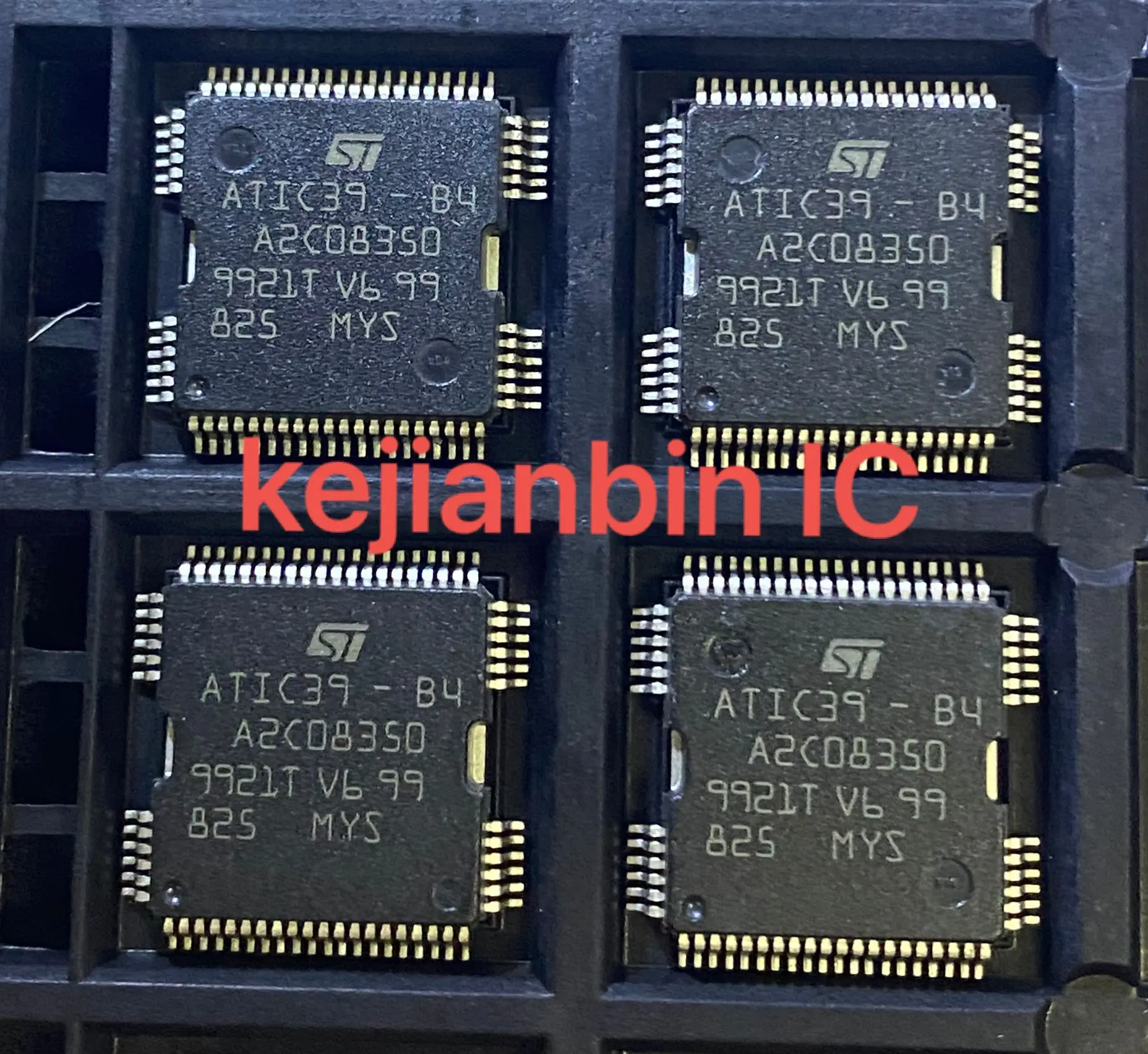

10 ~ 50 шт./лот Atic39 ATIC39-B4 A2C0835 A2C08350 HQFP64 новый оригинальный Бесплатная доставка |
4 023,15 - 17 596,76 руб.
Линейный ПЗС-датчик 6-го поколения TSL1401CL линейная ПЗС-фотоэлектрическая группа |
2 024,17 - 6 479,14 руб.
Window Adaptor Tube Connector/Window Seal Kit Plate for Portable Air Conditioner&Heat Pump Line Set Cover AC Vent Exhaust Ho | Бытовая
Vector Trading Company
Магазина Vector Trading Company работает с 11.08.2010. его рейтинг составлет 93.68 баллов из 100. В избранное добавили 1687 покупателя. Средний рейтинг торваров продавца 4.8 в продаже представленно 2865 наименований товаров, успешно доставлено 2140 заказов. 269 покупателей оставили отзывы о продавце.
Характеристики
RX730C Microwave Sensor Module Voltage Output Detector | Бытовая техника
История изменения цены
*Текущая стоимость 5 397,78 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-06-2026 | 6854.45 руб. | 6991.57 руб. | 6922.5 руб. |
| Feb-06-2026 | 5559.16 руб. | 5670.97 руб. | 5614.5 руб. |
| Jan-06-2026 | 6746.54 руб. | 6881.66 руб. | 6813.5 руб. |
| Dec-06-2025 | 6692.17 руб. | 6826.93 руб. | 6759 руб. |
| Nov-06-2025 | 5343.8 руб. | 5450.11 руб. | 5396.5 руб. |
| Oct-06-2025 | 6584.49 руб. | 6716.64 руб. | 6650 руб. |
| Sep-06-2025 | 6530.22 руб. | 6661.20 руб. | 6595.5 руб. |
| Aug-06-2025 | 6476.76 руб. | 6606.99 руб. | 6541 руб. |
Описание товара
modname=ckeditor
RX730CMicrowave inductor description
BBasic characteristics
Integrated microwave sensor in this device,Microwave analog amplifierThe frequency filtering circuit, the microwave power management, the data micro processing, the control output port, the sensitivity adjustment and so on. The selected electronic components and the hardware and software design scheme realize the low power, high reliability, long life and friendly and easy to use output ports, of which the smaller power consumption greatly reduces the demand for the power supply.
The built-in microcontroller can judge the surrounding environment and microwave receiving efficiency according to the characteristics of the microwave signal, and use these data to make the special fuzzy logic judgment technology to adjust the intermittent ratio of microwave work, so that the system has been running at the best balance point of low power and high reliability. On the processing of microwave signals, the software program has the functions of power frequency interference filtering, transient interference filtering and so on.
RX730CUsing the high performance microwave sensor module, the frequency of the sensor is 10.525GHz, the work is very reliable, the induction range is easy to control, and the low frequency microwave such as 2.4GHz and 5.8GHz, such as the frequency band of microwave field intensity is unstable.
RX730CThe microwave sensor has an average life expectancy of 24 hours and a continuous operation of up to 8 years.
B Induction distance regulation
The blue and yellow potentiometer in the upper right corner of the inductor is the induction distance adjustment knob. Clockwise rotation of the induction distance is far away, and vice versa.
B Induction range
The knob is adjusted by the rotating distance.1.5riceThe linear distance between 10 meters will vary according to the environment, the size of the tested body, the movement characteristics and the direction of walking.
B State indication
In standby state, the green light is on, output3VHigh level. When the alarm state, the green light goes out, the red light is on, the output is out.0.6VLow level.
| port | J1-1 | Power Supply land |
| J1-2 | Control output3.3V | |
| J1-3 | Power cathode | |
| Power Supply | supply voltage | 9 ~12V DC |
| consumeElectric current | Less than 15mA | |
| angle | portrait | 60°-90° |
| transverse | 110°-150° | |
| temperature |
| -10—65Centigrade |
| distance | routine | 7mWithin adjustable |
| size | standard | 47×58(mm) |
'
