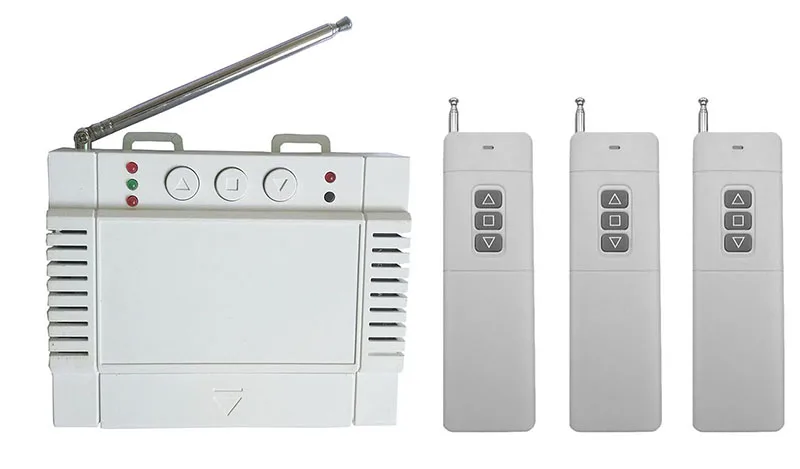

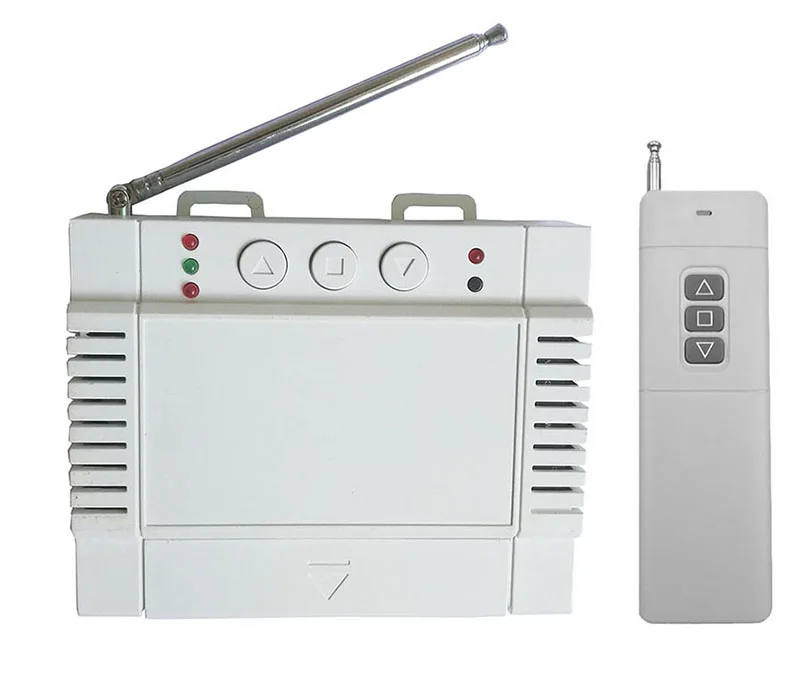

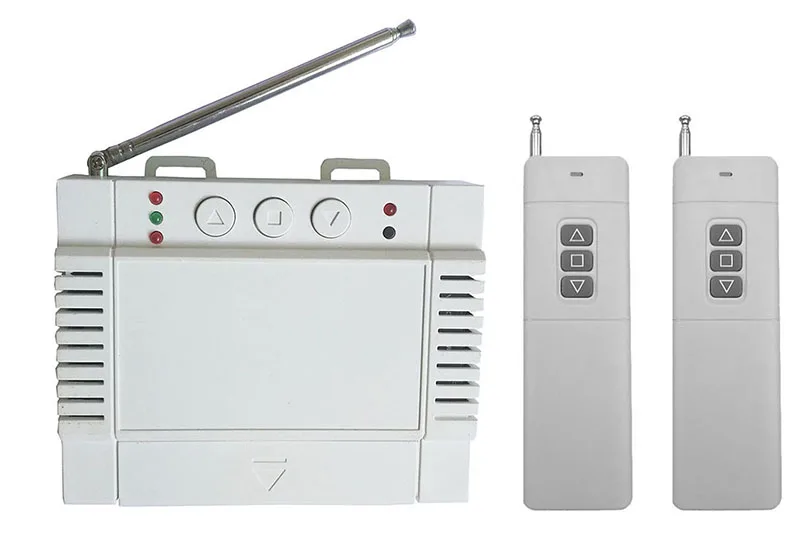

3000m Long Range AC220V 250V 380V 2CH RF Wireless Remote Control Tubular motor garage door/projection screen/blinds/shutters | Электроника

3000m Long Range AC220V 250V 380V 2CH RF Wireless Remote Control Tubular motor garage door/projection screen/blinds/shutters | Электроника

2 channel controller is our newly developed a new controller, the adoption of stmicroelectronics company STM8 chip, ensure the reliability of the quality strictly, using 40 a relay, greatly improving the ability to load, receiving signal using real superheterodyne RXB6 module, sensitivity - 111 DBM, sensitivity and anti-interference ability far supermarket on super-regenerative superheterodyne module, as well as ordinary remote control distance is farther, more stable.

This product choose ivory white color shells, give a person a kind of simple sense, shell strong wear resistance, with small volume size 36 mm * 110 mm * 92 mm, the input AC voltage, applied to positive &negative motor, motor control circuit, etc., such as greenhouses rolling machine, all kinds of lifting equipment, lifting equipment, industrial signal control, etc.

Working voltage: AC220V – 380V

Working frequency: 315/433mhz;
 Maximum load: 3000 W, rated load 1500 W

Size: 110 mm * 90 mm * 36 mm

Learning methods

Electricity  the buzzer rang, press  the learning button ,  and then press any key, indicator light flashes three times （ mean  normally on learning success）.

Note: the controller can be learn fixed code/learning code 16 different coding .if up 16, remove the first study of the remote control

Remove method

Continue to hold down the  learning  button about 8 seconds indicator by on to flash three times and go out, said clear success

Output  work  way

1, JOG

2, self-locking  1 (O N)

3, interlock 2 (ON)

Note: 433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency

Package Included:

A:

1x Receiver(with cover)

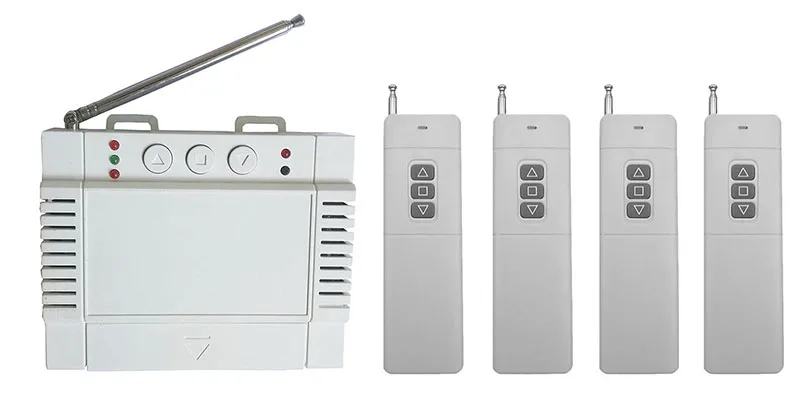

4x Transmitter(with battery)
