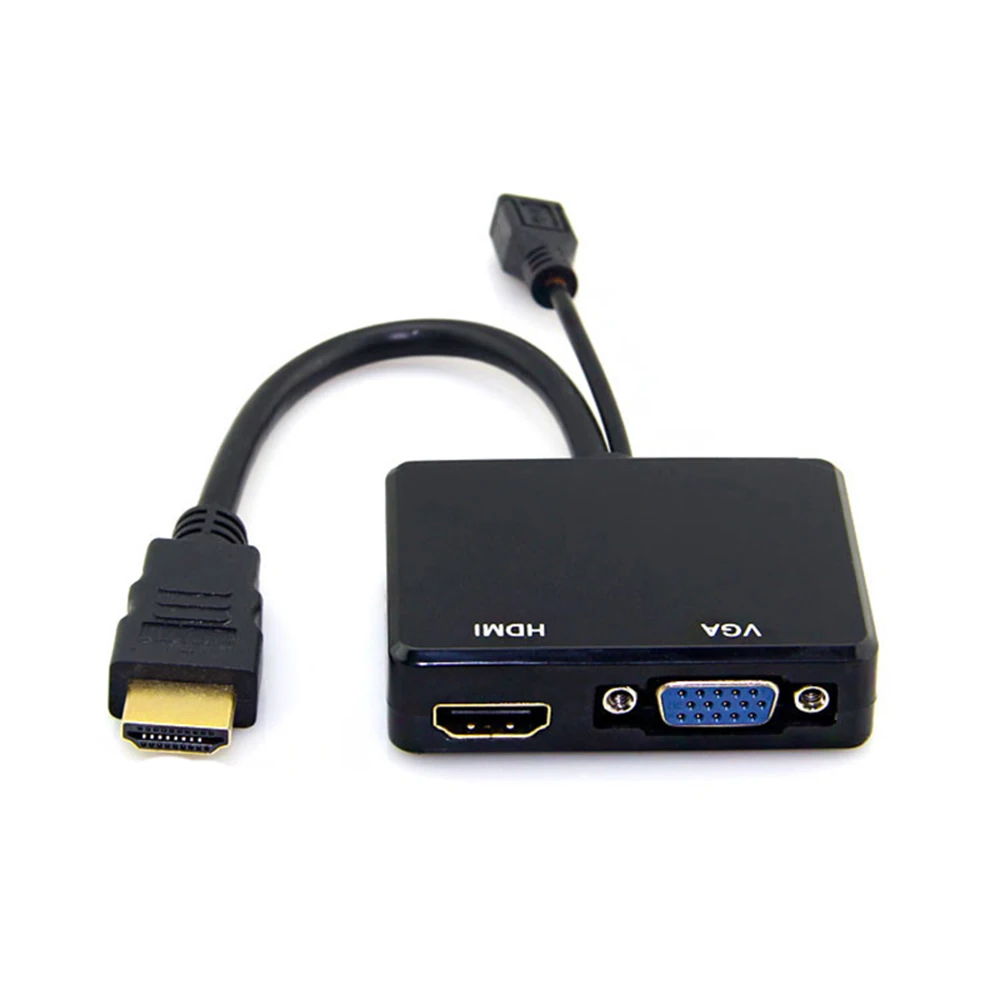

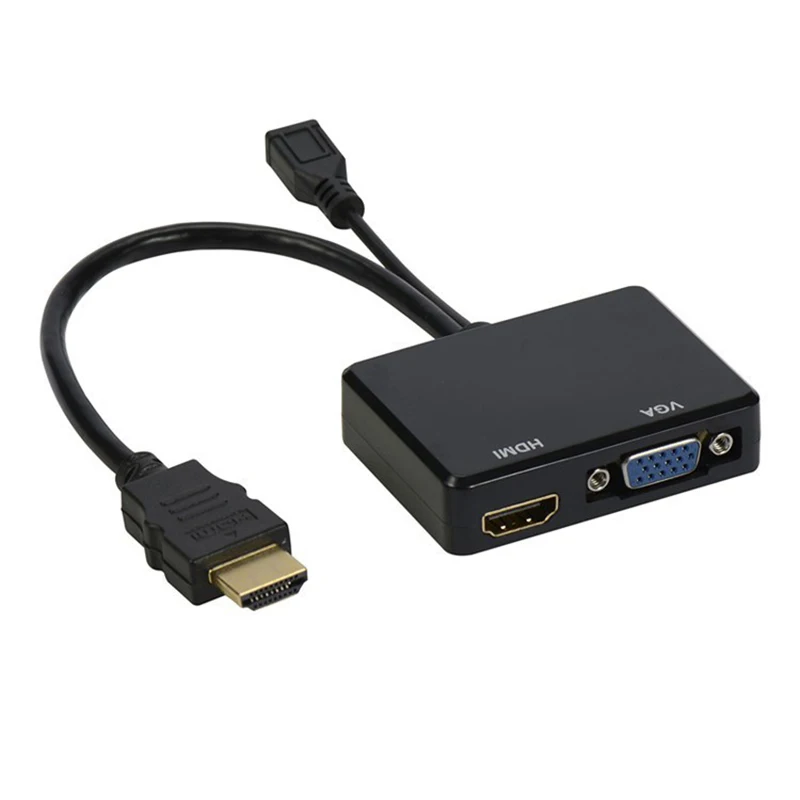

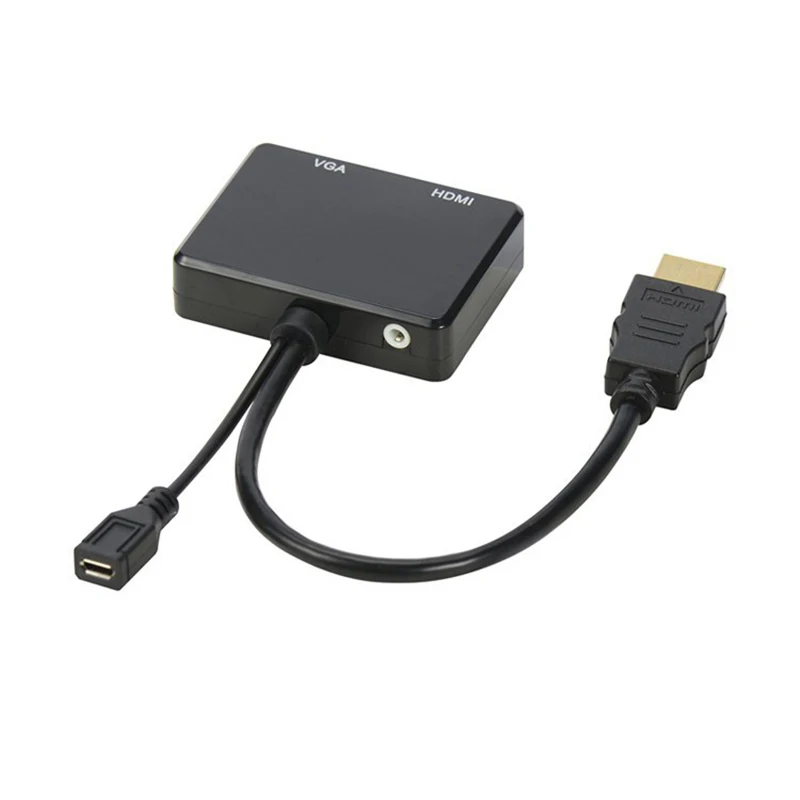

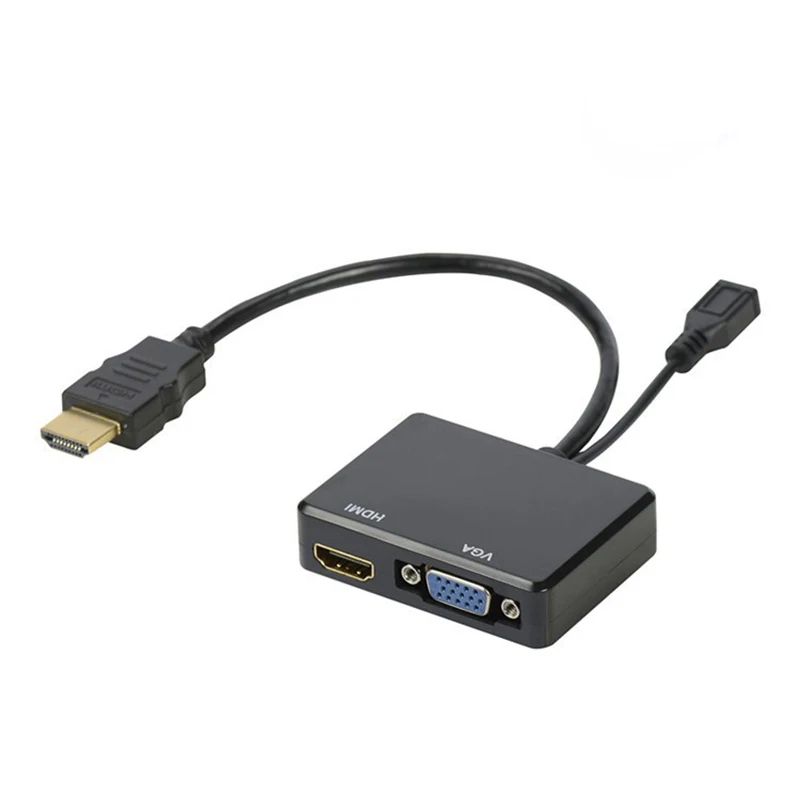

HDMI to + VGA Converter With Audio Cable Divider Two Points HY-010 Black |

HDMI to + VGA Converter With Audio Cable Divider Two Points HY-010 Black |

<b><br/>HDMI/ Recever with embedded controller to support the Audio,HDMI and VGA outputs. The on-chip HDMI/MHL/HDCP/CEC/CBUS controller makes the user very easy to use the chip. <br/>It manages HDMI/MHL RX, HDMI TX and HDCP function automatically without the need for user to develop firmware.The CEC Controller provides the CEC physical  layer transceiver and handles the protocol layer automatically. <br/>The CBUS Controller provids the traslation between the MHL RAP/RCP Pequest and the HDMI CEC Command automatically. The chip supports 1 HDMI/MHL RX port and 1 HDMI TX port the with repeater function.  <br/>The chip also supports  decoded Audio and VGA output.      <br/>The chip is compliant with HDMI1.4 and  MHL 2.0 specification. In HDMI RX, this chip supports SD/HD Audio and Video in 12-bit Deep Color up to 1080p(225Mhz TMDS clock). In MHL RX,this chip supports the resolution up to 720p 60 Hz, 1080p 30 Hz or 1080p 60Hz in PackedPixel Mode.  <br/>The chip also supports on-chip HDCP RX/TX engines and EDID RAM. <br/>CablesX1 <br/>Audio line X1<br/>     1.HDMI//HDCP controller which manages HDMI/MHL RX,HDMI TXand HDCP automatically without the need for user to develop firmware   2.CBUS controller which provides the translation between the MHL RAP/RCP Request and the HDMI CEC Command;HDMI/ Recever core which is compliant with HDMI 1.4 and  specification   3.HDMI Trnsmitter core which is compliant with HDMI1.4 specification   ;HDCP RX/TX Engine which is compliant with HDCP1.4 specification;Support LPCM and Compressed Surround Audio     4.DACsupporting up to 150 Mhz pixel  rate for VGA output port    ;Support HDMI Repeater function;Audio Decoder which support 2-channel IIS and S/PDIF sudio outputs     5.Support YCC422 TO YCC444 conversion;Support YCC to RGB converdion in ITU-R BT.601 and 709 color space;Support Separate Sync and/or SOG (Sync On Green) on VGA output
