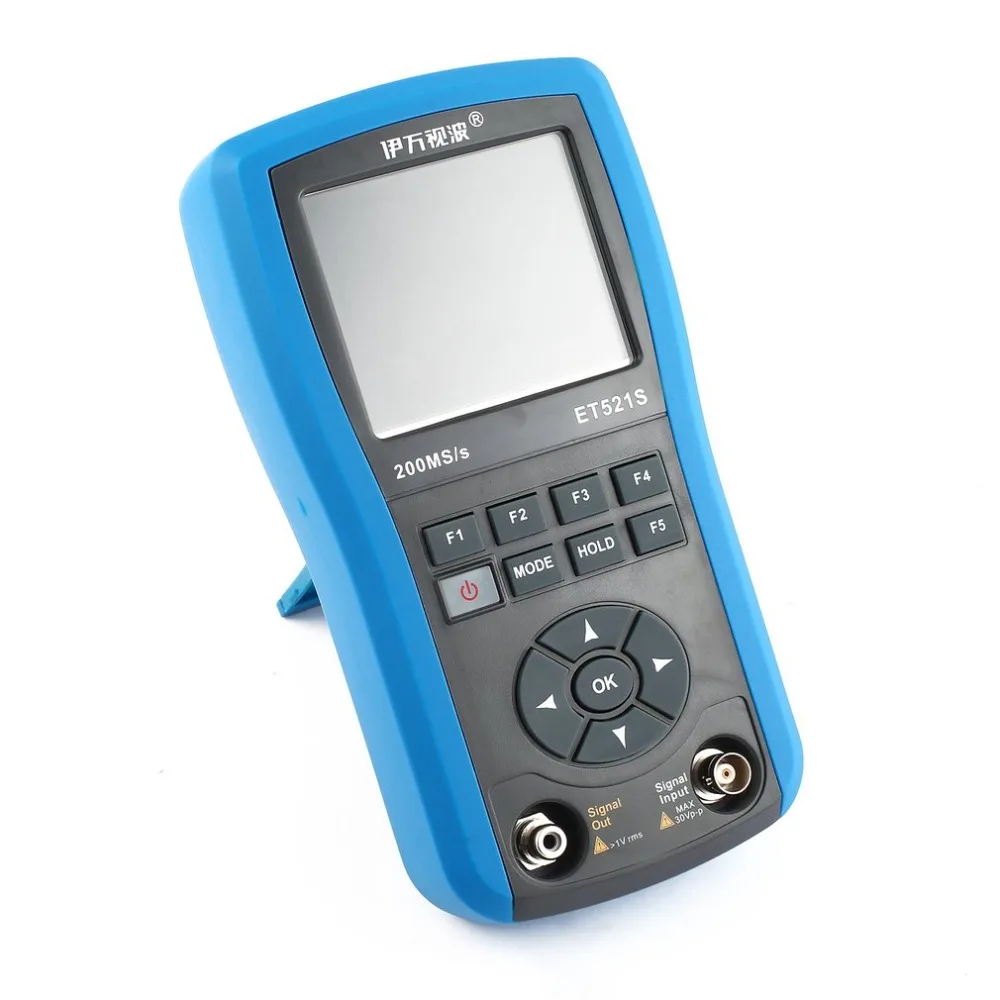

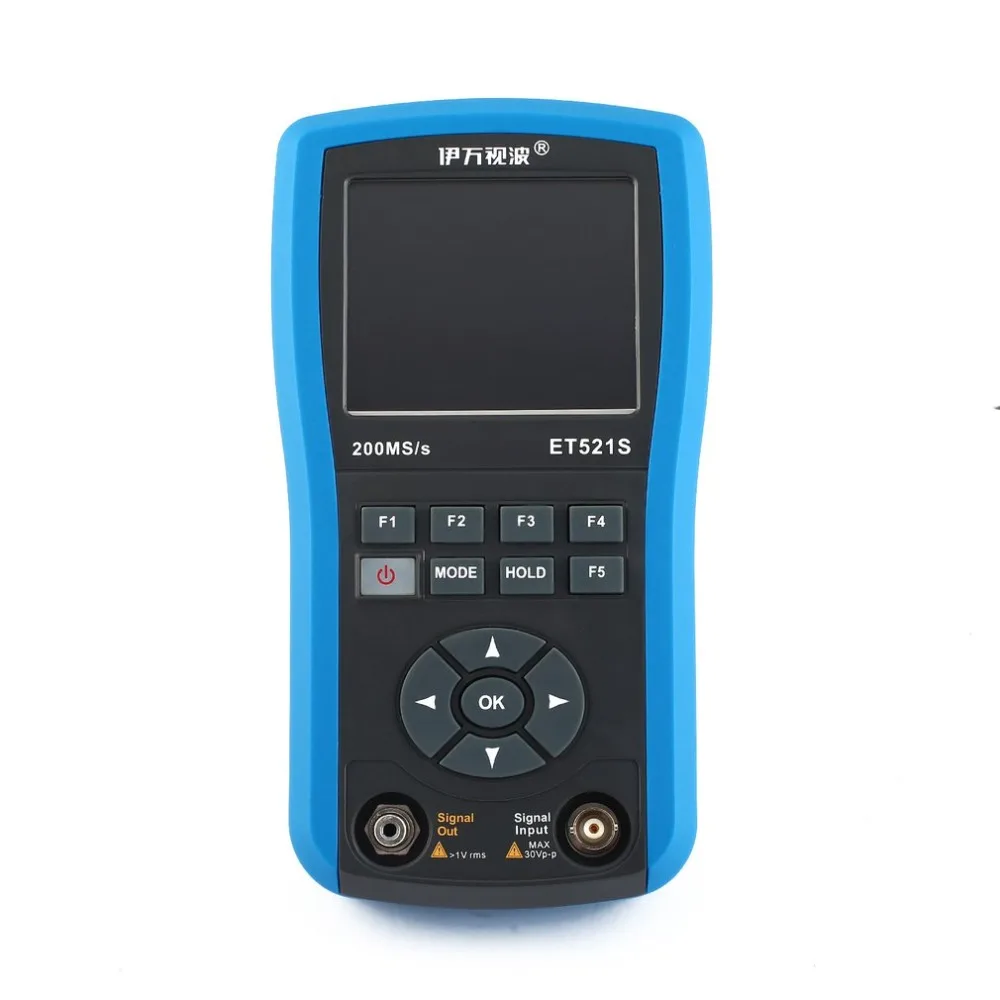

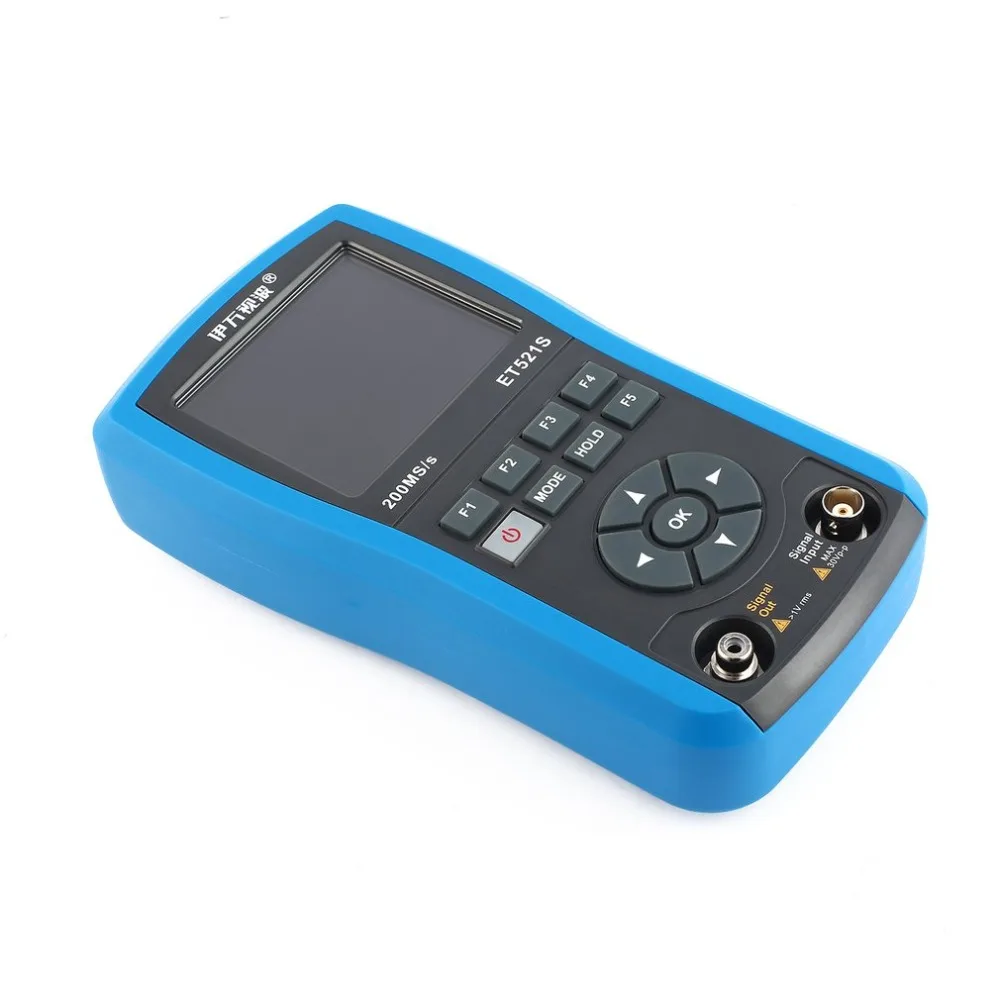

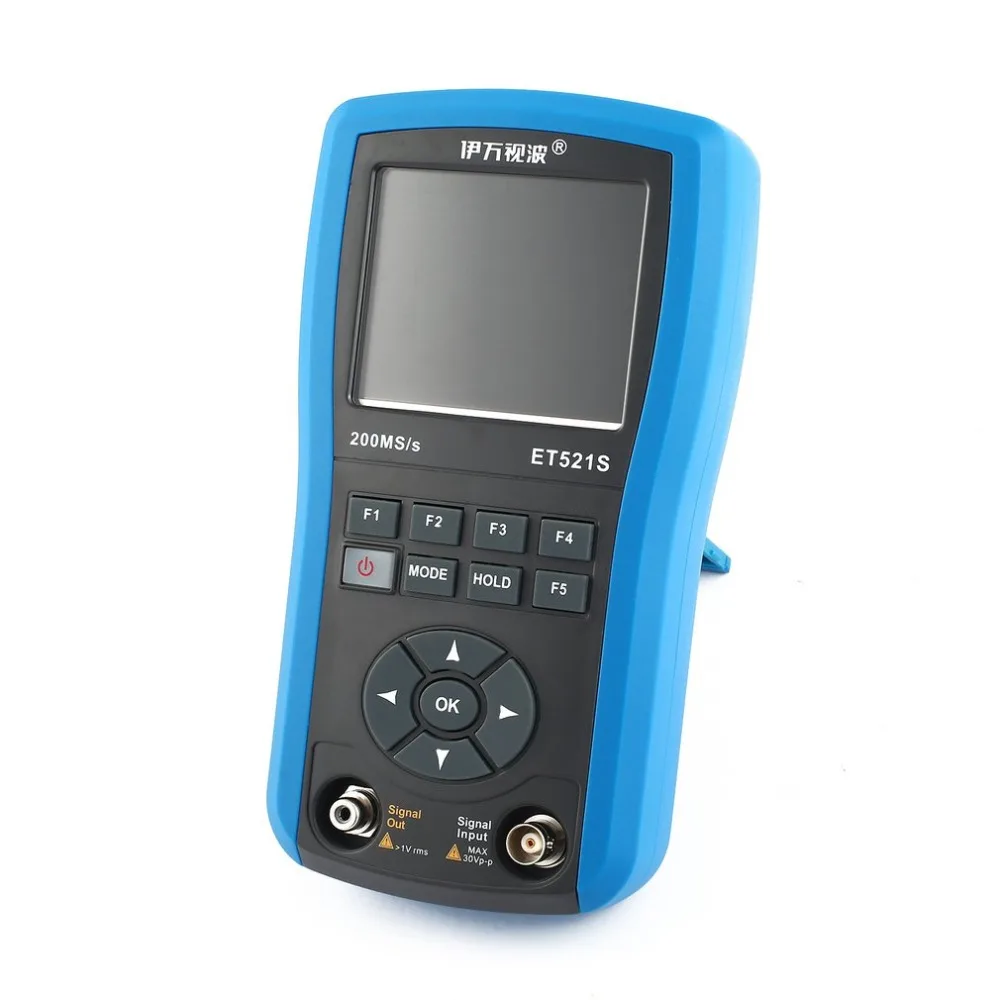

EONE ET521S Scope Meter Digital Oscilloscope Multimeter Built in 2300mAh Lithium Battery Pack High Storage Capacity | Инструменты

---

50M digital storage oscilloscope (DSO) 10Hz~156kHz function signal generator (DDS) Function and measurement of Chinese help window, prompt button DSO realizes one button type (AUTO) automatic measurement Store / read up to 40 DSO waveforms The test system is composed of sine wave, triangle wave, sawtooth wave and square wave signals, which are used together with oscilloscope function. 320X240 3.5 inch color LCD with LED backlight Built in 1600mAh lithium battery pack, equipped with AC power adapter. Application: it is suitable for home appliances maintenance, teaching, research laboratories, industrial control and maintenance.

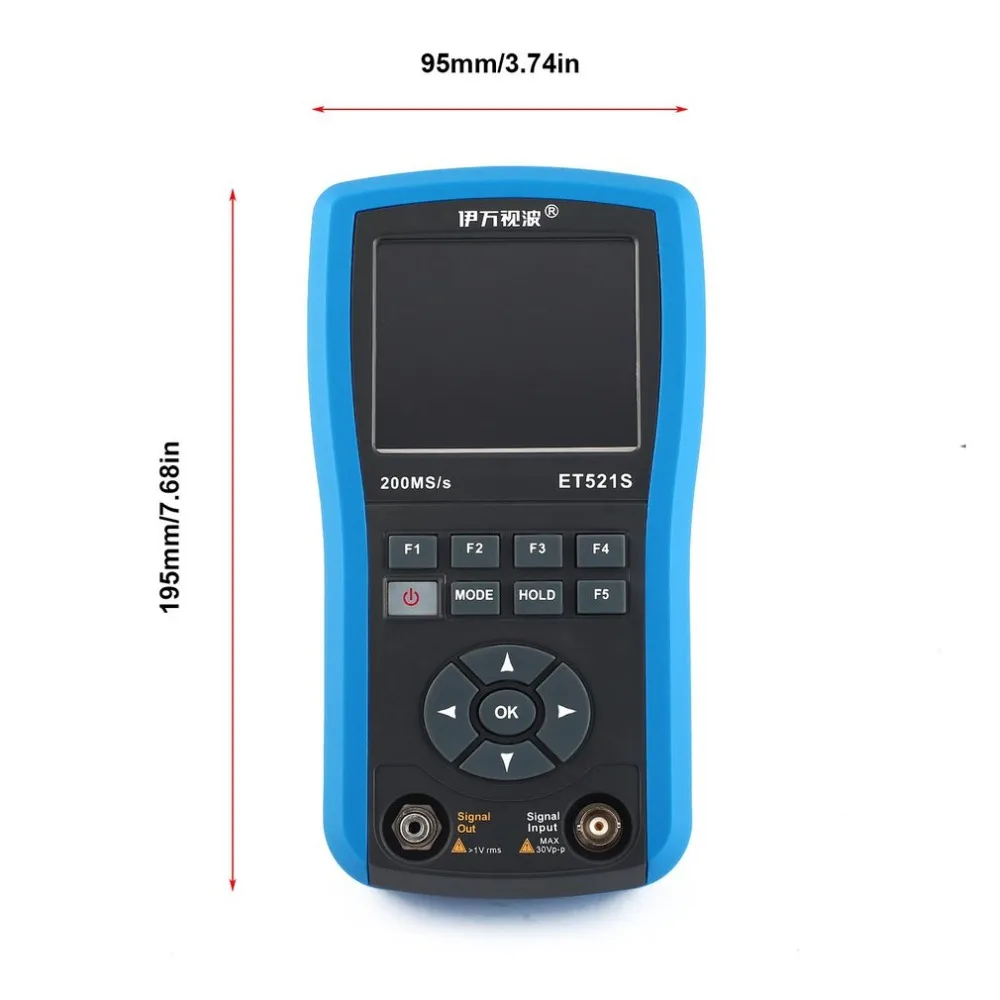

Model: ET521S Color: blue  Display: 320"240 dot array graphic color LCD Observation area: 78*58mm Backlight: white Plug: EU plug Automatic shutdown: 10 minutes Charge time: greater than 4 hours Use time: about 3 hours Storage capacity: 40 sets of waveform records Usage environment: 0 degrees C~+40 degrees C; <75%RH Storage conditions: -10 degree C~ +60 degree C; <90%RH Battery: built in 2300mAh lithium battery pack Power adapter: 110V~250V, 6V/1A, protective switching power supply Item size: 195*95*40mm Item weight: 579g

Package size:240*180*75mm / 9.45*7.09*2.95in Package weight: 1046g / 36.90oz General box package   1 x ET521S host 1 x 521S oscillograph probe 1 x Signal output line 1 x The power adapter 1 x A bag in Oxford 1 x Product manuals (including product warranty regulations, user receipt)
