Описание товара

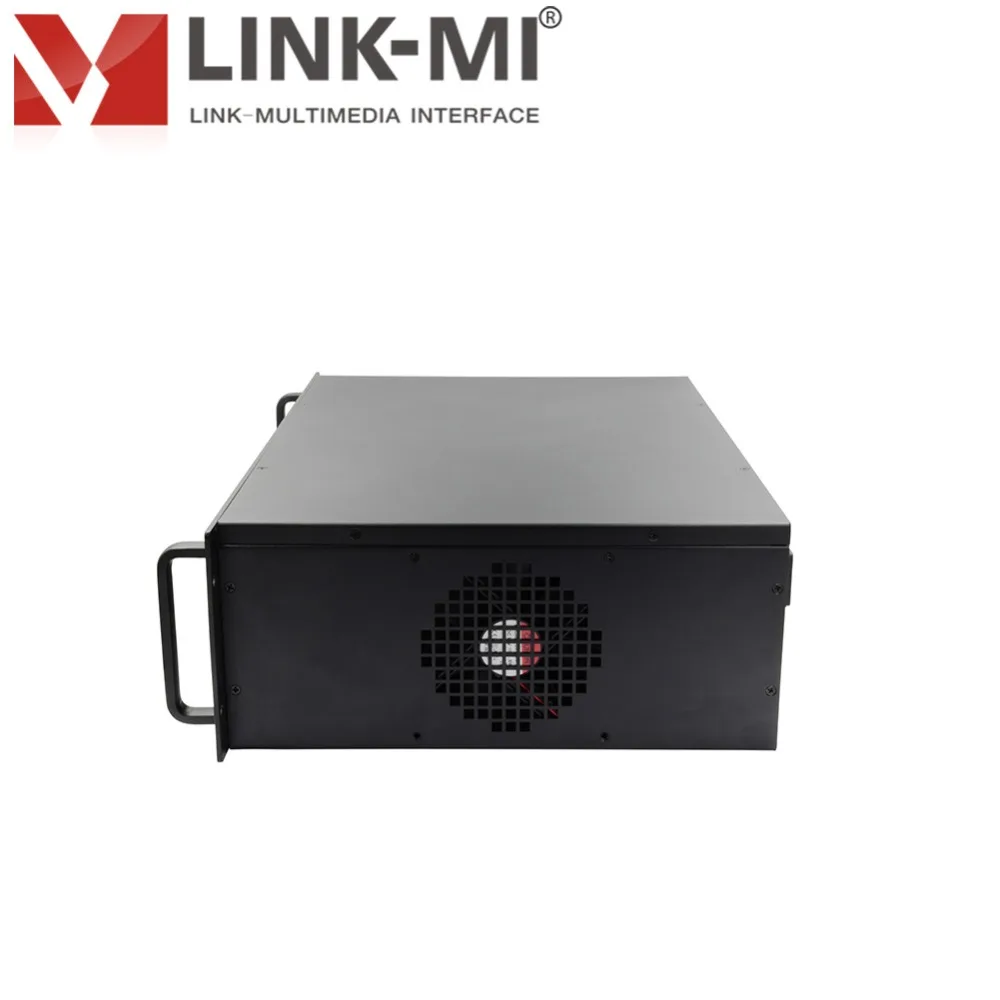

LINK-MI LM-MXS16 16 ports 4K HD Matrix Switcher
Introduction
Model No. : LM-MXS16
Product Type: 4K HDMI Matrix
Features
1. Matrix switcher is a professional switching device embedded intelligent control of a high performance, for the audio and video input signal synchronous switch to any output channels of audio and video;
2. The unique processing method is adopted, which greatly improves the switching speed of the device. Support a variety of control methods,flexible operation switch, is widely used in radio and television engineering, multimedia conference hall, large screen display works,TV teaching, command and control center;
3. Interface bandwidth 3.4Gbps (total bandwidth 10.2Gbps),support the highest resolution3840*2160@30Hz;
4. Support HDCP1.4revision, provides outstanding security and digital content protection capabilities;
5. Support fast switching operation; support infrared remote control;
*The input and output board support card function, can be hot swappable;
6. Supports basic matrix control instructions and basic matrix functions;
*With power down memory function, with power off site protection function;
7. Flexible control mode, with the crystal button panel operation, but also provides 2 standard RS-232 communication interface and RJ45 port,compatible with a variety of environments, user-friendly and a variety of remote control equipment with the use of;
One RJ45 interface use RS232,It is a serial port;
One RJ45 interface use TCP/IP,it is LAN port;
8. Built in International standard power;
9. Full metal chassis compatible with standard 19 inch cabinet;
10. Support user defined matrix front panel LCD screen standby and control software LOGO;
11. Support HDCP can decode Blueray DVD and so on the corresponding equipment.

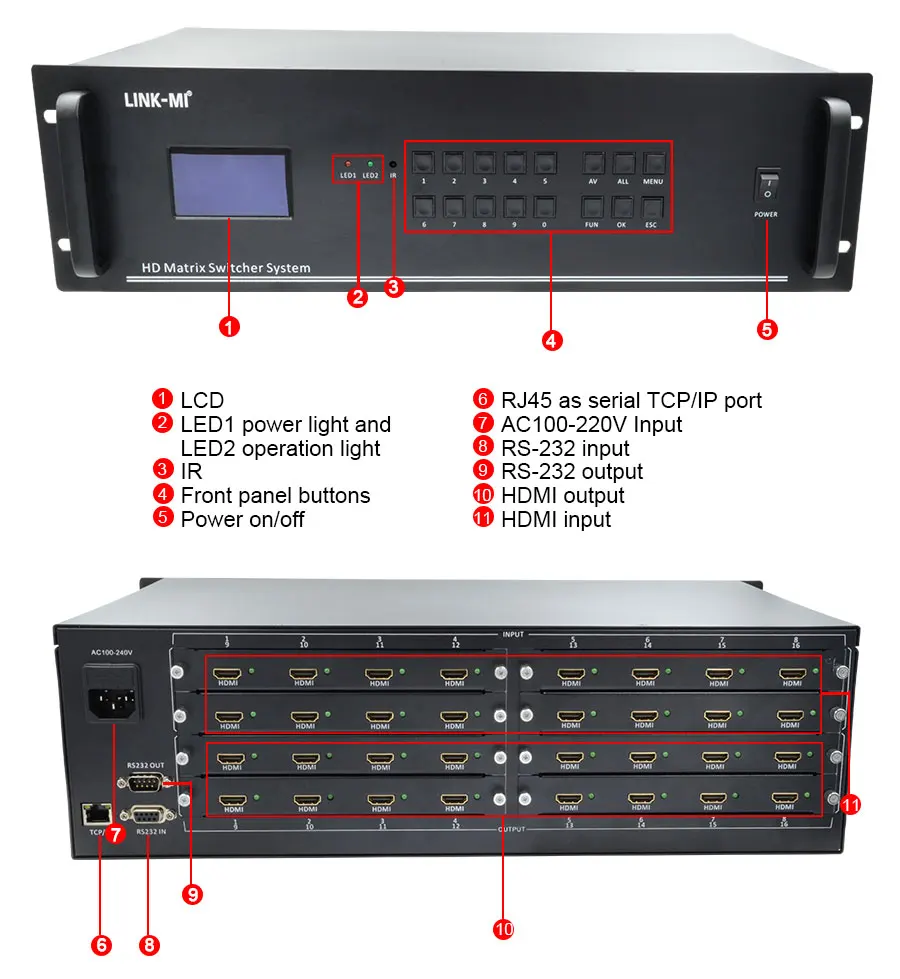

Panel Description

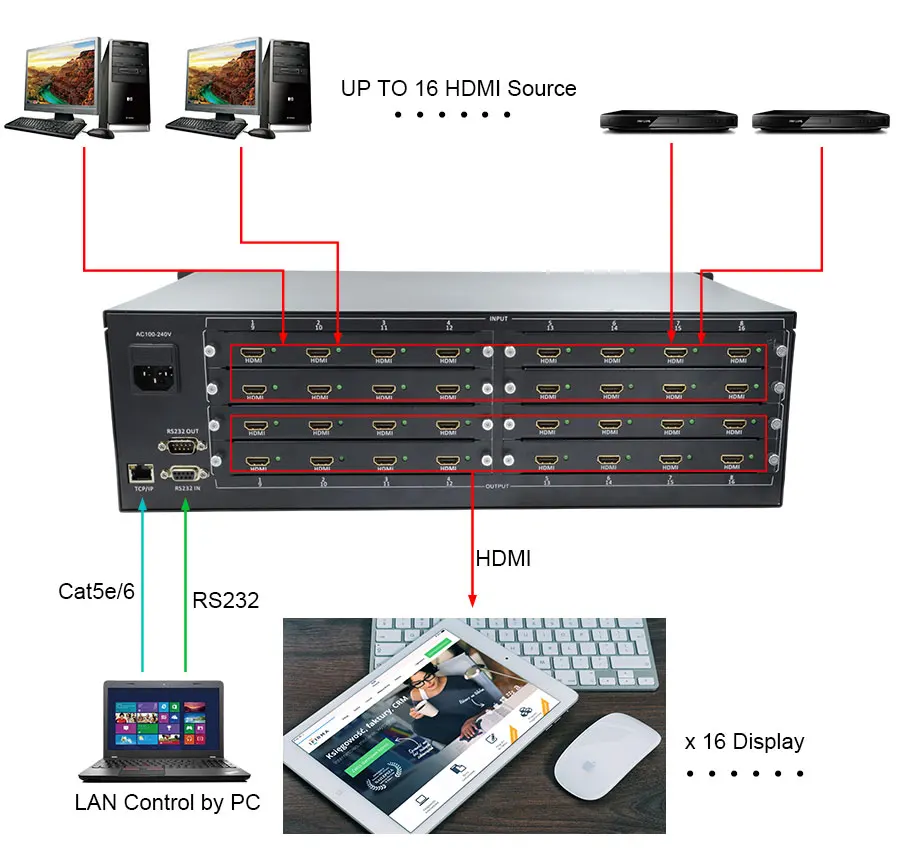

Connection Diagram

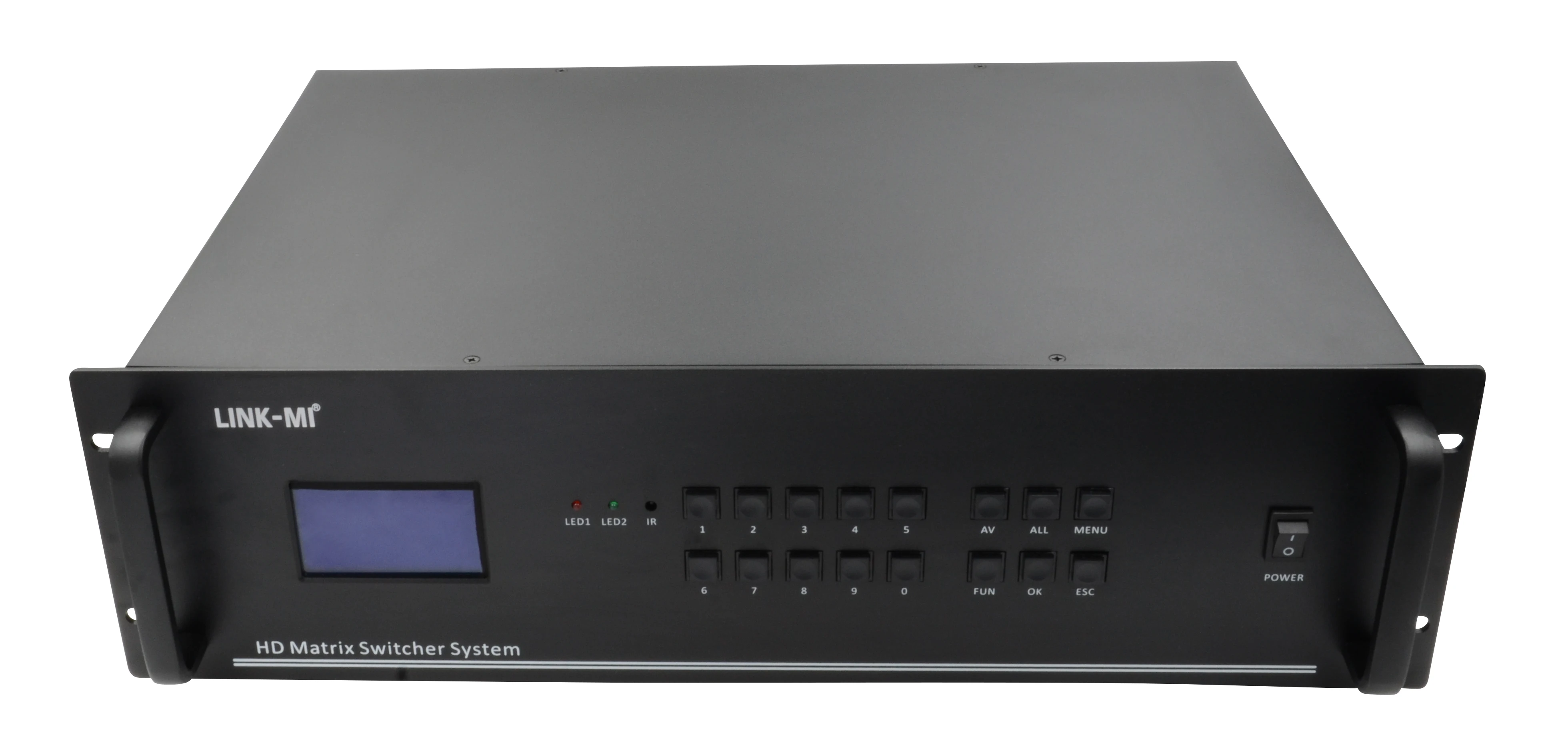

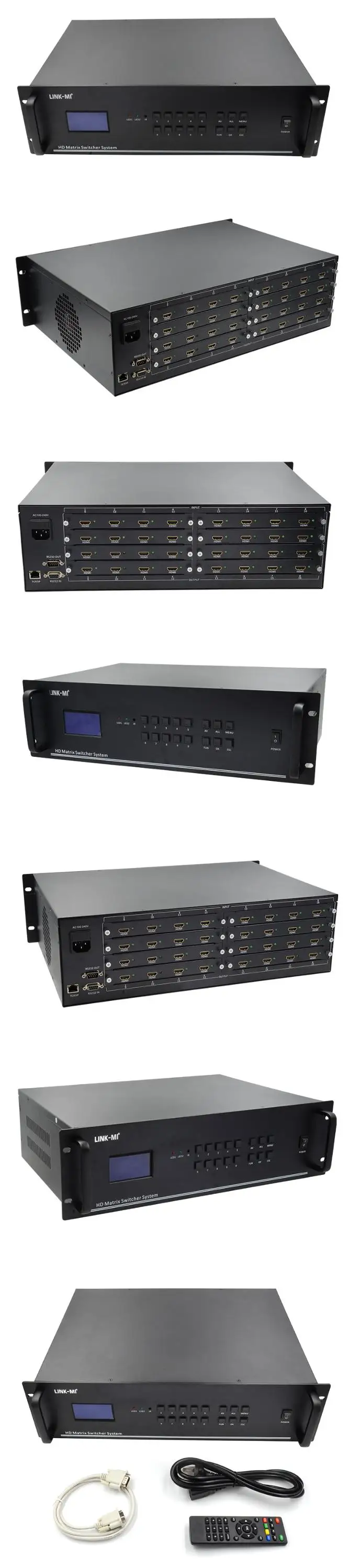

Detailed Image

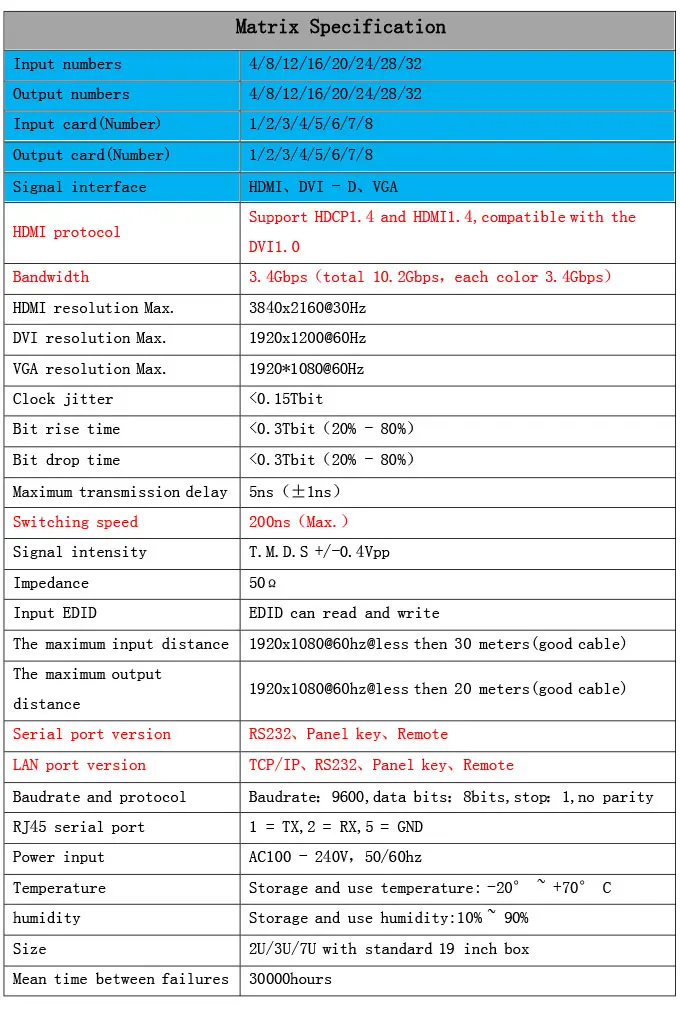

Specification
