Характеристики
SUPER ELASTIC Nitinol sheet NiTi PLATE 1.0mm thickness nitinol for model heat engines free shipping | Инструменты
История изменения цены
*Текущая стоимость 178 262,48 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-18-2026 | 212132.24 руб. | 222739.22 руб. | 217435.5 руб. |
| Feb-18-2026 | 210349.14 руб. | 220866.29 руб. | 215607.5 руб. |
| Jan-18-2026 | 176479.44 руб. | 185303.12 руб. | 180891 руб. |
| Dec-18-2025 | 206784.70 руб. | 217123.9 руб. | 211953.5 руб. |
| Nov-18-2025 | 180045.27 руб. | 189047.1 руб. | 184546 руб. |
| Oct-18-2025 | 203219.24 руб. | 213380.93 руб. | 208299.5 руб. |
| Sep-18-2025 | 201436.3 руб. | 211508.34 руб. | 206472 руб. |
| Aug-18-2025 | 199653.9 руб. | 209636.13 руб. | 204644.5 руб. |
| Jul-18-2025 | 197871.61 руб. | 207765.74 руб. | 202818 руб. |
Описание товара

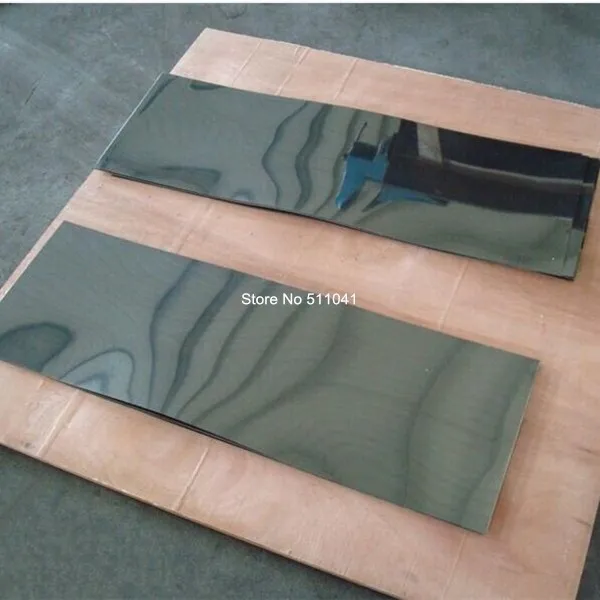

Products description: SUPER ELASTIC Nitinol sheet NiTi PLATE,mm to inch thickness nitinol sheet for model heat engines
It is a titanium-nickel metal alloy with some unique properties. It is also known as Nickel titanium. This alloy exhibits the superelasticity or pseudoelasticity and the shape memory properties. It means this unique metal can remember its original shape and shows great elasticity under stress.Nitinol Symbol is NiTi.Nitinol Properties
The shape memory and superelasticity properties are the most unique properties of this alloy. The shape memory property allows this metal to “remember” its original shape and retain it when heated above its transformation-temperature. It happens due to the different crystal structures of nickel and titanium. This pseudo-elastic metal also shows incredible elasticity which is approximately 10 to 30 times more than that of any ordinary metal.Nitinol Physical Properties
Appearance: bright silvery metal.
Density: 6.45 gm/ cm3 Melting Point: 1310 °C. Resistivity: It has a resistivity of 82 ohm-cm in higher temperatures and 76 ohm-cm in lower temperatures. Thermal Conductivity: The thermal conductivity of this metal is 0.1 W/ cm-°C. Heat Capacity: Its heat capacity is 0.077 cal/ gm-°C. Latent Heat: this material has a latent heat of 5.78 cal/ gm. Magnetic Susceptibility: Its magnetic susceptibility is 3.8 emu- gm in high temperatures and 2.5 in low temperatures. Nitinol Mechanical Properties Ultimate Tensile Strength: The ultimate tensile strength of this material ranges between 754 and 960 MPa. Typical Elongation to Fracture: 15.5 percent Typical Yield Strength: 560 MPa in high temperature; 100 MPa in low temperature Approximate Elastic Modulus: 75 GPa in high temperature; 28 GPa in low temperature Approximate Poisson’s Ratio: 0.3 size:1.0 mm*300 mm*1000 mm Qty:1pcSUPER ELASTIC NITINOL SHEE NiTi-ss Sheet
Features:
※The preferred alloy for super-elastic shapes.
※Ni-rich Binary NiTi alloys, more suited for medical applications,Eyeglass Frames, Cellular Phone Antennae, Bra Underwire.
※The nitinol processing is based on combined thermomechanical treatments where reverse nickel mobility allows very precise control of transformation temperatures and thermoelectric properties. It is the preferred alloy for complex super-elastic shapes.
SUPER ELASTIC NITINOL SHEE NiTi-ss Sheet
1. Chemical Composition(Meets ASTM F2063 Requirements)
| Ni(Nominal) | ≤(wt%) | Ti(wt%) | |||||||
| 55.80wt% | C | Co | Cu | Cr | H | Fe | Nb | N+O | Bal |
| 0.05 | 0.05 | 0.01 0 | 0.010 | 0.015 | 0.050 | 0.025 | 0.050 | ||
2.Transformation Transformation Af (Per ASTM F2004)
| 830℃ for 30 minutes, water-cooling | 0℃±5℃ |
| 500℃ for 10 minutes, water-cooling | 10℃±5℃ |
| 500℃ for 30 minutes, water-cooling | 25℃±5℃ |
3.Sizes
| Thickness and tolerance (mm) | Width(mm) | lenght |
| 0.10 ±0.011 | 150mm | 1500mm |
| 0.20 ±0.01 | 200mm | 1500MM |
4. Mechanical Properties
Baoji Hongtech Titanium&Nickel Metal Co.,ltd
| Tensile strength(N/mm2 ) | Elongation(%) |
| ≥1000Mpa | ≥10 |
5. Physical Properties
| Melting Point D | Density | Electrical Resistivity | Thermal Expansion Coefficient | |
| 1310℃ | 6.45g/cm3 | In Martensite | In Austenite I | In Martensite
|
| 80*10-8Ωm | 90*10-8Ωm | 6.6*10-6/℃
| ||
Skype:sarah032309
Product Images:： SUPER ELASTIC Nitinol sheet NiTi PLATE,mm to inch thickness nitinol sheet for model heat engines
SUPER ELASTIC Nitinol sheet NiTi PLATE,mm to inch thickness nitinol sheet for model heat engines
Relative keyword:
NITINOL PLATE,SUPER ELASTIC NITINOL SHEET,NIITI SHEET
1.0mm nitinol sheet,niti sheet export,super elastic niti sheet
