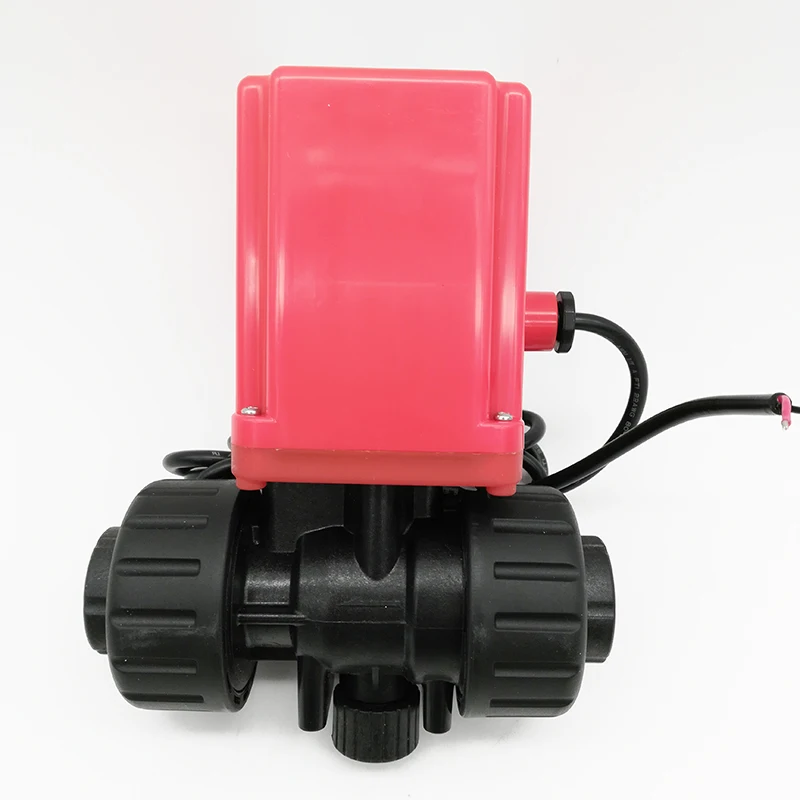

2 way G1/2" Normally closed PPO micro motorized ball valve 9-24VDC power off return ON/OFF 3s plastic electric valve

​Technical Parameter

Product size:   DN15

Bore Size:   15mm

Orifice : 14.5mm

Valve Body Material: PPO

Working Voltage: DC9-24V

Open/close Time: 3 Sec

Wiring Control Methods: 2 Wires

Maximum Working Pressure: 1.0MPa

Circulation Medium: Fluid, Air，Oil, acid-alkaline corrosive medium

Motor Power : 2W-4W

Actual power : 0.4-2.5W

Life time: 100,000 times

Actuator Material: Engineering Plastics

Sealing Material: EPDM & FKM

Working Temperature: 0°~60°

Manual Override: None

Protection Class: IP65

Two wires power reset wiring diagram

1. When SW closes, electric ball valve opens, and keeps the same position after putting in the place.

2. When SW opens, electric ball valve closes, and keeps the same position after putting in the place .

  Suitable for DC9-24V ball valve

Picture：​

Packing

one valve  + a carton
